Nissan Teana J32. Manual - part 135





AV

REAR VIEW CAMERA

AV-395

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Fine adjust the guiding line so that its position is aligned to the
correction line by pressing the up/down/left/right switches.
Pressing “ENTER” enable the camera control unit to memory
the adjusted guiding line position.

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

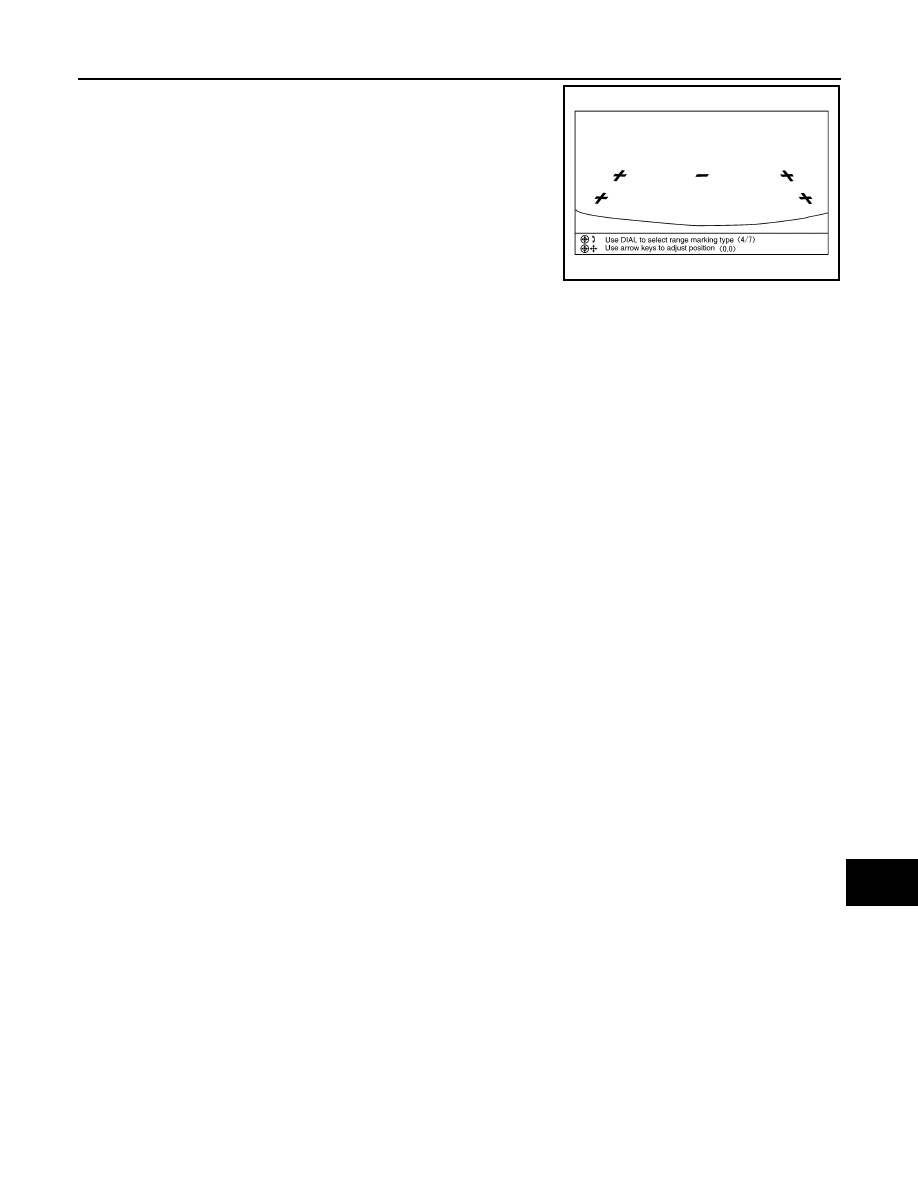

Selected pattern

: 7

Up/Down adjustment range

20 – 20

Left/Right adjustment range

20 – 20

SKIB3689E

AV-396

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000003838369

REMOVAL

Refer to

SR-9, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838370

REMOVAL

1.

Remove spiral cable.

2.

Remove steering angle sensor mounting screws.

3.

Remove steering angle sensor.

INSTALLATION

Installation is the reverse order of removal.

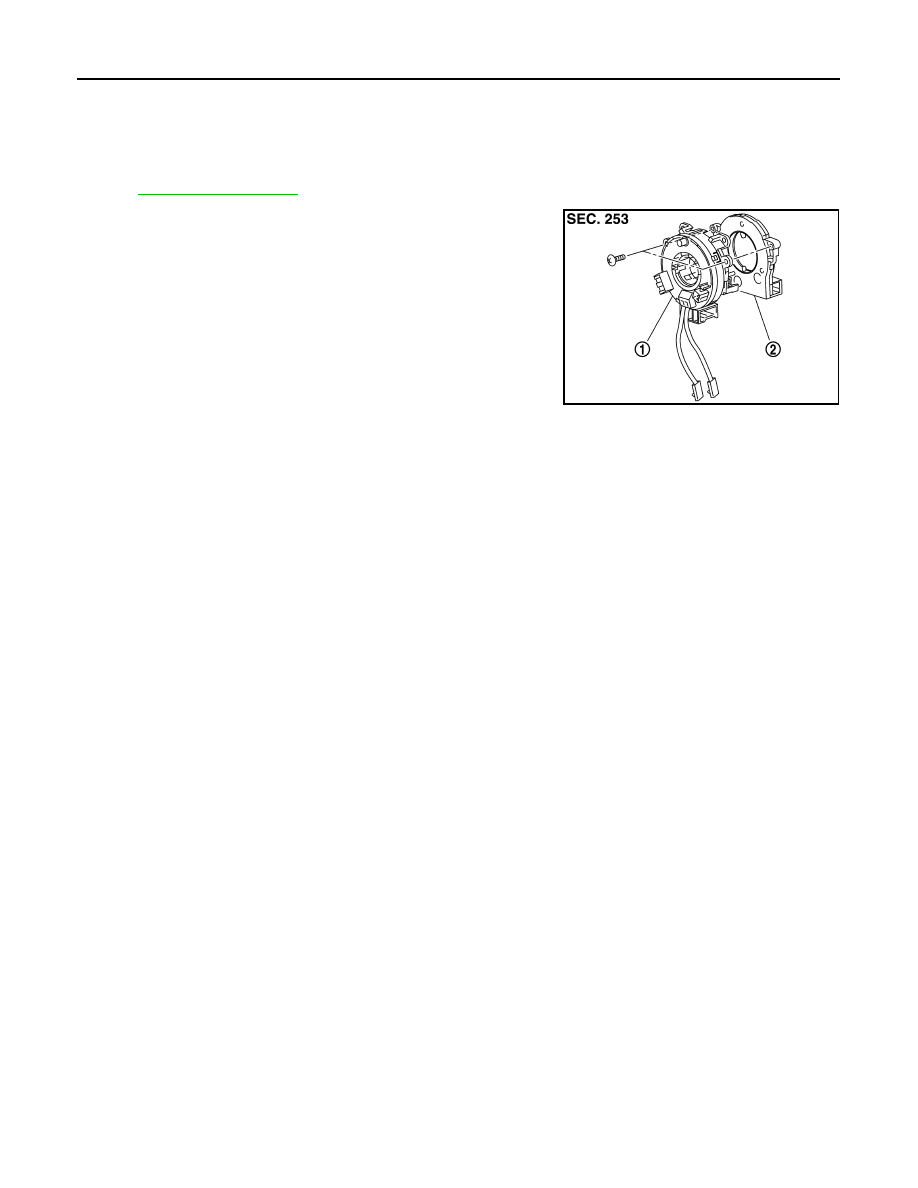

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV

ANTENNA FEEDER (RADIO)

AV-397

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER (RADIO)

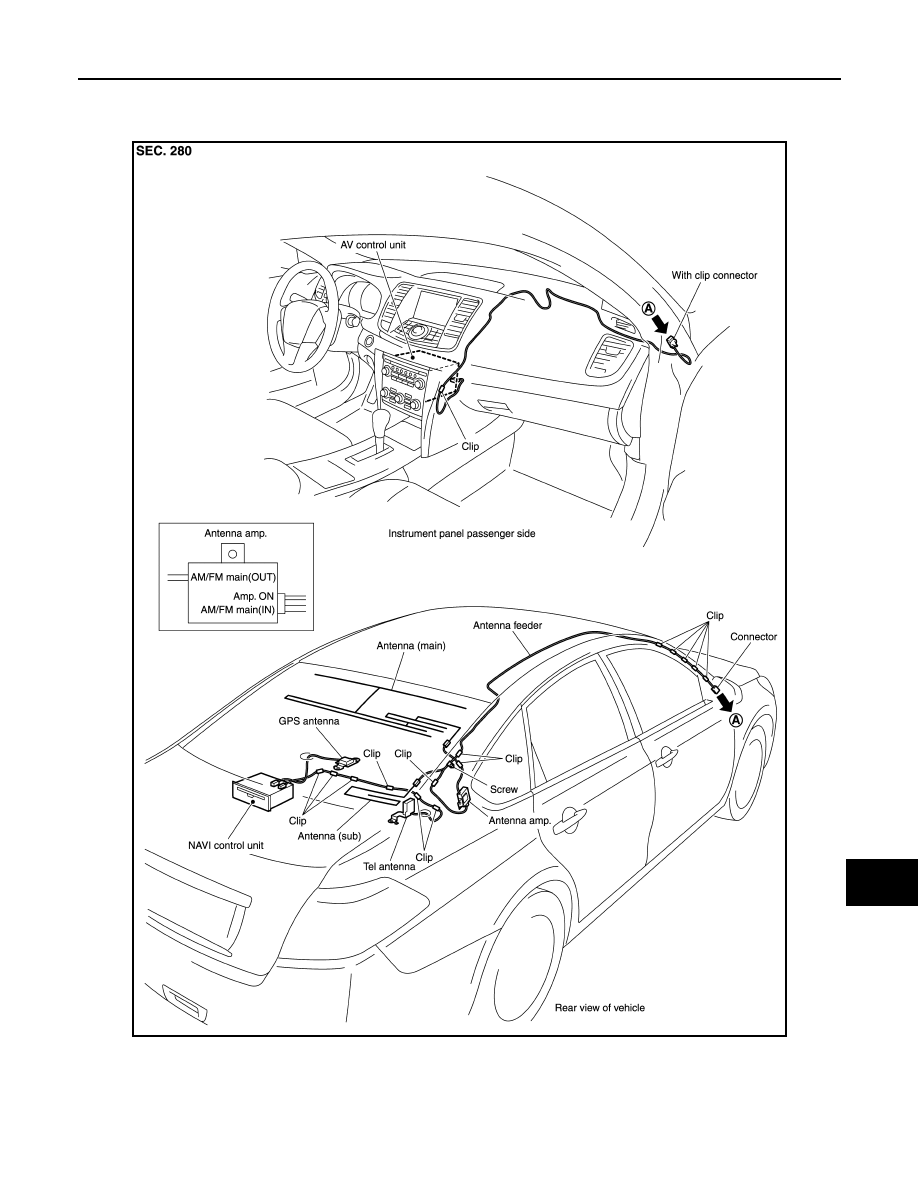

Harness Layout

INFOID:0000000003838371

JPNIA1054GB

AV-398

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003765818

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-434, "CONSULT-III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-521, "DTC Index"

.

• Reference 3··· Refer to

AV-640, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT-III

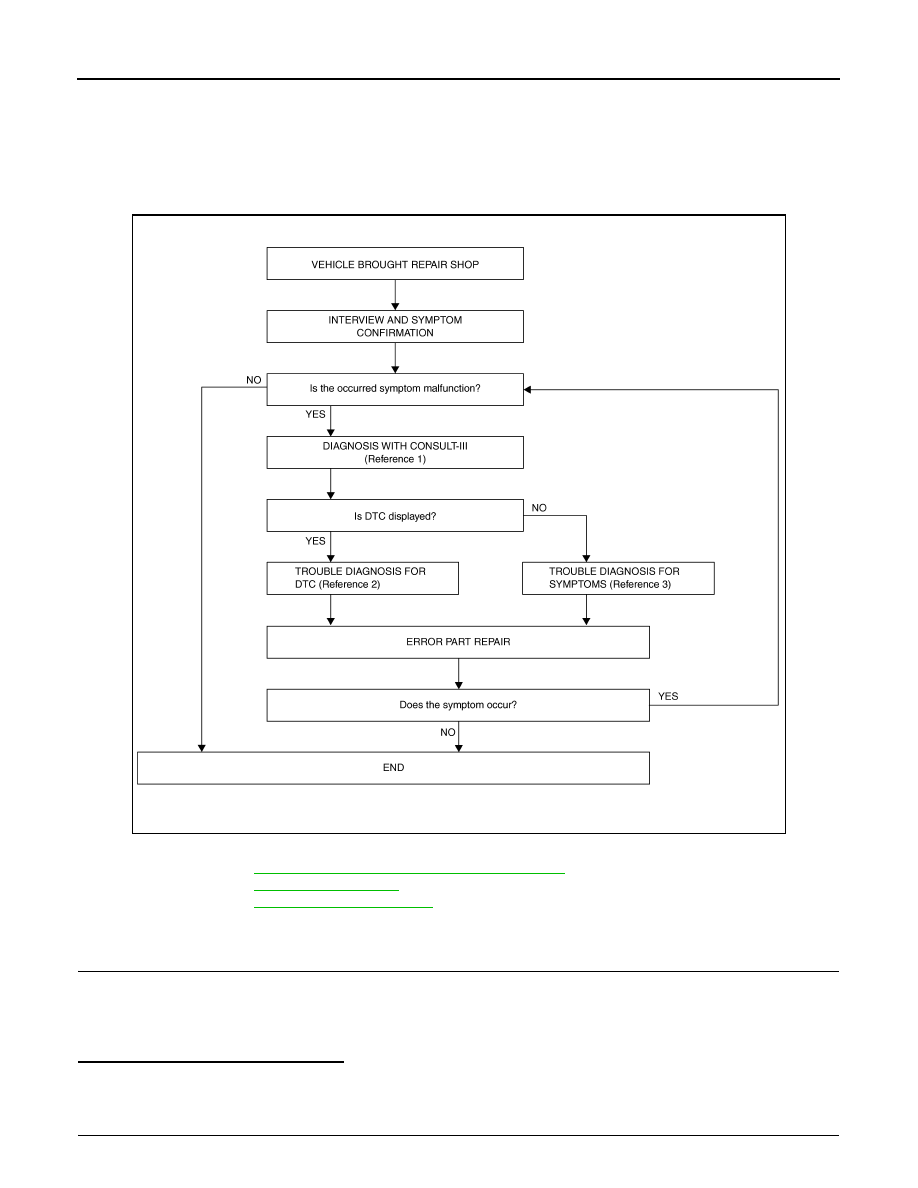

JSNIA0732GB
