DVD PLAYER

Exploded View

INFOID:0000000003838353

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838354

REMOVAL

1.

Remove grove box. Refer to

IP-12, "Removal and Installation"

2.

Remove DVD player mounting screw, disconnect the DVD player connector.

3.

Remove DVD player.

INSTALLATION

Installation is the reverse order of removal.

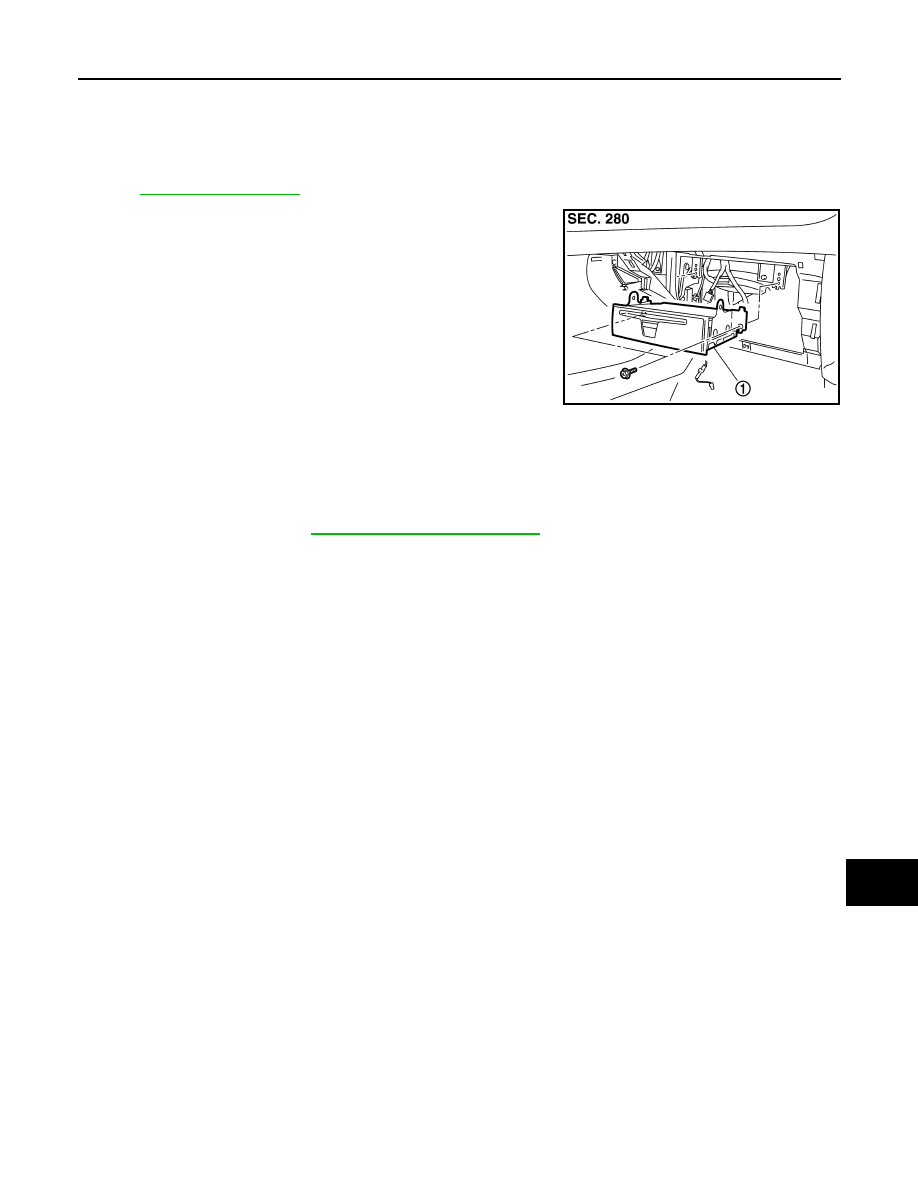

JPNIA1047ZZ

1.

DVD player

AV-392

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

AUXILIARY INPUT JACKS

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000003838355

REMOVAL

Refer to

IP-22, "Removal and Installation"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838356

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Exploded View"

.

2.

Remove auxiliary mounting screws.

3.

Remove auxiliary input jacks.

INSTALLATION

Installation is the reverse order of removal.

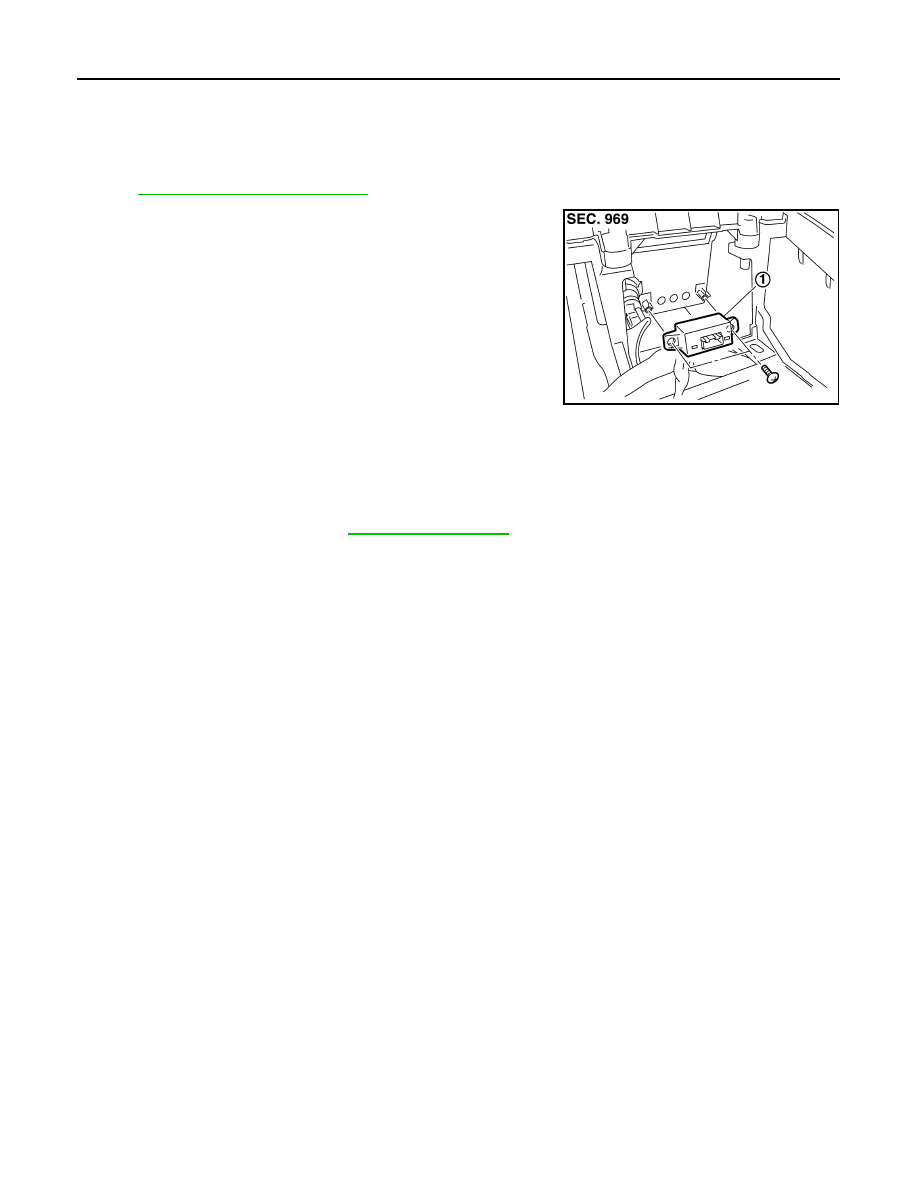

JPNIA1048ZZ

1.

Auxiliary input jacks

AV

CAMERA CONTROL UNIT

AV-393

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000003838365

Removal and Installation

INFOID:0000000003838366

REMOVAL

1.

Remove rear wheelhouse finisher RH. Refer to

INT-57, "Removal and Installation"

.

2.

Remove camera control unit mounting screws, disconnect the camera control unit connector.

3.

Remove camera control unit.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform predicted course line center position adjustment. Refer to

AV-187, "PREDICTED COURSE LINE

CENTER POSITION ADJUSTMENT : Special Repair Requirement"

.

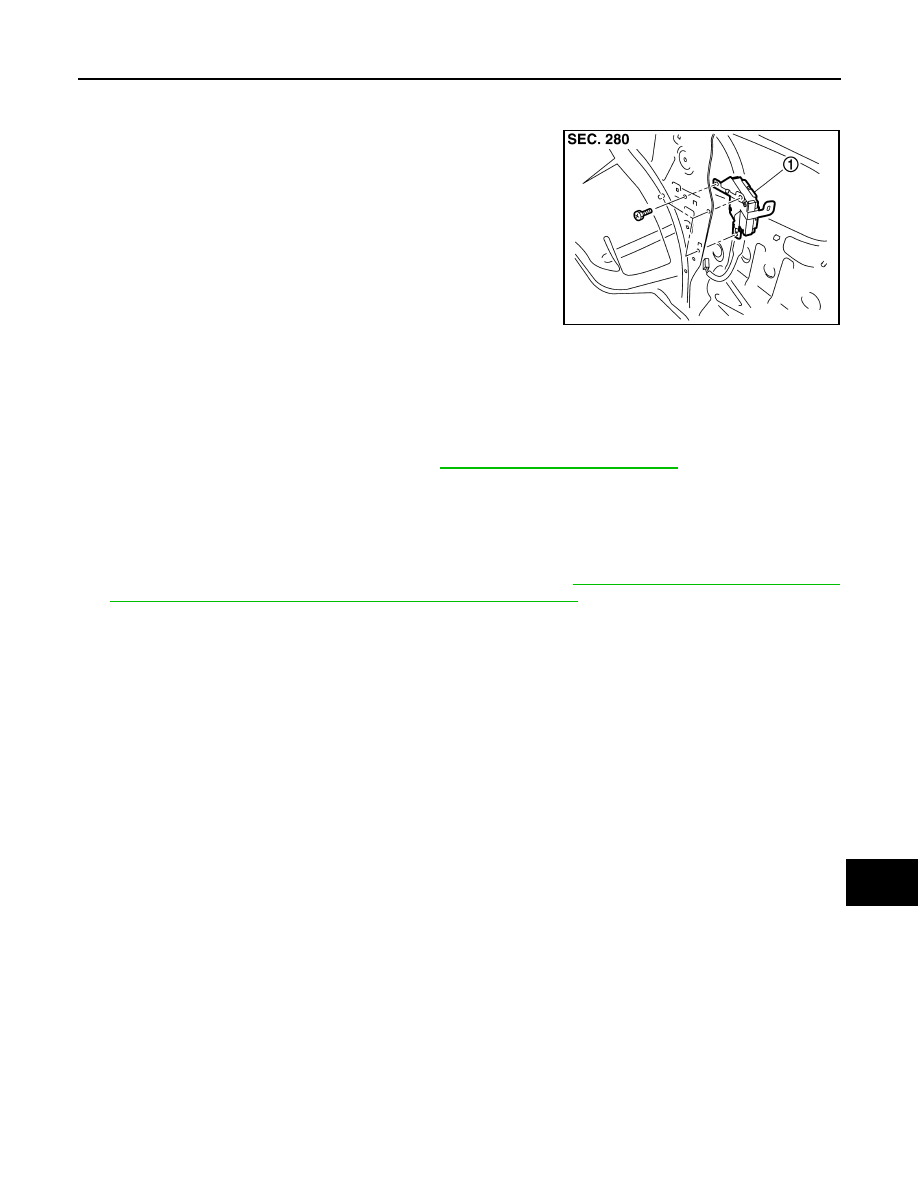

JPNIA1049ZZ

1.

Camera control unit

AV-394

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000003902723

DISASSEMBLY

Removal and Installation

INFOID:0000000003902724

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

INT-59, "Removal and Installation"

.

2.

Remove trunk lid finisher. Refer to

EXT-38, "Removal and Installation"

.

3.

Remove rear view camera mounting clip, disconnect the rear view camera connector.

4.

Remove rear view camera.

INSTALLATION

1.

Installation is the reverse order of removal.

Adjustment

INFOID:0000000003970795

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.
1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

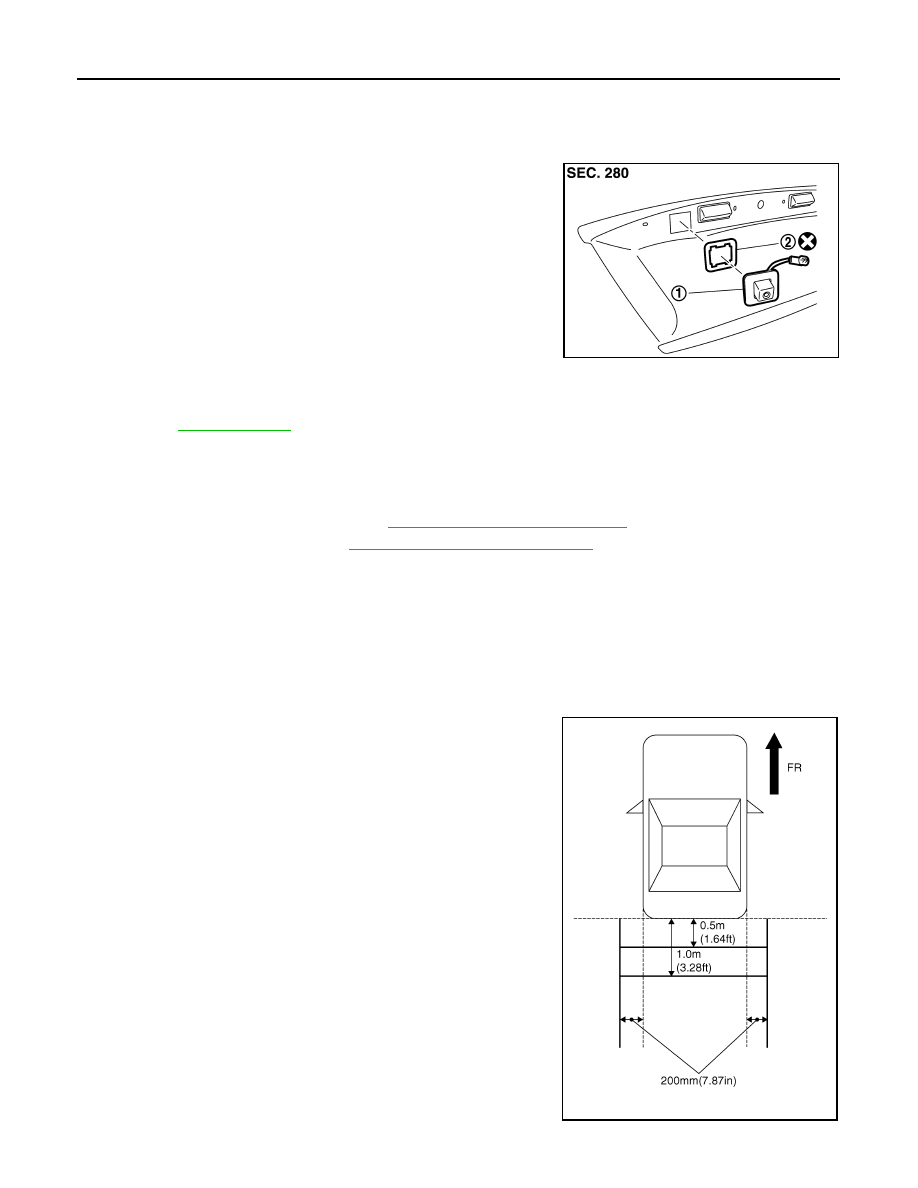

JPNIA1050ZZ

1.

Rear view camera

2.

Seal

Refer to

GI-4, "Components"

 for symbols in the figure.
