Nissan Teana J32. Manual - part 133





AV

ANTENNA AMP.

AV-387

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

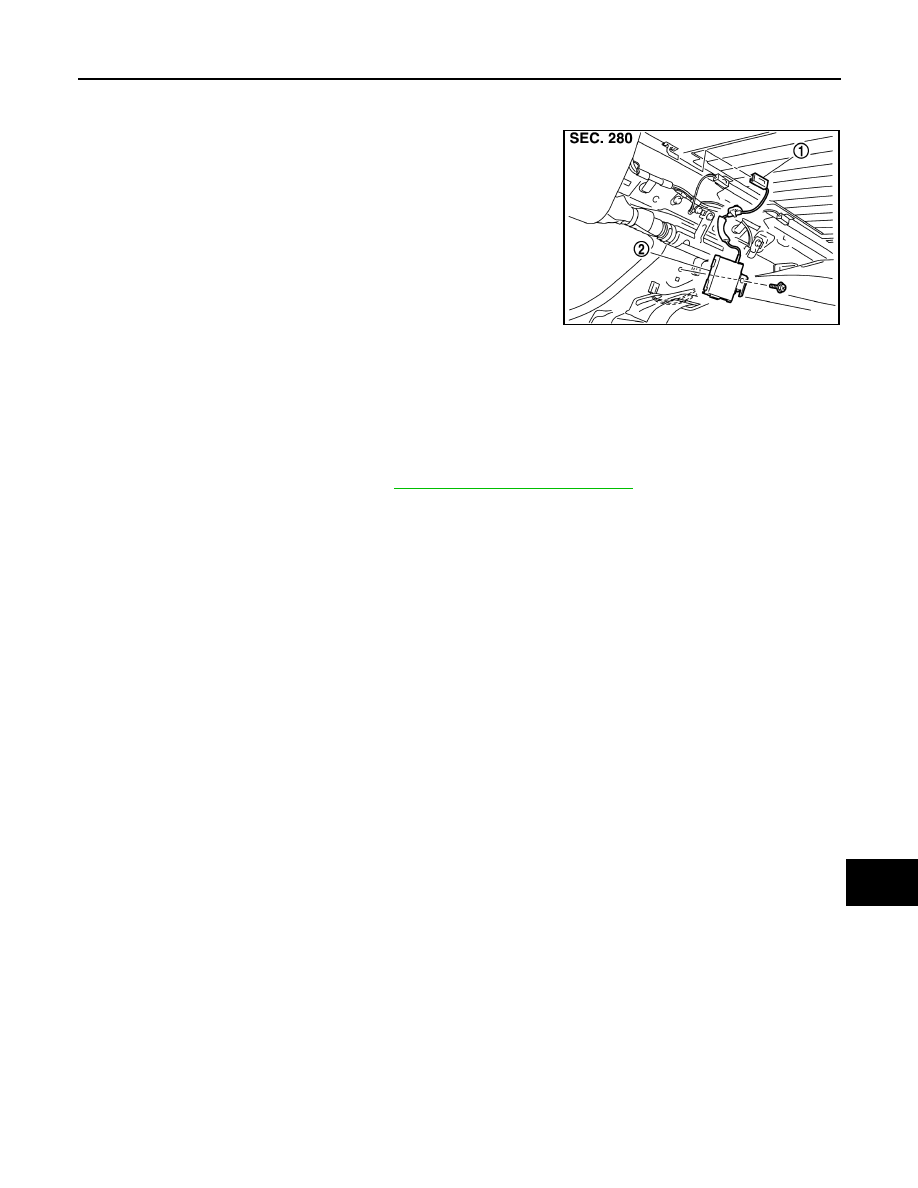

ANTENNA AMP.

Exploded View

INFOID:0000000003838345

Removal and Installation

INFOID:0000000003838346

REMOVAL

1.

Remove rear side pillar finisher. Refer to

INT-39, "Removal and Installation"

2.

Disconnect antenna feeder connector and clip.

3.

Remove antenna amp. mounting nut, disconnect the antenna amp. connector.

4.

Remove antenna amp.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1032ZZ

1.

AM-FM main connector

2.

Antenna amp.

AV-388

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000003838347

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838348

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove multifunction switch mounting screws.

3.

Remove multifunction switch.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1043ZZ

1.

Cluster lid D

2.

Multifunction switch

AV

PRESET SWITCH

AV-389

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

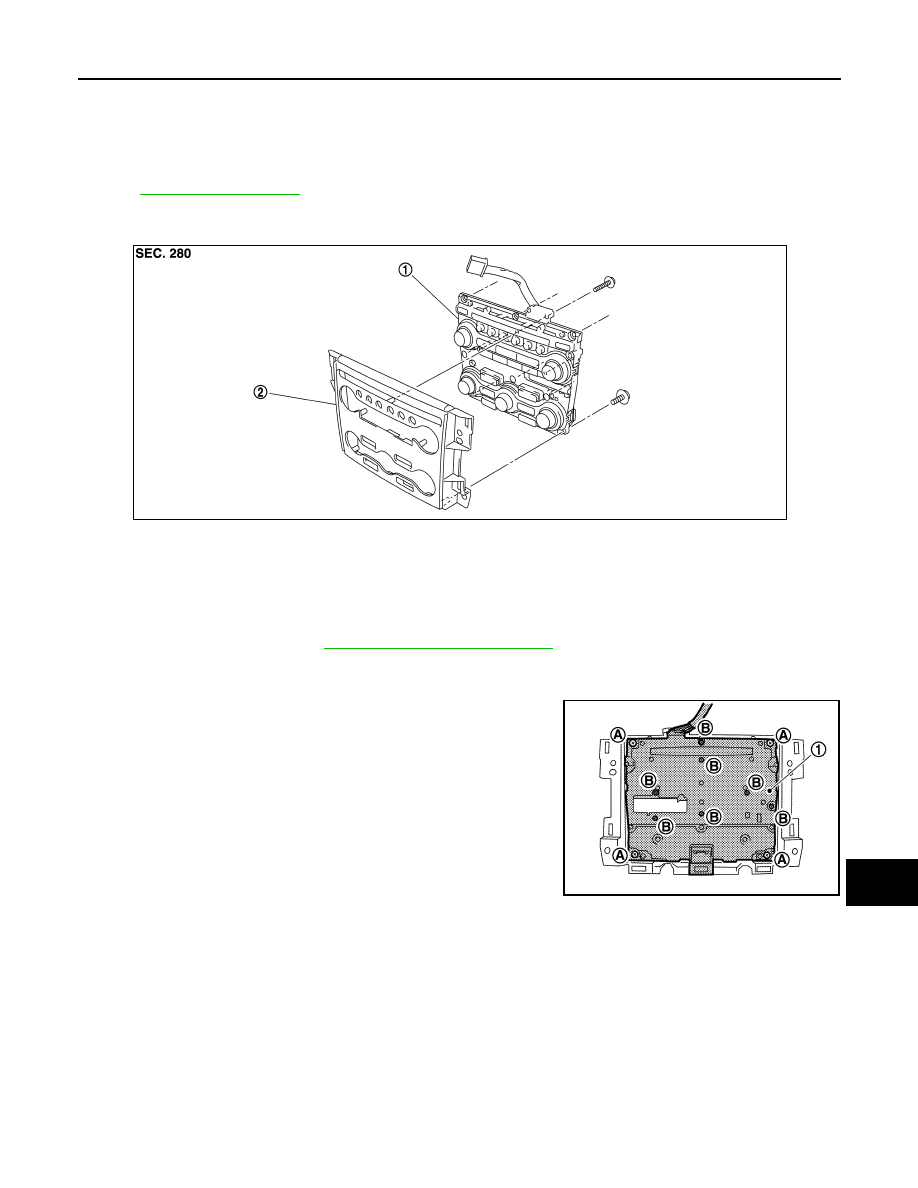

PRESET SWITCH

Exploded View

INFOID:0000000003838349

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838350

REMOVAL

1.

Remove cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2.

Remove preset switch mounting screws.

3.

Remove preset switch.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Preset switch

2.

Cluster lid C

JPNIA1044ZZ

1.

Preset switch

A.

Screw

B.

Screw

JPNIA1045ZZ

AV-390

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR CONTROL SWITCH

REAR CONTROL SWITCH

Exploded View

INFOID:0000000003838351

REMOVAL

Refer to

SE-98, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838352

REMOVAL

1.

Remove rear control switch, stretching pawls of armrest assembly.

2.

Disconnect rear control switch connector.

3.

Remove rear control switch.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1046ZZ

1.

Rear control switch

A.

Clip
