DISPLAY UNIT

Exploded View

INFOID:0000000003838329

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003838330

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit mounting screws, and then disconnect the display unit connector.

3.

Remove display unit.

INSTALLATION

Installation is the reverse order of removal.

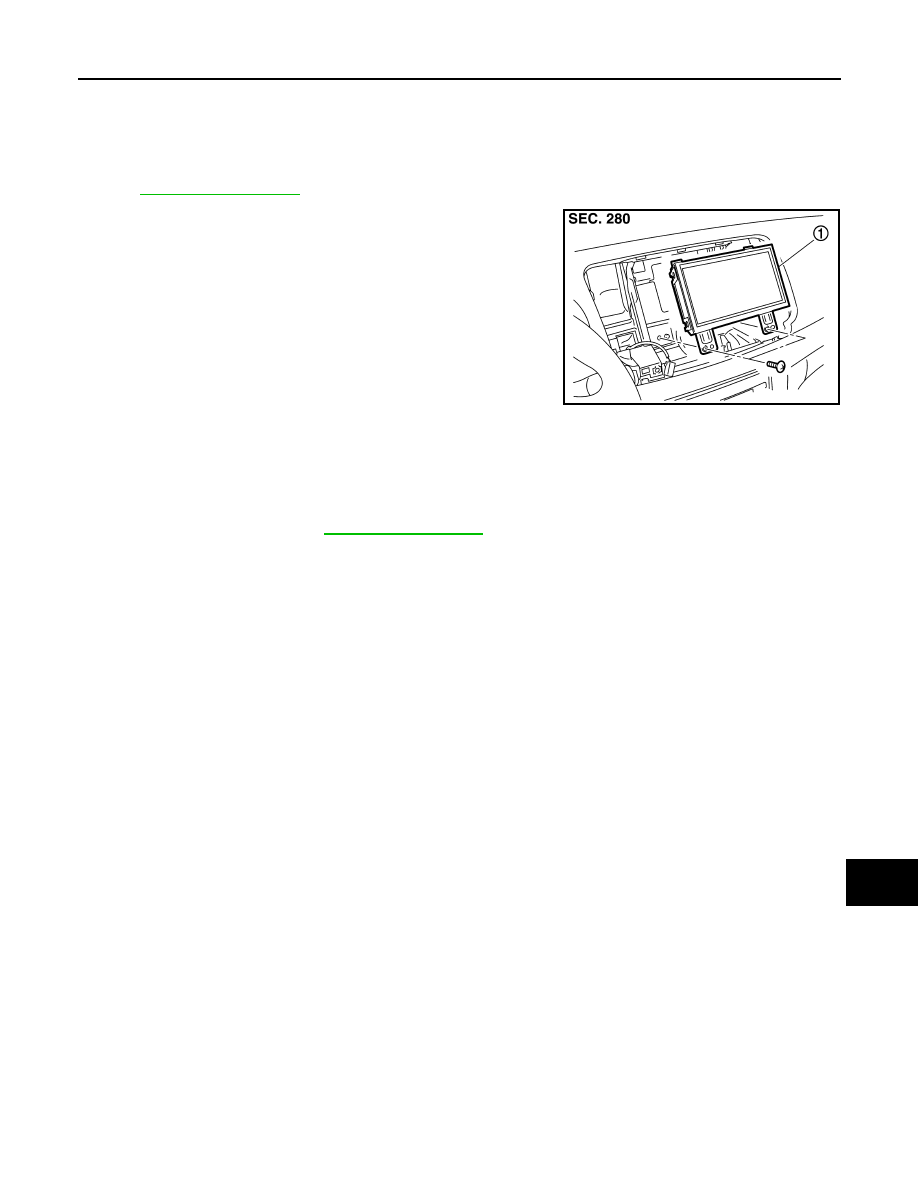

JPNIA1035ZZ

1.

Display unit

AV-380

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000003838331

Removal and Installation

INFOID:0000000003838332

REMOVAL

1.

Remove front door finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-33, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove front door speaker mounting bolts, disconnect the front door speaker connector.

3.

Remove front door speaker.

INSTALLATION

Installation is the reverse order of removal.

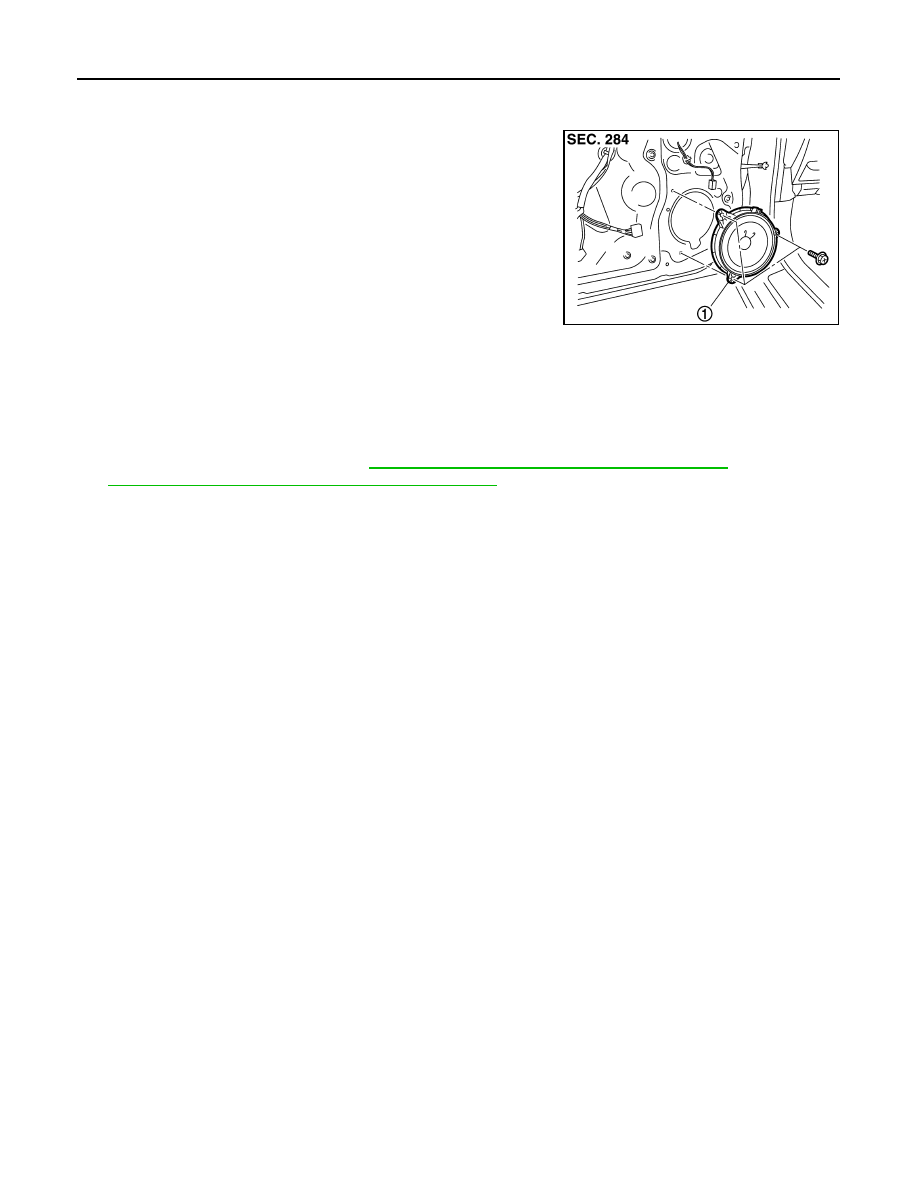

JPNIA1036ZZ

1.

Front door speaker

AV

REAR DOOR SPEAKER

AV-381

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Exploded View

INFOID:0000000003838333

Removal and Installation

INFOID:0000000003838334

REMOVAL

1.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

2.

Remove rear door speaker mounting bolts, disconnect the rear door speaker connector.

3.

Remove rear door speaker.

INSTALLATION

Installation is the reverse order of removal.

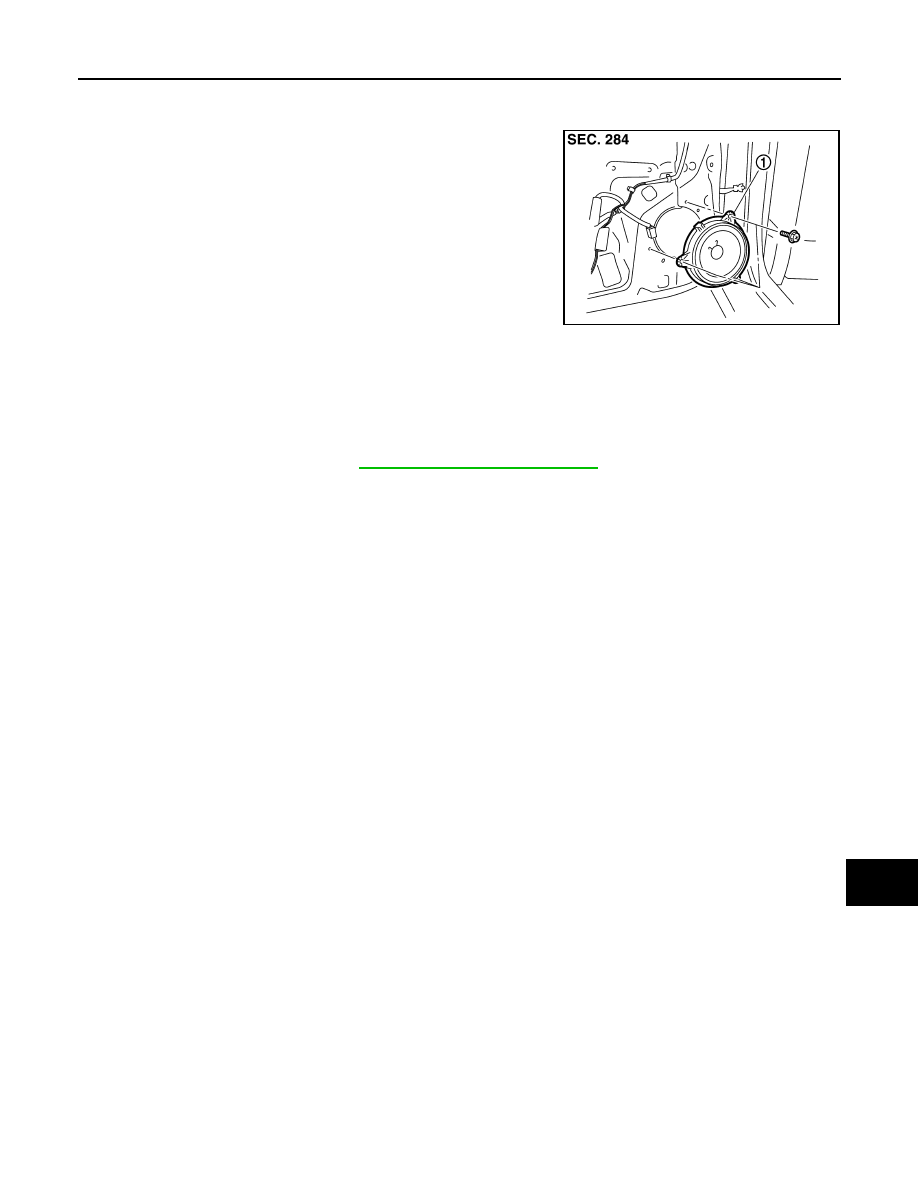

JPNIA1037ZZ

1.

Rear door speaker

AV-382

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

FRONT SQUAWKER

FRONT SQUAWKER

Exploded View

INFOID:0000000003838335

Removal and Installation

INFOID:0000000003838336

REMOVAL

1.

Remove the speaker grille with squawker. Refer to

IP-11, "Exploded View"

.

2.

Remove front squawker mounting screws, lift up the front squawker and disconnect front squawker con-
nector.

3.

Remove front squawker.

INSTALLATION

Installation is the reverse order of removal.

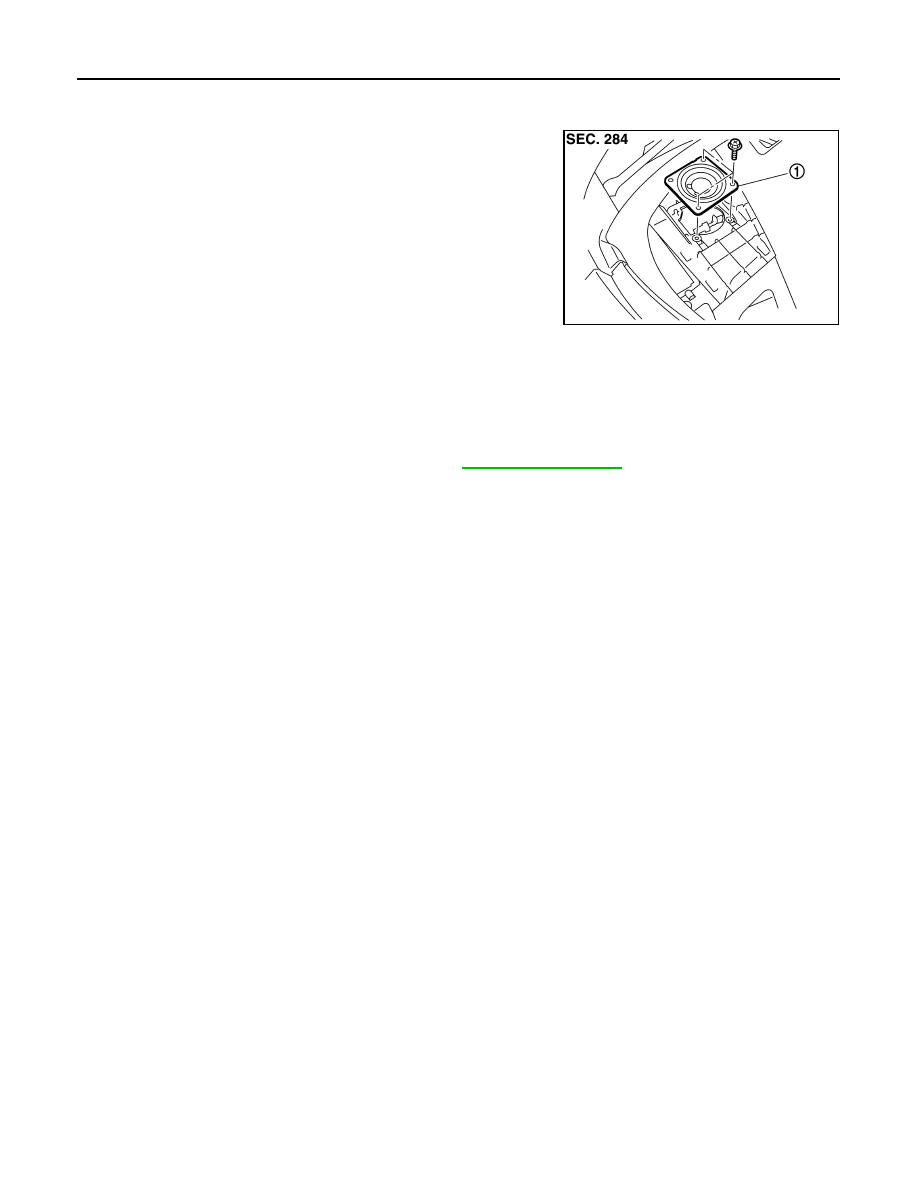

JPNIA1038ZZ

1.

Front squawker
