Nissan Teana J32. Manual - part 1232

VTL-114

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

2.

Remove the rear foot duct 1 (right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

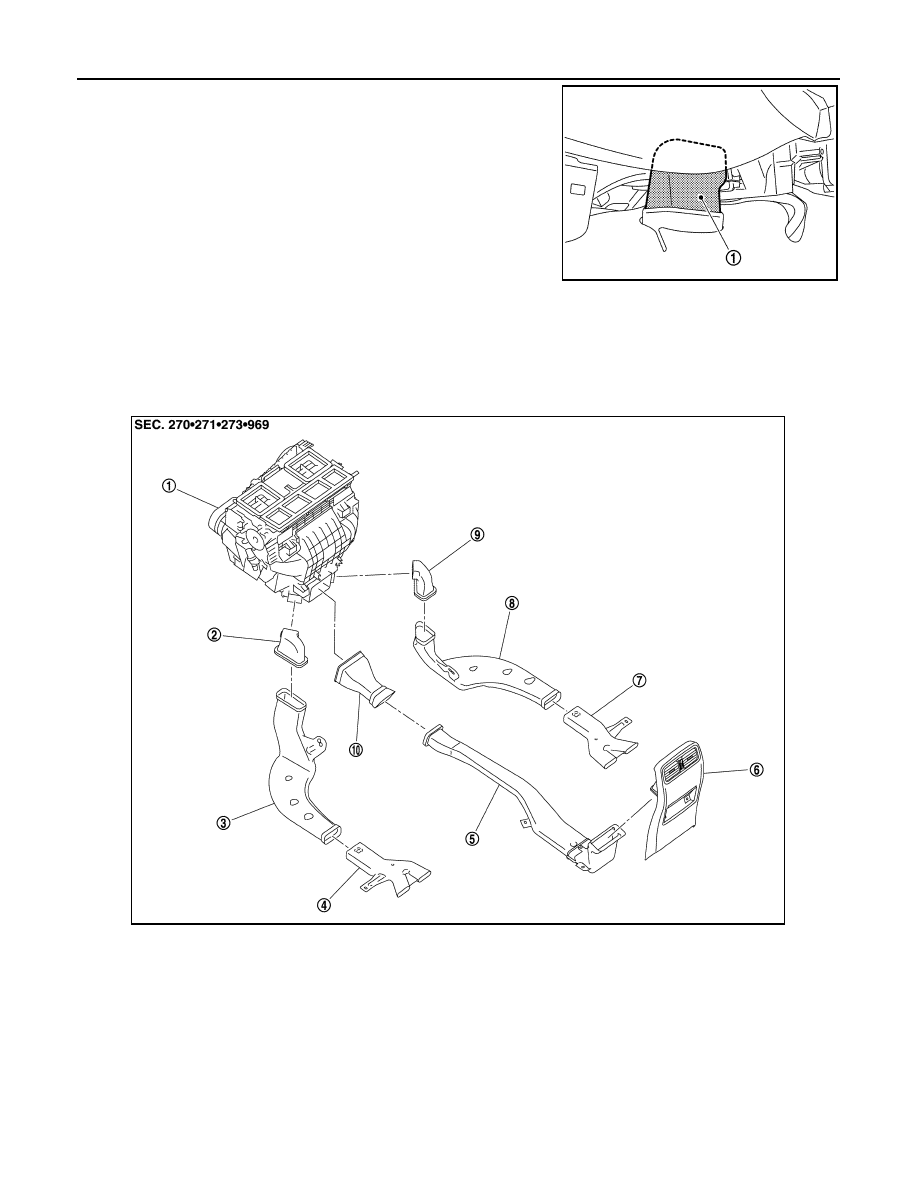

REAR FOOT DUCT 2

REAR FOOT DUCT 2 : Exploded View

INFOID:0000000003894544

REAR FOOT DUCT 2 : Removal and Installation

INFOID:0000000003894545

REMOVAL

Driver side

JPIIA0939ZZ

1.

Heater & cooling unit assembly

2.

Rear foot duct 1 (left)

3.

Rear foot duct 2 (left)

4.

Rear foot duct 3 (left)

5.

Rear ventilator duct 2

6.

Console rear cover (Rear
ventilator grille)

7.

Rear foot duct 3 (right)

8.

Rear foot duct 2 (right)

9.

Rear foot duct 1 (right)

10.

Rear ventilator duct 1

JPIIA0935ZZ

DUCT AND GRILLE

VTL-115

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

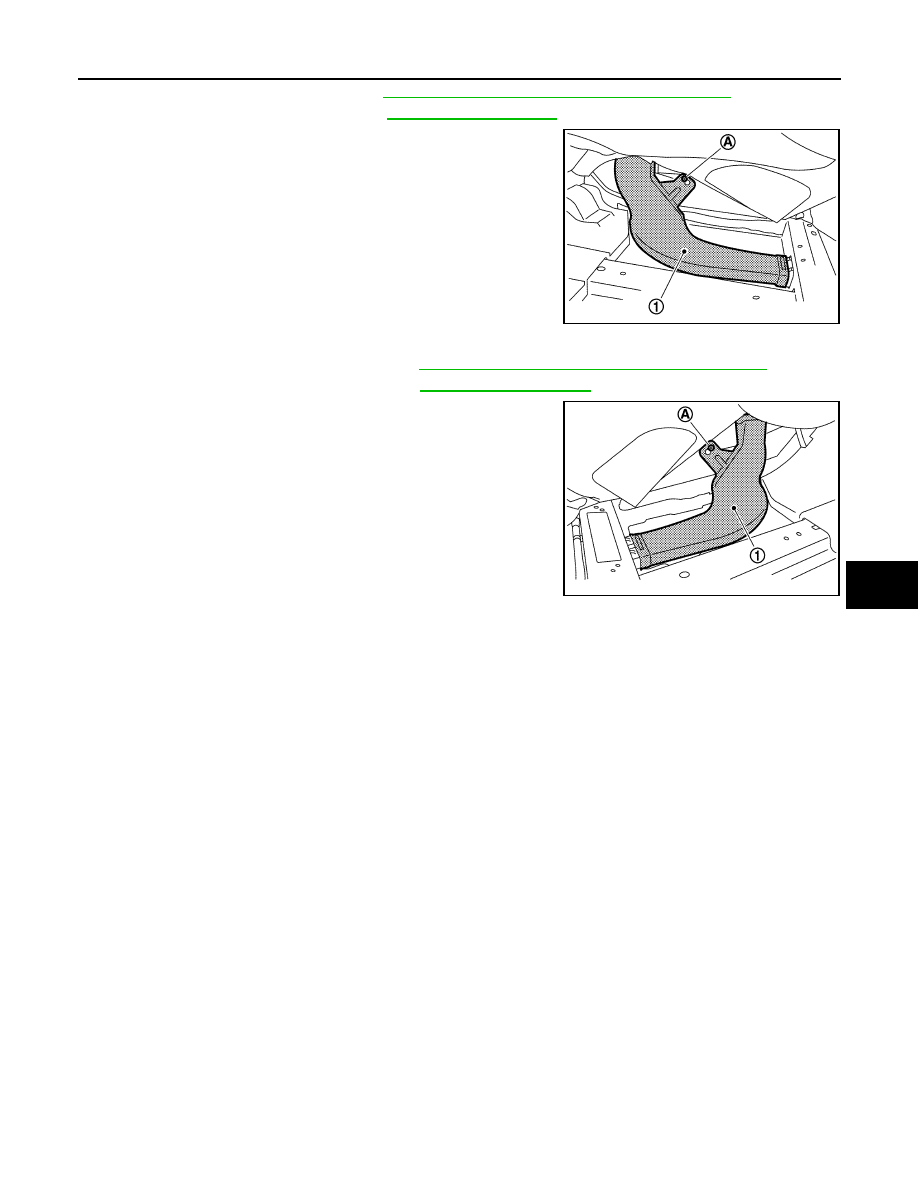

1.

Remove rear foot duct 1 (left). Refer to

VTL-113, "REAR FOOT DUCT 1 : Exploded View"

.

2.

Pull up driver side floor carpet. Refer to

INT-47, "Exploded View"

.

3.

Remove mounting clip (A), and then remove rear foot duct 2
(left) (1).

Passenger side

1.

Remove the rear foot duct 1 (right). Refer to

VTL-113, "REAR FOOT DUCT 1 : Exploded View"

.

2.

Pull up passenger side floor carpet. Refer to

INT-47, "Exploded View"

.

3.

Remove mounting clip (A), and then remove rear foot duct 2
(right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR FOOT DUCT 3

JPIIA0940ZZ

JPIIA0941ZZ

VTL-116

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

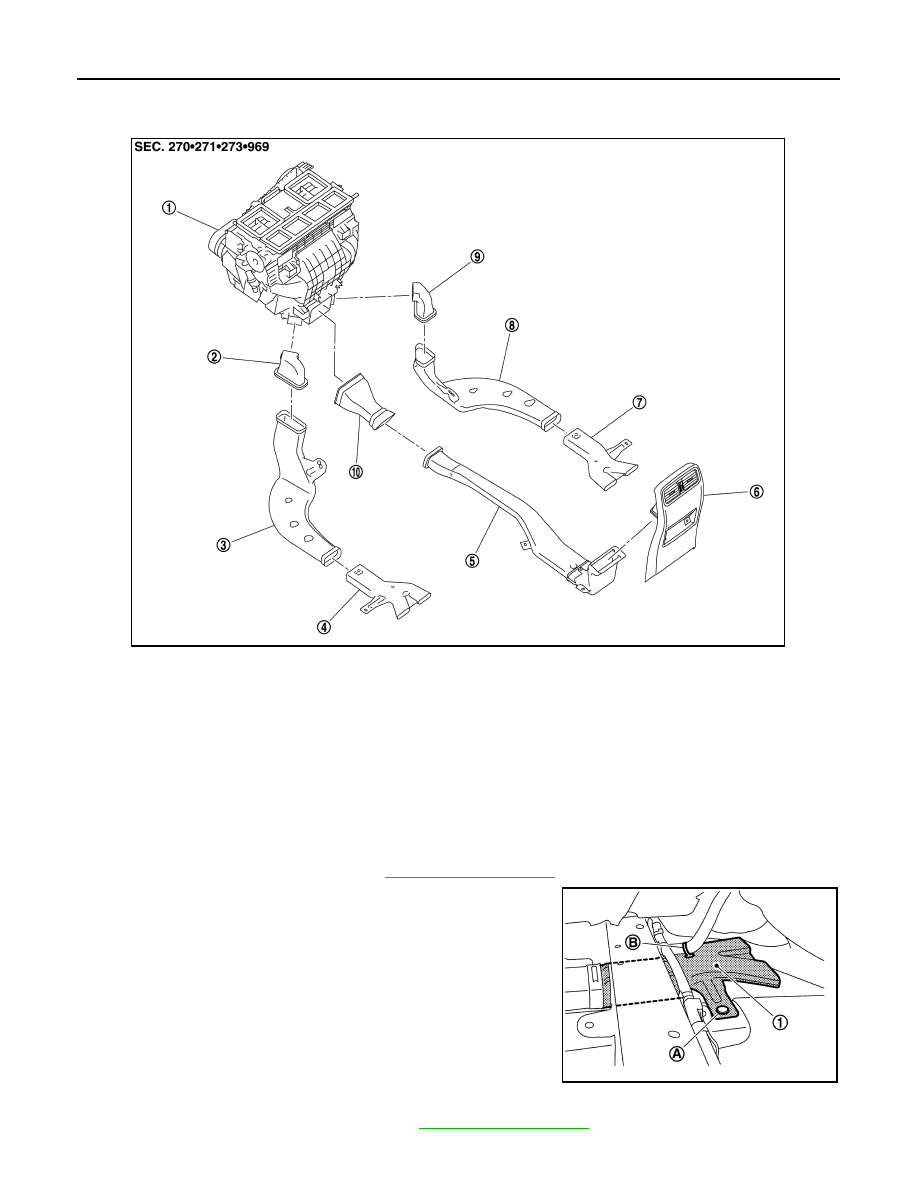

REAR FOOT DUCT 3 : Exploded View

INFOID:0000000003894546

REAR FOOT DUCT 3 : Removal and Installation

INFOID:0000000003894547

REMOVAL

Driver side

1.

Pull up driver side floor carpet. Refer to

INT-47, "Exploded View"

.

2.

Remove mounting clip (A) and harness clip (B), and then
remove rear foot duct 3 (left) (1).

Passenger side

1.

Pull up passenger side floor carpet. Refer to

INT-47, "Exploded View"

.

1.

Heater & cooling unit assembly

2.

Rear foot duct 1 (left)

3.

Rear foot duct 2 (left)

4.

Rear foot duct 3 (left)

5.

Rear ventilator duct 2

6.

Console rear cover (Rear
ventilator grille)

7.

Rear foot duct 3 (right)

8.

Rear foot duct 2 (right)

9.

Rear foot duct 1 (right)

10.

Rear ventilator duct 1

JPIIA0935ZZ

JPIIA0942ZZ

DUCT AND GRILLE

VTL-117

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

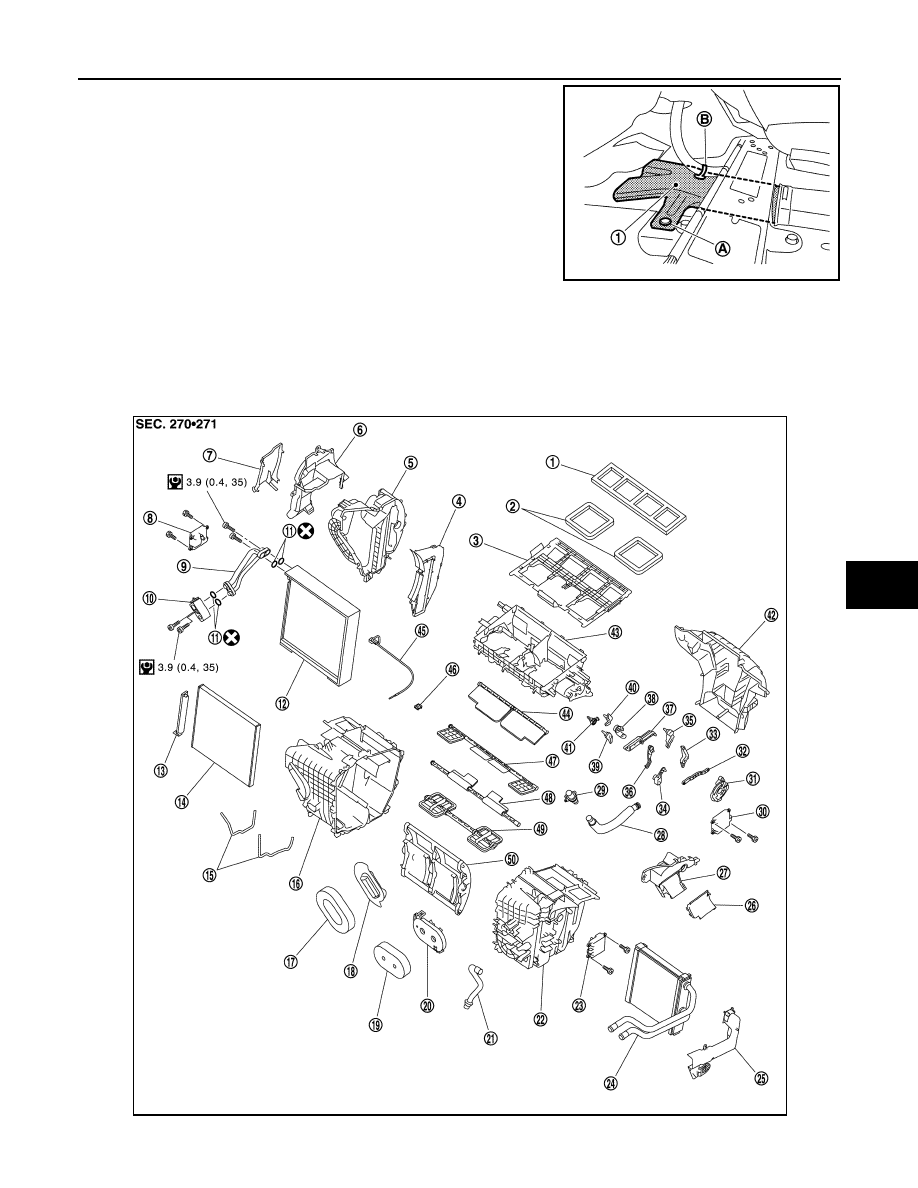

2.

Remove mounting clip (A) and harness clip (B), and then
remove rear foot duct 3 (right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

FOOT DUCT

FOOT DUCT : Exploded View

INFOID:0000000003894548

JPIIA0943ZZ

JPIIA0906GB
