Nissan Teana J32. Manual - part 1224

VTL-82

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

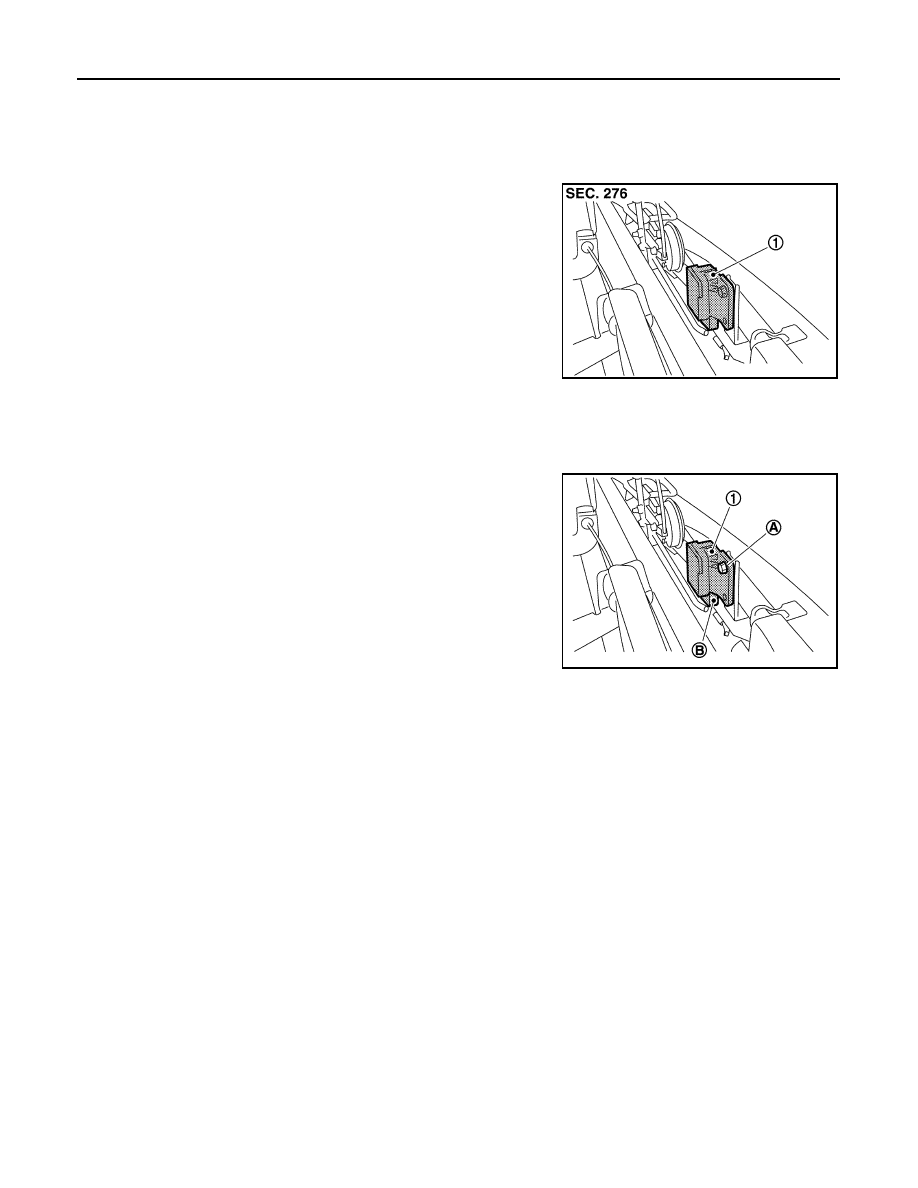

GAS SENSOR

GAS SENSOR

WITH INTELLIGENT AIR CONDITIONER SYSTEM

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Exploded View

INFOID:0000000003894490

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and Installation

INFOID:0000000003894491

REMOVAL

1.

Remove mounting bolt (A), and then remove gas sensor (1).

2.

Disconnect gas sensor connector (B).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Gas sensor

JPIIA0900ZZ

JPIIA0901ZZ

IN-VEHICLE SENSOR

VTL-83

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

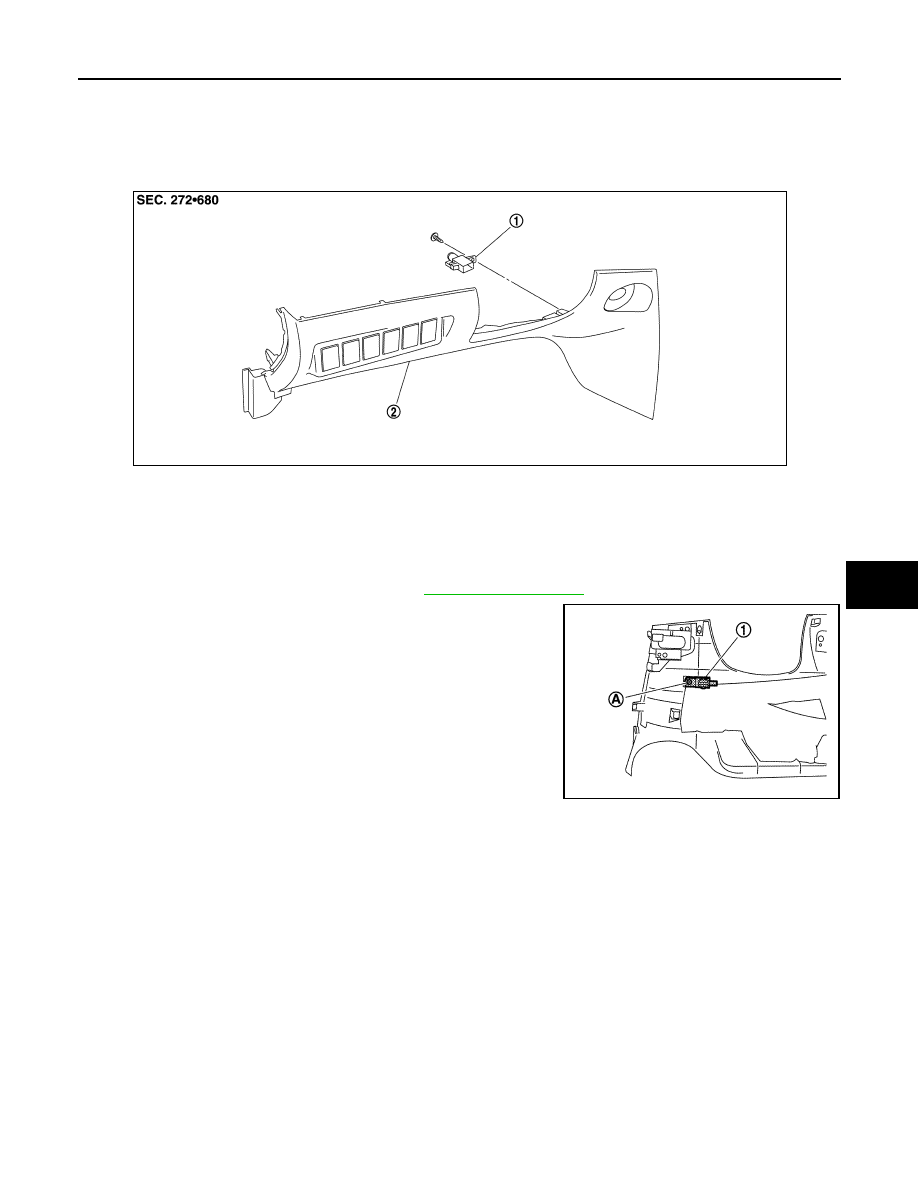

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000003894492

Removal and Installation

INFOID:0000000003894493

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Remove mounting screw (A), and then remove in-vehicle sensor
(1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

In-vehicle sensor

2.

Instrument lower panel LH

JPIIA0902ZZ

JPIIA0903ZZ

VTL-84

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

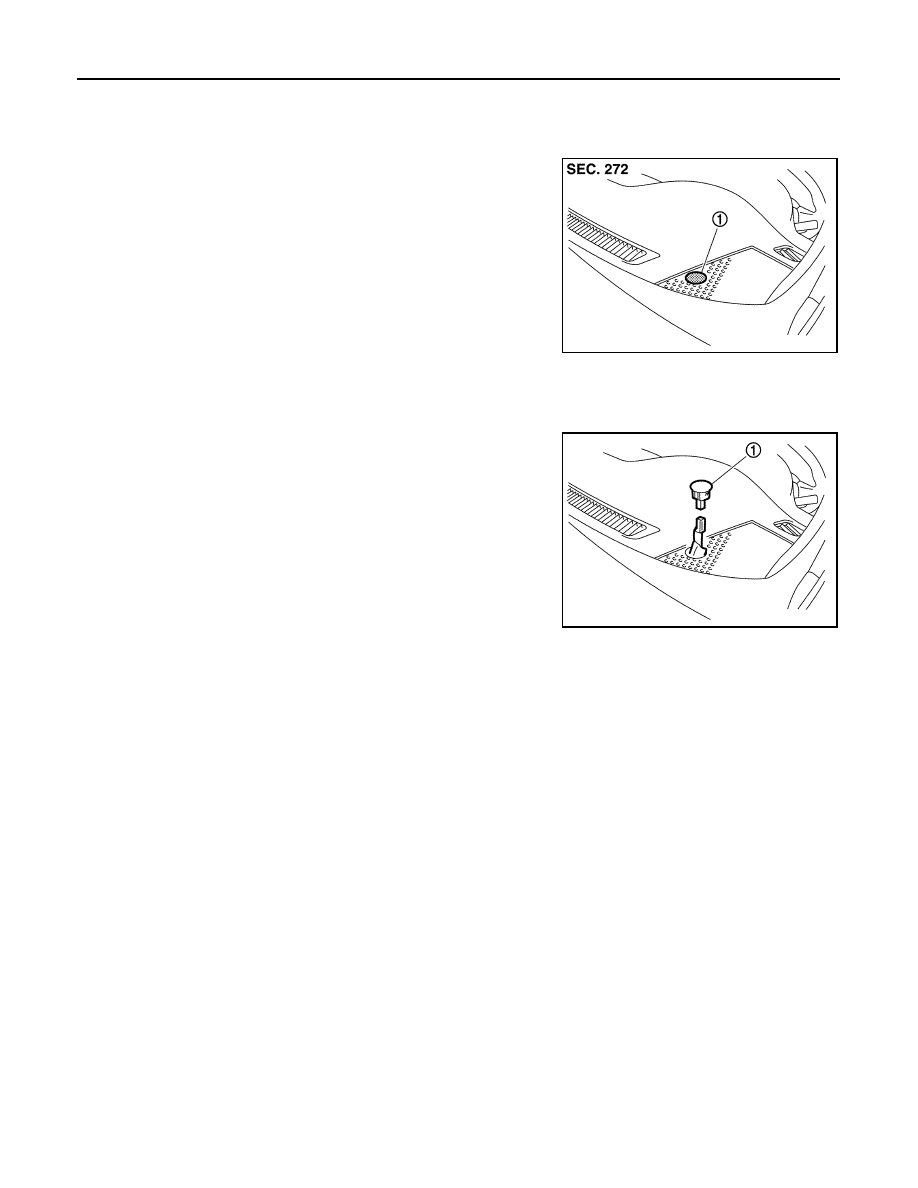

SUNLOAD SENSOR

SUNLOAD SENSOR

Exploded View

INFOID:0000000003894494

Removal and Installation

INFOID:0000000003894495

REMOVAL

1.

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Sunload sensor

JPIIA0904ZZ

JPIIA0905ZZ

INTAKE SENSOR

VTL-85

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

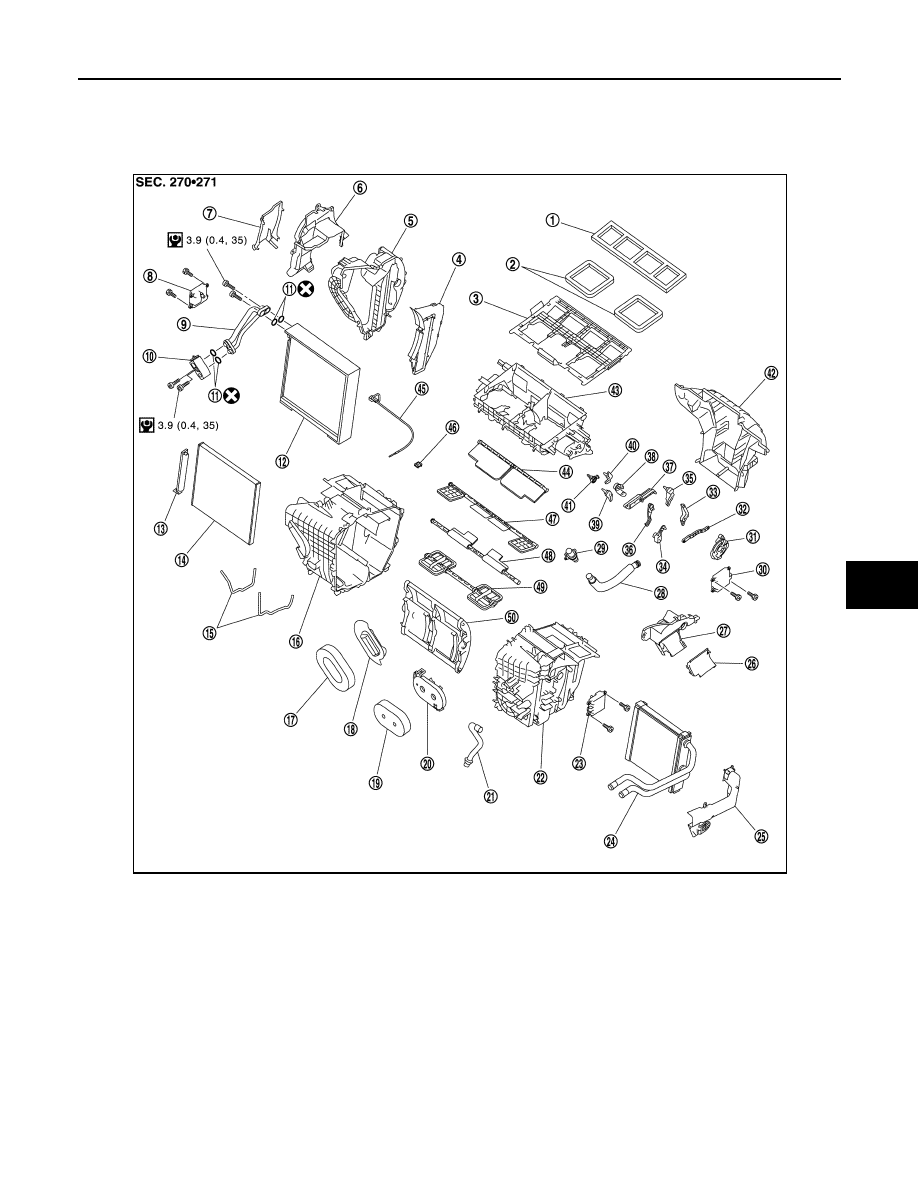

INTAKE SENSOR

Exploded View

INFOID:0000000003894496

1.

Ventilator seal

2.

Defroster seal

3.

Distributor upper case

4.

Center case

5.

Heater & cooling unit case cover

6.

Foot duct 1 (right)

7.

Foot duct 2 (right)

8.

Air mix door motor (passenger side)

9.

Evaporator pipe assembly

10.

Expansion valve

11.

O-ring

12. Evaporator

13.

Filter cover

14.

Air conditioner filter

15. Case packing

16.

Heater & cooling unit case (right)

17.

Cooler pipe grommet

18. Grommet

19.

Heater pipe grommet

20.

Heater pipe support

21. Drain hose

22.

Heater & cooling unit case (left)

23.

Air mix door motor (driver side)

24. Heater core

25.

Heater pipe cover

26.

Foot duct 2 (left)

27. Foot duct 1 (left)

28.

Aspirator hose

29.

Aspirator

30. Mode door motor

31.

Main link

32.

Rod link

33. Ventilator door link

34.

Mode door lever

35.

Ventilator door lever

36. Max. cool door link

JPIIA0906GB
