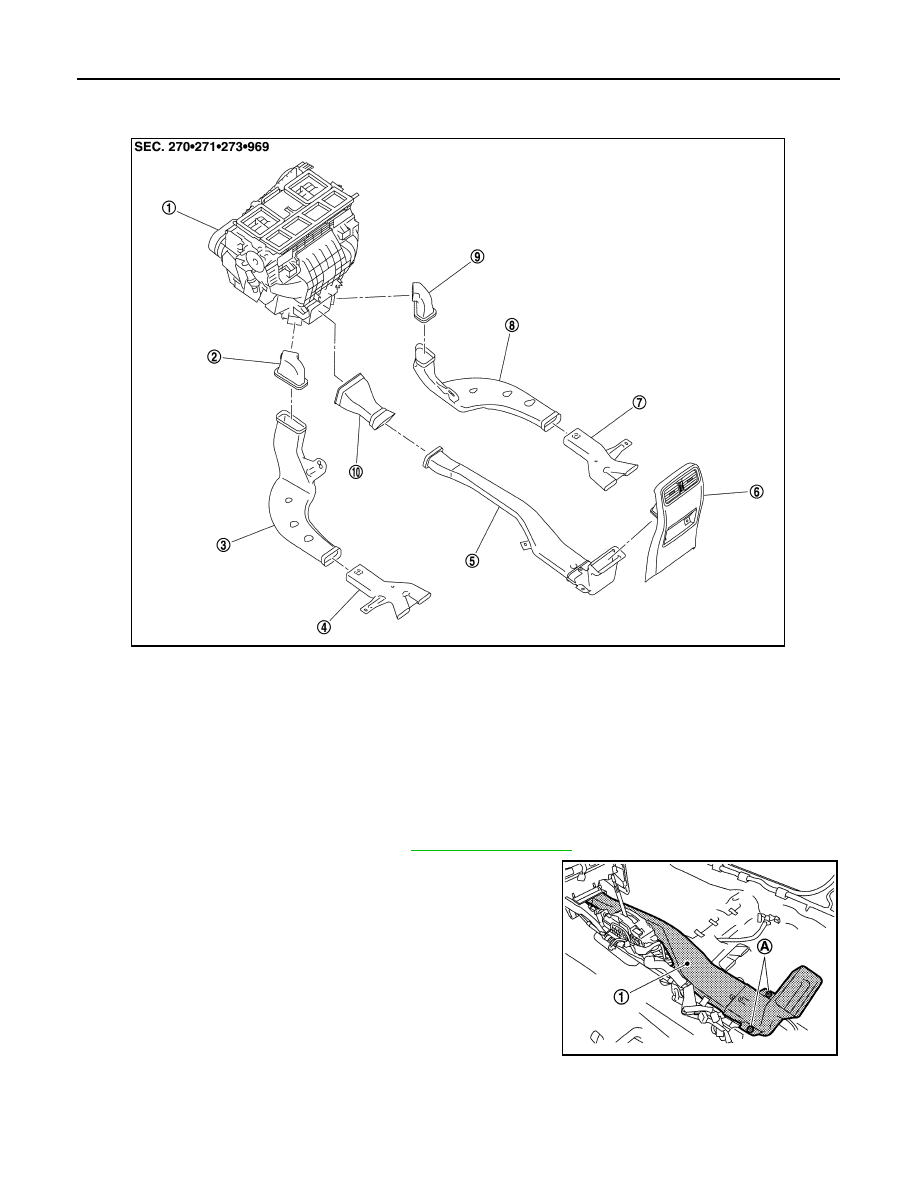

VTL-54

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

REAR VENTILATOR DUCT 2 : Exploded View

INFOID:0000000003774703

REAR VENTILATOR DUCT 2 : Removal and Installation

INFOID:0000000003774704

REMOVAL

1.

Remove center console assembly. Refer to

IP-22, "Exploded View"

.

2.

Remove screws (A), and then remove rear ventilator duct 2 (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR FOOT DUCT 1

1.

Heater & cooling unit assembly

2.

Rear foot duct 1 (left)

3.

Rear foot duct 2 (left)

4.

Rear foot duct 3 (left)

5.

Rear ventilator duct 2

6.

Console rear cover (Rear
ventilator grille)

7.

Rear foot duct 3 (right)

8.

Rear foot duct 2 (right)

9.

Rear foot duct 1 (right)

10.

Rear ventilator duct 1

JPIIA0935ZZ

JPIIA0937ZZ

DUCT AND GRILLE

VTL-55

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

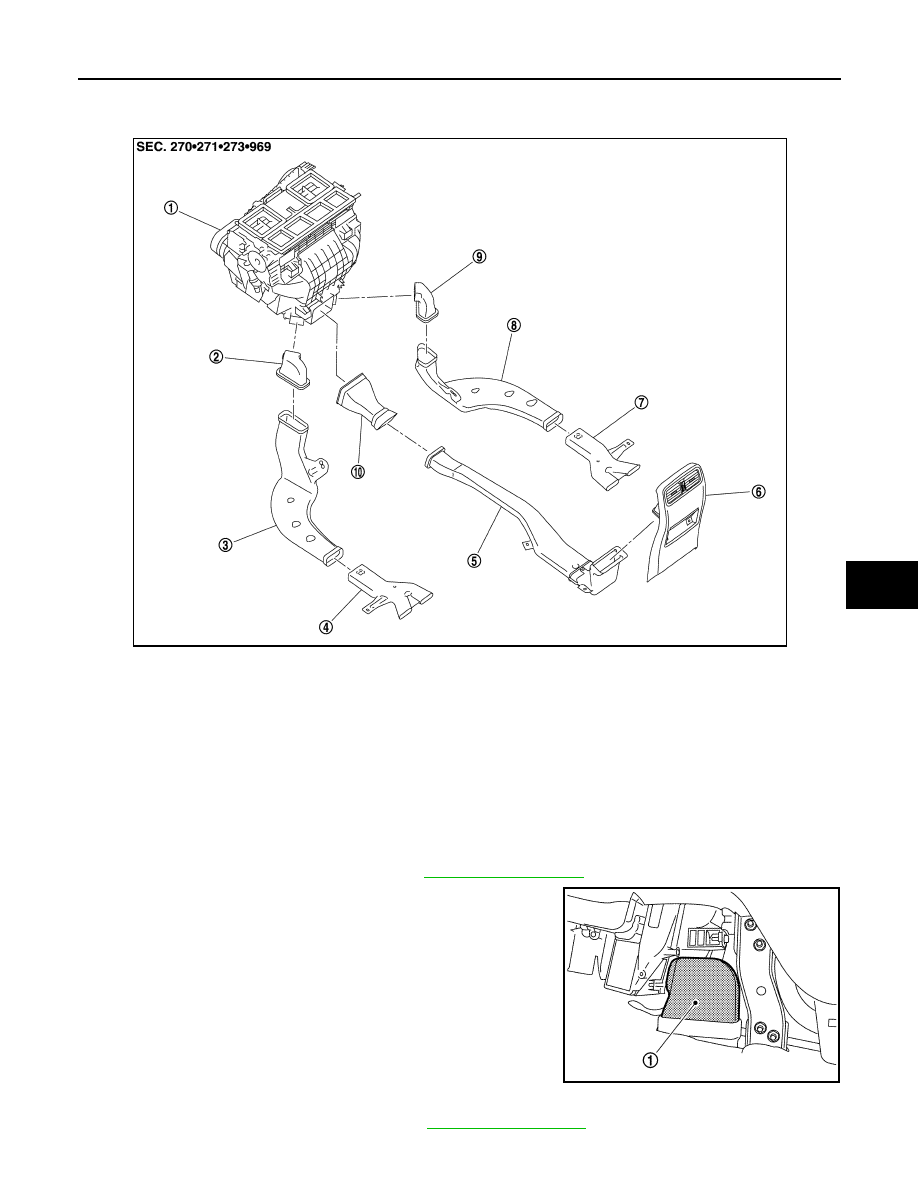

REAR FOOT DUCT 1 : Exploded View

INFOID:0000000003774709

REAR FOOT DUCT 1 : Removal and Installation

INFOID:0000000003774710

REMOVAL

Driver side

1.

Remove instrument lower cover LH. Refer to

IP-11, "Exploded View"

.

2.

Remove rear foot duct 1 (left) (1).

Passenger side

1.

Remove instrument lower cover RH. Refer to

IP-11, "Exploded View"

.

1.

Heater & cooling unit assembly

2.

Rear foot duct 1 (left)

3.

Rear foot duct 2 (left)

4.

Rear foot duct 3 (left)

5.

Rear ventilator duct 2

6.

Console rear cover (Rear
ventilator grille)

7.

Rear foot duct 3 (right)

8.

Rear foot duct 2 (right)

9.

Rear foot duct 1 (right)

10.

Rear ventilator duct 1

JPIIA0935ZZ

JPIIA0938ZZ

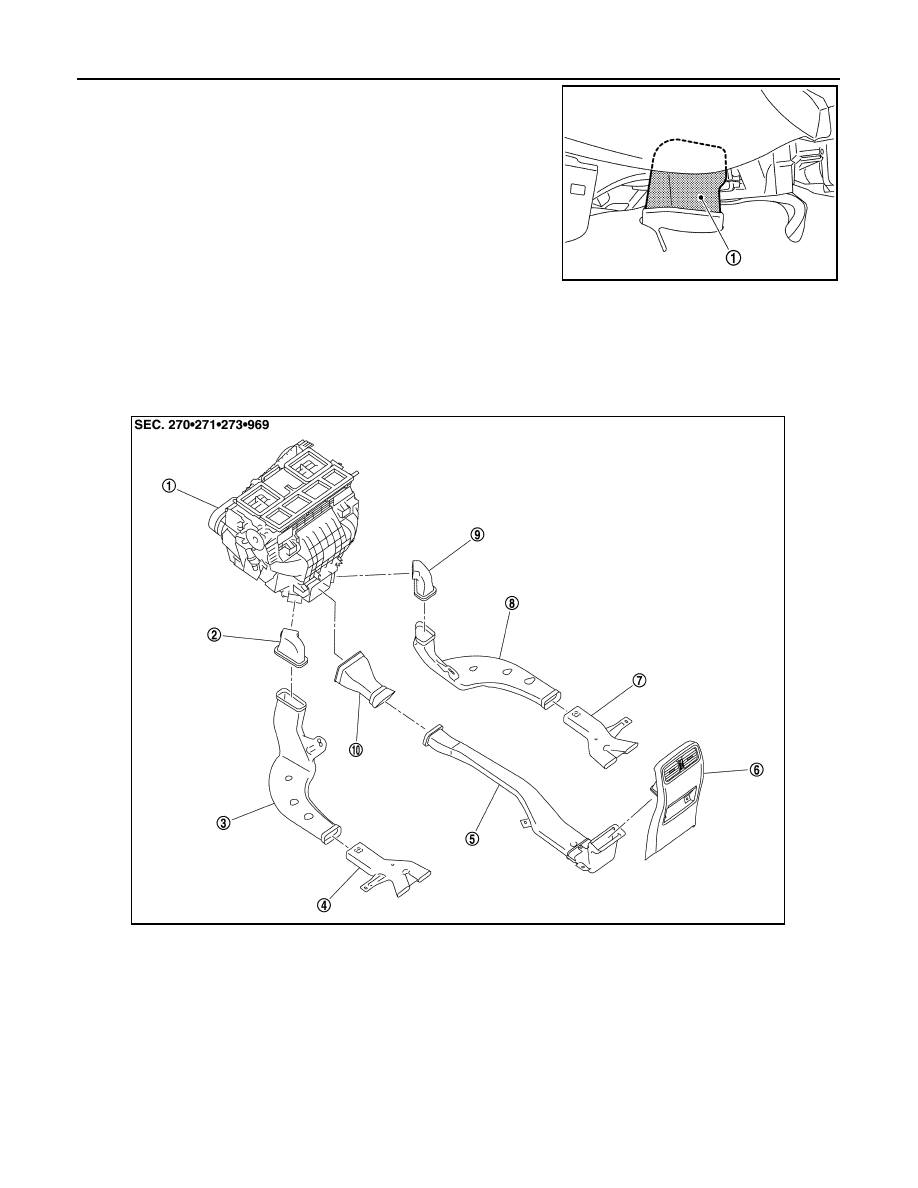

VTL-56

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

2.

Remove the rear foot duct 1 (right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR FOOT DUCT 2

REAR FOOT DUCT 2 : Exploded View

INFOID:0000000003774711

REAR FOOT DUCT 2 : Removal and Installation

INFOID:0000000003774712

REMOVAL

Driver side

JPIIA0939ZZ

1.

Heater & cooling unit assembly

2.

Rear foot duct 1 (left)

3.

Rear foot duct 2 (left)

4.

Rear foot duct 3 (left)

5.

Rear ventilator duct 2

6.

Console rear cover (Rear
ventilator grille)

7.

Rear foot duct 3 (right)

8.

Rear foot duct 2 (right)

9.

Rear foot duct 1 (right)

10.

Rear ventilator duct 1

JPIIA0935ZZ

DUCT AND GRILLE

VTL-57

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

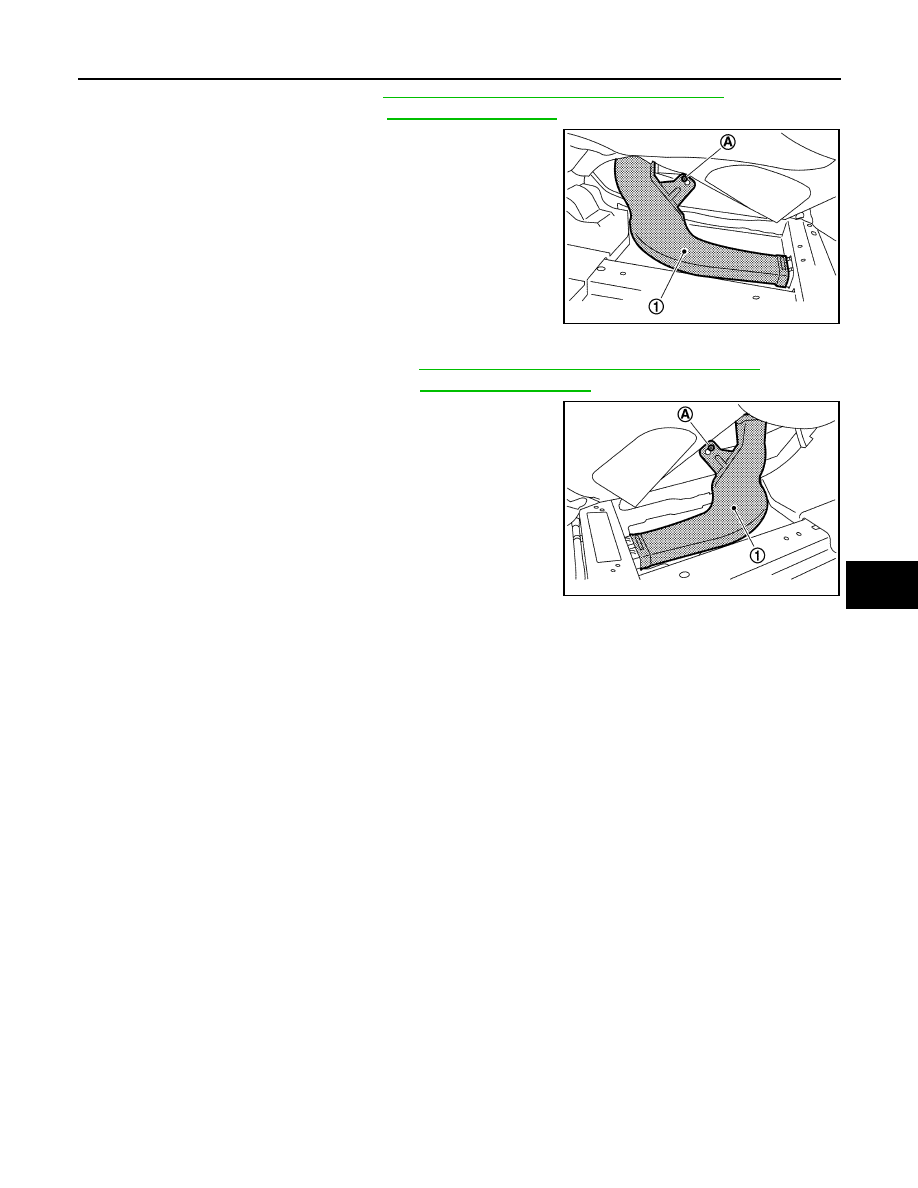

1.

Remove rear foot duct 1 (left). Refer to

VTL-55, "REAR FOOT DUCT 1 : Exploded View"

.

2.

Pull up driver side floor carpet. Refer to

INT-47, "Exploded View"

.

3.

Remove mounting clip (A), and then remove rear foot duct 2
(left) (1).

Passenger side

1.

Remove the rear foot duct 1 (right). Refer to

VTL-55, "REAR FOOT DUCT 1 : Exploded View"

.

2.

Pull up passenger side floor carpet. Refer to

INT-47, "Exploded View"

.

3.

Remove mounting clip (A), and then remove rear foot duct 2
(right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR FOOT DUCT 3
