Nissan Teana J32. Manual - part 1199





TM-320

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

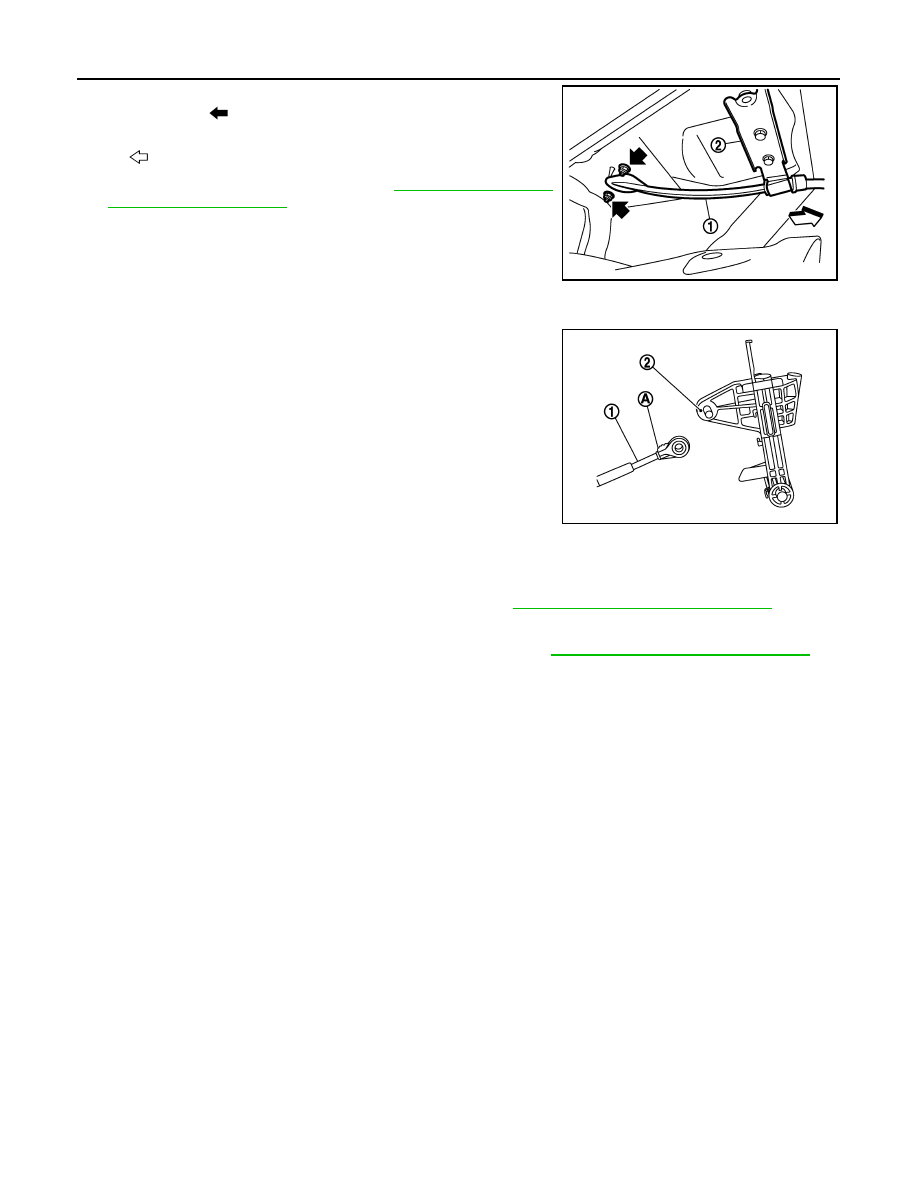

CONTROL CABLE

8.

Remove control cable (1) from bracket 1 (2).

9.

Remove nuts (

).

10. Remove rear foot duct 1 (right). Refer to

VTL-55, "REAR FOOT

DUCT 1 : Exploded View"

.

11. Remove the control cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing the control cable (1) to the control device assembly
(2), make sure that the control cable is fully pressed in with the
ribbed (A) surface facing upward.

Inspection and Adjustment

INFOID:0000000003806520

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control cable. Refer to

TM-314, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-314, "Inspection and Adjustment"

.

: Vehicle front

JPDIA0752ZZ

JPDIA0609ZZ

OIL PAN

TM-321

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

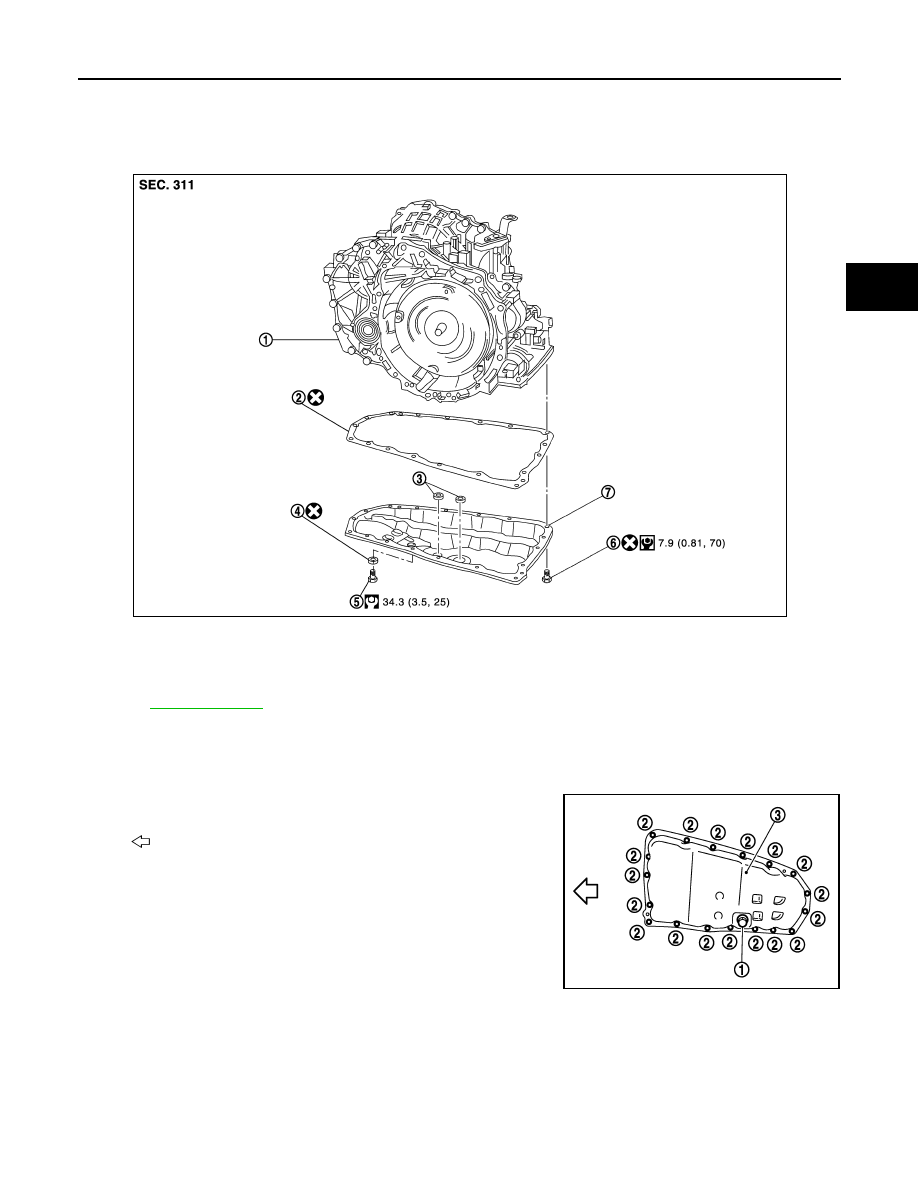

OIL PAN

Exploded View

INFOID:0000000003806524

Removal and Installation

INFOID:0000000003806525

REMOVAL

1.

Remove drain plug (1), and then drain CVT fluid from oil pan.

2.

Remove oil pan fitting bolts (2).

3.

Remove oil pan (3).

4.

Remove oil pan gasket from oil pan.

5.

Remove magnet from oil pan.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of

transaxle case and oil pan.

• Never reuse oil pan gasket, drain plug gasket and oil pan fitting bolts.

1.

Transaxle assembly

2.

Oil pan gasket

3.

Magnet

4.

Drain plug gasket

5.

Drain plug

6.

Oil pan fitting bolt

7.

Oil pan

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0769GB

: Vehicle front

JPDIA0761ZZ

TM-322

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

OIL PAN

Inspection

INFOID:0000000003806526

Check foreign materials in oil pan to help determine causes of malfunction. If the CVT fluid is very dark, smells
burned, or contains foreign particles, frictional material (clutches) may need replacement. A tacky film that will
not wipe clean indicates varnish build up. Varnish can cause valves and clutches to stick and can inhibit pump
pressure.

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-304, "Inspection"

.

PRIMARY SPEED SENSOR

TM-323

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

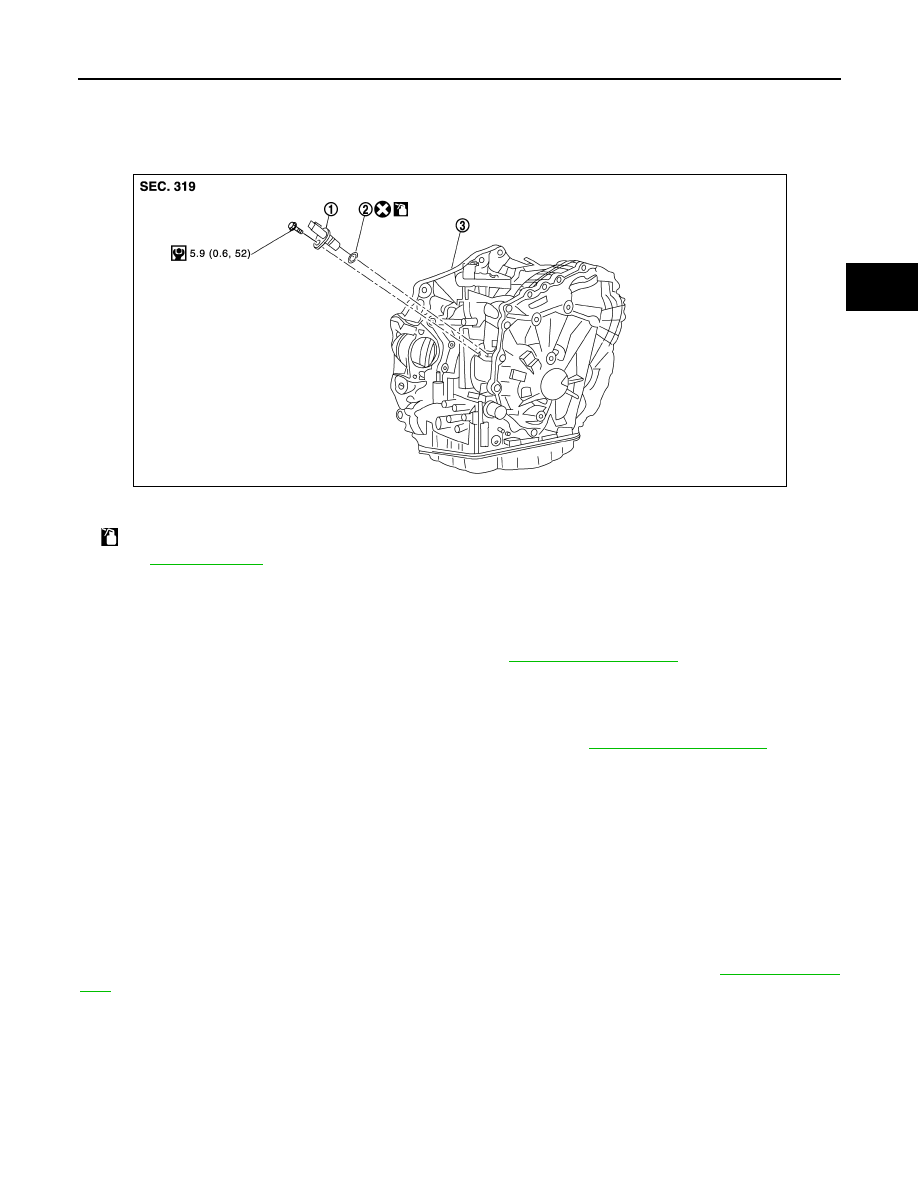

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000003806530

Removal and Installation

INFOID:0000000003806531

REMOVAL

1.

Remove the air duct (inlet) and air cleaner case. Refer to

EM-26, "Exploded View"

.

2.

Remove the battery.

3.

Disconnect ECM connector and TCM connector.

4.

Remove battery bracket.

5.

Remove CVT fluid level gauge and CVT fluid charging pipe. Refer to

TM-332, "Exploded View"

.

6.

Disconnect primary speed sensor connector.

7.

Remove primary speed sensor.

8.

Remove O-ring from primary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000003806532

After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to

TM-304, "Inspec-

tion"

.

1.

Primary speed sensor

2.

O-ring

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0770GB
