TM-324

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

SECONDARY SPEED SENSOR

SECONDARY SPEED SENSOR

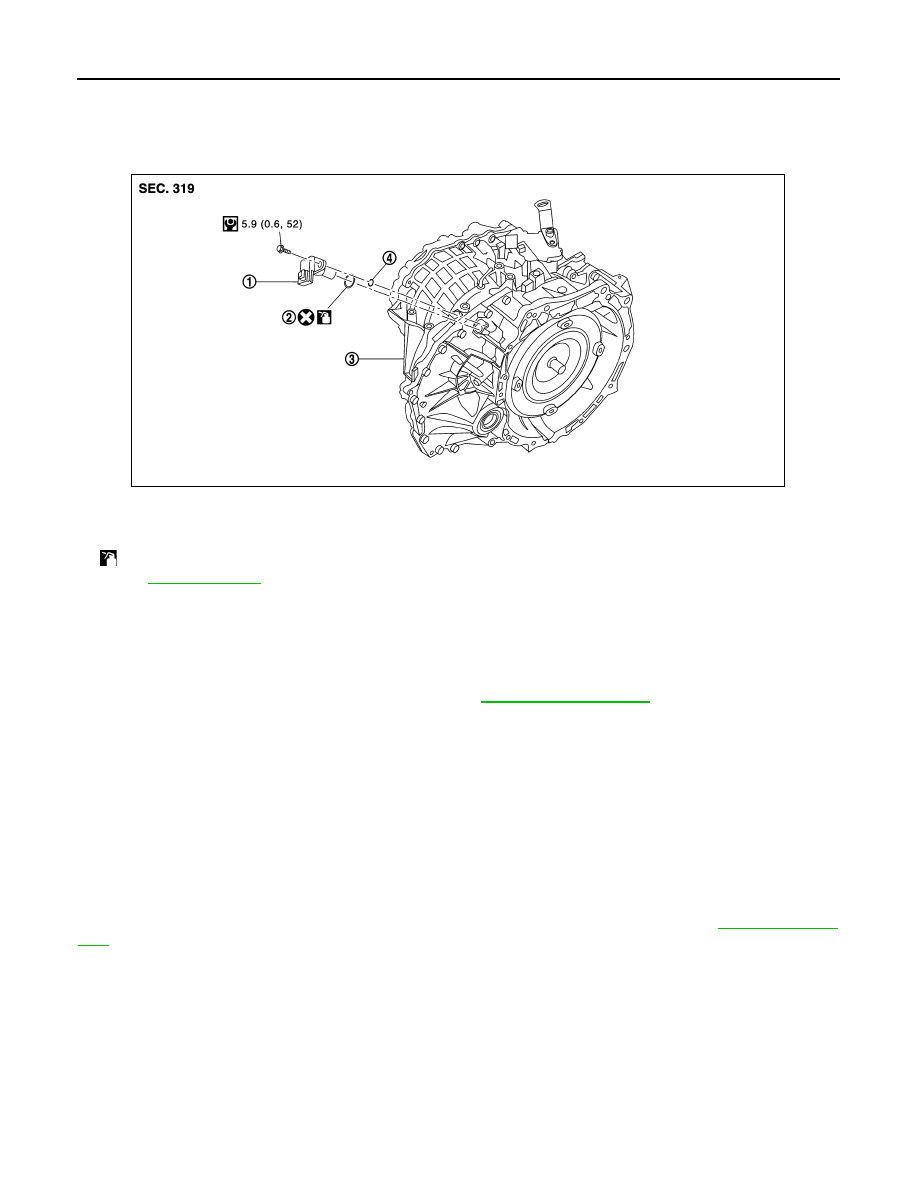

Exploded View

INFOID:0000000003806533

Removal and Installation

INFOID:0000000003806534

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove air duct (inlet) and air cleaner case. Refer to

EM-26, "Exploded View"

.

3.

Disconnect secondary speed sensor connector.

4.

Remove secondary speed sensor and shim.

5.

Remove O-ring from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000003806535

After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to

TM-304, "Inspec-

tion"

.

1.

Secondary speed sensor

2.

O-ring

3.

Transaxle assembly

4.

Shim

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0771GB

DIFFERENTIAL SIDE OIL SEAL

TM-325

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DIFFERENTIAL SIDE OIL SEAL

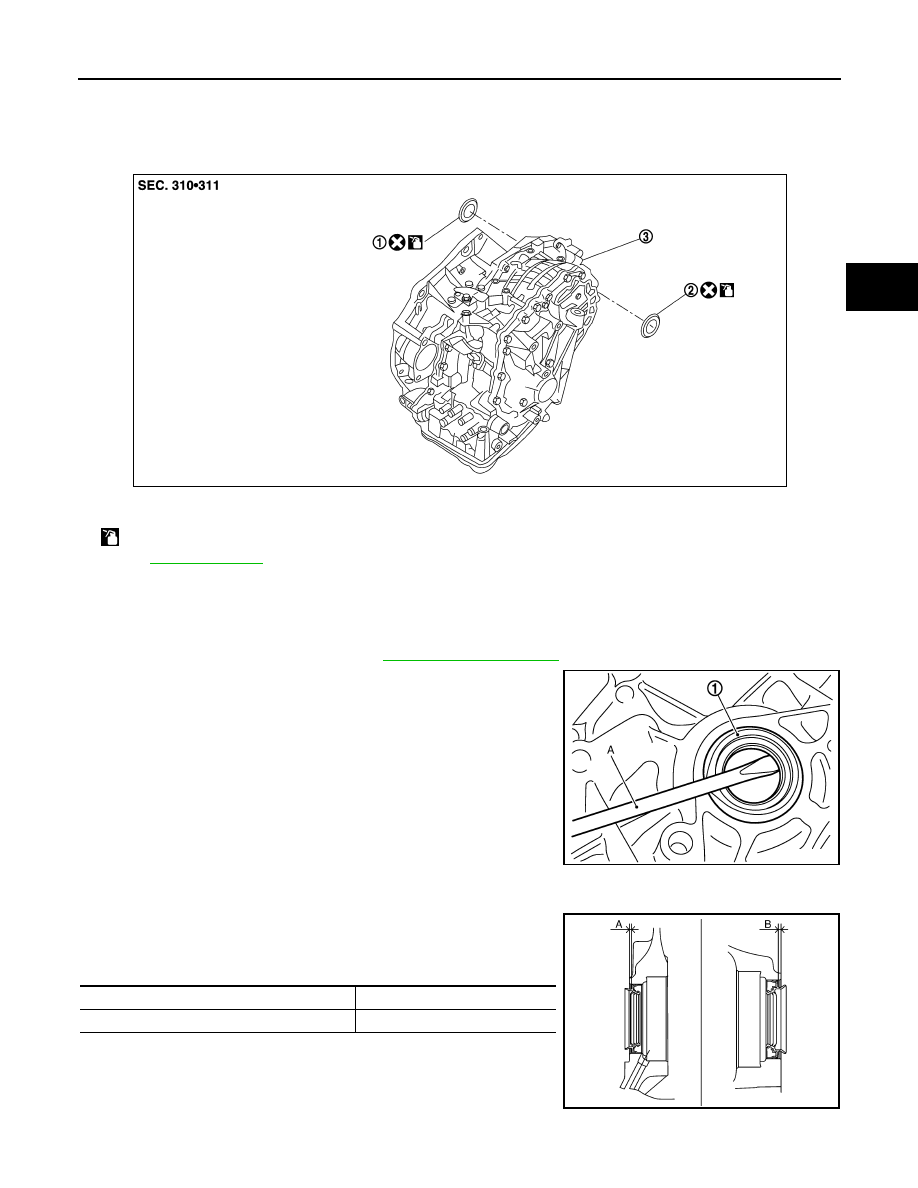

Exploded View

INFOID:0000000003806536

Removal and Installation

INFOID:0000000003806537

REMOVAL

1.

Remove drive shaft assembly. Refer to

FAX-16, "Exploded View"

.

2.

Remove differential side oil seals (1) using a flat-bladed screw-
driver (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Drive each differential side oil seal evenly using a commercial ser-

vice tool so that differential side oil seal protrudes by the dimension
(A) or (B) respectively.

Unit: mm (in)

NOTE:
Differential side oil seal pulling direction is used as the reference.

CAUTION:

• Never reuse differential side oil seals.
• Apply CVT fluid to differential side oil seals.

1.

RH differential side oil seal

2.

LH differential side oil seal

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0767ZZ

JPDIA0118ZZ

Dimension A (transaxle case side)

1.8

±

 0.5 (0.071

±

 0.020)

Dimension B (converter housing side)

2.2

±

 0.5 (0.087

±

 0.020)

SCIA6608J

TM-326

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

DIFFERENTIAL SIDE OIL SEAL

Drift to be used:

Inspection

INFOID:0000000003806538

After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to

TM-304, "Inspec-

tion"

.

Location

Tool number

Transaxle case side

Commercial service tool [Outer diameter: 54 mm (2.13 in), inner di-

ameter: 47 mm (1.85 in)]

Converter housing side

OIL PUMP FITTING BOLT

TM-327

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PUMP FITTING BOLT

Description

INFOID:0000000003806542

Replace the oil pump fitting bolt and the O-ring if oil leakage or exudes from the oil pump fitting bolt.

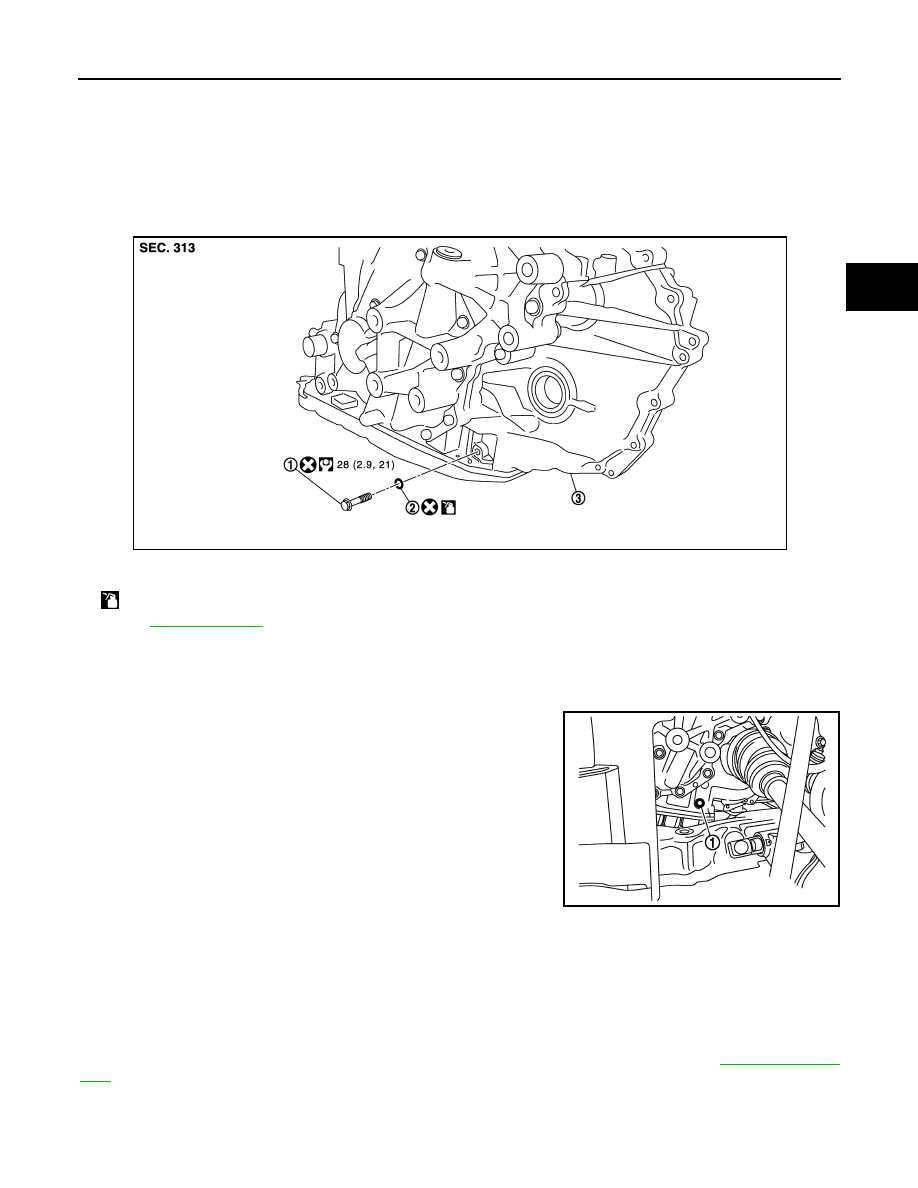

Exploded View

INFOID:0000000003806543

Removal and Installation

INFOID:0000000003806544

REMOVAL

1.

Remove Oil pump fitting bolt (1) from transaxle assembly.

2.

Remove O-ring from oil pump fitting bolt.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse oil pump fitting bolt and O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000003806545

After completing installation, check for CVT fluid leakage and check CVT fluid level. Refer to

TM-304, "Inspec-

tion"

.

1.

Oil pump fitting bolt

2.

O-ring

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0763GB

JPDIA0077ZZ
