Nissan Teana J32. Manual - part 1197





TM-312

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

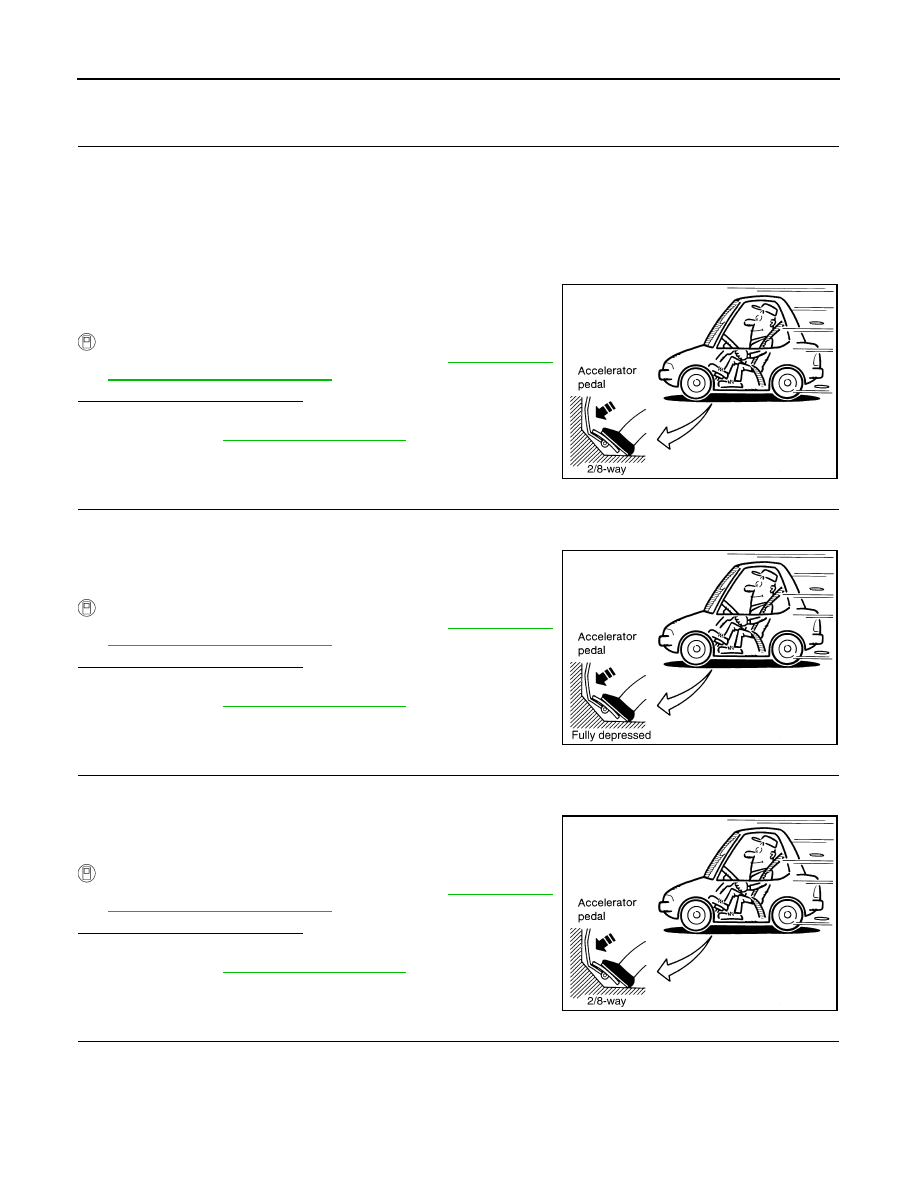

ROAD TEST

Cruise Test

INFOID:0000000003806511

1.

CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 1

1.

Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.

2.

Park vehicle on flat surface.

3.

Move selector lever to “P” position.

4.

Start engine.

5.

Move selector lever to “D” position.

6.

Accelerate vehicle at 2/8 throttle opening and check “Vehicle
Speed When Shifting Gears”.

With CONSULT-III

-

Read vehicle speed and engine speed. Refer to

TM-337, "Vehi-

cle Speed When Shifting Gears"

.

Is the inspection results normal?

YES

>> GO TO 2.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 2.

2.

CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 2

1.

Park vehicle on flat surface.

2.

Move selector lever to “D” position.

3.

Accelerate vehicle at 8/8 throttle opening and check “Vehicle
Speed When Shifting Gears”.

With CONSULT-III

-

Read vehicle speed and engine speed. Refer to

TM-337, "Vehi-

cle Speed When Shifting Gears"

.

Is the inspection results normal?

YES

>> GO TO 3.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 3.

3.

CHECK SPORT MODE CONDITION (PART 1)

1.

Park vehicle on flat surface.

2.

Push sport mode switch. (Sport mode ON.)

3.

Accelerate vehicle at 2/8 throttle opening and check “Vehicle
Speed When Shifting Gears”.

With CONSULT-III

-

Read vehicle speed and engine speed. Refer to

TM-337, "Vehi-

cle Speed When Shifting Gears"

.

Is the inspection results normal?

YES

>> GO TO 4.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 4.

4.

CHECK SPORT MODE CONDITION (PART 2)

1.

Park vehicle on flat surface.

CVT fluid operating temperature

: 50 – 80

°

C (122 – 176

°

F)

SCIA6644E

SCIA4366E

SCIA6644E

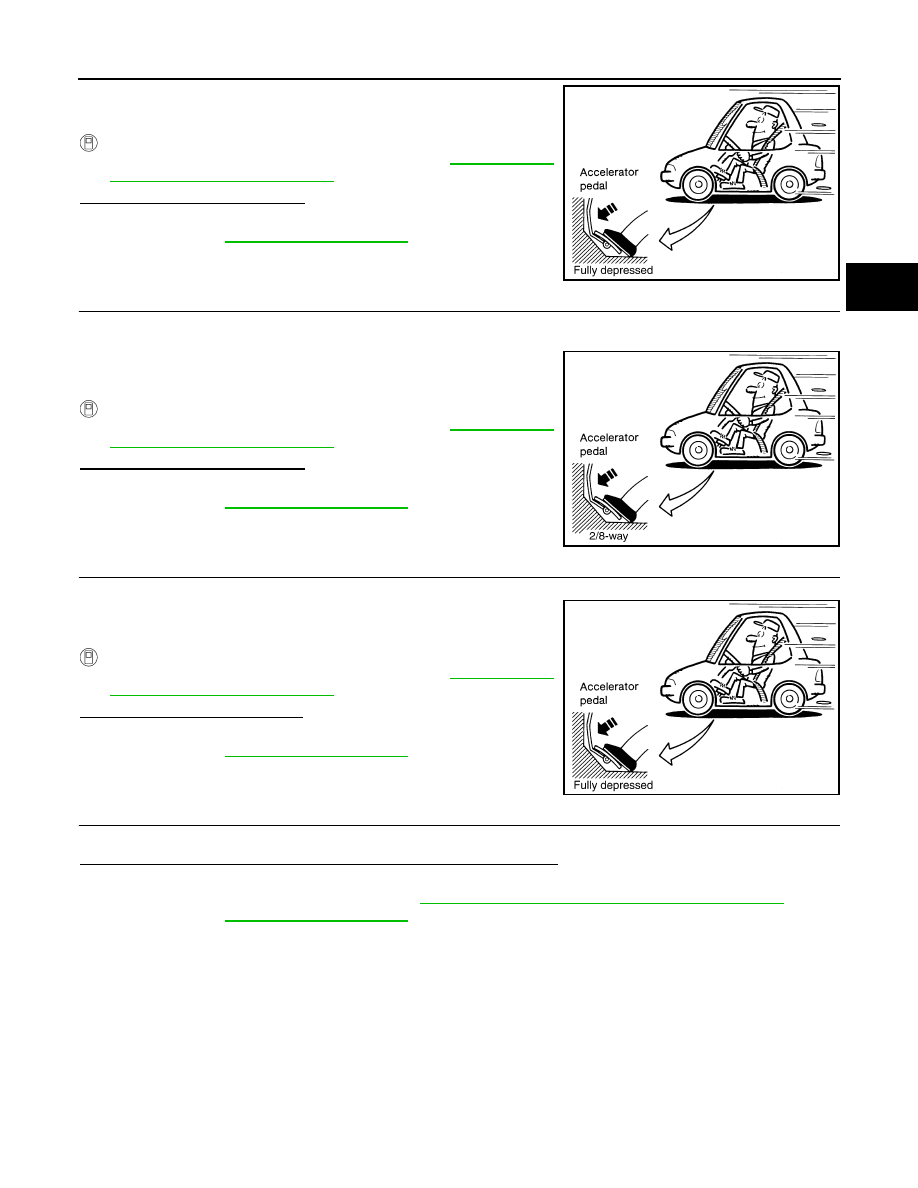

ROAD TEST

TM-313

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

Accelerate vehicle at 8/8 throttle opening and check “Vehicle
Speed When Shifting Gears”.

With CONSULT-III

-

Read vehicle speed and engine speed. Refer to

TM-337, "Vehi-

cle Speed When Shifting Gears"

.

Is the inspection results normal?

YES

>> GO TO 5.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 5.

5.

CHECK “L” POSITION FUNCTION (PART 1)

1.

Park vehicle on flat surface.

2.

Move selector lever to “L” position.

3.

Accelerate vehicle at 2/8 throttle opening and check “Vehicle
Speed When Shifting Gears”.

With CONSULT-III

-

Read vehicle speed and engine speed. Refer to

TM-337, "Vehi-

cle Speed When Shifting Gears"

.

Is the inspection results normal?

YES

>> GO TO 6.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 6.

6.

CHECK “L” POSITION FUNCTION (PART 2)

1.

Park vehicle on flat surface.

2.

Accelerate vehicle at 8/8 throttle opening and check “Vehicle
Speed When Shifting Gears”.

With CONSULT-III

-

Read vehicle speed and engine speed. Refer to

TM-337, "Vehi-

cle Speed When Shifting Gears"

.

Does it switch to manual mode?

YES

>> GO TO 7.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 7.

7.

CHECK ENGINE BRAKE FUNCTION

Check engine brake.
Does engine braking effectively reduce vehicle speed in “L” position?

YES

>> 1.

Stop the vehicle.

2.

Perform self-diagnosis. Refer to

TM-204, "CONSULT-III Function (TRANSMISSION)"

.

NO

>> Refer to

TM-286, "Symptom Table"

. Then continue trouble diagnosis.

SCIA4366E

SCIA6644E

SCIA4366E

TM-314

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

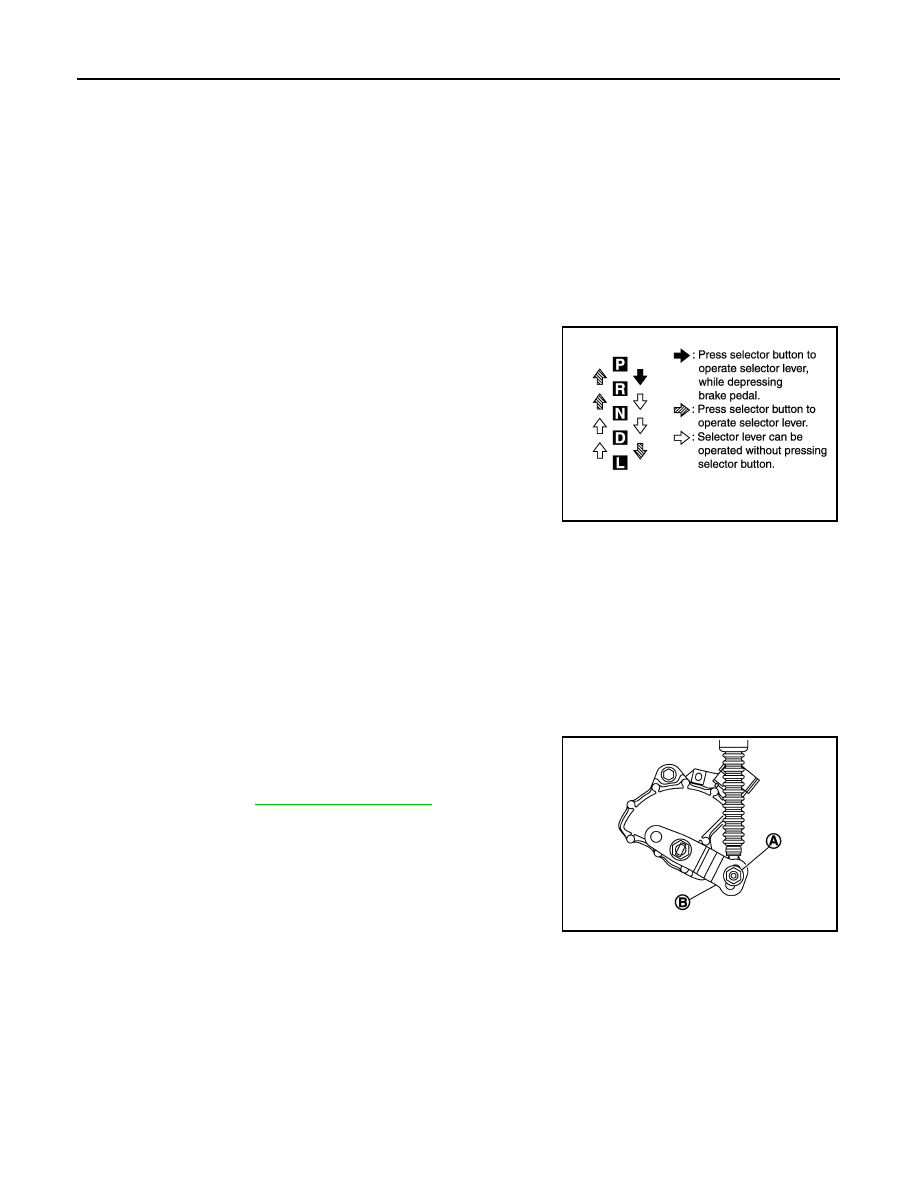

CVT POSITION

CVT POSITION

Inspection and Adjustment

INFOID:0000000003806512

INSPECTION

1.

Place selector lever in “P” position, and turn ignition switch ON (engine stop).

2.

Check that selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
check that selector lever can be shifted from “P” position only when brake pedal is depressed.

3.

Move the selector lever and check for excessive effort, sticking, noise or rattle.

4.

Check that selector lever stops at each position with the feel of engagement when it is moved through all
the positions. Check that the actual position of the selector lever matches the position shown by the shift
position indicator and the manual lever on the transaxle.

5.

The method of operating the selector lever to individual posi-
tions correctly should be as shown.

6.

When selector button is pressed in “P”, “R”, “N”, “D” or “L” posi-
tion without applying forward/backward force to selector lever,
check button operation for sticking.

7.

Check that back-up lamps illuminate only when selector lever is
placed in the “R” position.

8.

When in “R” position, check that back-up lamps illuminate even
when the selector lever is pushed toward the “P” position.

CAUTION:

Check the lighting without pressing shift button.

9.

Check that the back-up lamps do not illuminate when selector lever is pushed toward the “R” position
when in the “P” or “N” position.

CAUTION:

Check the lighting without pressing shift button.

10. Check that the engine can only be started with the selector lever in the “P” and “N” positions.

11. Check that transaxle is locked completely in “P” position.

ADJUSTMENT

1.

Place selector lever in “ P” position.

CAUTION:

Turn wheels more than 1/4 rotations and apply the park lock.

2.

Loosen nut (A) and place manual lever (B) in “P” position.

CAUTION:

Never apply any force to the manual lever.

3.

Tighten nut. Refer to

TM-319, "Exploded View"

.

CAUTION:

Fix the manual lever when tightening.

JPDIA0343GB

JPDIA0780ZZ

TRANSMISSION CONTROL MODULE

TM-315

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

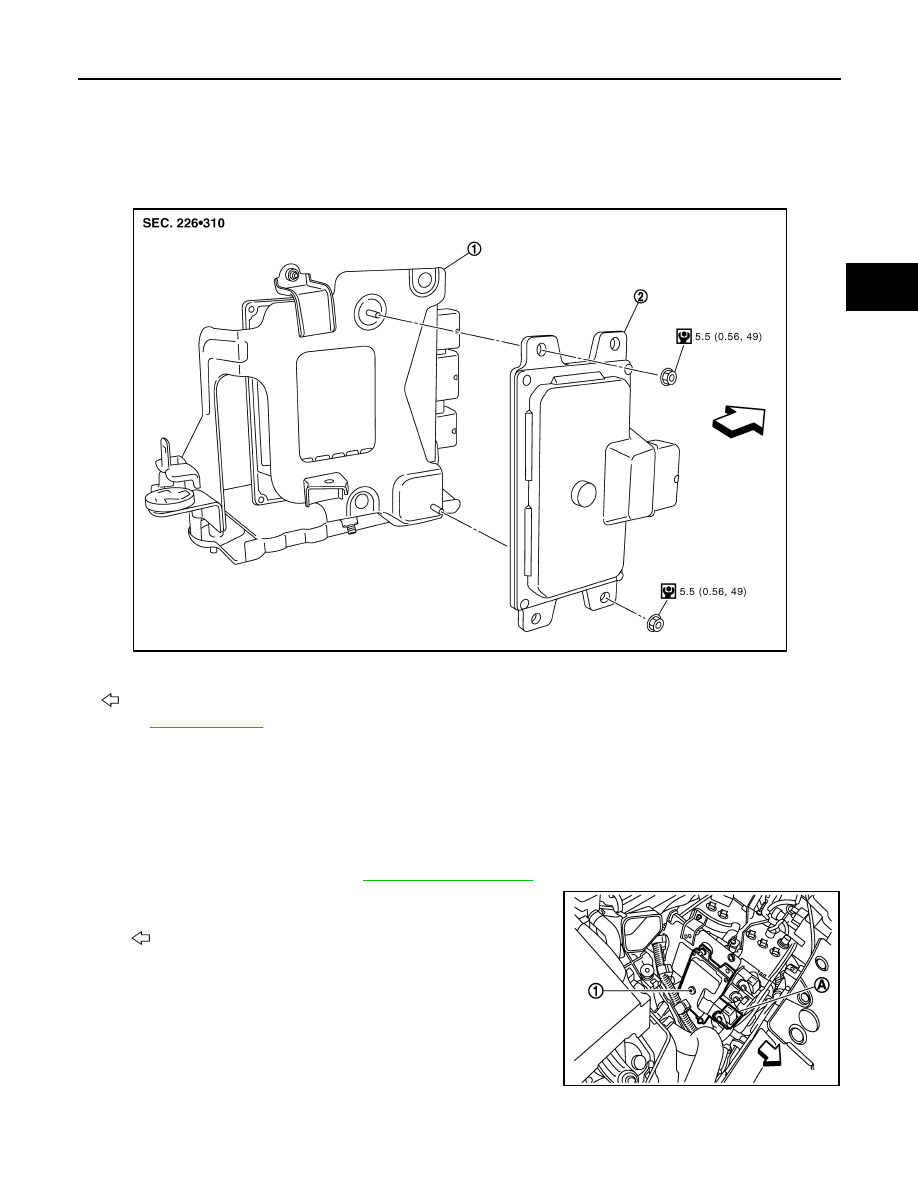

ON-VEHICLE REPAIR

TRANSMISSION CONTROL MODULE

Exploded View

INFOID:0000000003806513

Removal and Installation

INFOID:0000000003806514

REMOVAL

CAUTION:

Never impact on TCM when removing or installing TCM.

1.

Disconnect the battery cable from negative terminal.

2.

Remove the air duct (inlet). Refer to

EM-26, "Exploded View"

.

3.

Disconnect the TCM connector (A).

4.

Remove the TCM (1) from the bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.

1.

Bracket

2.

TCM

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0591GB

: Vehicle front

JPDIA0596ZZ
