TM-308

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

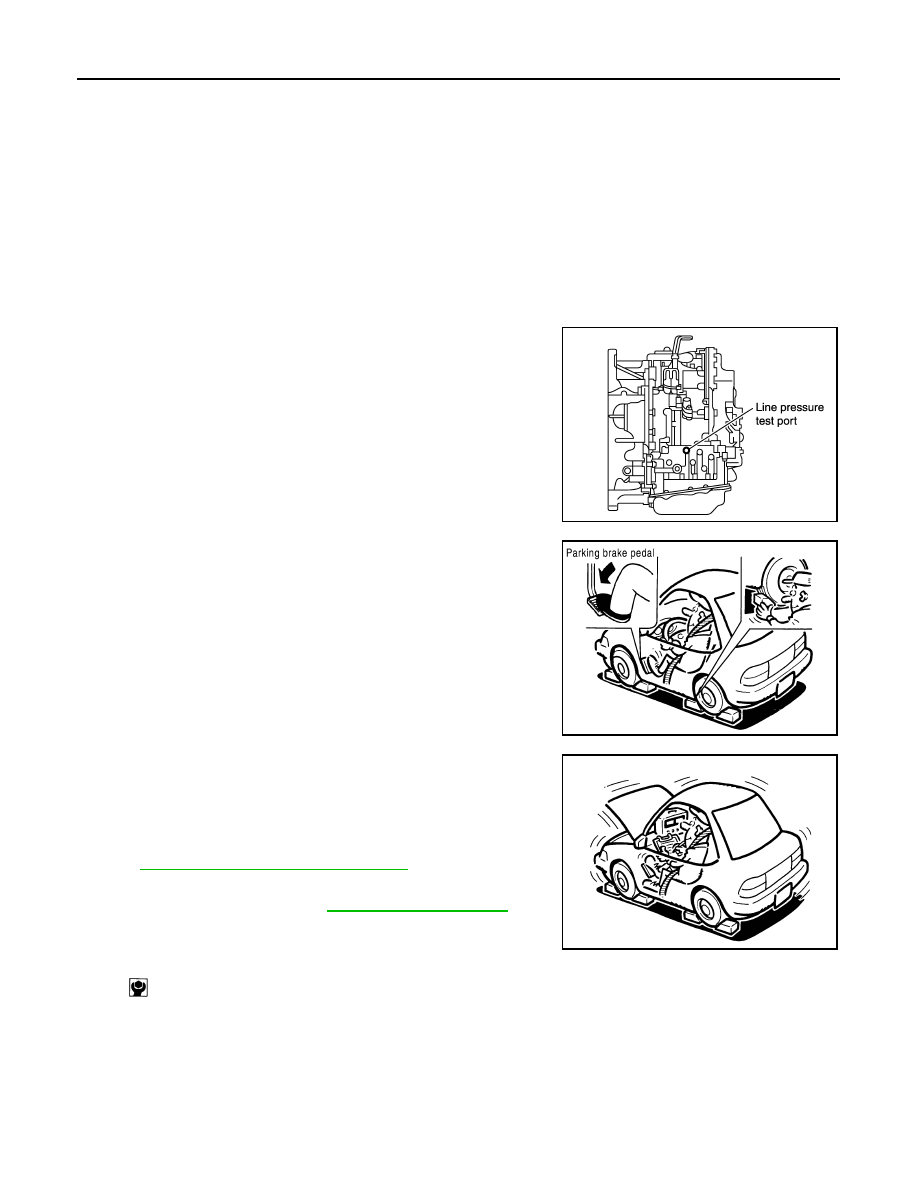

LINE PRESSURE TEST

LINE PRESSURE TEST

Inspection and Judgment

INFOID:0000000003806507

INSPECTION

Line Pressure Test Procedure

1.

Inspect the amount of engine oil and replenish if necessary.

2.

Drive the car for about 10 minutes to warm it up so that the CVT fluid reaches in the range of 50 to 80

°

C

(122 to 176

°

F), then inspect the amount of CVT fluid and replenish if necessary.

NOTE:
The CVT fluid temperature rises in the range of 50 to 80

°

C (122 to 176

°

F) during 10 minutes of driv-

ing.

3.

After warming up CVT, remove the oil pressure detection plug
and install the joint pipe adapter (SST: KV31103600), adapter
(SST: 25055000), oil pressure gauge set (commercial service
tool).

CAUTION:

When using the oil pressure gauge, be sure to use the O-
ring attached to the oil pressure detection plug.

4.

Securely engage the parking brake so that the tires do not turn.

5.

Start the engine, and then measure the line pressure at both idle
and the stall speed.

CAUTION:

• Keep the brake pedal pressed all the way down during

measurement.

• When measuring the line pressure at the stall speed, refer

to

TM-306, "Inspection and Judgment"

.

6.

After the measurements are complete, install the oil pressure
detection plug and tighten to the specified torque below.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

JUDGMENT

JPDIA0739GB

SCIA7463E

Line pressure

: Refer to

TM-337, "Line Pressure"

.

: 7.5 N·m (0.77 kg-m, 66 in-lb)

SAT493G

LINE PRESSURE TEST

TM-309

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Judgment Possible

cause

Idle speed

Low for all positions
(“P”, “R”, “N”, “D”, “L”)

Possible causes include malfunctions in the pressure supply system and low oil pump output.
For example
• Oil  pump  wear
• Pressure regulator valve or plug sticking or spring fatigue
• Oil strainer

⇒

 oil pump

⇒

 pressure regulator valve passage oil leak

• Engine idle speed too low

Only low for a specific
position

Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.

High

Possible causes include a sensor malfunction or malfunction in the line pressure adjustment
function.
For example
• Accelerator pedal position signal malfunction
• CVT fluid temperature sensor malfunction
• Pressure control solenoid A (line pressure solenoid) malfunction (sticking in OFF state, filter

clog, cut line)

• Pressure regulator valve or plug sticking

Stall speed

Line pressure does not
rise higher than the
line pressure for idle.

Possible causes include a sensor malfunction or malfunction in the pressure adjustment func-
tion.
For example
• Accelerator pedal position signal malfunction
• TCM  malfunction
• Pressure control solenoid A (line pressure solenoid) malfunction (shorting, sticking in ON

state)

• Pressure regulator valve or plug sticking

The pressure rises,
but does not enter the
standard position.

Possible causes include malfunctions in the pressure supply system and malfunction in the
pressure adjustment function.
For example
• Accelerator pedal position signal malfunction
• Pressure control solenoid A (line pressure solenoid) malfunction (sticking, filter clog)
• Pressure regulator valve or plug sticking

Only low for a specific
position

Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.

TM-310

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

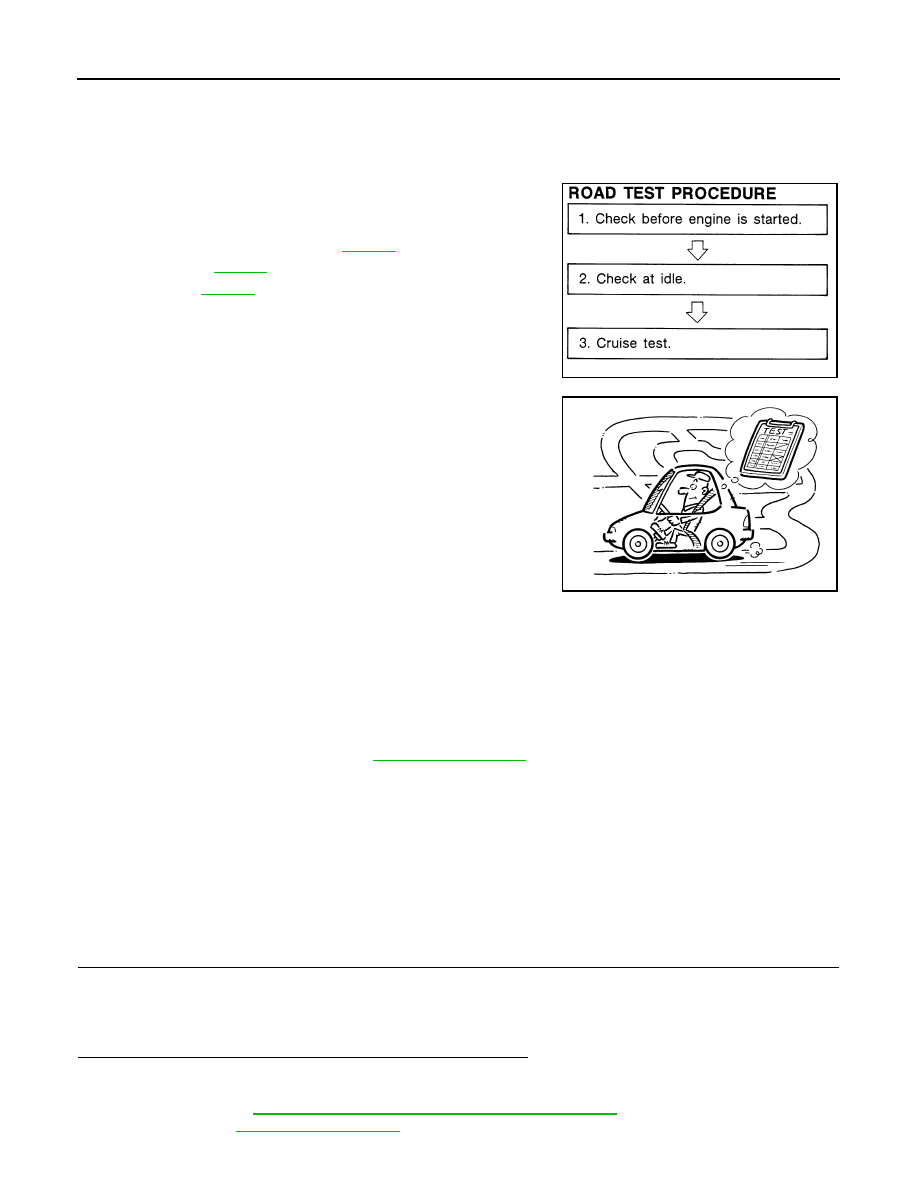

ROAD TEST

ROAD TEST

Description

INFOID:0000000003806508

DESCRIPTION

• The purpose of the test is to determine the overall performance of

CVT and analyze causes of problems.

• The road test consists of the following three parts:

1.

“Check Before Engine Is Started”

TM-310

.

2.

“Check at Idle”

TM-311

.

3.

“Cruise Test”

TM-312

.

• Before the road test, familiarize yourself with all test procedures

and items to check.

• Perform tests for all the check items until a malfunction phenome-

non is detected. Perform diagnosis for NG items after the comple-
tion of road tests.

CONSULT-III SETTING PROCEDURE

• Using CONSULT-III, perform a cruise test and record the result.
• Print the result and ensure that shifts and lock-ups take place as per Shift Schedule.

1.

Touch “Data Monitor” on “Direct Diagnostic Mode” screen.

2.

Touch “MAIN SIGNALS” to set recording condition.

3.

See “Numerical Display”, “Barchart Display” or “Line Graph Display”.

4.

Touch “START”.

5.

When performing cruise test. Refer to

TM-312, "Cruise Test"

.

6.

After finishing cruise test part, touch “RECORD”.

7.

Touch “STORE”.

8.

Touch “BACK”.

9.

Touch “DISPLAY”.

10. Touch “PRINT”.
11. Check the monitor data printed out.

Check before Engine Is Started

INFOID:0000000003806509

1.

CHECK SHIFT POSITION INDICATOR

1.

Park vehicle on flat surface.

2.

Move selector lever to “P” position.

3.

Turn ignition switch OFF. Wait at least 5 seconds.

4.

Turn ignition switch ON. (Never start engine.)

Has shift position indicator been turned ON for about 2 seconds?

YES

>> 1.

Turn ignition switch OFF.

2.

Perform self-diagnosis and note NG items.
Refer to

TM-204, "CONSULT-III Function (TRANSMISSION)"

.

3.

Go to

TM-311, "Check at Idle"

.

SAT786A

SAT496G

ROAD TEST

TM-311

< ON-VEHICLE MAINTENANCE >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

NO

>> Stop “Road Test”. Refer to

TM-286, "Symptom Table"

.

Check at Idle

INFOID:0000000003806510

1.

CHECK STARTING THE ENGINE

1.

Park vehicle on flat surface.

2.

Move selector lever to “P” or “N” position.

3.

Turn ignition switch OFF.

4.

Turn ignition switch to “START” position.

Is engine started?

YES

>> GO TO 2.

NO

>> Stop “Road Test”. Refer to

TM-286, "Symptom Table"

.

2.

CHECK STARTING THE ENGINE

1.

Turn ignition switch ON.

2.

Move selector lever to “D”, “L” or “R” position.

3.

Turn ignition switch to “START” position.

Is engine started?

YES

>> Stop “Road Test”. Refer to

TM-286, "Symptom Table"

.

NO

>> GO TO 3.

3.

CHECK “P” POSITION FUNCTION

1.

Move selector lever to “P” position.

2.

Turn ignition switch OFF.

3.

Release parking brake.

4.

Push vehicle forward or backward.

5.

Apply parking brake.

Does vehicle move forward or backward?

YES

>> Refer to

TM-286, "Symptom Table"

. GO TO 4.

NO

>> GO TO 4.

4.

CHECK “N” POSITION FUNCTION

1.

Start engine.

2.

Move selector lever to “N” position.

3.

Release parking brake.

Does vehicle move forward or backward?

YES

>> Refer to

TM-286, "Symptom Table"

. GO TO 5.

NO

>> GO TO 5.

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Move selector lever to “R” position.

Is there large shock when changing from “N” to “R” position?

YES

>> Refer to

TM-286, "Symptom Table"

. GO TO 6.

NO

>> GO TO 6.

6.

CHECK “R” POSITION FUNCTION

Release foot brake for several seconds.
Does vehicle creep backward when foot brake is released?

YES

>> GO TO 7.

NO

>> Refer to

TM-286, "Symptom Table"

. GO TO 7.

7.

CHECK “D” POSITION FUNCTION

Move selector lever to “D” position and check if vehicle creeps forward.

Does vehicle creep forward in all positions?

YES

>> Go to

TM-312, "Cruise Test"

.

NO

>> Stop “Road Test”. Refer to

TM-286, "Symptom Table"

.
