TM-300

< PRECAUTION >

[CVT: RE0F10A]

PRECAUTIONS

• Turn ignition switch OFF and disconnect negative battery

cable before connecting or disconnecting the TCM harness
connector. Because battery voltage is applied to TCM even if
ignition switch is turned OFF.

• When connecting or disconnecting pin connectors into or

from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin ter-
minal, when connecting pin connectors.

• Perform TCM input/output signal inspection and check

whether TCM functions normally or not before replacing TCM.
Refer to

TM-275, "Reference Value"

.

• Perform “DTC Confirmation Procedure” after performing each

TROUBLE DIAGNOSIS.
If the repair is completed the DTC should not be displayed in
the “DTC Confirmation Procedure”.

• Always use the specified brand of CVT fluid. Refer to

MA-11, "Flu-

ids and Lubricants"

.

• Use lint-free paper, not cloth rags, during work.
• Dispose of the waste oil using the methods prescribed by law, ordi-

nance, etc. after replacing the CVT fluid.

Service Notice or Precaution

INFOID:0000000003806500

OBD SELF-DIAGNOSIS

• CVT self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through

the blinking pattern of the Malfunction Indicator (MI). Refer to the table on

TM-204, "CONSULT-III Function

(TRANSMISSION)"

 for the indicator used to display each self-diagnostic result.

• The self-diagnostic results indicated by the MI are automatically stored in both the ECM and TCM memories.

Always perform the procedure on

TM-202, "Diagnosis Description"

 to complete the repair and avoid

unnecessary blinking of the MIL.

For details of OBD, refer to

EC-102, "Diagnosis Description"

.

SEF289H

SEF291H

MEF040DA

SAT652J

PRECAUTIONS

TM-301

< PRECAUTION >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Certain systems and components, especially those related to OBD, may use the new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-96

.

ATFTEMP COUNT Conversion Table

INFOID:0000000003806501

ATFTEMP COUNT

Temperature

°

C (

°

F)

ATFTEMP COUNT

Temperature

°

C (

°

F)

4

–30 (–22)

177

90 (194)

8

–20 (–4)

183

95 (203)

13

–10 (14)

190

100 (212)

17

–5 (23)

196

105 (221)

21

0 (32)

201

110 (230)

27

5 (41)

206

115 (239)

32

10 (50)

210

120 (248)

39

15 (59)

214

125 (257)

47

20 (68)

218

130 (266)

55

25 (77)

221

135 (275)

64

30 (86)

224

140 (284)

73

35 (95)

227

145 (293)

83

40 (104)

229

150 (302)

93

45 (113)

231

155 (311)

104

50 (122)

233

160 (320)

114

55 (131)

235

165 (329)

124

60 (140)

236

170 (338)

134

65 (149)

238

175 (347)

143

70 (158)

239

180 (356)

152

75 (167)

241

190 (374)

161

80 (176)

243

200 (392)

169

85 (185)

TM-302

< PREPARATION >

[CVT: RE0F10A]

PREPARATION

PREPARATION

PREPARATION

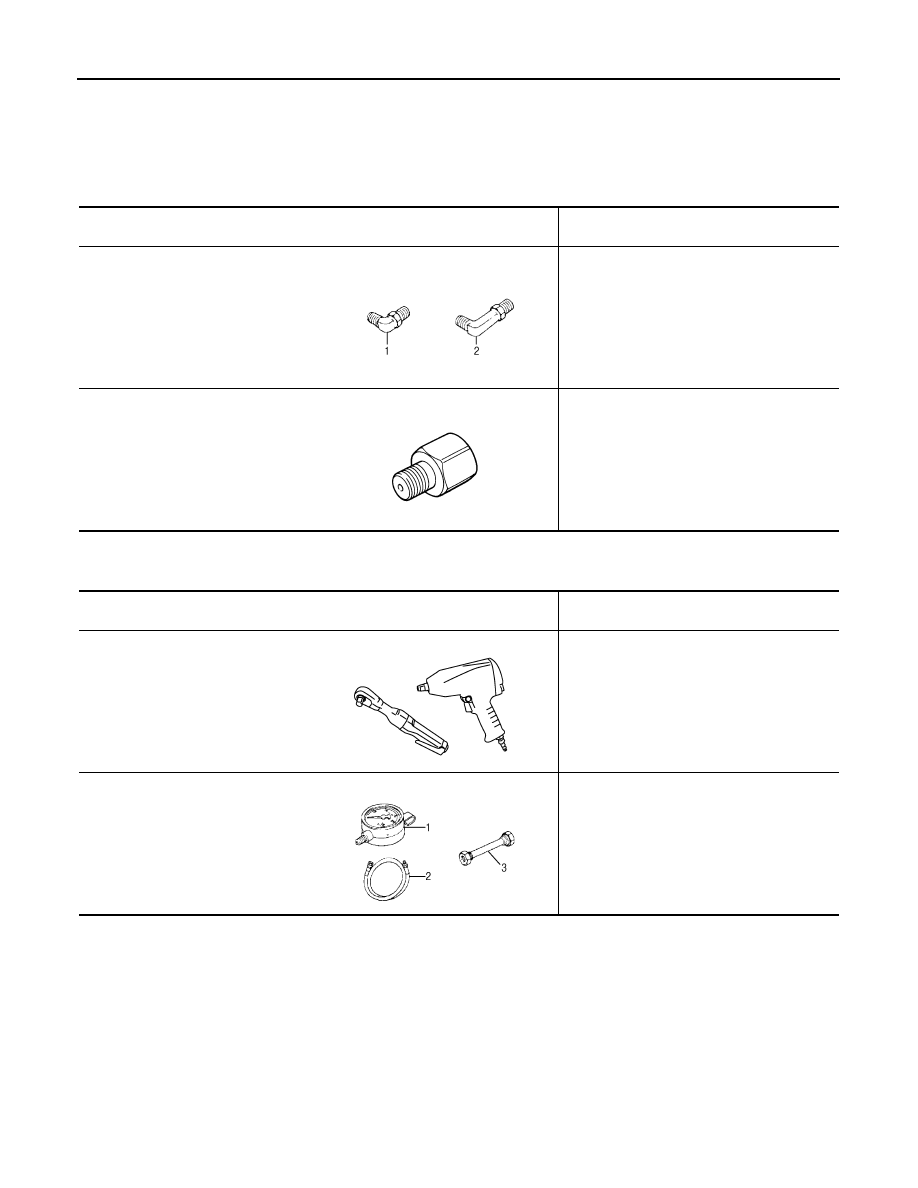

Special Service Tools

INFOID:0000000003806502

Commercial Service Tools

INFOID:0000000003806503

Tool number
Tool name

Description

1. ST25054000
Adapter
2. ST25055000
Adapter

Measuring line pressure

KV31103600
Joint pipe adapter
(With ST25054000)

Measuring line pressure

SCIA8372J

ZZA1227D

Tool number
Tool name

Description

Power tool

Loosening nuts and bolts

Oil pressure gauge set
1. Oil pressure gauge
2. Hose
3. Joint pipe

Measuring line pressure

PBIC0190E

SCIA8373J

PREPARATION

TM-303

< PREPARATION >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

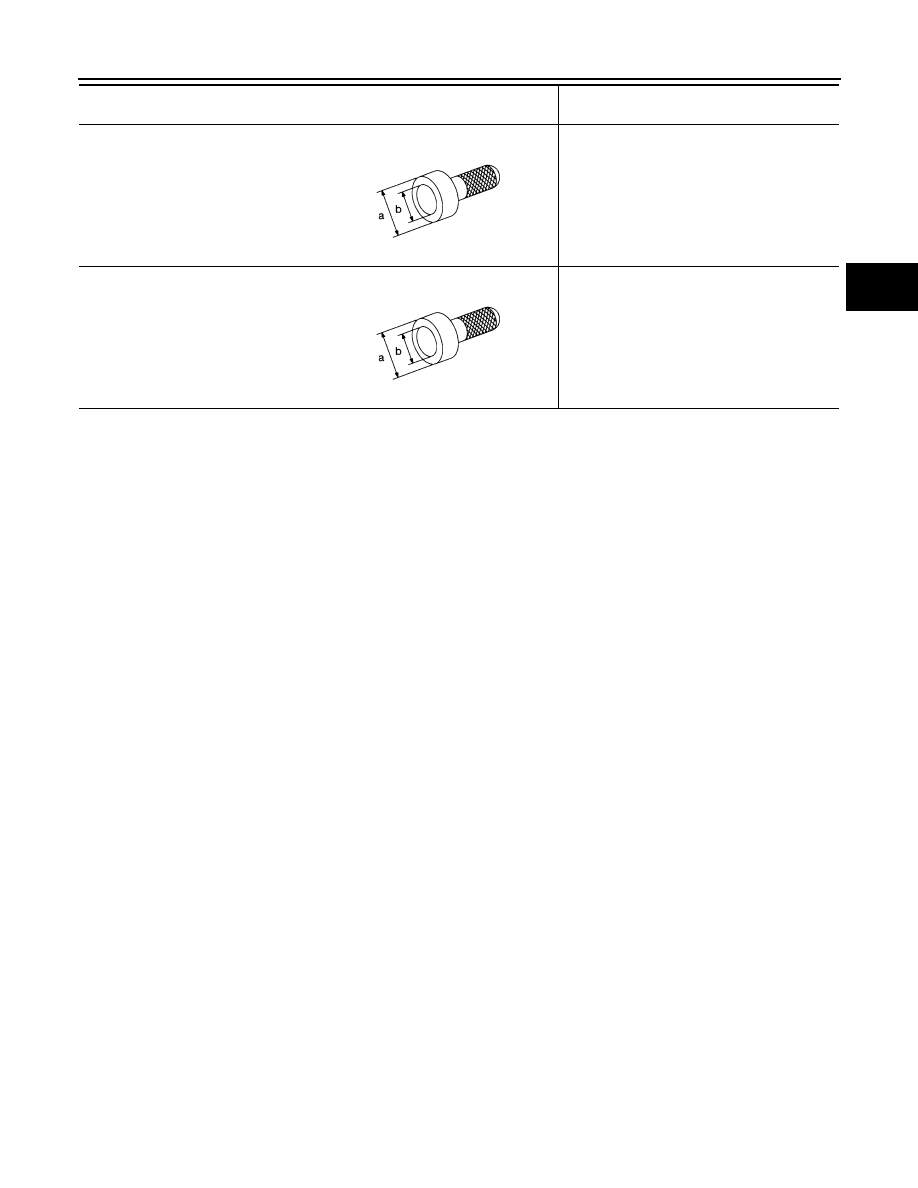

Drift
a: 54 mm (2.13 in) dia.
b: 47 mm (1.85 in) dia.

Installing differential side oil seal

Drift
a: 65 mm (2.56 in) dia.
b: 60 mm (2.36 in) dia.

Installing converter housing oil seal

Tool number
Tool name

Description

NT115

NT115
