Nissan Teana J32. Manual - part 1103

STEERING GEAR AND LINKAGE

ST-19

< ON-VEHICLE REPAIR >

Removal and Installation

INFOID:0000000003806323

REMOVAL

Set the vehicle to the straight-ahead position.

Remove front tires.

Remove splash guards (RH and LH). Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

Remove engine under cover. Refer to

EXT-28, "Exploded View"

Remove heat insulator from front floor.

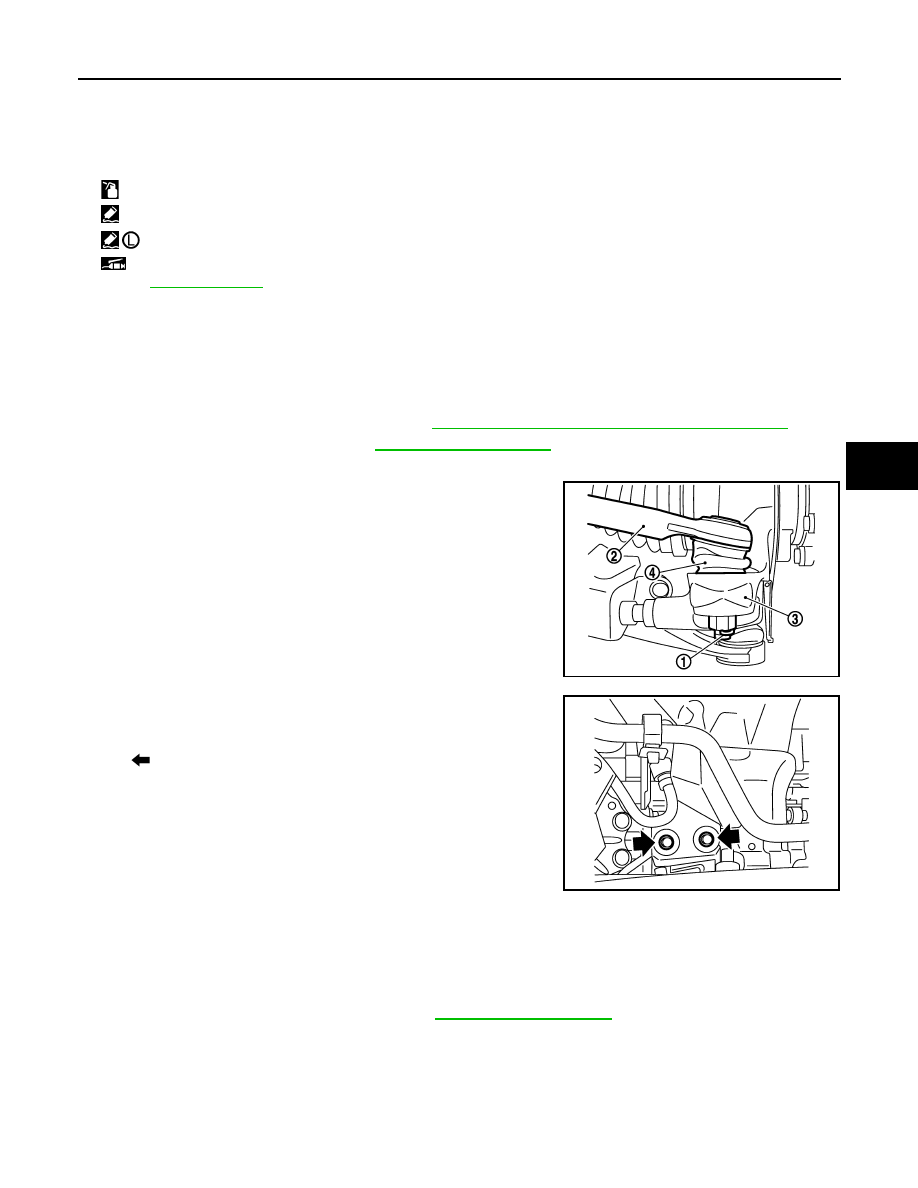

Remove cotter pin (1), and then loosen the nuts.

Remove steering outer socket (2) from steering knuckle (3) so
as not to damage ball joint boot (4) using suitable ball joint
remover.

CAUTION:

Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover from suddenly coming
off.

Remove high pressure piping and low pressure hose of hydrau-
lic piping, and then drain power steering fluid.

Remove steering hydraulic piping bracket from front steering
gear assembly.

10. Remove power steering solenoid valve harness connector and harness clip.
11. Separate the lower shaft from the steering gear assembly by sliding the slide shaft.

CAUTION:

Spiral cable may be cut if steering wheel turns while separating steering column assembly and
steering gear assembly. Be sure to secure steering wheel using string to avoid turning.

12. Remove the front stabilizer assembly. Refer to

FSU-16, "Exploded View"

13. Remove the mounting bolts and nuts of steering gear assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Spiral cable may be cut if steering wheel turns while separating steering column assembly and steer-
ing gear assembly. Be sure to secure steering wheel using string to avoid turning.

10. Boot clamp

11.

Boot

12. Inner socket

13. Boot clamp (stainless wire)

14. Spacer

15. Cylinder tube

16. Gear housing assembly

17. Rack oil seal

18. Rack assembly

19. Rack Teflon ring

20. O-ring

21. End cover assembly

: Apply power steering fluid.

: Apply Genuine Liquid Gasket, Three Bond 1111B or equivalent.

: Apply Genuine High Strength Thread Locking Sealant, Loctite 271 or equivalent.

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

for symbols not described on the above.

JSGIA0320ZZ

: Bolt

JSGIA0321ZZ

ST-20

< ON-VEHICLE REPAIR >

STEERING GEAR AND LINKAGE

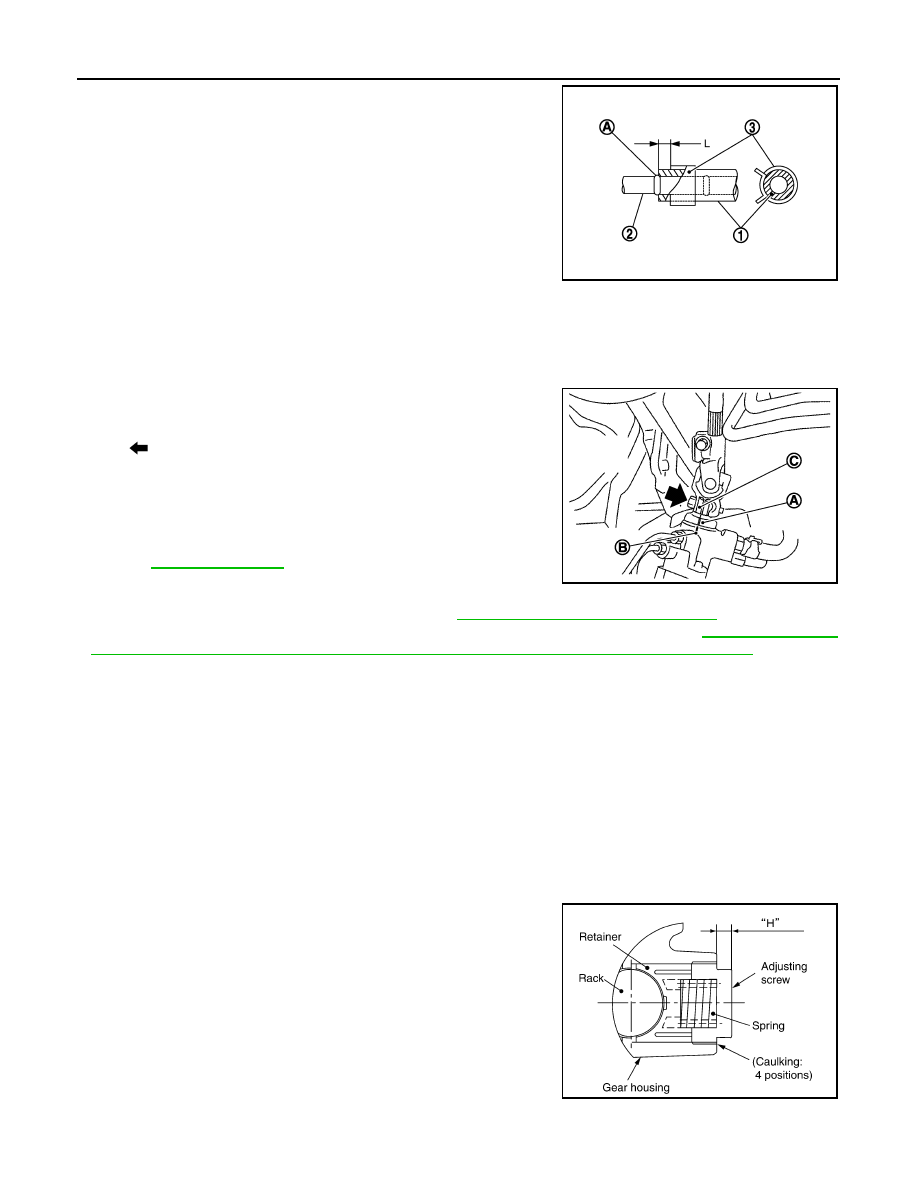

• When installing low pressure hose (1), refer to the figure.

CAUTION:

• Never apply fluid to the hose (1) and tube (2).
• Insert hose securely until it contacts spool (A) of tube.
• Leave clearance (L) when installing clamp (3).

• When installing lower joint to steering gear assembly, follow the procedure listed below.
- Set rack of steering gear in the neutral position.

NOTE:
To get the neutral position of rack, turn gear-sub assembly and measure the distance of inner socket, and
then measure the intermediate position of the distance.

- Align rear cover cap projection (A) with the marking position of

gear housing assembly (B).

- Install slit part of lower joint (C) aligning with the rear cover cap

projection (A). Make sure that the slit part of lower joint (C) is
aligned with rear cover cap projection (A) and the marking position
of gear housing assembly (B).

• After installation, bleed air from the steering hydraulic system.

Refer to

ST-32, "Inspection"

• Perform final tightening of nuts and bolts on each part under

unladen conditions with tires on level ground when removing steer-
ing gear assembly. Check wheel alignment. Refer to

FSU-7, "Wheel Alignment Inspection"

• Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to

BRC-66, "ADJUST-

MENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

(VDC mod-

els).

Disassembly and Assembly

INFOID:0000000003806324

DISASSEMBLY

Remove low pressure piping.

CAUTION:

• Disassemble and assemble steering gear assembly by fixing the mounting area with a vise using

copper plates.

• Clean steering gear assembly with kerosene before disassembling. Be careful to avoid splash-

ing or applying any kerosene over connector of discharge port or return port.

Remove cylinder tubes from gear housing assembly.

Remove rear cover cap from gear-sub assembly.

Measure adjusting screw height “H”, and loosen adjusting
screw.

CAUTION:

• Never loosen adjusting screw 2 turns or more.
• Replace steering gear assembly if adjusting screw is

loosened 2 turns or more and it is removed.

Remove gear-sub assembly from gear housing assembly.

Remove O-ring from gear housing assembly.

Loosen outer socket lock nut, and remove outer socket.

Remove boot clamps, and then remove boot from inner socket.

CAUTION:

Standard

: 3 – 8 mm (0.12 – 0.31 in)

JSGIA0118ZZ

: Bolt

JSGIA0111ZZ

SGIA0624E

STEERING GEAR AND LINKAGE

ST-21

< ON-VEHICLE REPAIR >

Never damage inner socket and gear housing assembly when removing boot. Inner socket and
gear housing assembly must be replaced if inner socket and gear housing assembly are damaged
because it may cause foreign material interfusion.

Remove inner socket and spacer from gear housing assembly.

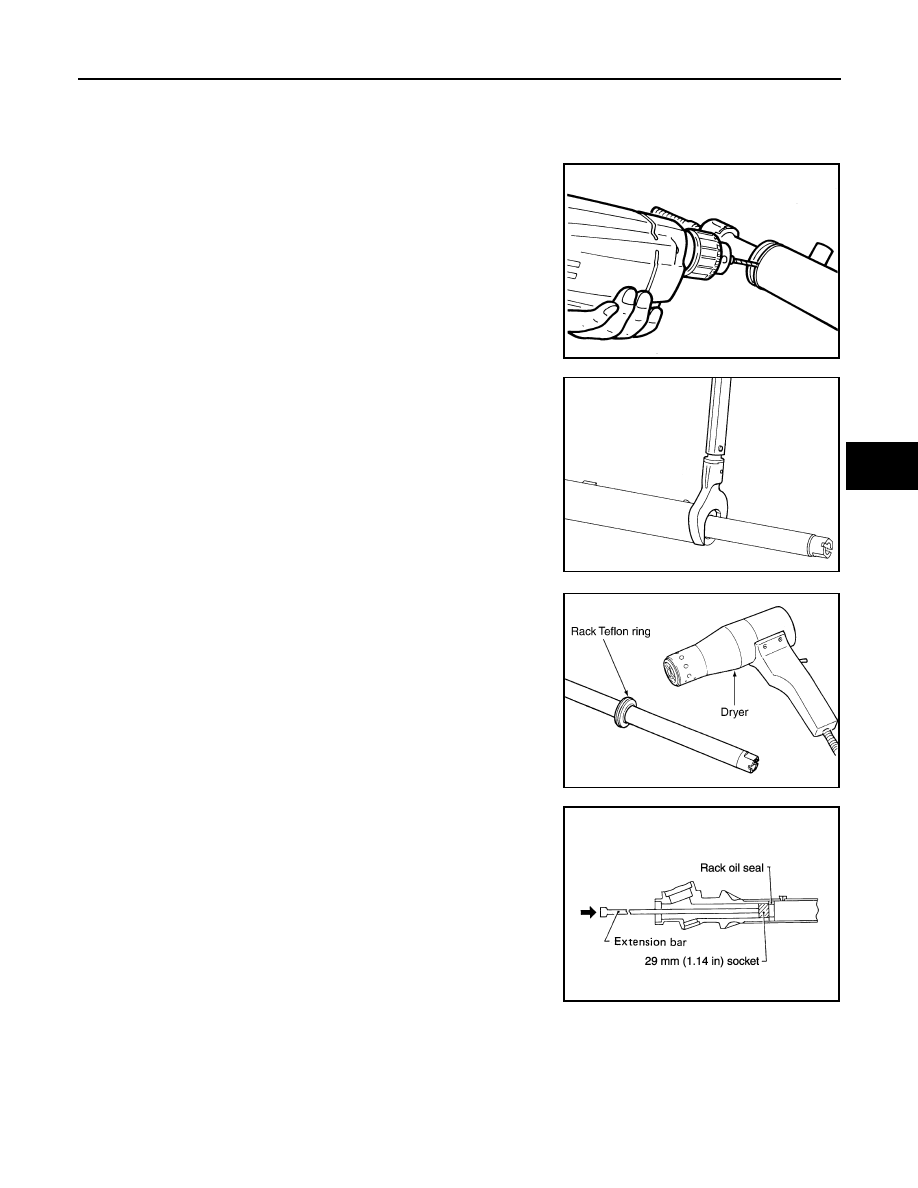

10. Drill out the clinching part of gear housing assembly (end cover

assembly side) outer rim with a 3 mm (0.12 in) drill bit. [Drill for
approximately 1.5 mm (0.059 in) depth.]

11. Remove end cover assembly with a 36 mm (1.42 in) open head

(suitable tool).

CAUTION:

Never damage rack assembly surface when removing. Rack
assembly must be replaced if damaged because it may
cause fluid leakage.

12. Pull rack assembly together with rack oil seal (outer side) out

from gear housing assembly.

CAUTION:

Never damage cylinder inner wall when remove rack
assembly. Gear housing assembly must be replaced if dam-
aged because it may cause fluid leakage.

13. Heat rack Teflon ring to approximately 40

C (104

F) with a

dryer, and remove rack Teflon ring and O-ring from rack assem-
bly.

CAUTION:

Never damage rack assembly. Rack assembly must be
replaced if damaged because it cause fluid leakage.

14. Push rack oil seal inside with a 29 mm (1.14 in) socket and an

extension bar to push out rack oil seal (inner side) from gear
housing assembly.

CAUTION:

Never damage gear housing assembly and cylinder inner
wall. Gear housing assembly must be replaced if damaged
because it may cause fluid leakage.

ASSEMBLY

Apply recommended fluid to O-ring. Put an O-ring into a rack Teflon ring.

CAUTION:

Never reuse O-ring.

STC0013D

SST081B

SGIA0151E

SGIA0179E

ST-22

< ON-VEHICLE REPAIR >

STEERING GEAR AND LINKAGE

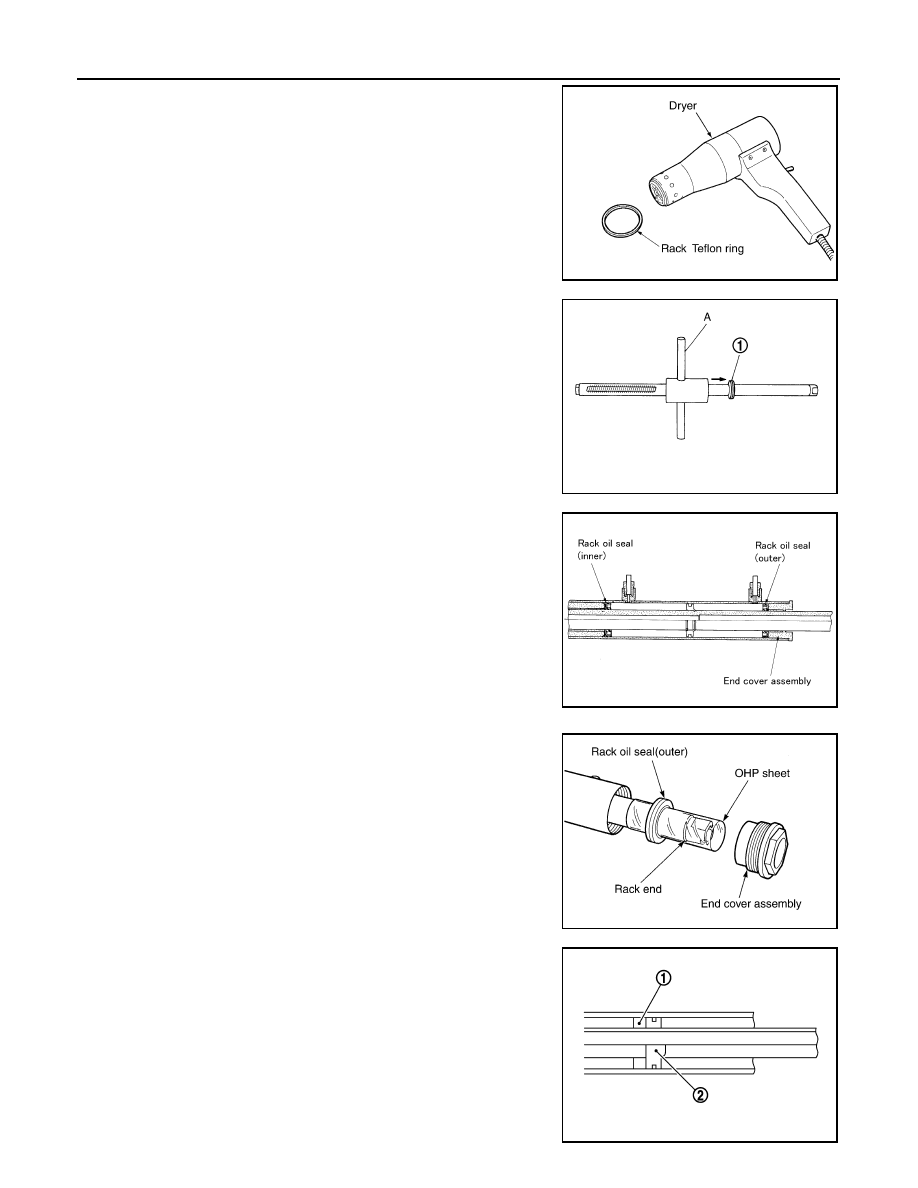

Heat rack Teflon ring to approximately 40

C (104

C) with a

dryer. Assemble it to mounting groove of rack assembly.

CAUTION:

Never reuse rack Teflon ring.

Install the Teflon ring correcting tool (A) (SST: KV48104400)
from tooth side of rack fit rack Teflon ring (1) on rack. Compress
the with tool.

Apply recommended grease to rack oil seal, and then install
rack oil seal in the following procedure. Then assemble rack
assembly to gear housing assembly.

CAUTION:

• Install rack oil seal in a direction so that the lip of inner oil

seal and the lip of outer oil seal face each other.

• Never damage retainer sliding surface by rack assembly.

Replace gear housing assembly if damaged.

• Never damage gear housing assembly inner wall by rack

assembly. Gear housing assembly must be replaced if
damaged because it may cause fluid leakage.

Wrap an OHP sheet [approximately 70 mm (2.76 in)

100 mm

(3.94 in)]. Around rack assembly teeth to avoid damaging rack
oil seal (inner). Install rack oil seal over sheet. Then, pull OHP
sheet along with rack oil seal until they pass rack assembly
teeth, and remove OHP sheet.

Insert rack oil seal (inner) (1) into rack assembly piston (2).

Push retainer to adjusting screw side by hand, and move the
rack assembly inside the gear housing assembly so that the
rack oil seal (inner) can be pressed against the gear housing
assembly.

SGIA0153E

SGIA1324E

SGIA0205E

SGIA0157E

JSGIA0323ZZ
