STEERING COLUMN

ST-15

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

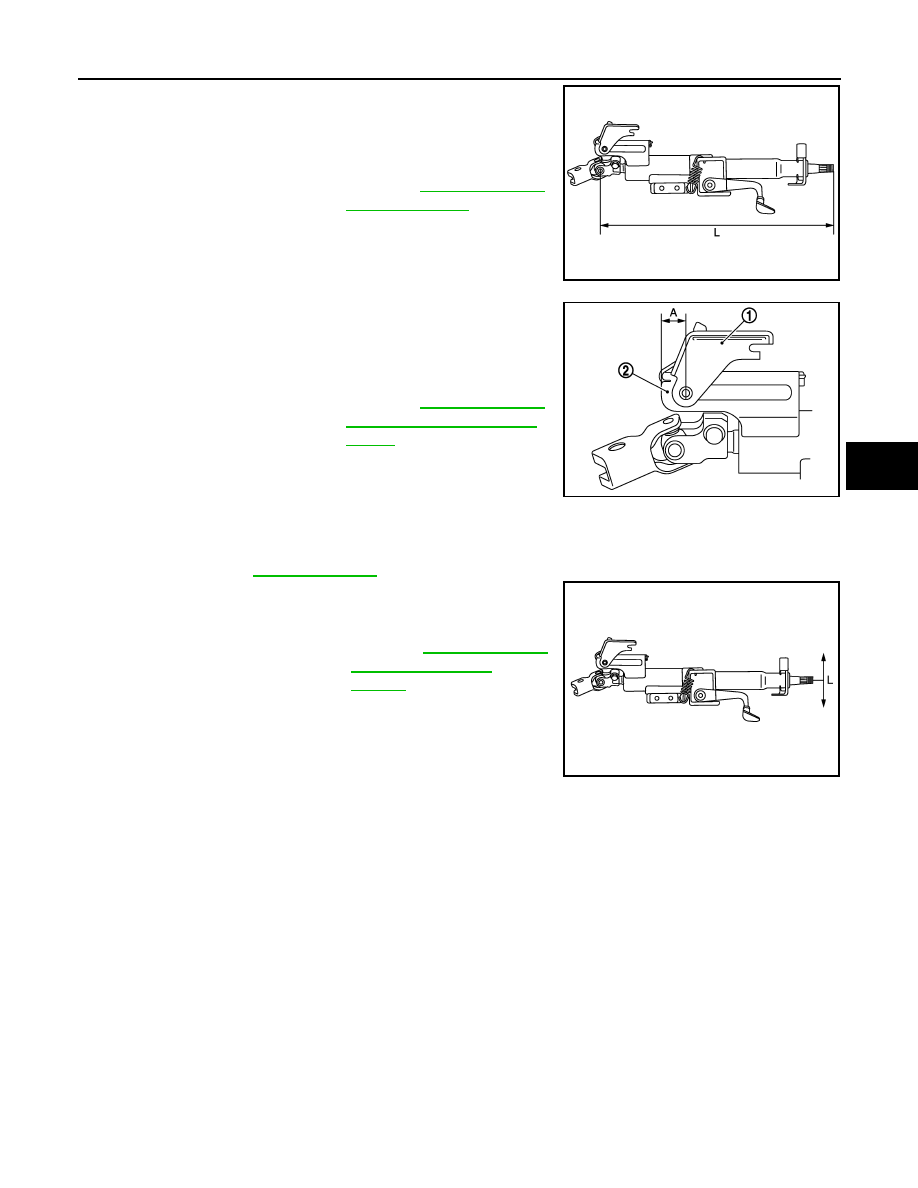

• Measure the length (L) as shown, if vehicle has been involved in a

minor collision. Replace steering column assembly if out side the
standard.

• Install the bracket (1) and steering column housing (2) so that the

clearance (A) is within the specified range as described below.
Replace steering column assembly if out side the standard.

INSPECTION AFTER INSTALLATION

• Check each part of steering column assembly for damage or other malfunctions. Replace if necessary.
• Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel

turning angle. Refer to

ST-9, "Inspection"

.

• Check tilt mechanism operating range (L), as shown in the figure.

Standard

L

: Refer to

ST-37, "Steering

Column Length"

.

JSGIA0388ZZ

Standard

A

: Refer to

ST-37, "Steering

Column Mounting Dimen-
sions"

.

JSGIA0389ZZ

Standard

L

: Refer to

ST-37, "Steering

Column Operating
Range"

.

JSGIA0390ZZ

ST-16

< ON-VEHICLE REPAIR >

LOWER SHAFT

LOWER SHAFT

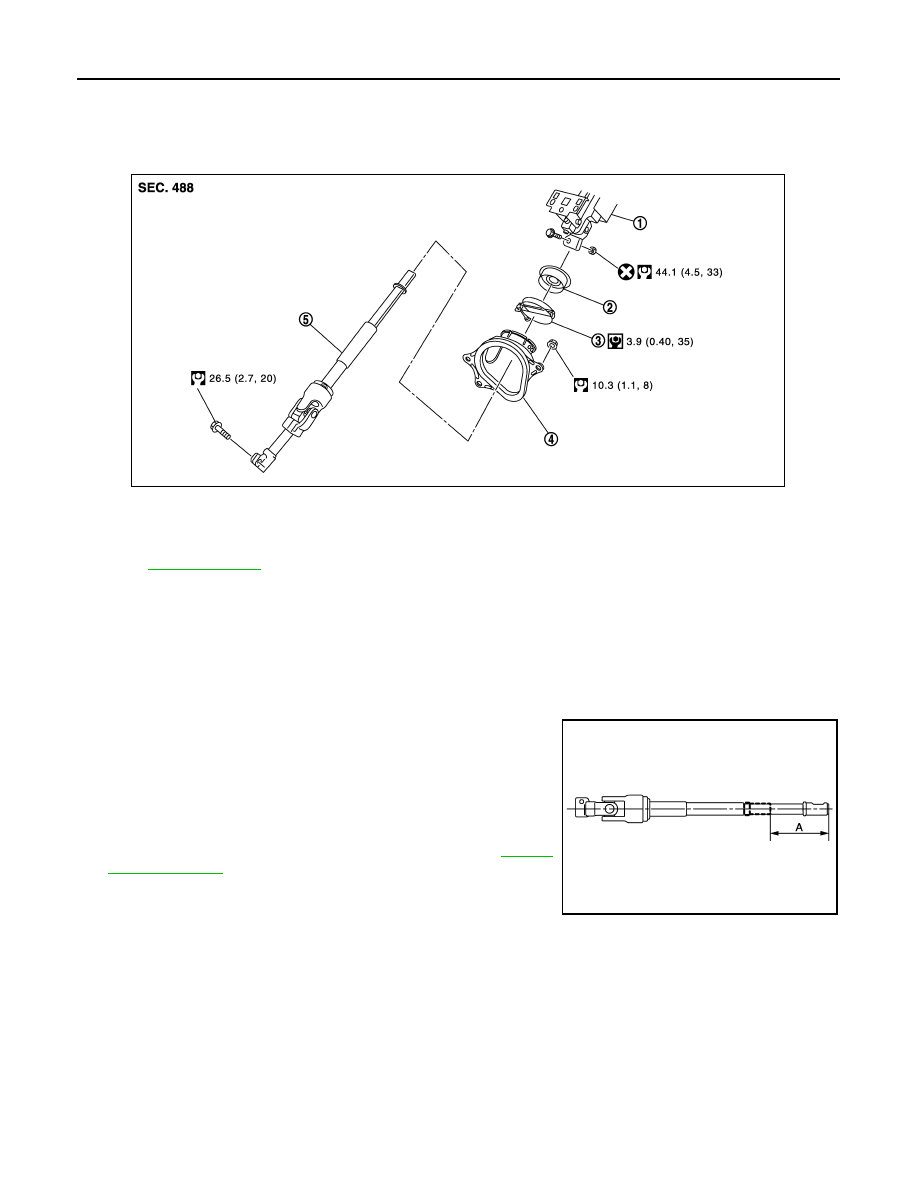

Exploded View

INFOID:0000000003806319

Removal and Installation

INFOID:0000000003806320

REMOVAL

1.

Set the vehicle to the straight-ahead position.

2.

Fix the steering wheel.

3.

Remove upper joint fixing bolt and nut (lower shaft side).

4.

Separate the lower shaft from the steering gear assembly by
sliding the slide shaft (A: sliding range).

CAUTION:

Spiral cable may be cut if steering wheel turns while sepa-
rating steering column assembly and steering column
assembly. Be sure to secure steering wheel using string to
avoid turning.

5.

Remove the accelerator pedal assembly. Refer to

ACC-3,

"Exploded View"

.

6.

Remove the side brake pedal bracket and wire clamp stay.

7.

Remove the hole cover mounting nuts.

8.

Remove the hole cover seal, clamp and hole cover.

9.

Remove lower shaft joint fixing bolt (steering gear side).

10. Remove the lower shaft.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Spiral cable may be cut if steering wheel turns while separating steering column assembly and steer-
ing gear assembly. Be sure to secure steering wheel using string to avoid turning.

1.

Steering column assembly

2.

Hole cover seal

3.

Clamp

4.

Hole cover

5.

Lower shaft

Refer to

GI-4, "Components"

 for symbols in the figure.

JSGIA0392GB

JSGIA0393ZZ

LOWER SHAFT

ST-17

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

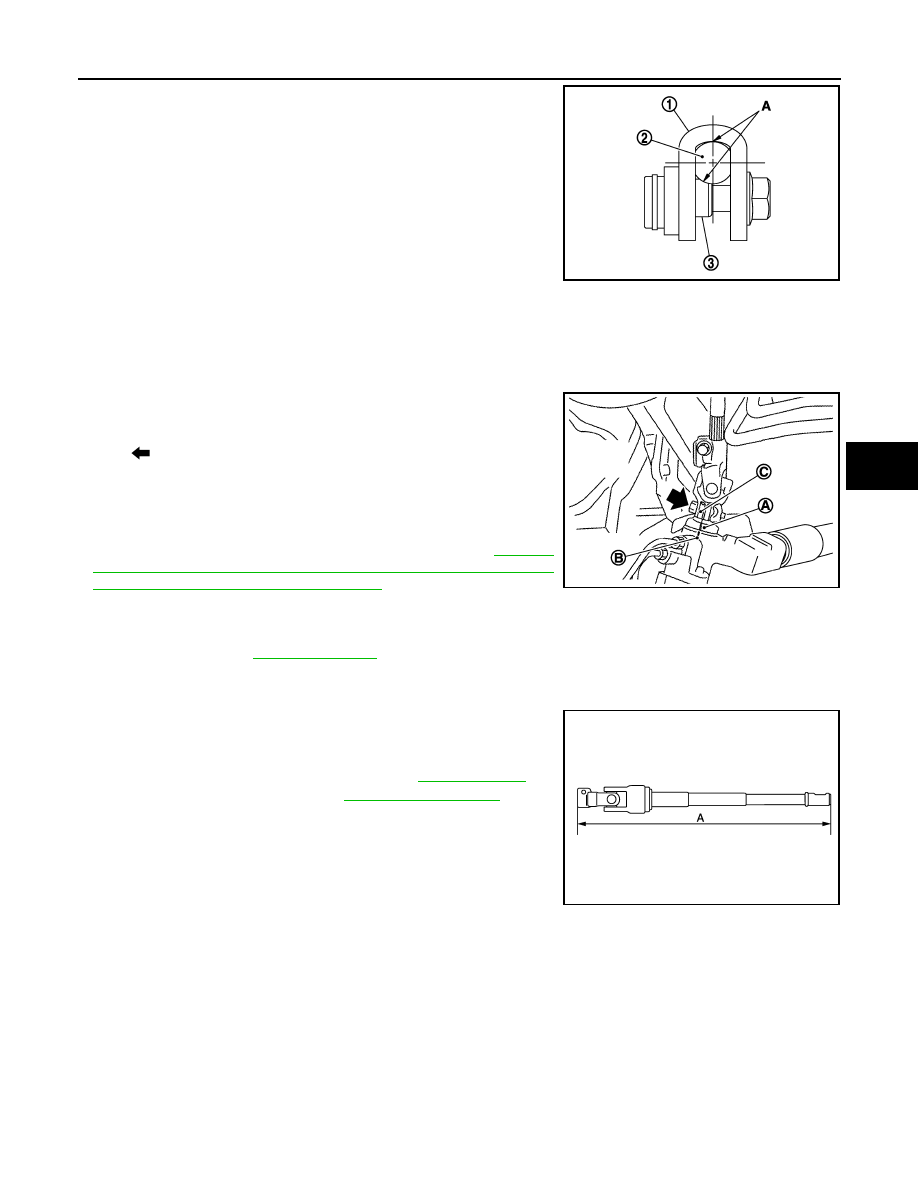

• After lower shaft (steering gear side) fitted, make sure there is not

gap (A) between the yoke (1), lower shaft (2), joint fixing bolt (3).

• When installing lower joint to steering gear assembly, follow the procedure listed below.
- Set rack of steering gear in the neutral position.

NOTE:
To get the neutral position of rack, turn gear-sub assembly and measure the distance of inner socket, and
then measure the intermediate position of the distance.

- Align rear cover cap projection (A) with the marking position of

gear housing assembly (B).

- Install slit part of lower joint (C) aligning with the rear cover cap

projection (A). Make sure that the slit part of lower joint (C) is
aligned with rear cover cap projection (A) and the marking position
of gear housing assembly (B).

• Adjust neutral position of steering angle sensor. Refer to

BRC-66,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Special Repair Requirement"

.

• Check the following after installation:
- Check if steering wheel turns smoothly when it is turned several times fully to the end of the left and right.
- Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel

turning angle. Refer to

ST-9, "Inspection"

.

Inspection

INFOID:0000000003806321

• Check the length (A) (extended position) of the lower shaft.

• Check each part of lower shaft for damage or other malfunctions.

Replace if there are.

JSGIA0180ZZ

: Bolt

JSGIA0313ZZ

Standard

A

: Refer to

ST-38, "Lower

Shaft Sliding Range"

.

JSGIA0405ZZ

ST-18

< ON-VEHICLE REPAIR >

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE

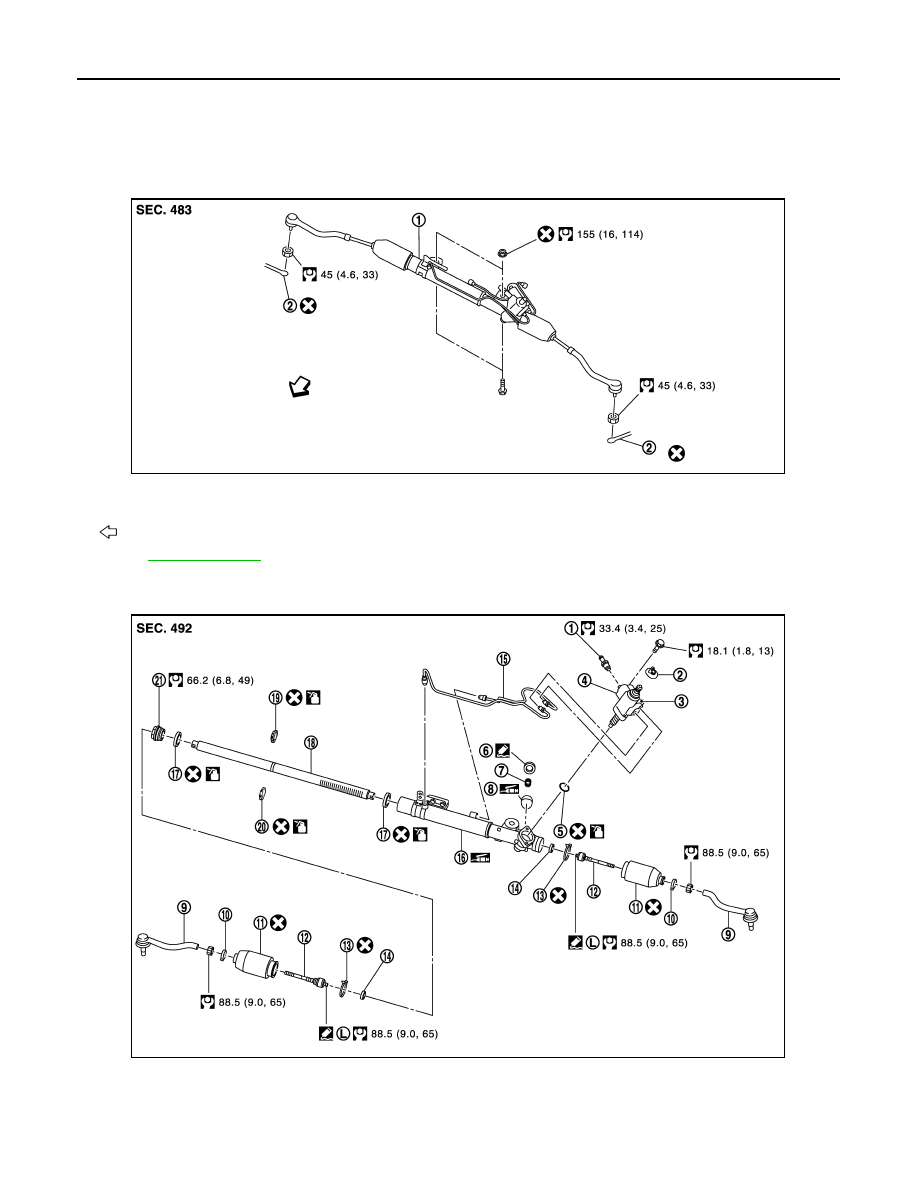

Exploded View

INFOID:0000000003806322

REMOVAL

DISASSEMBLY

1.

Steering gear assembly

2.

cotter pin

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSGIA0394GB

1.

Low pressure piping

2.

Rear cover cap

3.

Gear-sub assembly

4.

Power steering solenoid valve

5.

O-ring

6.

Adjusting screw

7.

Spring

8.

Retainer

9.

Outer socket

JSGIA0396GB
