FRONT SEAT

SE-137

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

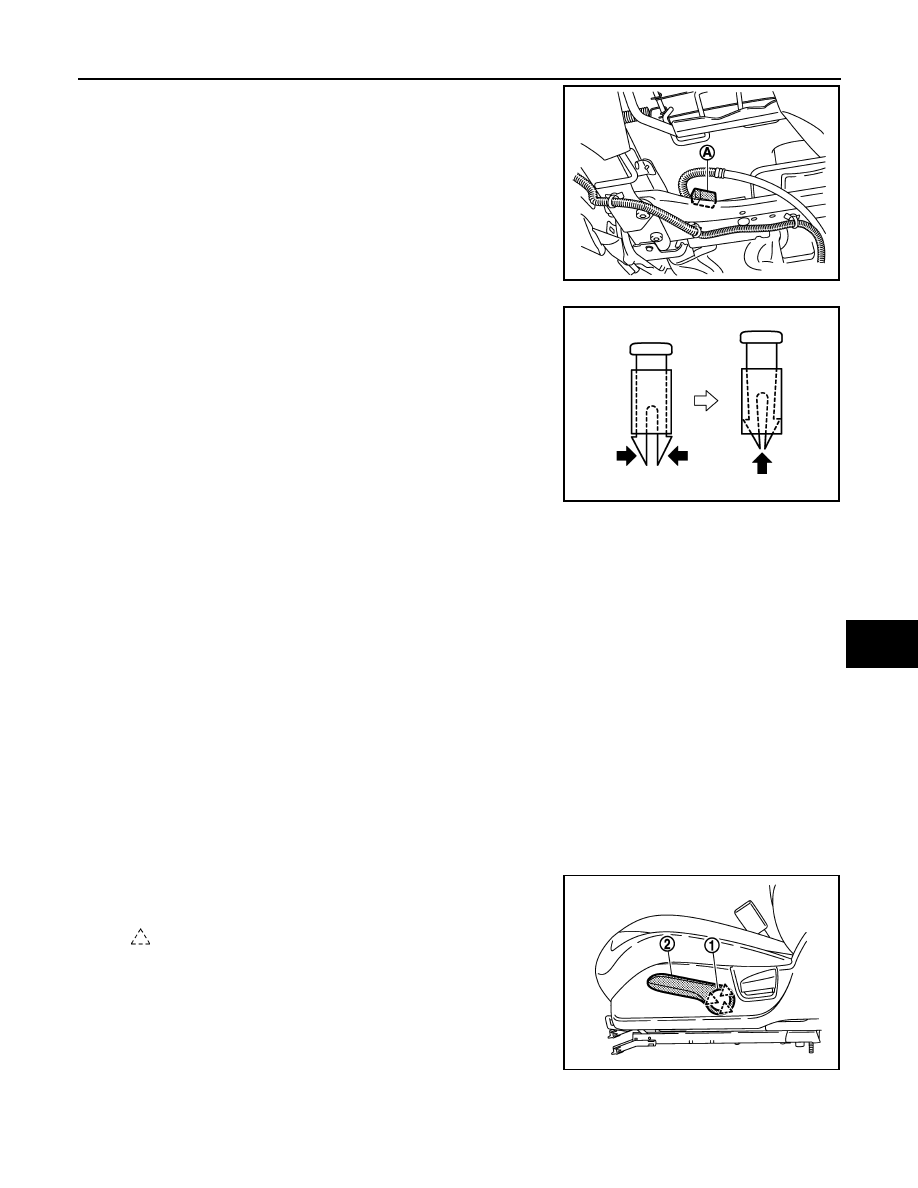

• Disconnect the seatback heater unit harness connector (A).

• Remove the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left).

• Remove the seatback trim and seatback pad from the seat frame assembly.
• Remove the hog rings to separate the seatback trim and seatback pad.

4.

Remove the seatback silencer.

5.

Remove the lumbar support unit. (With lumbar support model)
• Remove the screws.
• Remove the lumbar support unit while pulling the seatback spring.

6.

Remove the reclining device outer and inner cover.
Remove the screws, and then remove reclining device outer and inner cover.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

SEAT CUSHION

Disassembly

1.

Remove the seat cushion outer finisher.

a.

Manual seat
• Remove the pawls, and then remove lifter lever knob finisher

(1).

• Remove the mounting screws, and remove lifter lever knob

(2).

JMJIA1868ZZ

PIIB4084J

: Pawl

JMJIA1869ZZ

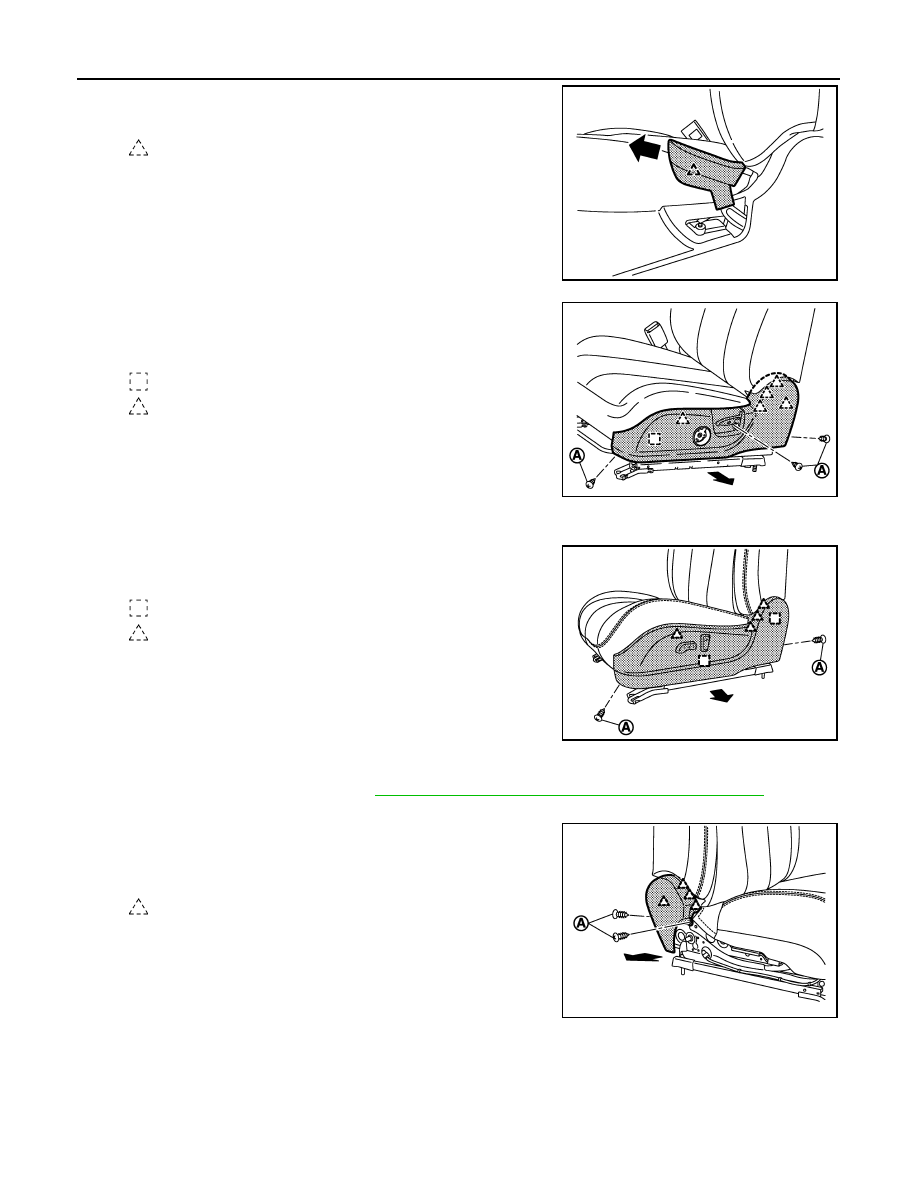

SE-138

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

FRONT SEAT

• Pull out the reclining lever knob while holding and raising the

pawls.

• Remove the screws (A).
• Remove the metal clips pawls, and then pull out seat cushion

outer finisher.

b.

Power seat
• Remove the screws (A).
• Remove the metal clips and pawls, and then pull out seat

cushion outer finisher.

• Disconnect the harness connector and remove harness clamp.

2.

Remove the seat belt buckle. Refer to

SB-7, "SEAT BELT BUCKLE : Removal and Installation"

.

3.

Remove the seat cushion inner finisher.
• Remove the screws (A).
• Remove the pawls, and then pull out seat cushion inner fin-

isher.

4.

Remove the seat cushion trim and seat cushion pad.
• Remove the seat cushion retainer.
• Disconnect the seat cushion heater unit harness connector.
• Remove the seat cushion trim and seat cushion pad from the seat frame assembly.
• Remove the hog rings, and separate the seat cushion trim and seat cushion pad.

5.

Remove the seat slide outer cover.

: Pawl

JMJIA1091ZZ

: Metal clip

: Pawl

JMJIA1870ZZ

: Metal clip

: Pawl

JMJIA1871ZZ

: Pawl

JMJIA1872ZZ

FRONT SEAT

SE-139

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

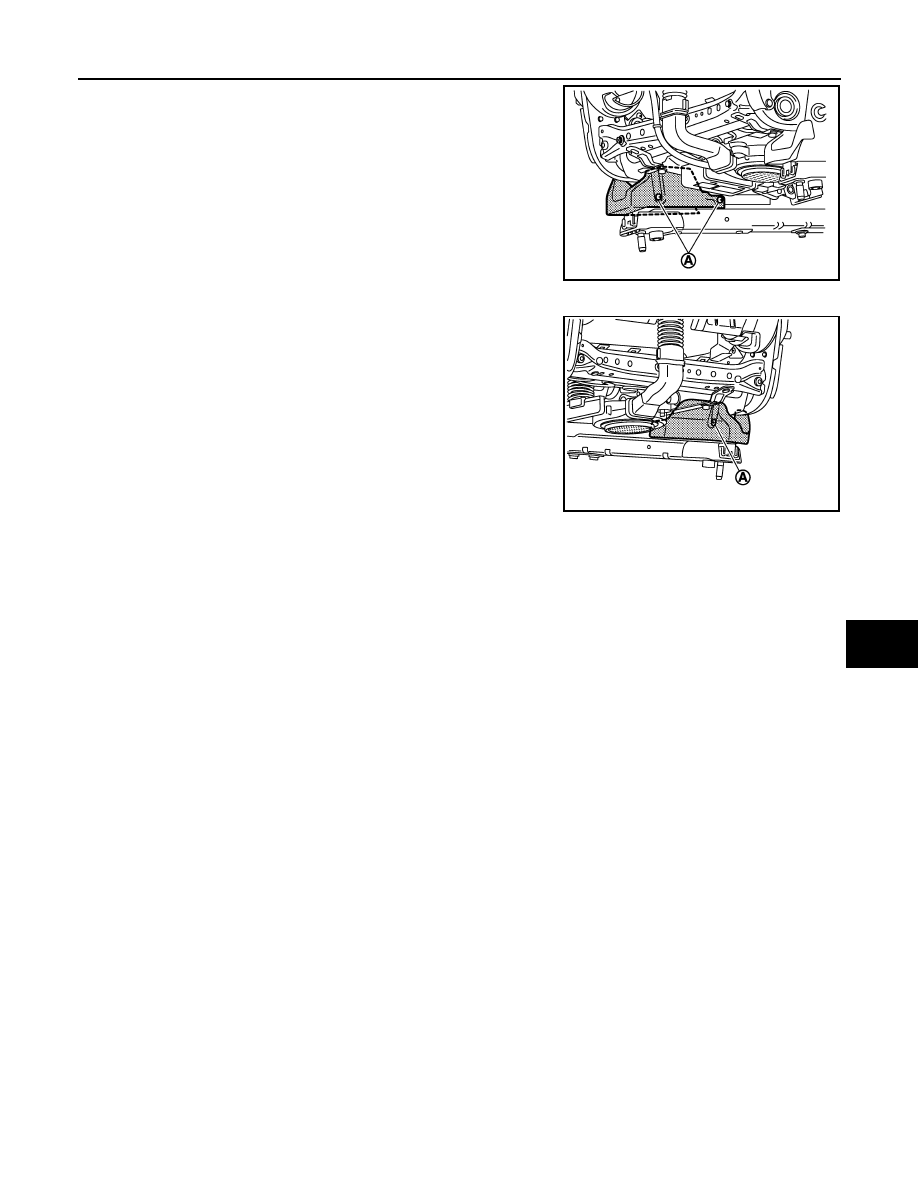

Remove the screws (A), and then remove seat slide outer cover.

6.

Remove seat slide inner cover.
Remove the screw (A), and then remove seat slide inner cover.

7.

Remove the seat cushion outer and inner finisher inside.
Remove the screw, and then remove the seat cushion outer and inner finisher inside.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.

JMJIA1874ZZ

JMJIA1873ZZ

SE-140

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

REAR SEAT

REAR SEAT

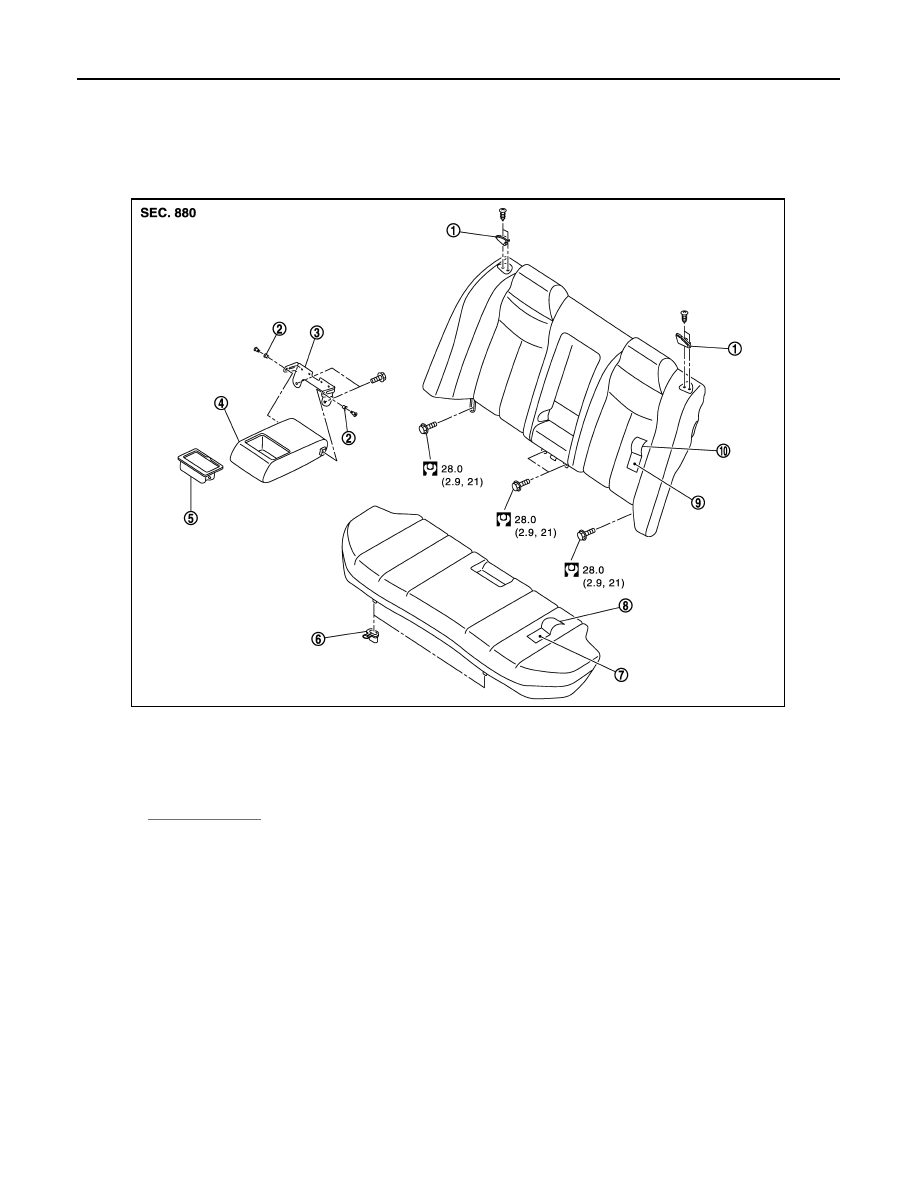

Exploded View

INFOID:0000000003840026

HEADREST FIXED TYPE

HEADREST REMOVED AND INSTALLED TYPE

1.

Seat belt hook

2.

Bushing

3.

Armrest bracket

4.

Armrest assembly

5.

Cup holder

6.

Seat cushion hook

7.

Seat cushion pad

8.

Seat cushion trim

9.

Seatback pad

10. Seatback trim

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA1882GB
