PREPARATION

SE-129

< PREPARATION >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PREPARATION

PREPARATION

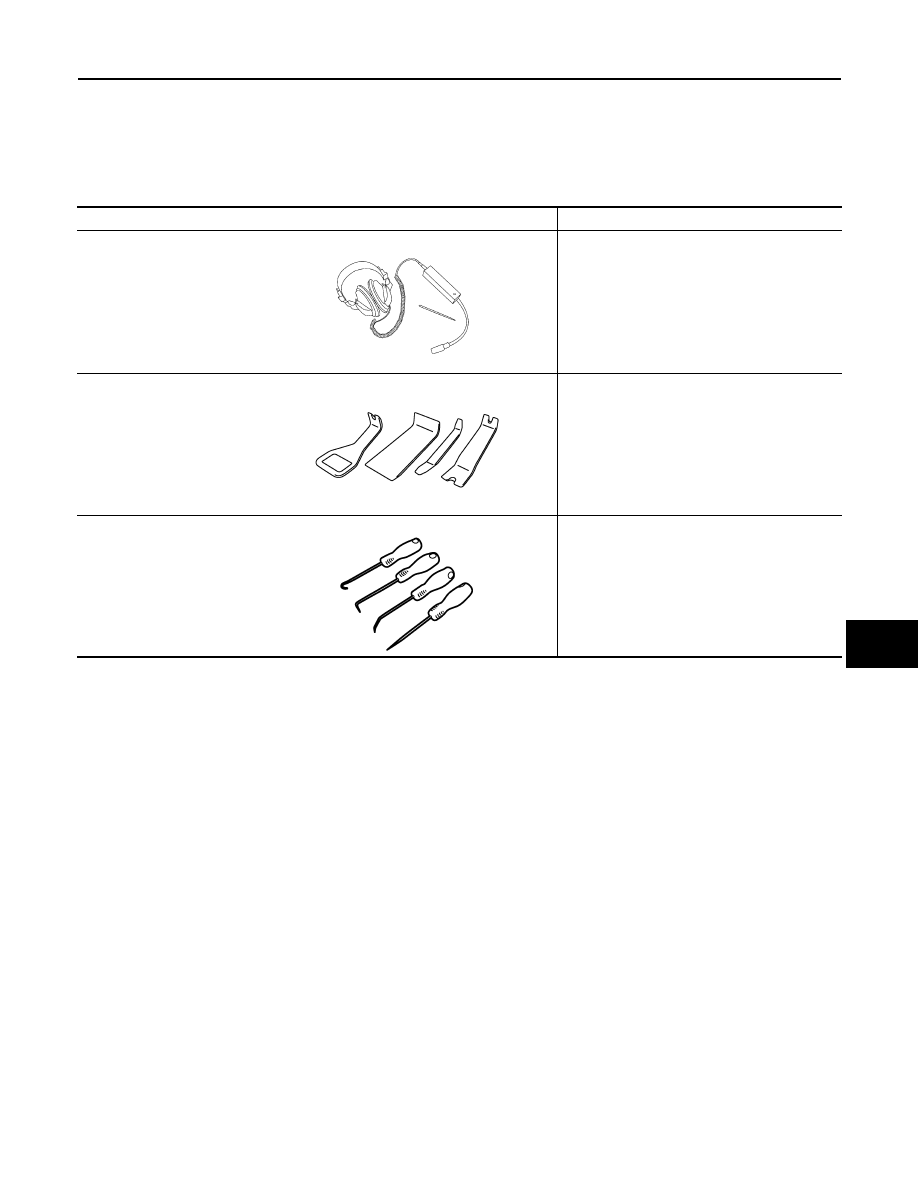

Commercial Service Tools

INFOID:0000000003840022

Tool name

Description

Engine ear

Locating the noise

Remover tool

Removes clips, pawls, metal clips

Hook and pick tool

Removes the snap pins

SIIA0995E

PIIB7923J

JMJIA0490ZZ

SE-130

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

FRONT SEAT

ON-VEHICLE REPAIR

FRONT SEAT

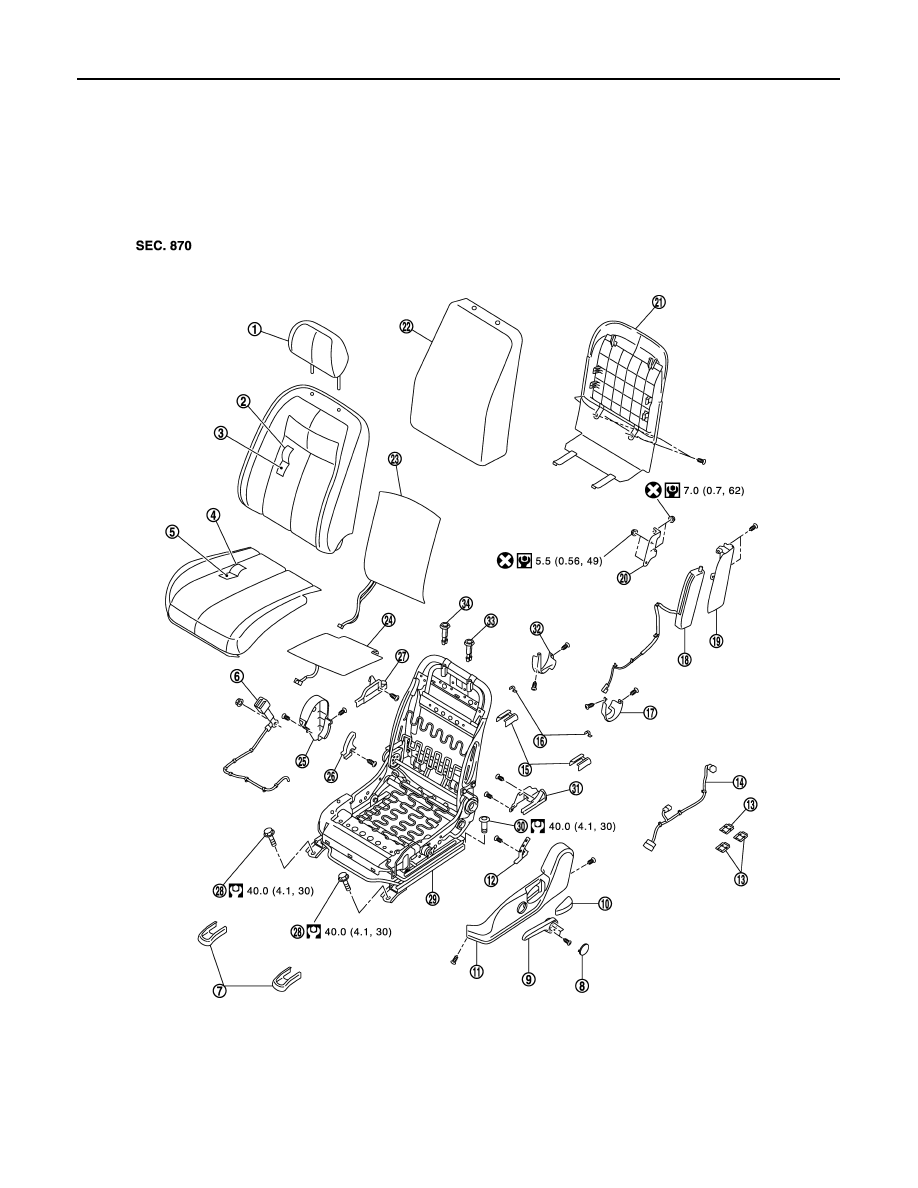

Exploded View

INFOID:0000000003840023

MANUAL SEAT

1.

Headrest

2.

Seatback trim

3.

Seatback pad

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat belt buckle

7.

Front slide cover

8.

Lifter lever knob cap

9.

Lifter lever knob

10. Reclining lever knob

11.

Seat cushion outer finisher

12. Seat cushion outer finisher inside

JMJIA1713GB

FRONT SEAT

SE-131

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

DRIVER'S POWER SEAT

13. Seat harness clamp

14. Seat harness

15. Rear slide cover

16. End cap

17. Reclining device outer cover

18. Side air bag module

19. Seatback finisher

20. Side air bag module bracket

21. Seatback board

22. Seatback silencer

23. Seatback heater unit

24. Seat cushion heater unit

25. Seat cushion inner finisher

26. Seat cushion inner finisher inside

27. Seat slide inner cover

28. TORX bolt

29. Seat frame assembly

30. TORX bolt

31. Seat slide outer cover

32. Reclining device inner cover

33. Headrest holder (locked)

34. Headrest holder (free)

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-132

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

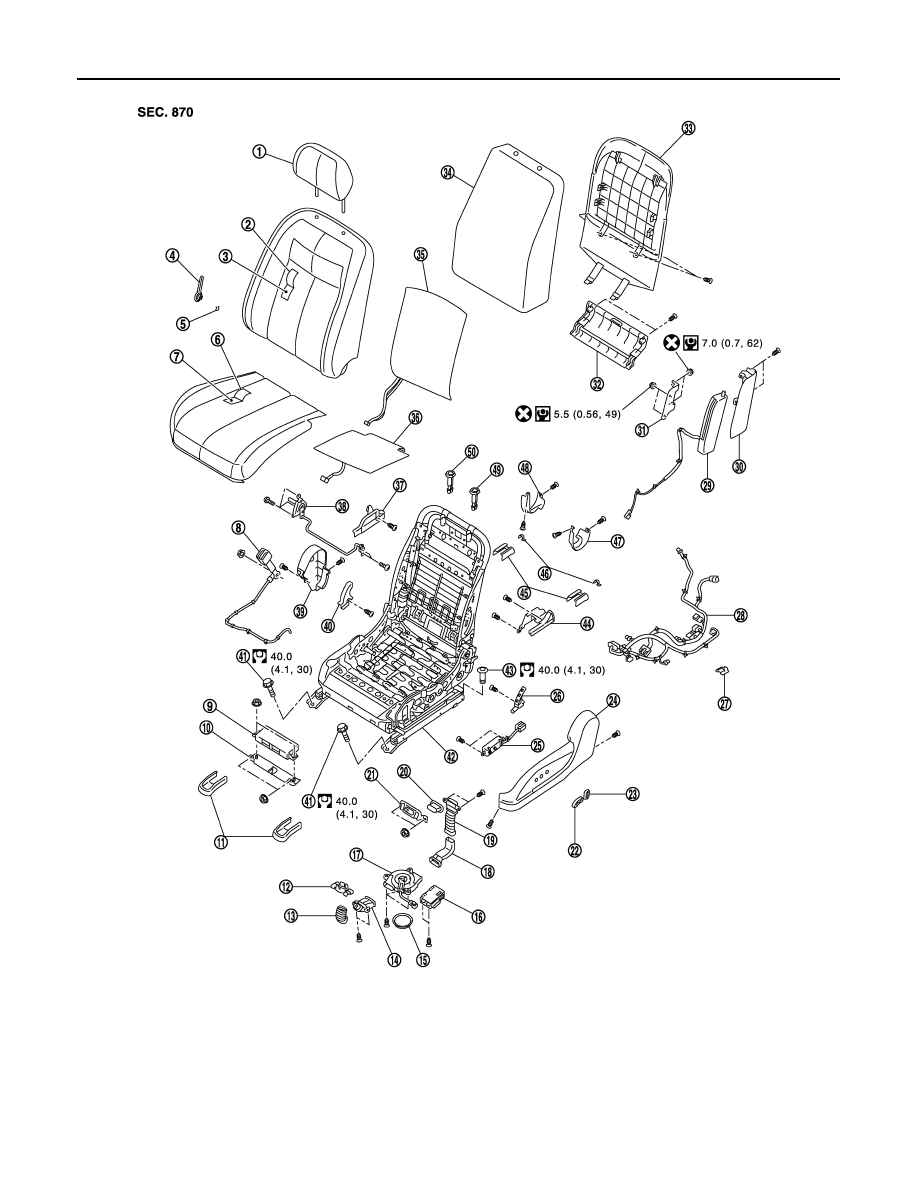

FRONT SEAT

1.

Headrest

2.

Seatback trim

3.

Seatback pad

4.

Lumbar support lever knob

5.

Snap pin

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat belt buckle

9.

Seat control unit

10. Seat cushion frame bracket

11.

Front slide cover

12. Clip

13. Seat cushion duct B

14. Seat cushion duct A

15. Blower filter

16. Ventilation seat control unit

17. Ventilation motor

18. Seatback duct A

JMJIA1714GB
