REAR SEAT

SE-141

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

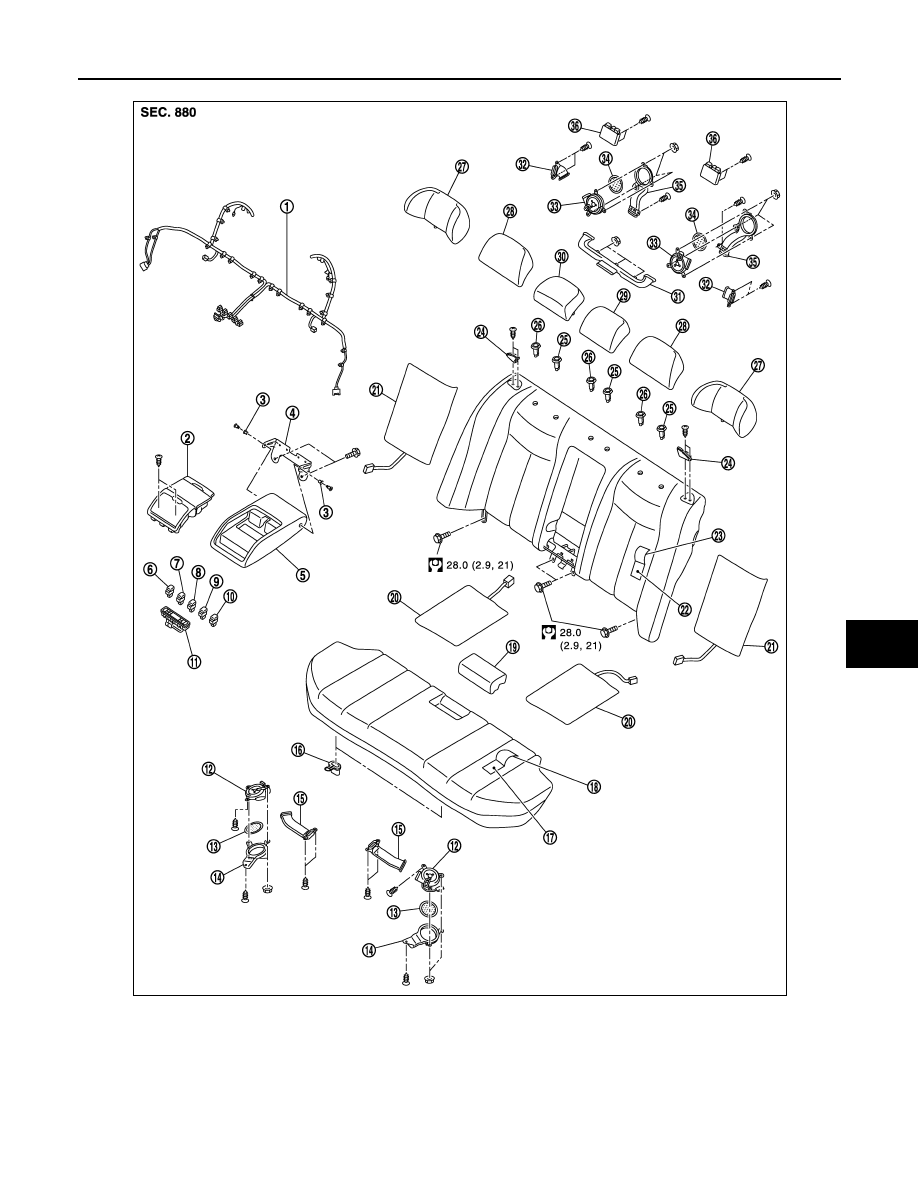

1.

Seat harness

2.

Cup holder

3.

Bushing

4.

Armrest bracket

5.

Armrest assembly

6.

Seat heater switch RH

7.

Air conditioning switch RH

8.

Rear sunshade switch

9.

Air conditioning switch LH

10. Seat heater switch LH

11.

Rear audio switch

12. Ventilation motor (seat cushion)

13. Blower filter

14. Seat cushion duct A

15. Seat cushion duct B

16. Seat cushion hook

17. Seat cushion pad

18. Seat cushion trim

JMJIA1883GB

SE-142

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

REAR SEAT

Removal and Installation

INFOID:0000000003840027

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the seat cushion.
• Pull the lock lever (1) at the front bottom of the seat cushion

forward (1 for each side), and pull the seat cushion upward to
release the wire (2) from the seat cushion hook. Then pull the
seat cushion forward to remove.

• Remove the seat cushion from the vehicle.

3.

Remove the seatback.
• Remove the bolts under seatback.
• Lift up seatback from underneath, and then remove seatback from seatback hook that is fixed to the

vehicle.

• Remove the seatback from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Disassembly and Assembly

INFOID:0000000003840028

SEATBACK

Disassembly

1.

Remove armrest assembly.

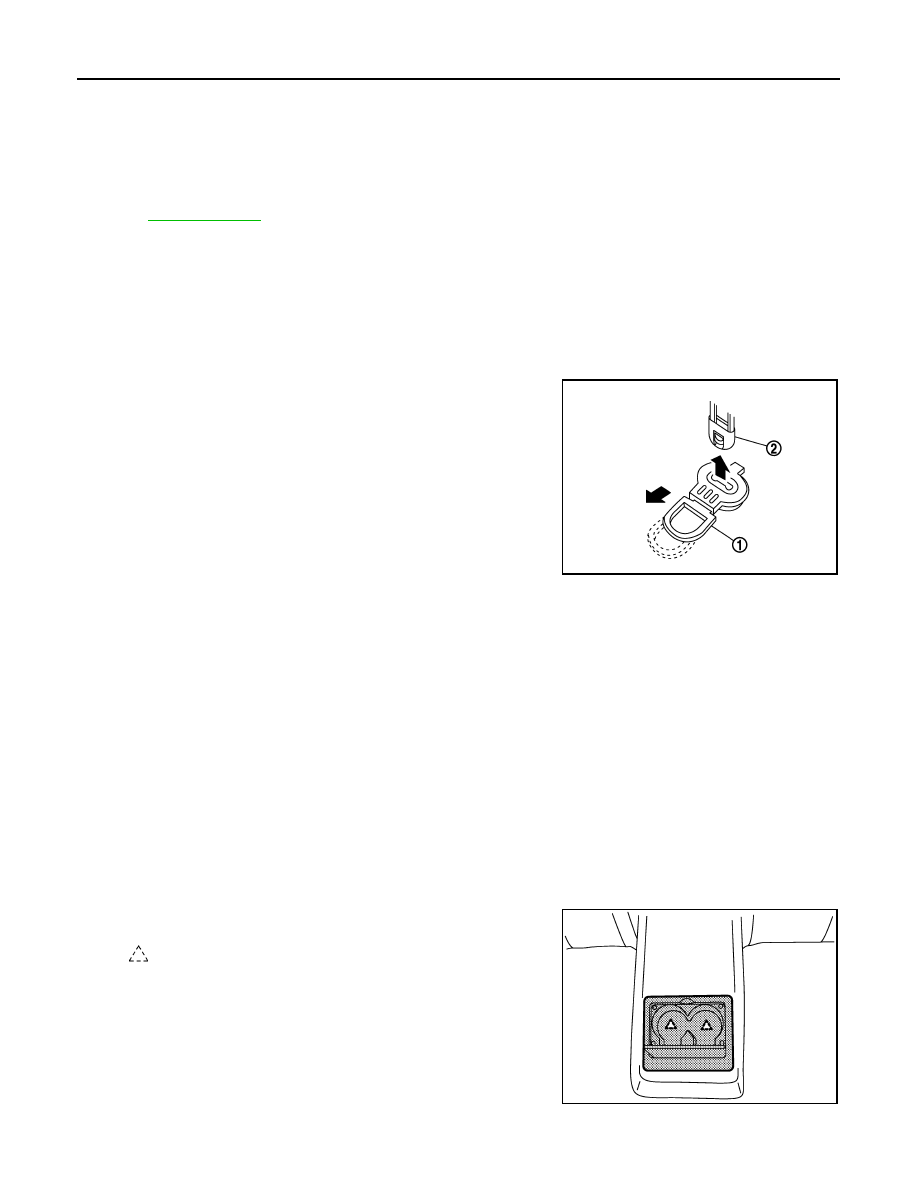

• Remove the pawls, and pull out the cup holder.

19. Seatback center pad

20. Seat cushion heater unit

21. Seatback heater unit

22. Seatback pad

23. Seatback trim

24. Seat belt hook

25. Headrest holder (locked)

26. Headrest holder (free)

27. Headrest side (long type)

28. Headrest side (normal type)

29. Headrest center (normal type)

30. Headrest center (long type)

31. Seatback duct C

32. Seatback duct B

33. Ventilation motor (seatback)

34. Blower filter

35. Seatback duct A

36. Ventilation seat control unit

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA0251ZZ

: Pawl

JMJIA1936ZZ

REAR SEAT

SE-143

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

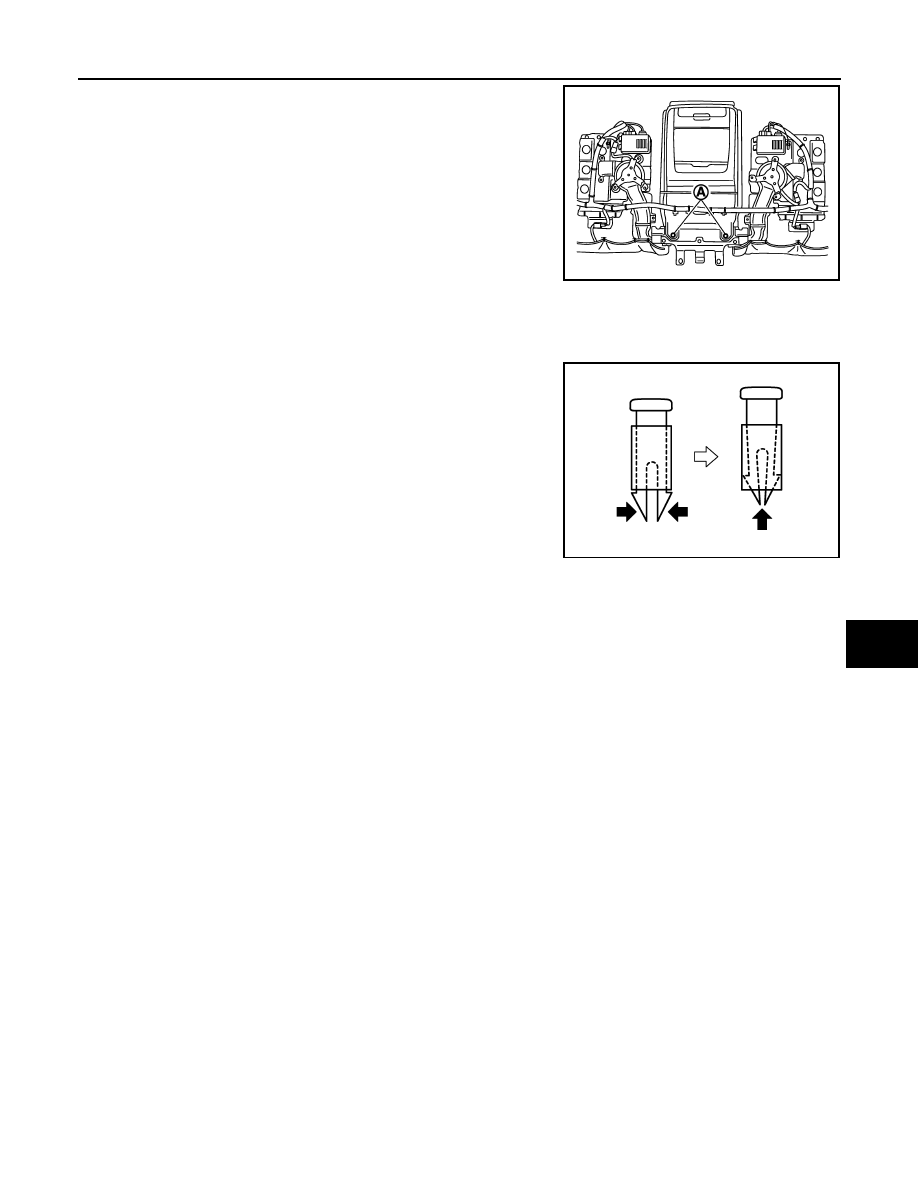

• Remove the bolts (A), and then remove armrest retainer.

• Remove the armrest assembly.

2.

Remove the seatback trim.
• Remove the screws, and then seat belt hook.
• Remove the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left).

• Remove the hog rings to separate the seatback trim and seatback pad.

Assembly

Assemble in the reverse order of disassembly.

SEAT CUSHION

Disassembly

Remove the hog rings, and separate the seat cushion trim and seat cushion pad.

Assembly

Assemble in the reverse order of disassembly.

JMJIA1939ZZ

PIIB4084J

SE-144

< ON-VEHICLE REPAIR >

[WITHOUT VENTILATION SEAT]

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000003885027

Refer to

SE-130, "Exploded View"

.

Removal and Installation

INFOID:0000000003885028

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

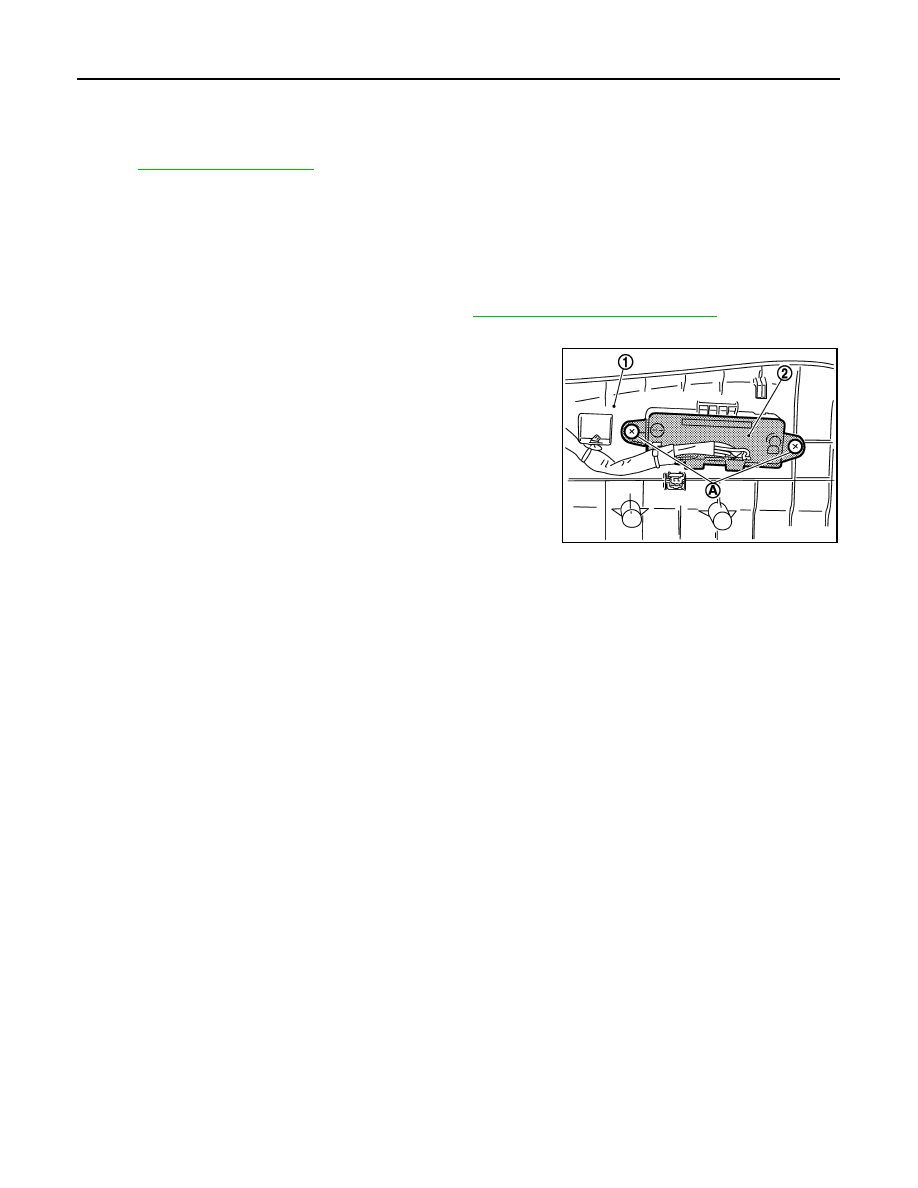

Remove the seat cushion outer finisher (1). Refer to

SE-135, "Removal and Installation"

.

2.

Remove switch knob.

3.

Remove screws (A).

4.

Remove the power seat switch (2) from the seat cushion outer
finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.

JMJIA1952ZZ
