AV

STEERING ANGLE SENSOR

AV-183

< ON-VEHICLE REPAIR >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

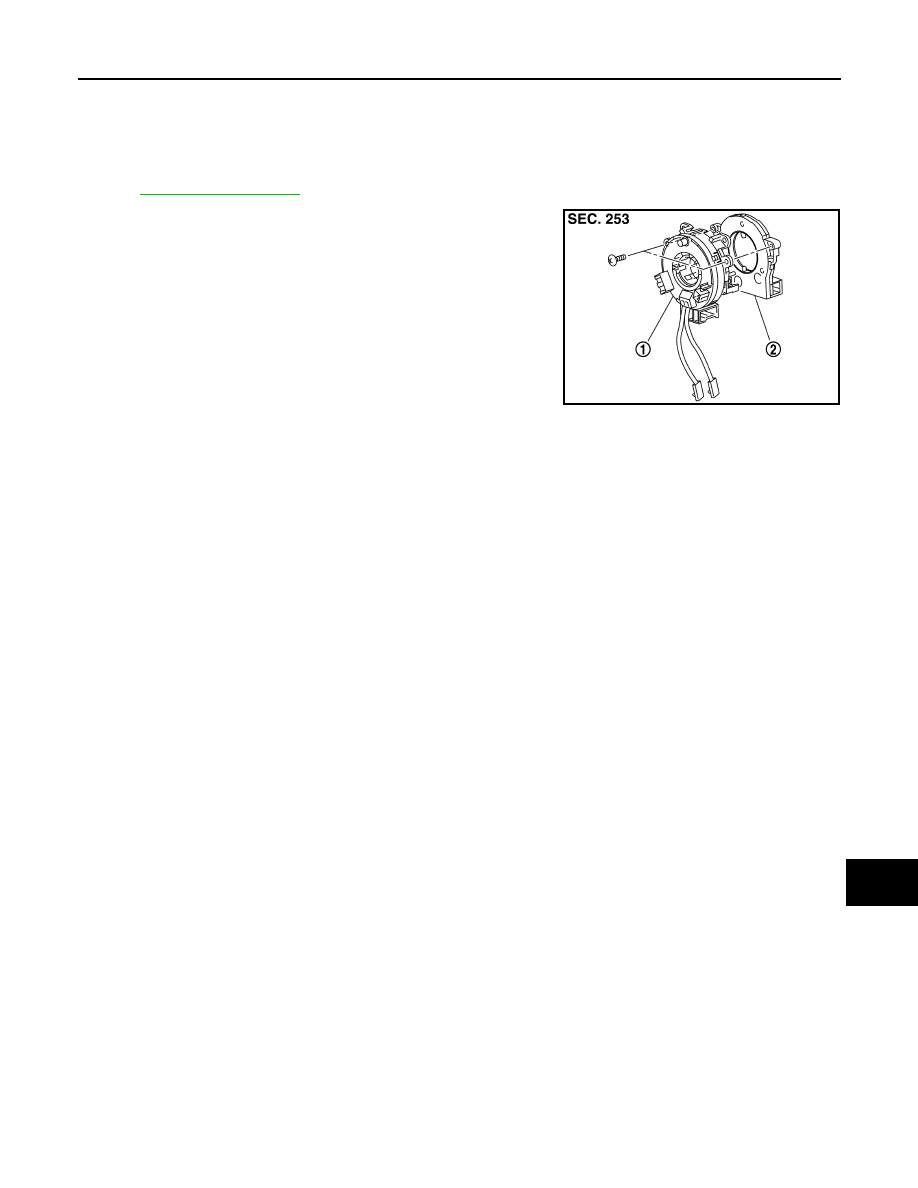

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000003940179

REMOVAL

Refer to

SR-9, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003940180

REMOVAL

1.

Remove spiral cable.

2.

Remove steering angle sensor mounting screws.

3.

Remove steering angle sensor.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV-184

< ON-VEHICLE REPAIR >

[BASE AUDIO AND DISPLAY SYSTEM]

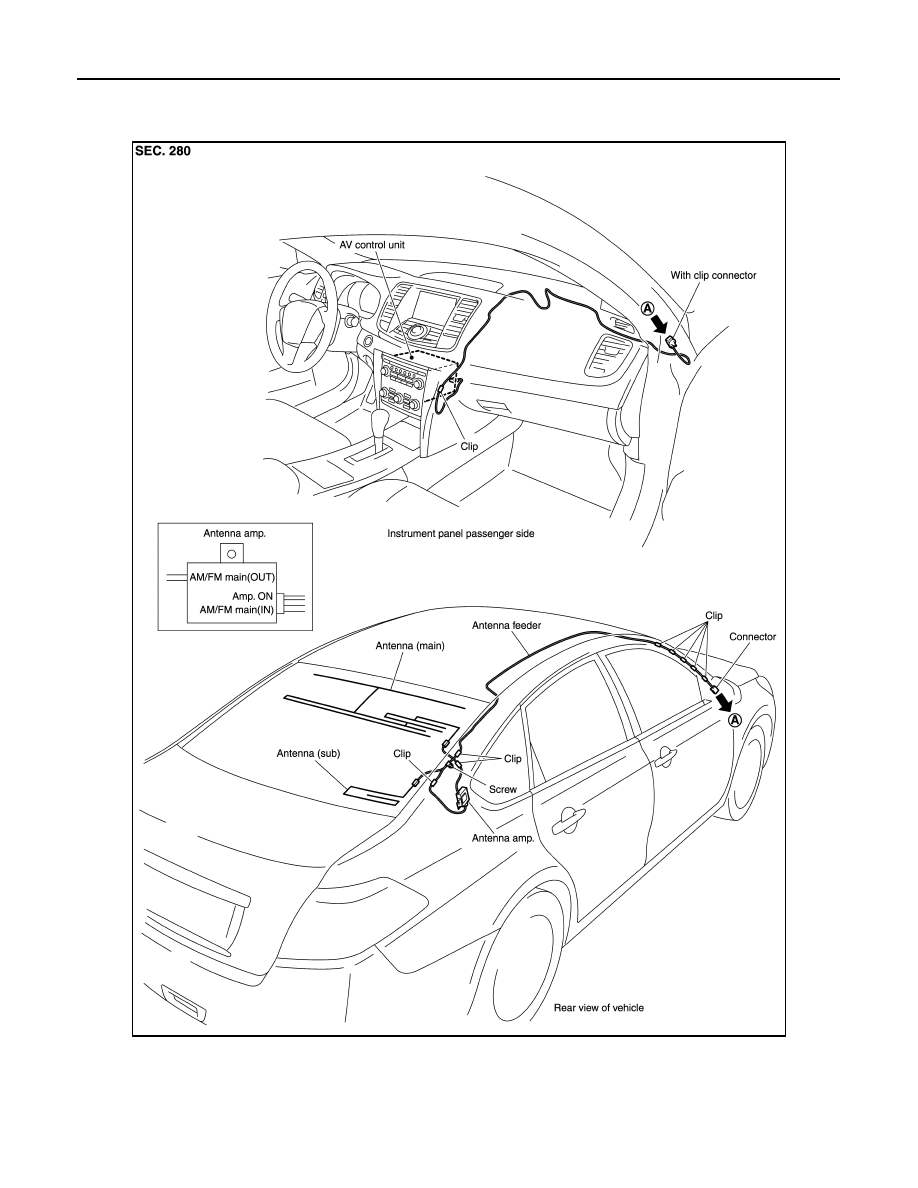

ANTENNA FEEDER (RADIO)

ANTENNA FEEDER (RADIO)

Harness Layout

INFOID:0000000003882826

JPNIA1033GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-185

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

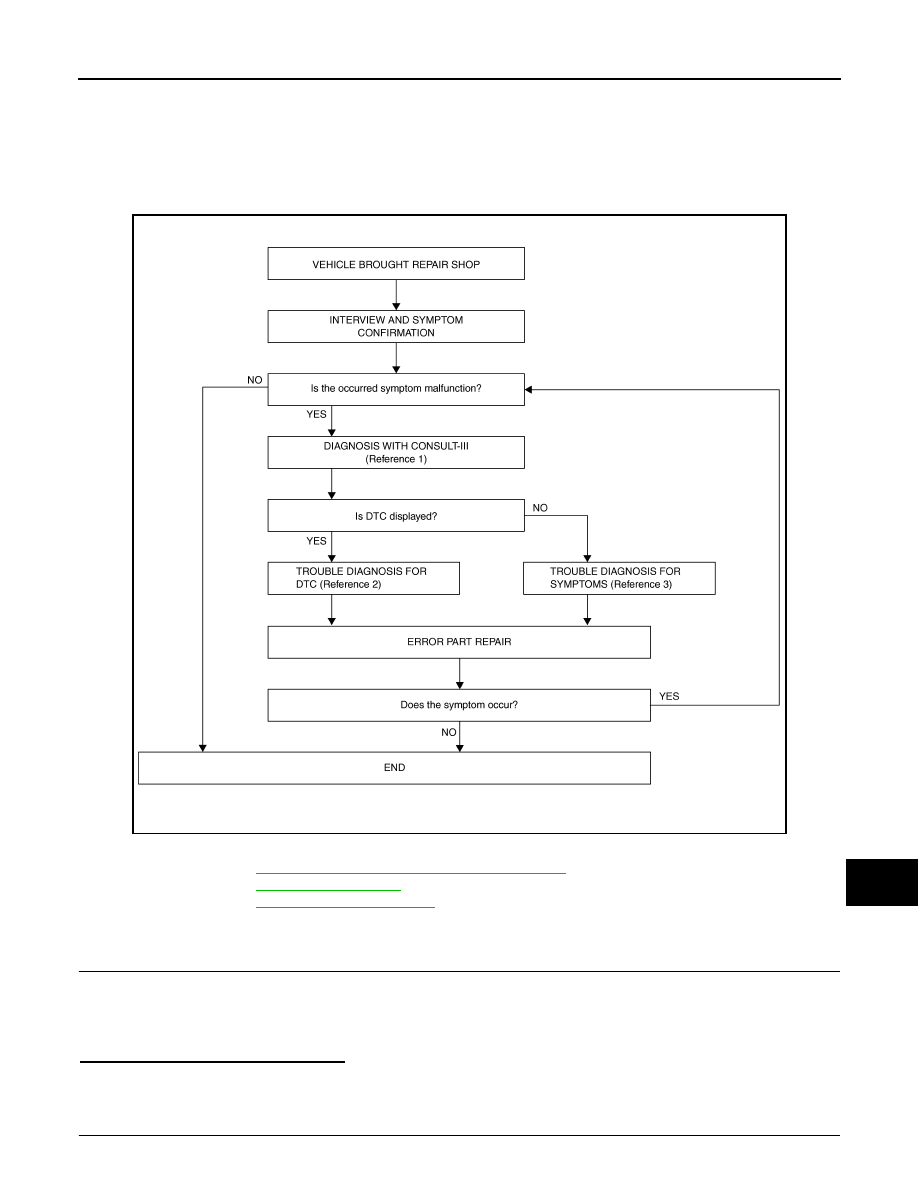

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003765632

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-211, "CONSULT-III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-284, "DTC Index"

.

• Reference 3··· Refer to

AV-372, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT-III

JSNIA0732GB

AV-186

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to

AV-211, "CONSULT-III Func-

tion (MULTI AV)"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check if any DTC is displayed in the self-diagnosis results.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-284, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-372, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END
