AUXILIARY INPUT JACKS

AV-179

< ON-VEHICLE REPAIR >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

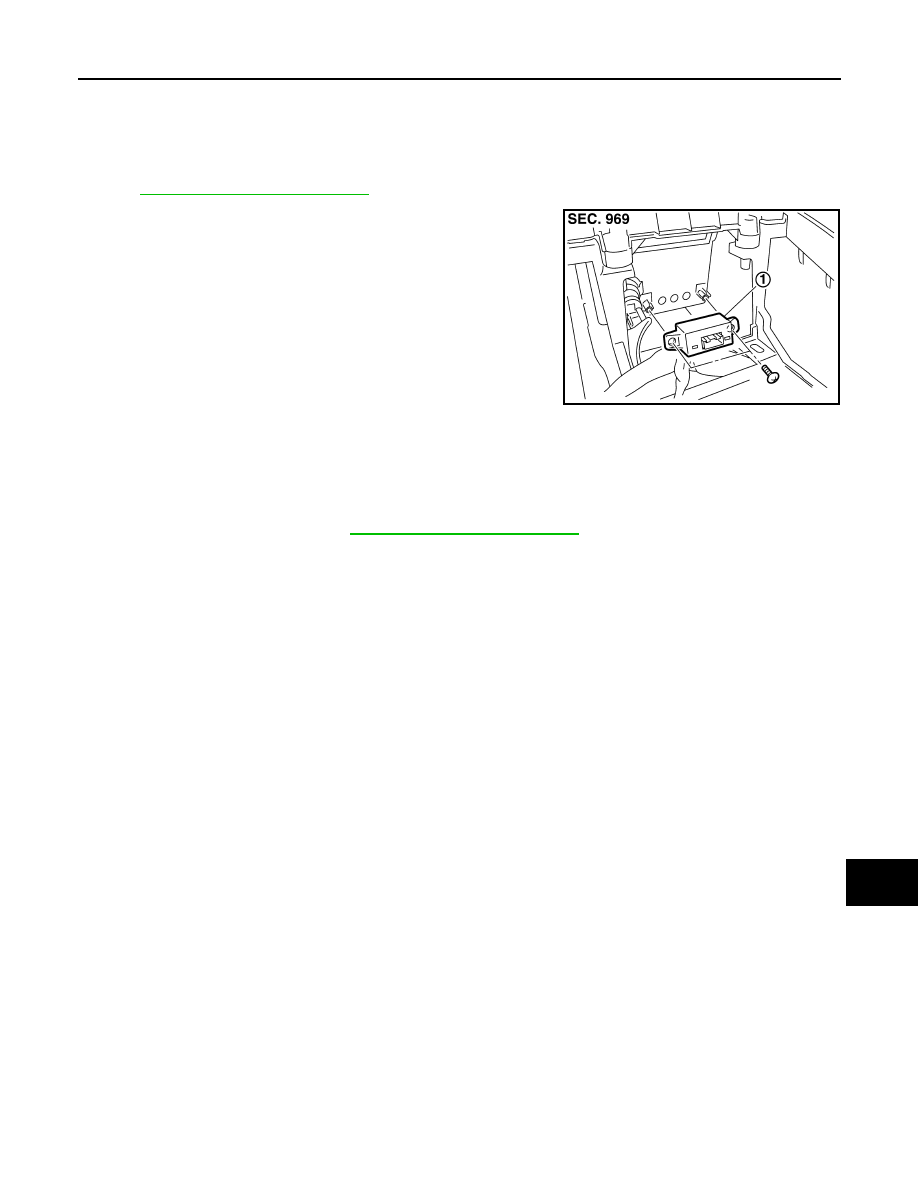

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000003940172

REMOVAL

Refer to

IP-22, "Removal and Installation"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003940173

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Removal and Installation"

.

2.

Remove auxiliary mounting screws.

3.

Remove auxiliary input jacks.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1048ZZ

1.

Auxiliary input jacks

AV-180

< ON-VEHICLE REPAIR >

[BASE AUDIO AND DISPLAY SYSTEM]

CAMERA CONTROL UNIT

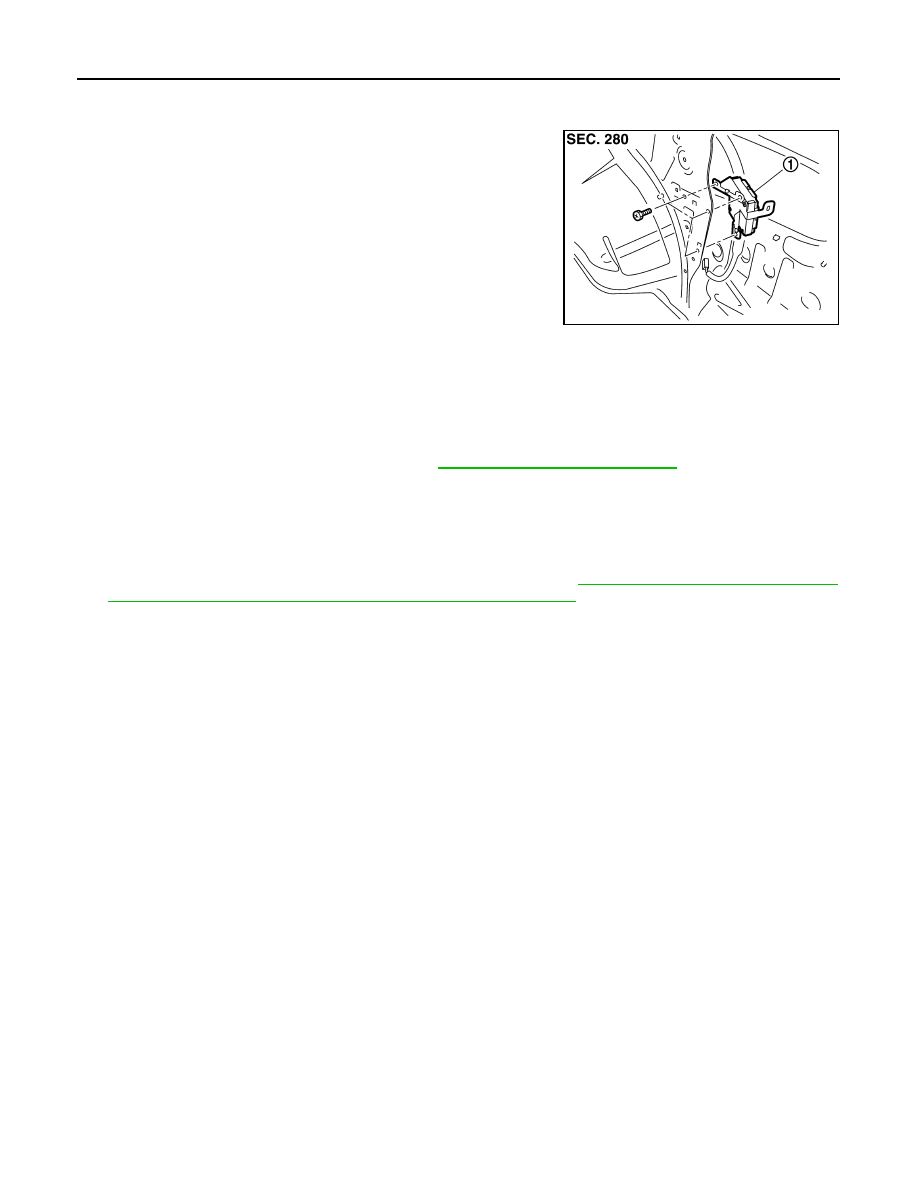

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000003940174

Removal and Installation

INFOID:0000000003940175

REMOVAL

1.

Remove rear wheelhouse finisher RH. Refer to

INT-57, "Removal and Installation"

.

2.

Remove camera control unit mounting screws, disconnect the camera control unit connector.

3.

Remove camera control unit.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform predicted course line center position adjustment. Refer to

AV-47, "PREDICTED COURSE LINE

CENTER POSITION ADJUSTMENT : Special Repair Requirement"

.

JPNIA1049ZZ

1.

Camera control unit

AV

REAR VIEW CAMERA

AV-181

< ON-VEHICLE REPAIR >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

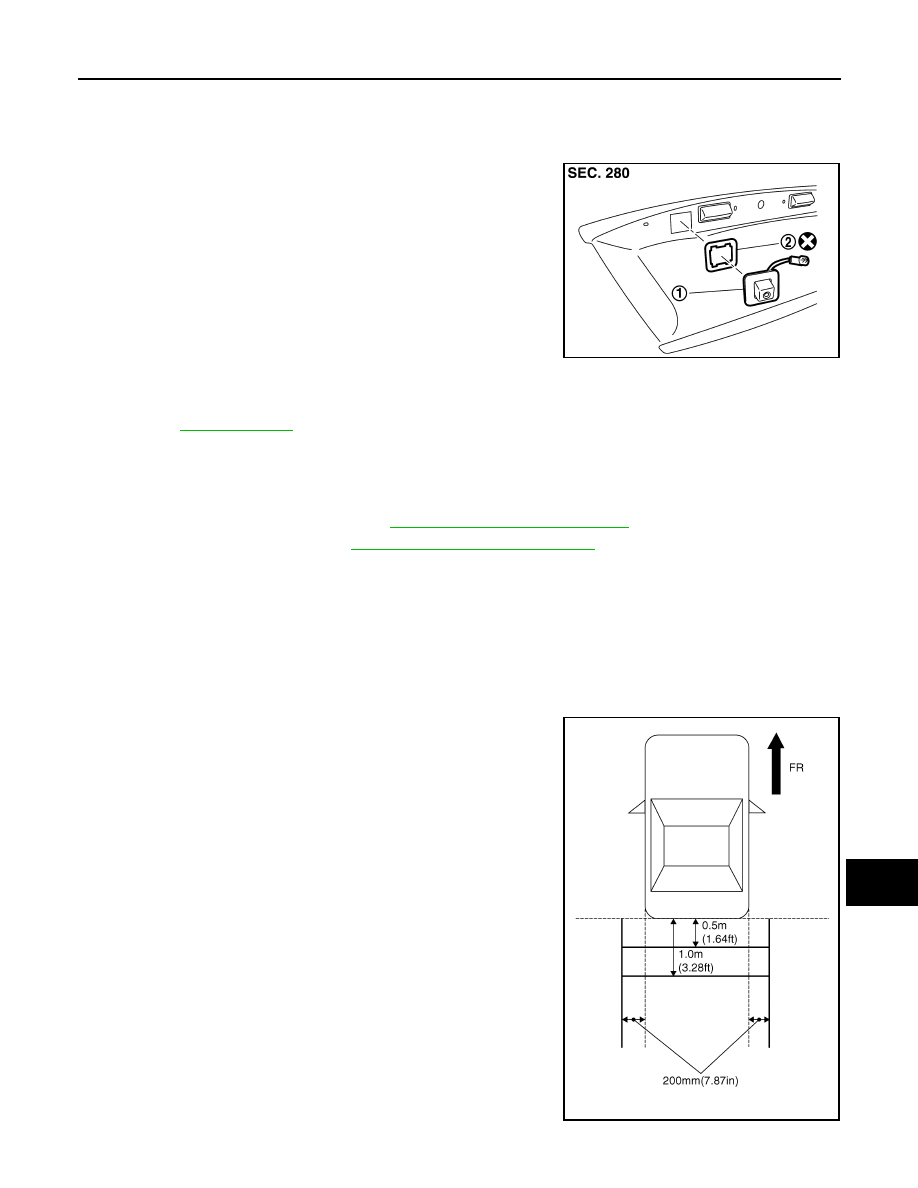

REAR VIEW CAMERA

Exploded View

INFOID:0000000003940176

DISASSEMBLY

Removal and Installation

INFOID:0000000003940177

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

INT-59, "Removal and Installation"

.

2.

Remove trunk lid finisher. Refer to

EXT-38, "Removal and Installation"

.

3.

Remove rear view camera mounting clip, disconnect the rear view camera connector.

4.

Remove rear view camera.

INSTALLATION

1.

Installation is the reverse order of removal.

Adjustment

INFOID:0000000003970920

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.
1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

JPNIA1050ZZ

1.

Rear view camera

2.

Seal

Refer to

GI-4, "Components"

 for symbols in the figure.

SKIB3691E

AV-182

< ON-VEHICLE REPAIR >

[BASE AUDIO AND DISPLAY SYSTEM]

REAR VIEW CAMERA

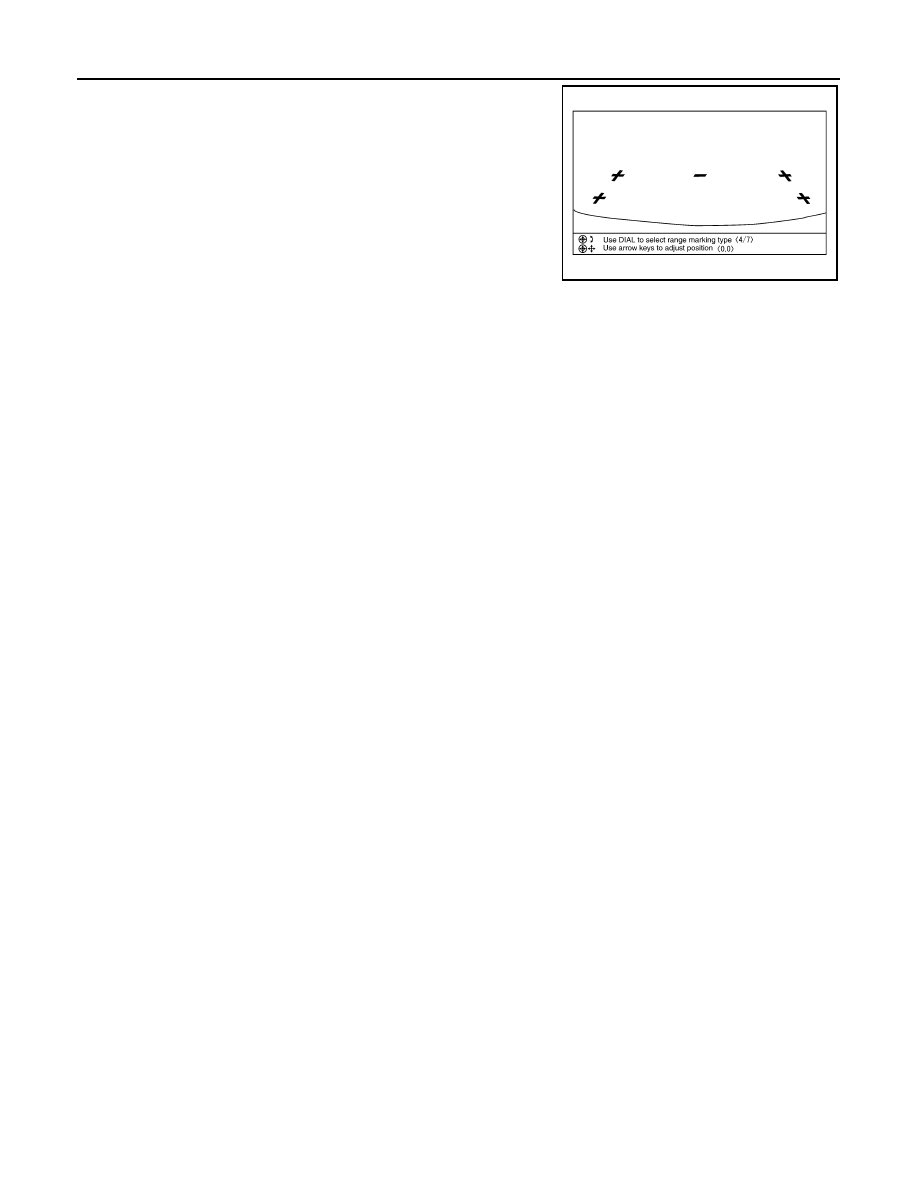

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Fine adjust the guiding line so that its position is aligned to the
correction line by pressing the up/down/left/right switches.
Pressing “ENTER” enable the camera control unit to memory
the adjusted guiding line position.

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

Selected pattern

: 7

Up/Down adjustment range

20 – 20

Left/Right adjustment range

20 – 20

SKIB3689E
