AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

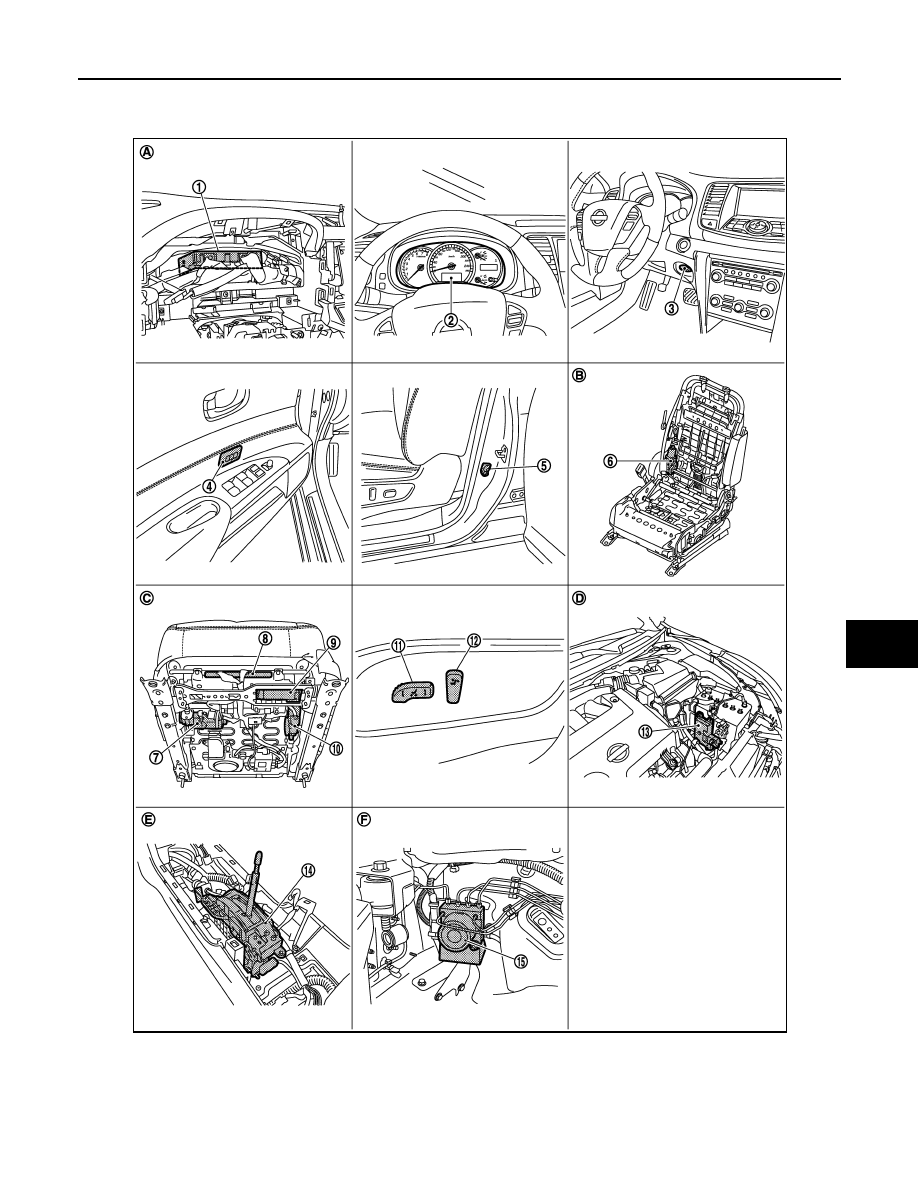

MANUAL FUNCTION : Component Parts Location

INFOID:0000000003859811

1.

BCM M118, M119, M122, M123

2.

Combination meter M34

3.

Key slot M99

4.

Seat memory switch D13

5.

Front door switch (driver side) B34

6.

Reclining motor (driver side) B454

7.

Lifting motor (front) (driver side)
B455

8.

Driver seat control unit B451,B452

9.

Sliding  motor  (driver side) B461

JMJIA1811ZZ

ADP-18

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

MANUAL FUNCTION : Component Description

INFOID:0000000003759075

CONTROL UNITS

INPUT PARTS

Switches

OUTPUT PARTS

MEMORY FUNCTION

10. Lifting motor (rear) (driver side) B456 11.

Power seat switch (driver side) B459
(sliding, lifting switch)

12. Power seat switch (driver side) B459

(reclining switch)

13. TCM (transmission control module)

F23

14. Control device (detention switch)

M57

15. ABS actuator and electric unit (con-

trol unit) E36

A.

Behind the combination meter

B.

View with seat cushion and seatback
pad removed

C.

Back side of the seat cushion

D.

Engine room (LH)

E.

View with the center console assem-
bly removed

F.

Engine room (RH)

Item

Function

Driver seat control unit

Operates the specific seat motor with the signal from the power seat switch

Item

Function

Power seat switch

The following switches are installed
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch

Item

Function

Lifting motor (front)

Moves the seat lifter (front) upward/downward

Lifting motor (rear)

Moves the seat lifter (rear) upward/downward

Reclining motor

Tilts and raises up the seatback

Sliding motor

Slides the seat frontward/rearward

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

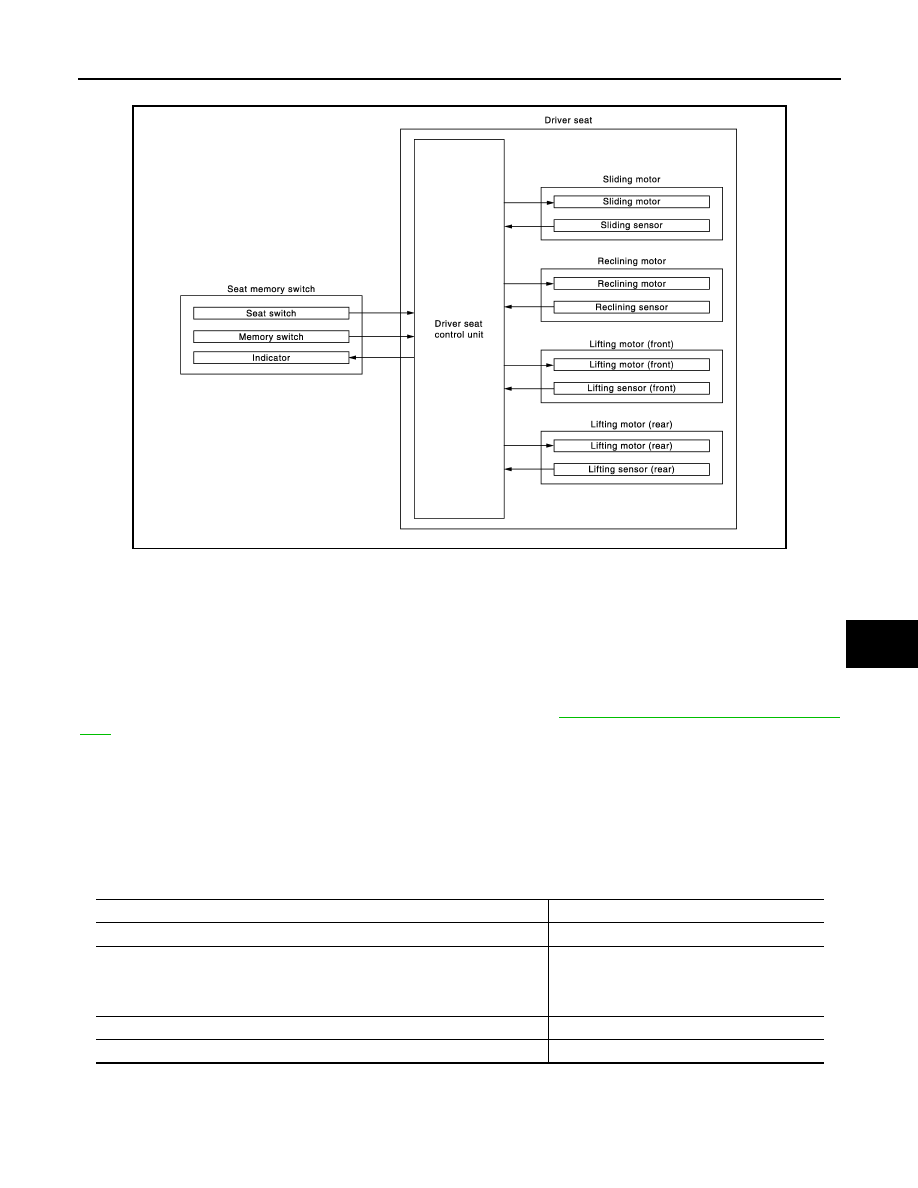

MEMORY FUNCTION : System Diagram

INFOID:0000000003759076

MEMORY FUNCTION : System Description

INFOID:0000000003759077

OUTLINE

The driver seat control unit can store the optimum driving positions (seat) for 2 people. If the front seat position
is changed, one-touch (pressing desired memory switch) operation allows changing to the other driving posi-
tion.
NOTE:
For further information for the memory storage procedure. Refer to

ADP-8, "MEMORY STORING : Descrip-

tion"

OPERATION PROCEDURE

1.

Turn ignition switch ON

2.

Shift select lever to the P position.

3.

Press desired memory switch.

4.

Driver seat will move to the memorized position.

OPERATION CONDITION

Satisfy all of the following items. The memory function is not performed if any of these items are not satisfied.

However, the memory operation can be performed for 45 seconds after opening the driver door (driver door switch OFF

 ON) even if

the ignition switch position is in the OFF position.

DETAIL FLOW

JMJIA1814GB

Item

Request status

Ignition position

ON

Switch inputs
• Power seat switch
• Set switch
• Memory switch

OFF

(Not operated)

Selector lever

P position

Vehicle speed

0 km/h (0 MPH)

ADP-20

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

Order

Input

Output

Control unit condition

1

Memory switch

The memory switch signal is inputted to the driver seat control unit
when memory switch 1 or 2 is operated

2

Motors
(Seat)

Driver seat control unit operates each motor of seat when it recogniz-
es the memory switch has been pressed for 0.5 seconds or more and
requests each motor operation

Memory switch Indica-
tor

Driver seat control unit requests the blinking of memory indicator
while either of the motors are operating. The driver seat control unit
illuminates the memory indicator

3

Sensors
(Seat)

Driver seat control unit judges the operating seat position with each
seat sensor input. Driver seat control unit stops the operation of each
motor when each part reaches the recorded address

4

Memory switch Indica-
tor

Driver seat control unit requests the illumination of memory indicator
after all motors stop. The driver seat control unit illuminates the mem-
ory indicator for 5 seconds
