Nissan Teana J32. Manual - part 7

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

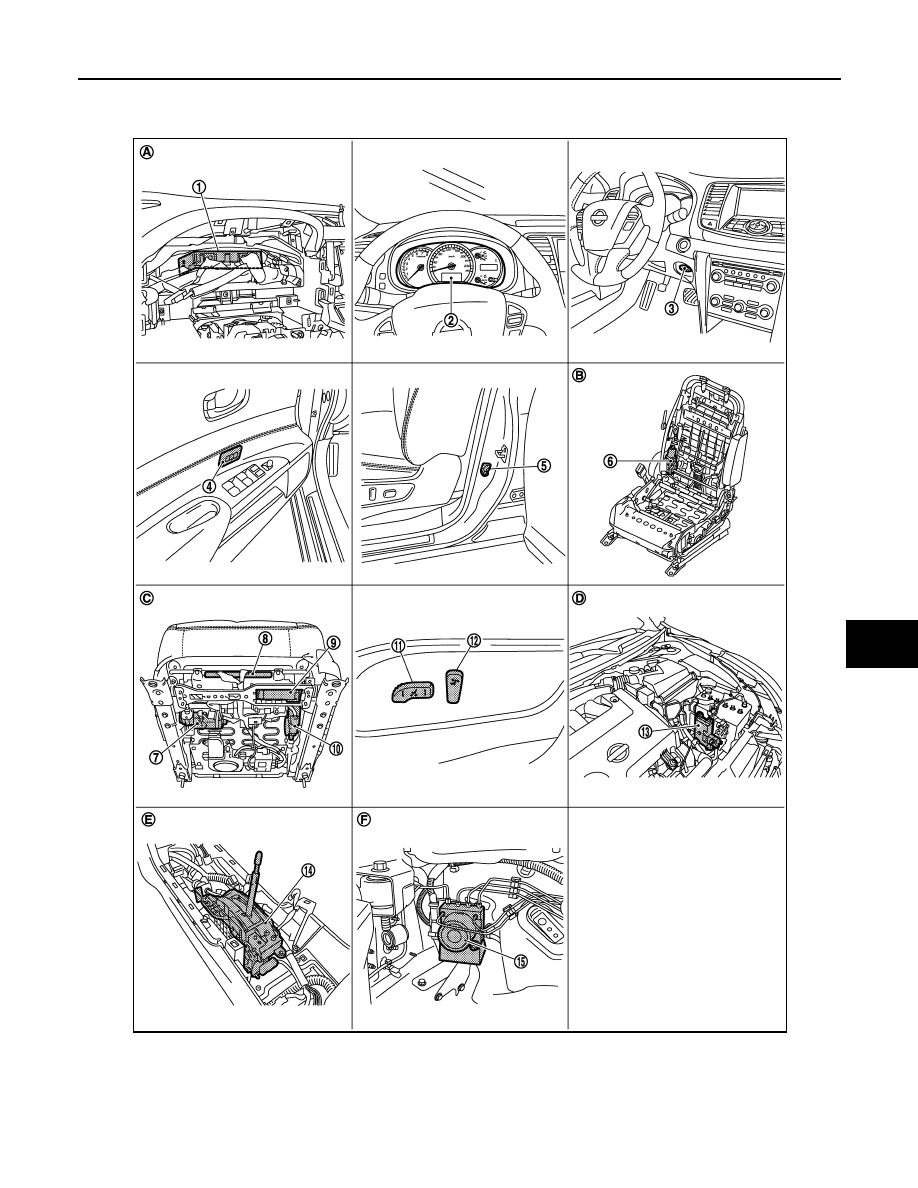

MEMORY FUNCTION : Component Parts Location

INFOID:0000000003859812

1.

BCM M118, M119, M122, M123

2.

Combination meter M34

3.

Key slot M99

4.

Seat memory switch D13

5.

Front door switch (driver side) B34

6.

Reclining motor (driver side) B454

7.

Lifting motor (front) (driver side)
B455

8.

Driver seat control unit B451,B452

9.

Sliding  motor  (driver side) B461

JMJIA1811ZZ

ADP-22

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

MEMORY FUNCTION : Component Description

INFOID:0000000003759079

CONTROL UNITS

INPUT PARTS

Switches

Sensors

OUTPUT PARTS

EXIT ASSIST FUNCTION

10. Lifting motor (rear) (driver side) B456 11.

Power seat switch (driver side) B459
(sliding, lifting switch)

12. Power seat switch (driver side) B459

(reclining switch)

13. TCM (transmission control module)

F23

14. Control device (detention switch)

M57

15. ABS actuator and electric unit (con-

trol unit) E36

A.

Behind the combination meter

B.

View with seat cushion and seatback
pad removed

C.

Back side of the seat cushion

D.

Engine room (LH)

E.

View with the center console assem-
bly removed

F.

Engine room (RH)

Item

Function

Driver seat control unit

• The address of each part is recorded
• Operates each motor of seat to the registered position

Item

Function

Memory switch 1/2

The registration and memory function can be performed with its operation

Item

Function

Lifting sensor (front)

Detects the up/down position of seat lifting (front)

Lifting sensor (rear)

Detects the up/down position of seat lifting (rear)

Reclining sensor

Detects the tilt of seatback

Sliding sensor

Detects the front/rear position of seat

Item

Function

Lifting motor (front)

Moves the seat lifter (front) upward/downward

Lifting motor (rear)

Moves the seat lifter (rear) upward/downward

Reclining motor

Tilts and raises up the seatback

Sliding motor

Slides the seat frontward/rearward

Memory indicator

Illuminates or blinks according to the registration/operation status

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

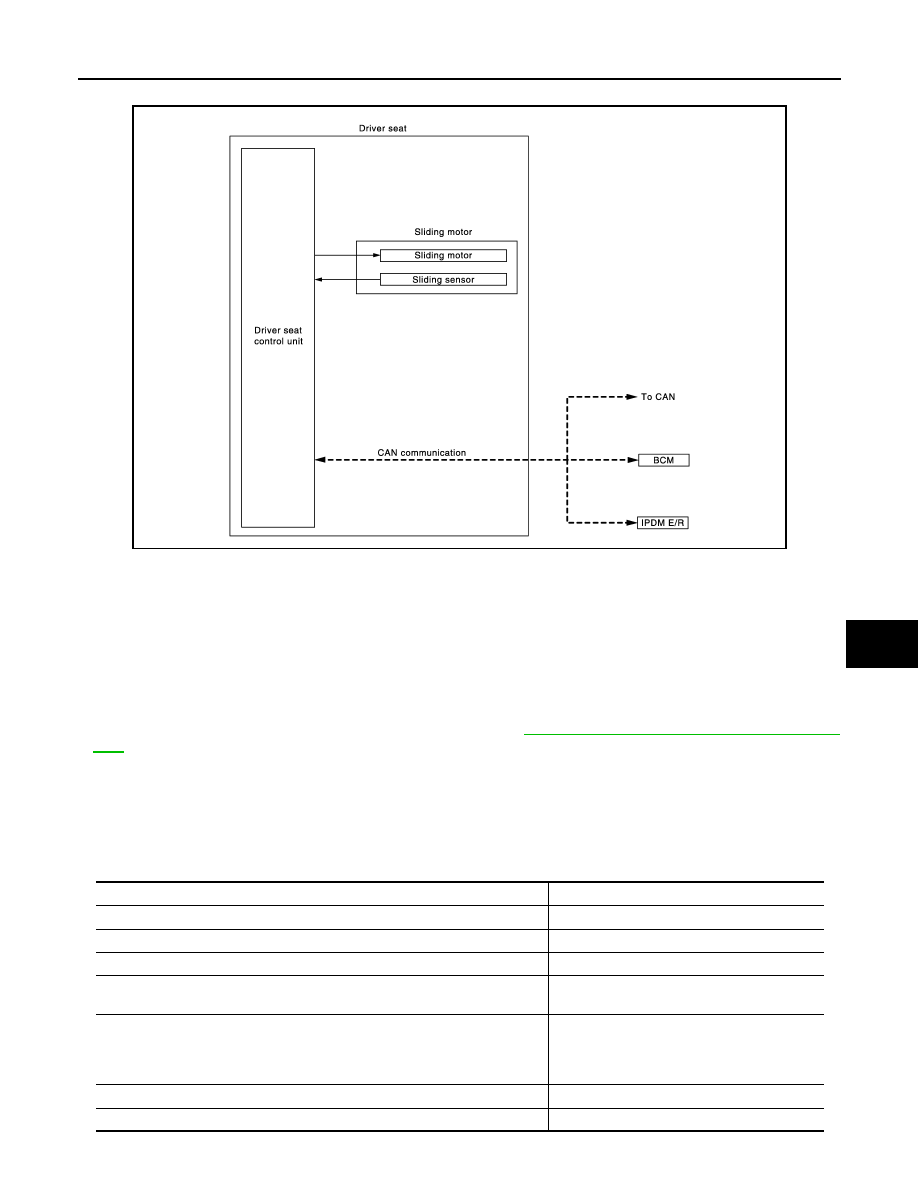

EXIT ASSIST FUNCTION : System Diagram

INFOID:0000000003759080

EXIT ASSIST FUNCTION : System Description

INFOID:0000000003759081

OUTLINE

When opening the driver door while the operation condition is satisfied, the seat moves backward 40 mm
(1.57 in) from normal sitting position.
The seat slide amount operation at entry/exit operation can be changed.
NOTE:
• This function is set to ON before delivery (initial setting).
• Further information for the system setting procedure. Refer to

ADP-8, "SYSTEM INITIALIZATION : Descrip-

tion"

.

OPERATION PROCEDURE

1.

Open the driver door with ignition switch in the OFF position.(Intelligent Key is not inserted into key slot)

2.

Driver seat moves to the exiting position.

OPERATION CONDITION

Satisfy all of the following items. The exit assist function is not performed if any of these items are not satisfied.

JMJIA1816GB

Item

Request status

Ignition position

OFF

System setting [Entry/exit assist function (seat)]

ON

Initialization

Done

Key switch

OFF

(Intelligent Key is not inserted into key slot)

Switch inputs
• Power seat switch
• Set switch
• Memory switch

OFF

(Not operated)

Selector lever

P position

BCM

Handle position

ADP-24

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

DETAIL FLOW

Order

Input

Output

Control unit condition

1

Door switch
(Driver side)

—

Driver seat control unit receives door switch signal (driver side/
open) from BCM via CAN communication

2

—

Sliding motor

Driver seat control unit operates the seat sliding motor, which recog-
nizes that the driver side door is opened with ignition switch OFF
