ASHTRAY ILLUMINATION

INL-125

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ASHTRAY ILLUMINATION

Exploded View

INFOID:0000000005516807

Replacement

INFOID:0000000005516808

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

ASHTRAY ILLUMINATION BULB

1.

Remove the console finisher assembly. Refer to

IP-20, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb socket

2.

Bulb

JPLIA0830ZZ

INL-126

< REMOVAL AND INSTALLATION >

GLOVE BOX LAMP

GLOVE BOX LAMP

Exploded View

INFOID:0000000005516809

Replacement

INFOID:0000000005516810

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

GLOVE BOX LAMP BULB

1.

Remove the glove box assembly. Refer to

IP-12, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb

2.

Bulb socket

JPLIA0832ZZ

STEP LAMP

INL-127

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

STEP LAMP

Exploded View

INFOID:0000000005516811

Removal and Installation

INFOID:0000000005516812

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the step lamp and the door trim. Remove the step lamp.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000005516813

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STEP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Step lamp case

2.

Bulb

3.

Lens

A

Metal clip

JPLIA1437ZZ

INL-128

< REMOVAL AND INSTALLATION >

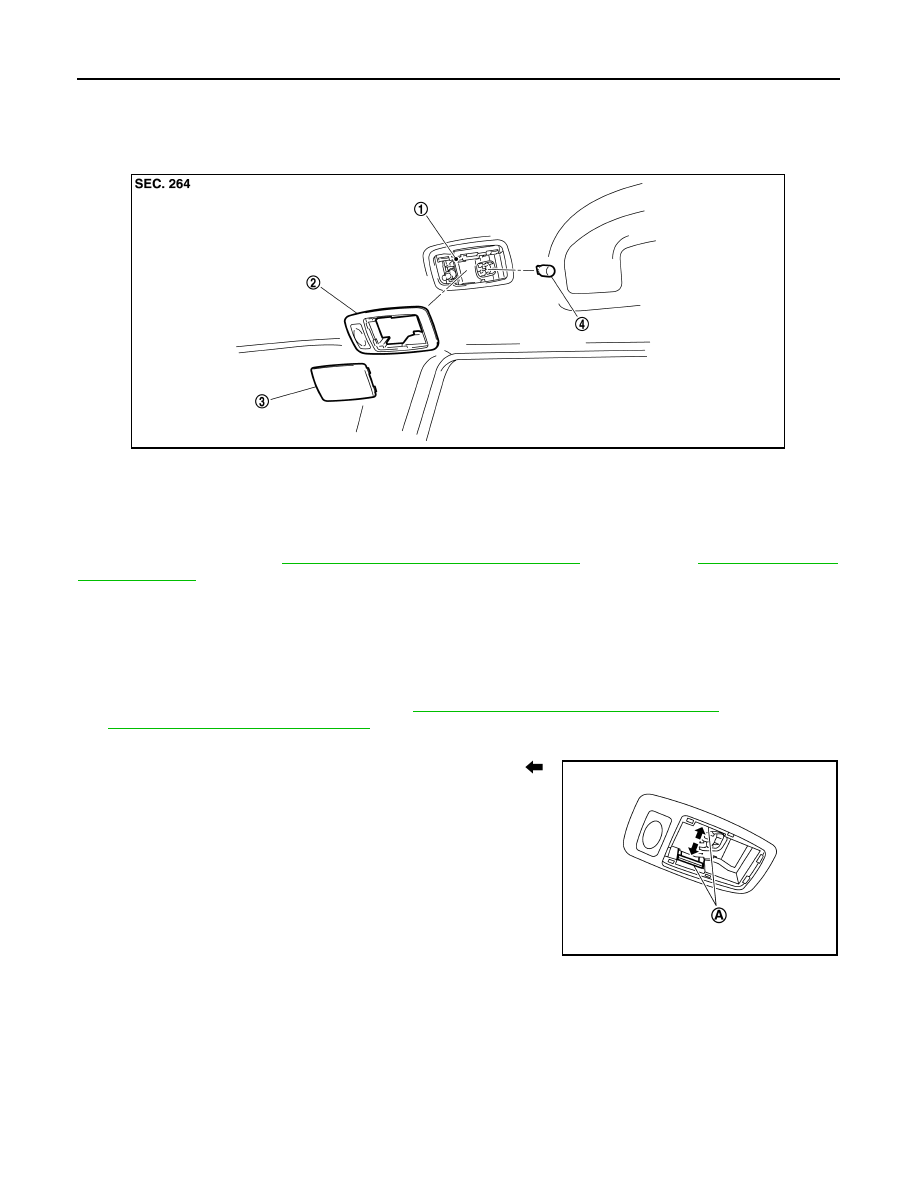

PERSONAL LAMP

PERSONAL LAMP

Exploded View

INFOID:0000000005516814

NOTE:
Replace the personal lamp case as a set (right and left). After removing the headlining assembly, remove the
personal lamp case. Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (Normal roof) or

INT-30, "SUNROOF

: Exploded View"

 (With sunroof).

Removal and Installation

INFOID:0000000005516815

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the headlining assembly. Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (Normal roof) or

INT-30, "SUNROOF : Exploded View"

 (With sunroof).

2.

Insert any appropriate tool into the gap between the lens. Remove the lens.

3.

Press the both side pawls (A) to the arrow direction (

).

Remove the personal lamp finisher.

4.

Remove the personal lamp case from the headlining assembly.

NOTE:
Replace the personal lamp case as a set (right and left).

INSTALLATION

Install in the reverse order of removal.
NOTE:
The following is easier to install the personal lamp finisher.

1.

Personal lamp case

2.

Personal lamp finisher

3.

Lens

4.

Bulb

JPLIA0834ZZ

JPLIA0087ZZ
