Nissan Murano Z51. Manual - part 930

MAP LAMP

INL-121

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

REMOVAL AND INSTALLATION

MAP LAMP

Exploded View

INFOID:0000000005516797

Removal and Installation

INFOID:0000000005516798

Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (Normal roof) or

INT-30, "SUNROOF : Exploded View"

(With sunroof) for the map lamp assembly installation/removal.

Replacement

INFOID:0000000005516799

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

MAP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Map lamp assembly

2.

Bulb

3.

Lens

JPLIA0987ZZ

INL-122

< REMOVAL AND INSTALLATION >

MOOD LAMP

MOOD LAMP

MAP LAMP

MAP LAMP : Replacement

INFOID:0000000005516800

MAP LAMP

Mood lamp (map lamp) is integrated into the map lamp assembly. Refer to

INL-121, "Exploded View"

.

FRONT DOOR GRIP

FRONT DOOR GRIP : Replacement

INFOID:0000000005516801

FRONT DOOR

Mood lamp (front door grip) is integrated into the front door trim. Refer to

INT-12, "FRONT DOOR FINISHER :

Exploded View"

.

ROOF CENTER

ROOF CENTER : Replacement

INFOID:0000000005516802

ROOF CENTER

Mood lamp (roof center) is integrated into the headlining.
• Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (Normal roof).

• Refer to

INT-30, "SUNROOF : Exploded View"

 (With sunroof).

VANITY MIRROR LAMP

INL-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

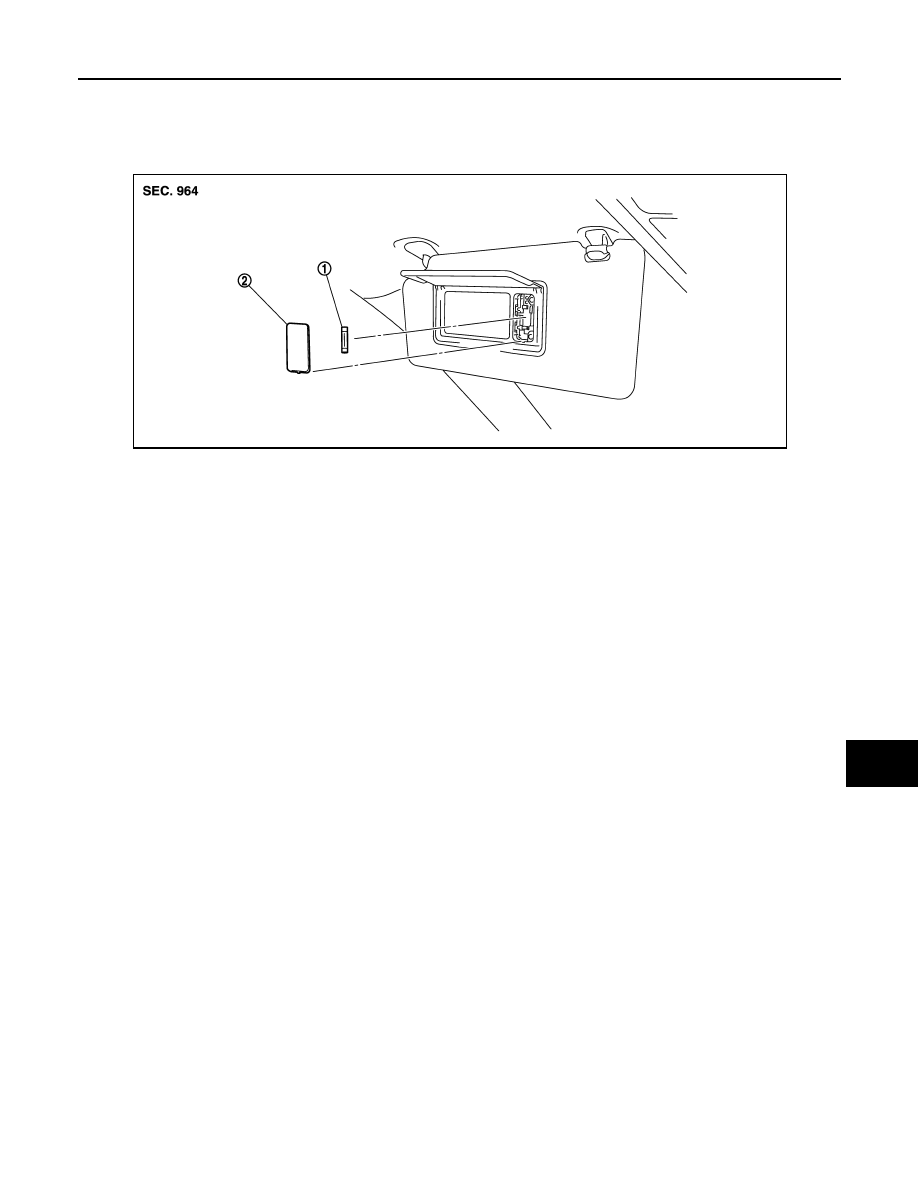

VANITY MIRROR LAMP

Exploded View

INFOID:0000000005516803

Replacement

INFOID:0000000005516804

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

VANITY MIRROR LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Bulb

2.

Lens

JPLIA0988ZZ

INL-124

< REMOVAL AND INSTALLATION >

CONSOLE POCKET LAMP

CONSOLE POCKET LAMP

Exploded View

INFOID:0000000005516805

Replacement

INFOID:0000000005516806

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

CONSOLE POCKET LAMP BULB

1.

Remove the cluster lid C (lower). Refer to

IP-12, "Exploded View"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

1.

Bulb

2.

Bulb socket

JPLIA0831ZZ
