CONDENSER PIPE ASSEMBLY

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

CONDENSER

HA-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CONDENSER

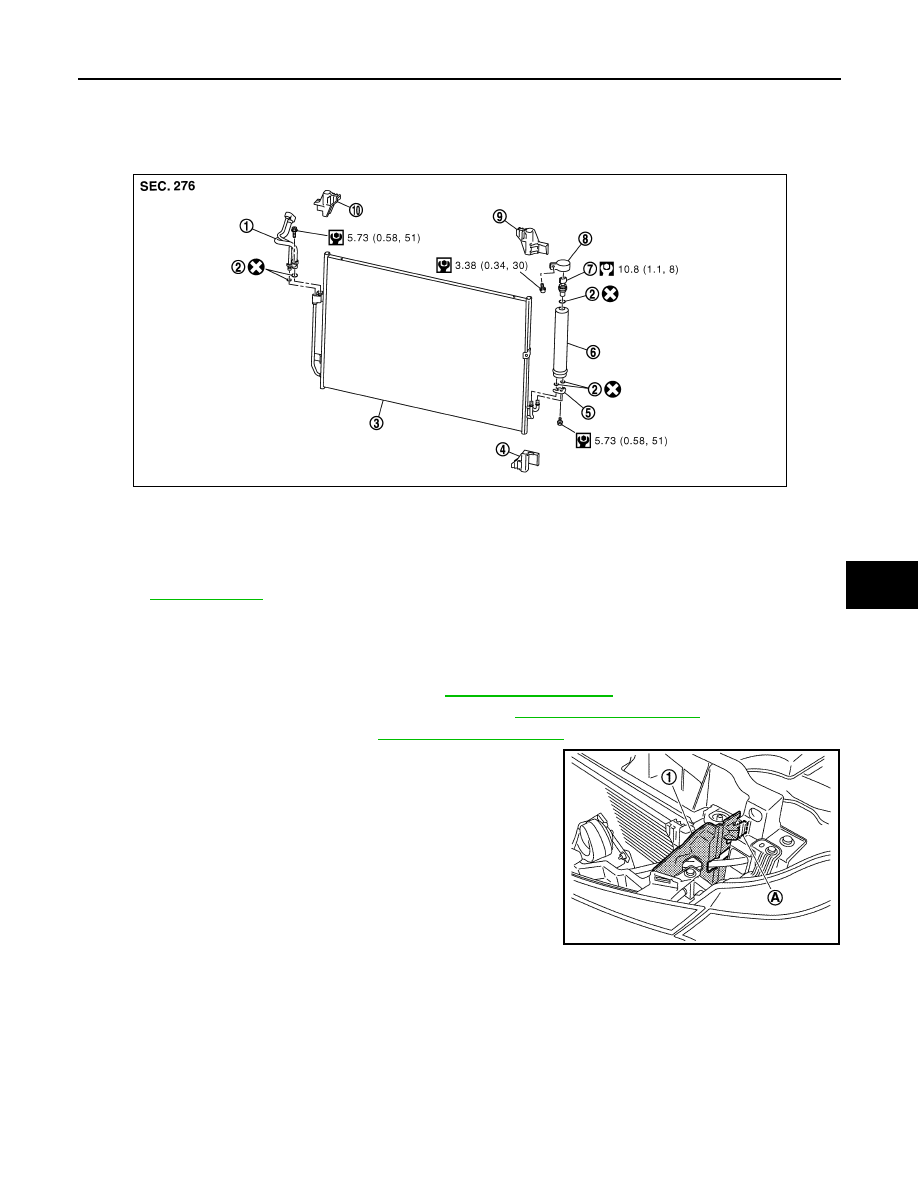

Exploded View

INFOID:0000000005514552

Removal and Installation

INFOID:0000000005514553

REMOVAL

1.

Remove the condenser pipe assembly. Refer to

HA-47, "Exploded View"

.

2.

Remove the air guide upper and air guide center. Refer to

DLK-317, "Exploded View"

.

3.

Remove hood lock assembly. Refer to

DLK-340, "Exploded View"

.

4.

Disengage the joints of the pawl (A), and then move air guide
side (LH) (1) to the position without the hindrance for work.

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser assembly

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0460GB

JPIIA1348ZZ

HA-50

< REMOVAL AND INSTALLATION >

CONDENSER

5.

Disconnect the refrigerant pressure sensor connector (A).

6.

Remove the tabs (A). Pull the condenser (1) in the direction
shown by the arrow, and then remove it.

CAUTION:

Be careful not to damage core surface of condenser.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0543ZZ

JPIIA1349ZZ

LIQUID TANK

HA-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

LIQUID TANK

Exploded View

INFOID:0000000005514554

Removal and Installation

INFOID:0000000005514555

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove the front grille. Refer to

EXT-19, "Exploded View"

.

3.

Clean liquid tank and its surrounding area. Then remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

4.

Disconnect the refrigerant pressure sensor connector (A).

1.

Condenser pipe assembly

2.

O-ring

3.

Condenser assembly

4.

Condenser lower bracket LH

5.

Bracket

6.

Liquid tank

7.

Refrigerant pressure sensor

8.

Liquid tank bracket

9.

Condenser upper bracket LH

10. Condenser upper bracket RH

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0460GB

JPIIA0543ZZ
