HA-40

< REMOVAL AND INSTALLATION >

LOW-PRESSURE FLEXIBLE HOSE

4.

Remove the mounting bolt (A), and then remove the low-pres-
sure flexible hose (1) from the low-pressure pipe (2).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0533ZZ

HIGH-PRESSURE FLEXIBLE HOSE

HA-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

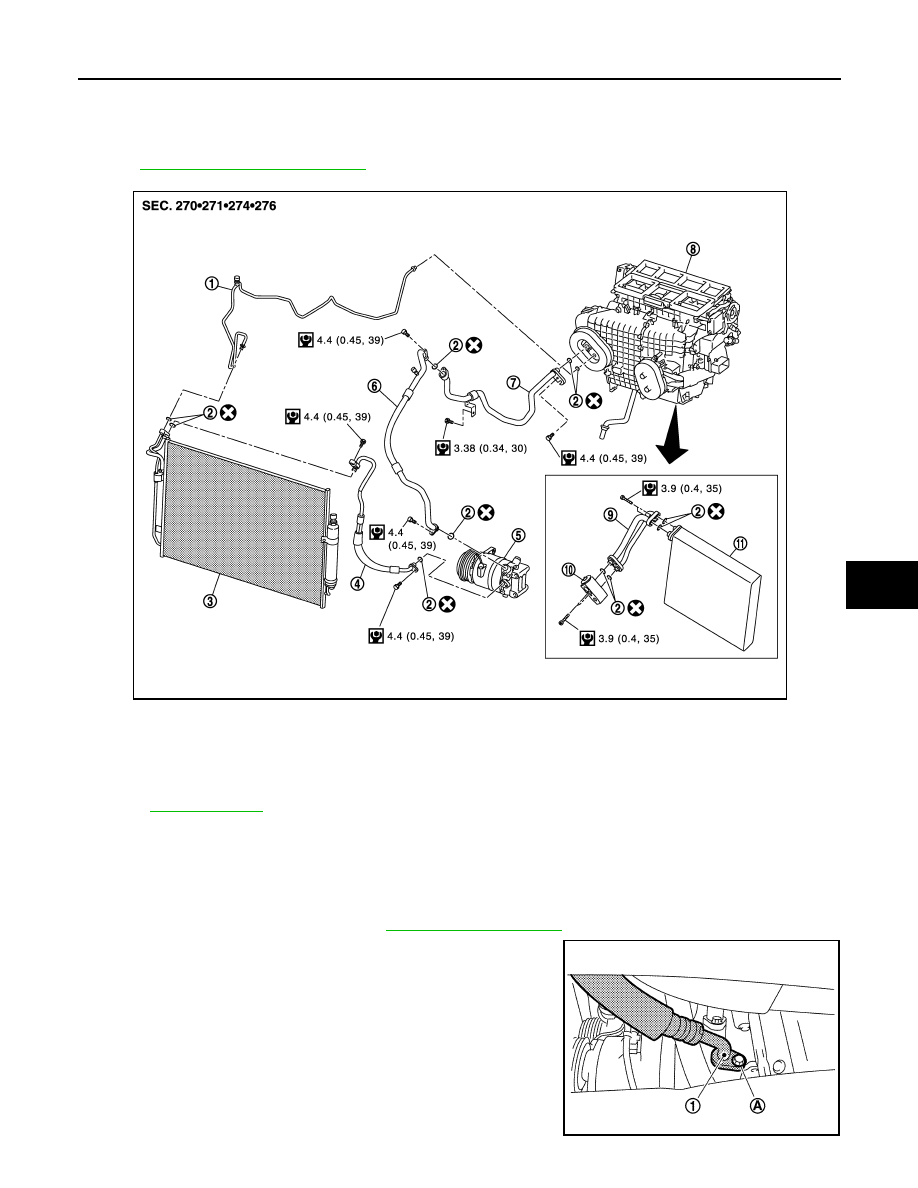

HIGH-PRESSURE FLEXIBLE HOSE

Exploded View

INFOID:0000000005514544

Refer to

HA-15, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000005514545

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove the front under cover. Refer to

EXT-27, "Exploded View"

.

3.

Remove the mounting bolt (A), and then disconnect the high-
pressure flexible hose (1) from the compressor.

CAUTION:

Cap or wrap the joint of the A/C piping and compressor with
suitable material such as vinyl tape to avoid the entry of air.

1.

High-pressure pipe

2.

O-ring

3.

Condenser assembly

4.

High-pressure flexible hose

5.

Compressor

6.

Low-pressure flexible hose

7.

Low-pressure pipe

8.

Heater & cooling unit assembly

9.

Evaporator pipe assembly

10. Expansion valve

11.

Evaporator

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA1257GB

JPIIA0534ZZ

HA-42

< REMOVAL AND INSTALLATION >

HIGH-PRESSURE FLEXIBLE HOSE

4.

Remove the mounting bolt (A), and then remove the high-pres-
sure flexible hose (1) from the condenser pipe assembly (2).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant.

JPIIA0535ZZ

LOW-PRESSURE PIPE

HA-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

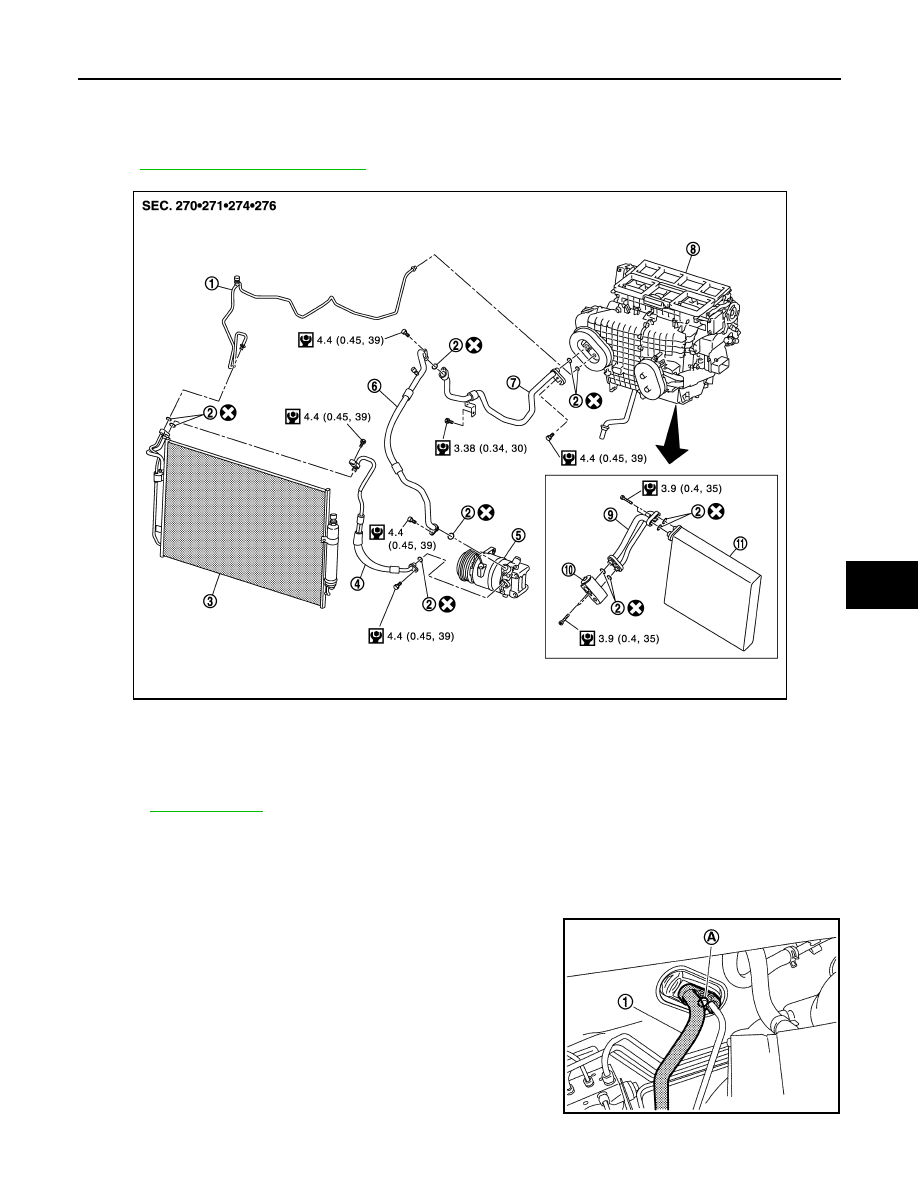

LOW-PRESSURE PIPE

Exploded View

INFOID:0000000005514546

Refer to

HA-15, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000005514547

REMOVAL

1.

Use refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove the mounting bolt (A), and then disconnect the low-
pressure pipe (1) from the expansion valve.

CAUTION:

Cap or wrap the joint of the A/C piping and expansion valve
with suitable material such as vinyl tape to avoid the entry
of air.

1.

High-pressure pipe

2.

O-ring

3.

Condenser assembly

4.

High-pressure flexible hose

5.

Compressor

6.

Low-pressure flexible hose

7.

Low-pressure pipe

8.

Heater & cooling unit assembly

9.

Evaporator pipe assembly

10. Expansion valve

11.

Evaporator

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA1257GB

JPIIA0536ZZ
