FRONT DRIVE SHAFT

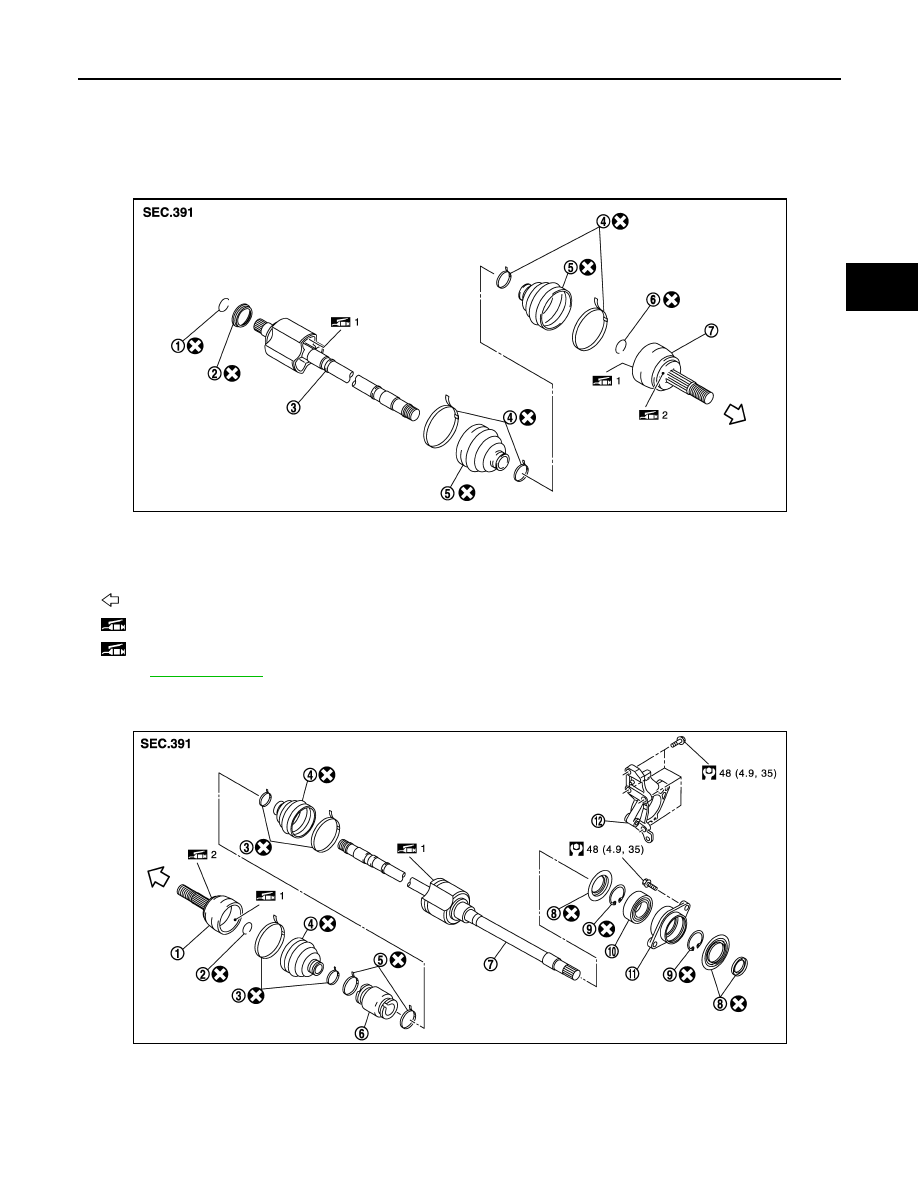

Exploded View

INFOID:0000000005518957

LEFT SIDE

RIGHT SIDE

1.

Circular clip

2.

Dust shield

3.

Housing assembly

4.

Boot band

5.

Boot

6.

Circular clip

7.

Joint sub-assembly

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIF0243ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Damper band

6.

Dynamic damper

7.

Housing assembly

8.

Dust shield

9.

Snap ring

10. Support bearing

11.

Baring housing

12. Support bearing bracket

JPDIF0254GB

FAX-18

< REMOVAL AND INSTALLATION >

[2WD]

FRONT DRIVE SHAFT

LEFT SIDE

LEFT SIDE : Removal and Installation

INFOID:0000000005518958

REMOVAL

1.

Remove tires with power tool.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-110, "FRONT WHEEL SENSOR : Exploded

View"

.

3.

Remove lock plate from strut assembly. Refer to

BR-22, "FRONT : Exploded View"

.

4.

Remove caliper assembly. Hang caliper assembly not to interfere with work. Refer to

BR-36, "BRAKE

CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

5.

Remove disc rotor. Refer to

BR-37, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

6.

Remove cotter pin, and then loosen wheel hub lock nut with power tool.

7.

Patch wheel hub lock nut with a piece of wood. Hammer the wood to disengage wheel hub and bearing
assembly from drive shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.
• Never allow drive shaft to hang down without support for joint sub-assembly, housing assembly

and the other parts.

NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive shaft cannot be separated even after
performing the above procedure.

8.

Remove wheel hub lock nut.

9.

Remove strut assembly from steering knuckle. Refer to

FSU-9, "Exploded View"

.

10. Remove drive shaft from transaxle assembly.

• Use the drive shaft attachment (A) [SST: KV40107500 (

—

)] and a sliding hammer (B) while inserting tip of the drive

shaft attachment between housing assembly and transaxle
assembly.

CAUTION:

• Never place drive shaft joint at an extreme angle when

removing drive shaft. Also be careful not to overextend
slide joint.

• Confirm that the circular clip is attached to the drive

shaft.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Always replace differential side oil seal with new one when installing drive shaft. Refer to

TM-169, "2WD :

Exploded View"

.

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIF0004ZZ

FRONT DRIVE SHAFT

FAX-19

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

• Place the protector (A) [SST: KV38107900 (

—

)] onto transaxle

assembly to prevent damage to the oil seal while inserting drive
shaft. Slide drive shaft sliding joint and tap with a hammer to install
securely.

CAUTION:

Make sure that circular clip is completely engaged.

• Clean the matching surface of wheel hub lock nut and wheel hub and bearing assembly.

CAUTION:

Never apply lubricating oil to these matching surface.

• Clean the matching surface of drive shaft and wheel hub and bearing assembly.

CAUTION:

Apply paste [service parts (440037S000)] to cover entire flat
surface (A) of joint sub-assembly of drive shaft.

• Never use a power tool to tighten the wheel hub lock nut.
• Perform the final tightening of each of parts under unladen condi-

tions, which were removed when removing wheel hub and bearing
assembly and axle housing.

• Never reuse cotter pin.

RIGHT SIDE

RIGHT SIDE : Removal and Installation

INFOID:0000000005518959

REMOVAL

1.

Remove tires with power tool.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-110, "FRONT WHEEL SENSOR : Exploded

View"

.

3.

Remove lock plate from strut assembly. Refer to

BR-22, "FRONT : Exploded View"

.

4.

Remove caliper assembly. Hang caliper assembly not to interfere with work. Refer to

BR-36, "BRAKE

CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

5.

Remove disc rotor. Refer to

BR-37, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

6.

Remove cotter pin, and then loosen wheel hub lock nut with power tool.

7.

Patch wheel hub lock nut with a piece of wood. Hammer the wood to disengage wheel hub and bearing
assembly from drive shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.
• Never allow drive shaft to hang down without support for joint sub-assembly, housing assembly

and the other parts.

NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive shaft cannot be separated even after
performing the above procedure.

8.

Remove wheel hub lock nut.

9.

Remove strut assembly from steering knuckle. Refer to

FSU-9, "Exploded View"

.

10. Remove drive shaft from wheel hub and bearing assembly.
11. Remove bearing housing mounting bolts.

JPDIF0023ZZ

Amount paste

0.2 – 1.0 g (0.008 – 0.035 oz)

JPDIG0122ZZ

FAX-20

< REMOVAL AND INSTALLATION >

[2WD]

FRONT DRIVE SHAFT

12. Remove drive shaft from transaxle assembly.

CAUTION:

Never place drive shaft joint at an extreme angle when removing drive shaft. Also be careful not to
overextend slide joint.

13. Remove support bearing bracket, follow the procedure described below.
a.

Remove front exhaust tube. Refer to

EX-5, "Exploded View"

.

b.

Remove three way catalyst (bank 1) and heated oxygen sensor harness bracket. Refer to

EM-38,

"Exploded View"

.

c.

Remove support bearing bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Always replace differential side oil seal with new one when installing drive shaft. Refer to

TM-169, "2WD :

Exploded View"

.

• Place the protector (A) [SST: KV38107900 (

—

)] onto transaxle

assembly to prevent damage to the oil seal while inserting drive
shaft. Slide drive shaft sliding joint and tap with a hammer to install
securely.

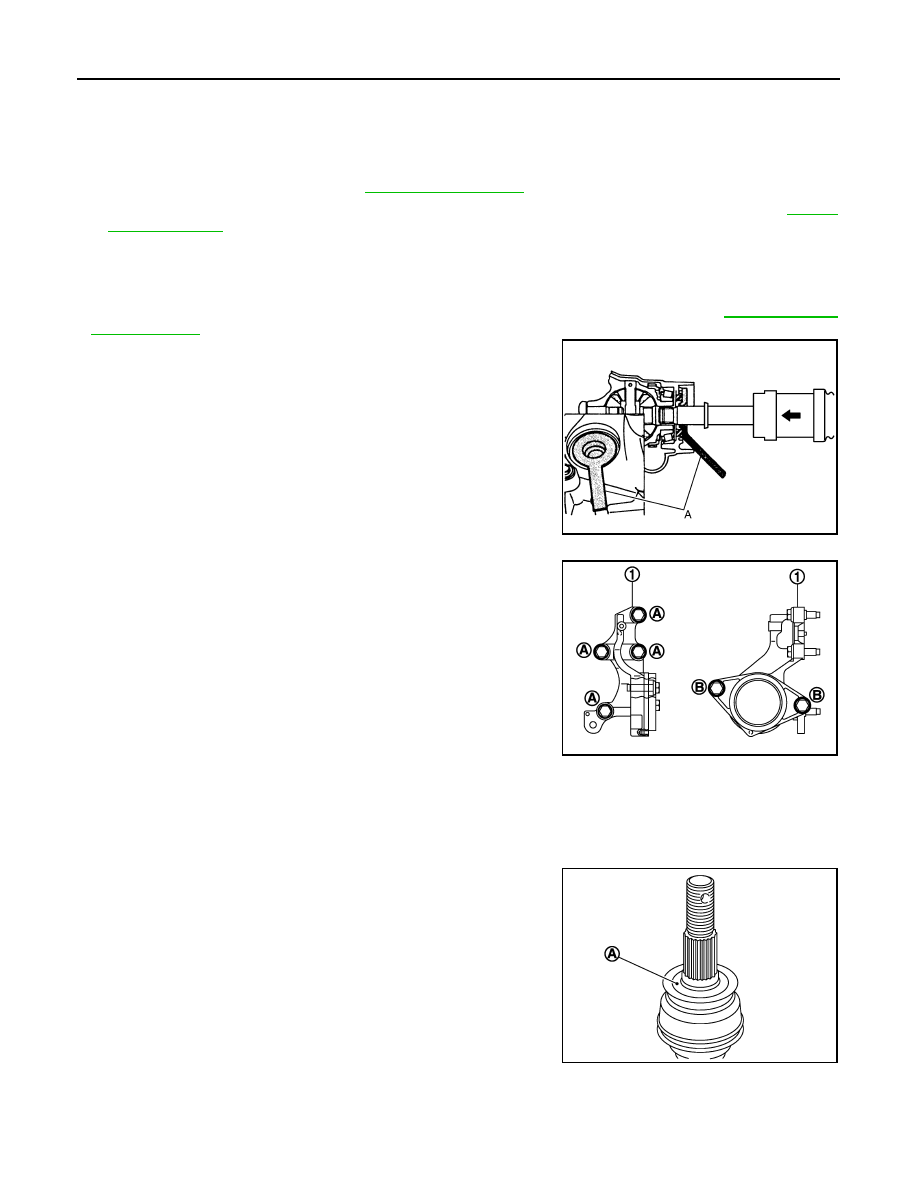

• Install support bearing bracket (1) in following procedure,
- Temporarily tighten mounting bolts (A), then tighten them to speci-

fied torque.

- Temporarily tighten mounting bolts (B), then tighten them to speci-

fied torque.

• Clean the matching surface of wheel hub lock nut and wheel hub and bearing assembly.

CAUTION:

Never apply lubricating oil to these matching surface.

• Clean the matching surface of drive shaft and wheel hub and bearing assembly.

CAUTION:

Apply paste [service parts (440037S000)] to cover entire flat
surface (A) of joint sub-assembly of drive shaft.

• Never use a power tool to tighten the wheel hub lock nut.
• Perform the final tightening of each of parts under unladen condi-

tions, which were removed when removing wheel hub and bearing
assembly and axle housing.

• Never reuse cotter pin.

WHEEL SIDE

JPDIF0049ZZ

JPDIF0143ZZ

Amount paste

0.2 – 1.0 g (0.008 – 0.035 oz)

JPDIG0122ZZ
