FRONT COMBINATION LAMP

EXL-179

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

Exploded View

INFOID:0000000005515105

REMOVAL

DISASSEMBLY

1.

Front combination lamp

2.

Headlamp extension panel

JPLIA0812ZZ

1.

Front side marker lamp bulb

2.

Front side marker lamp bulb socket

3.

Resin cap

4.

Seal packing

5.

Xenon bulb socket (Starter)

6.

Xenon bulb

7.

Retaining spring

8.

Seal packing

9.

HID control unit (Inverter)

10.

Parking lamp bulb socket

11. Parking lamp bulb

12. Front turn signal lamp bulb socket

13.

Front turn signal lamp bulb

14. Headlamp housing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0813ZZ

EXL-180

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT COMBINATION LAMP

Removal and Installation

INFOID:0000000005515106

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

1.

Remove the front grille. Refer to

EXT-19, "Exploded View"

.

2.

Remove the headlamp extension panel.

3.

Remove the front bumper fascia. Refer to

EXT-13, "Exploded View"

.

4.

Remove the headlamp mounting bolts.

5.

Remove the harness clips from headlamp housing assembly.

6.

Pull out the headlamp assembly forward the vehicle.

7.

Disconnect the connector before removing the headlamp assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-174, "Description"

.

Replacement

INFOID:0000000005515107

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

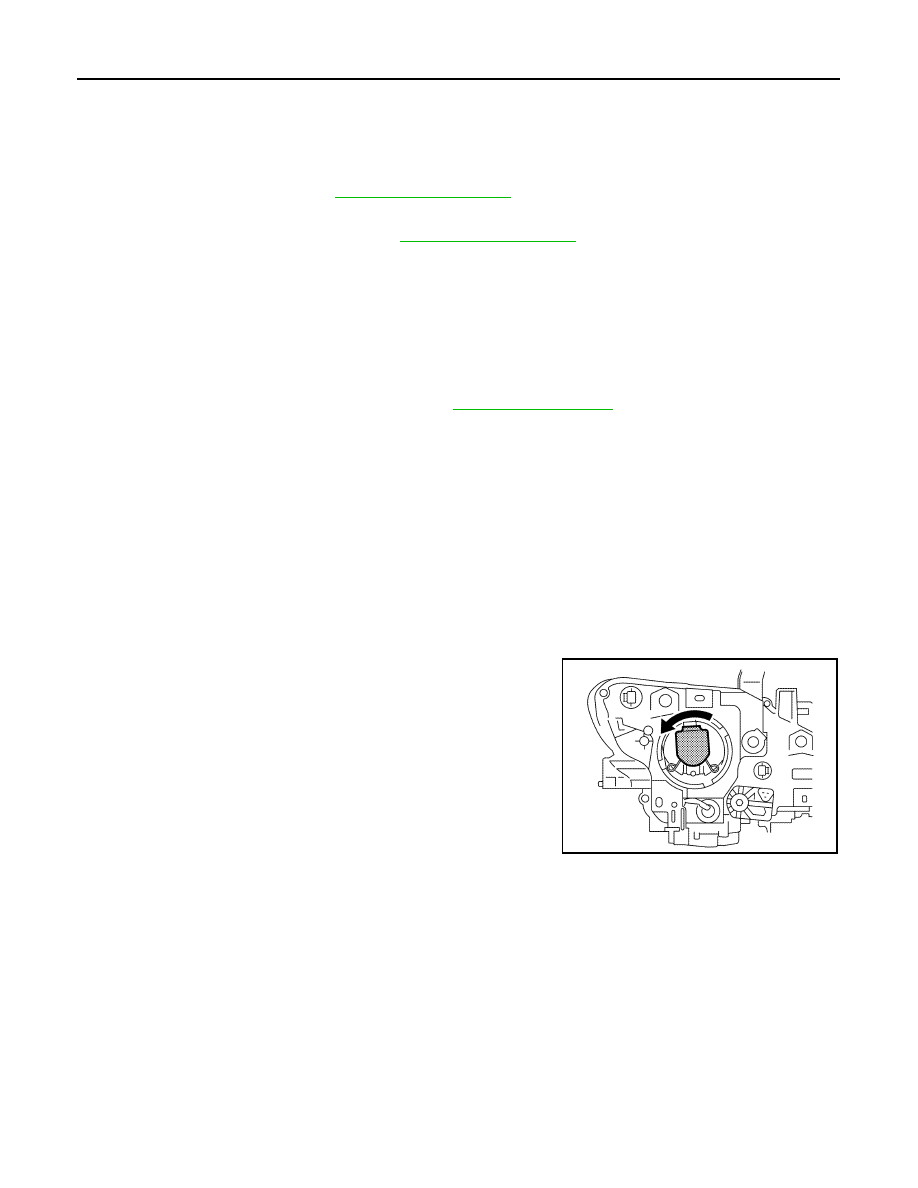

HEADLAMP BULB

1.

Remove the fender rubber protector in engine room.

2.

Rotate the resin cap counterclockwise and unlock it.

3.

Rotate the bulb socket counterclockwise and unlock it.

4.

Unlock the retaining spring. And then remove the bulb from the
headlamp housing assembly.

CAUTION:

Never break the xenon bulb ceramic tube when replacing
the bulb.

PARKING LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Remove the front grille.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

FRONT SIDE MARKER LAMP BULB

1.

Remove the fender rubber protector in engine room.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the bulb socket.

JPLIA0814ZZ

FRONT COMBINATION LAMP

EXL-181

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Disassembly and Assembly

INFOID:0000000005515108

DISASSEMBLY

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the xenon bulb socket counterclockwise and unlock it.

3.

Unlock the retaining spring. And then remove the xenon bulb.

4.

Remove the HID control unit installation screw.

5.

Remove the screw. And then disconnect the connector from HID control unit.

6.

Remove the xenon bulb socket from headlamp housing assembly.

7.

Rotate the parking lamp bulb socket counterclockwise and unlock it.

8.

Remove the bulb from parking lamp bulb socket.

9.

Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

10. Remove the bulb from front turn signal lamp bulb socket.
11. Rotate the front side marker lamp bulb socket counterclockwise and unlock it.

12. Remove the bulb from front side marker lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• Install HID control unit securely.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

EXL-182

< REMOVAL AND INSTALLATION >

[XENON TYPE]

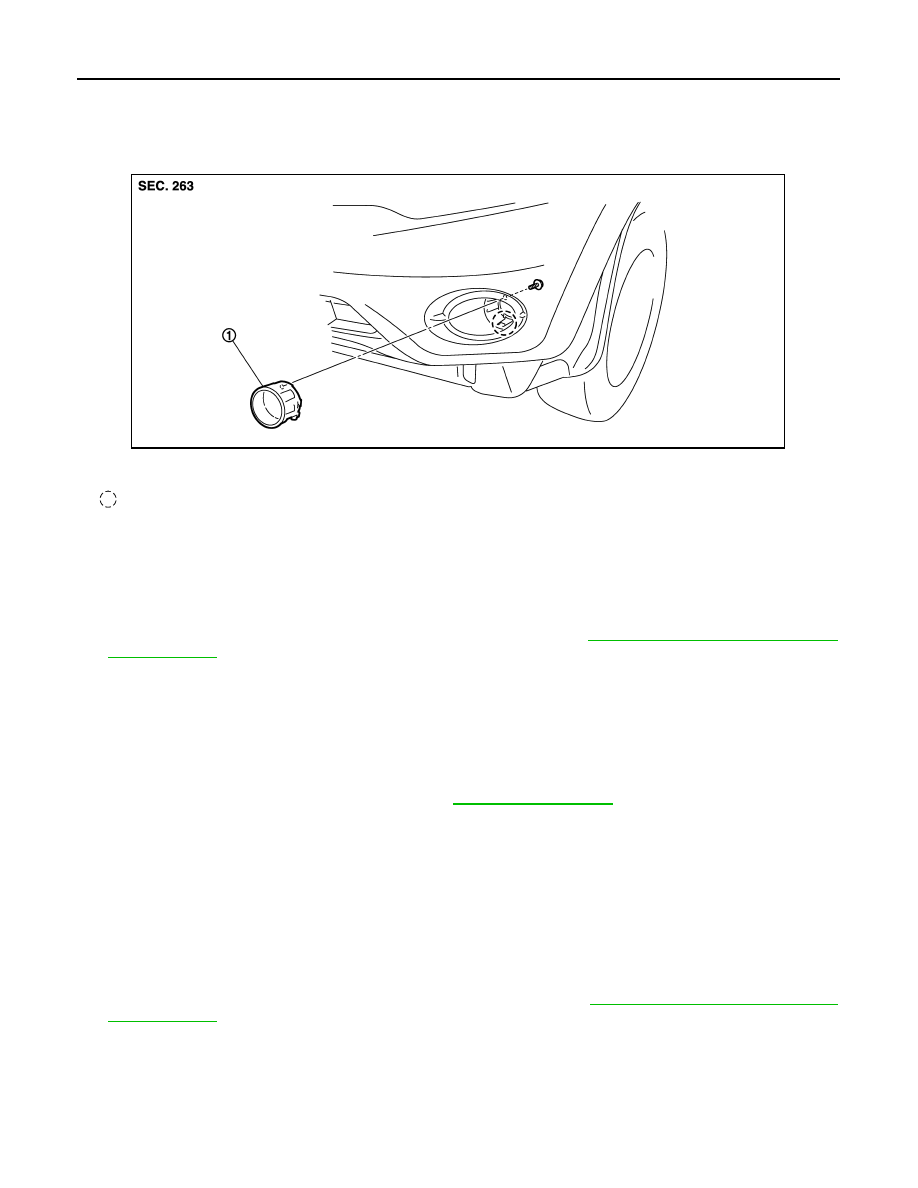

FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000005515109

Removal and Installation

INFOID:0000000005515110

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the front fender protector. Keep a service area. Refer to

EXT-24, "FENDER PROTECTOR :

Exploded View"

.

2.

Remove the front fog lamp connector.

3.

Remove the screw.

4.

Disengage the pawl. And then remove the front fog lamp.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-177, "Description"

Replacement

INFOID:0000000005515111

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove the front fender protector. Keep the service area. Refer to

EXT-24, "FENDER PROTECTOR :

Exploded View"

.

1.

Front fog lamp

: Pawl

JPLIA1592ZZ
