FRONT FOG LAMP

EXL-183

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0816ZZ

EXL-184

< REMOVAL AND INSTALLATION >

[XENON TYPE]

OPTICAL SENSOR

OPTICAL SENSOR

Exploded View

INFOID:0000000005515112

Removal and Installation

INFOID:0000000005515113

REMOVAL

1.

Insert an appropriate tool between the optical sensor and the instrument upper panel. Pull out the optical
sensor upward.

2.

Disconnect the optical sensor connector. And then remove the optical sensor.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

JPLIA0818ZZ

LIGHTING & TURN SIGNAL SWITCH

EXL-185

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000005515114

Removal and Installation

INFOID:0000000005515115

Lighting & turn signal switch is integrated in the combination switch. Refer to

BCS-96, "Exploded View"

.

EXL-186

< REMOVAL AND INSTALLATION >

[XENON TYPE]

HAZARD SWITCH

HAZARD SWITCH

Exploded View

INFOID:0000000005515116

Removal and Installation

INFOID:0000000005515117

REMOVAL

1.

Remove the instrument stay cover (RH). Refer to

IP-12, "Exploded View"

.

2.

Remove the screws. And then remove the switch bracket from the instrument stay cover.

3.

Remove the hazard switch.

INSTALLATION

Install in the reverse order of removal.

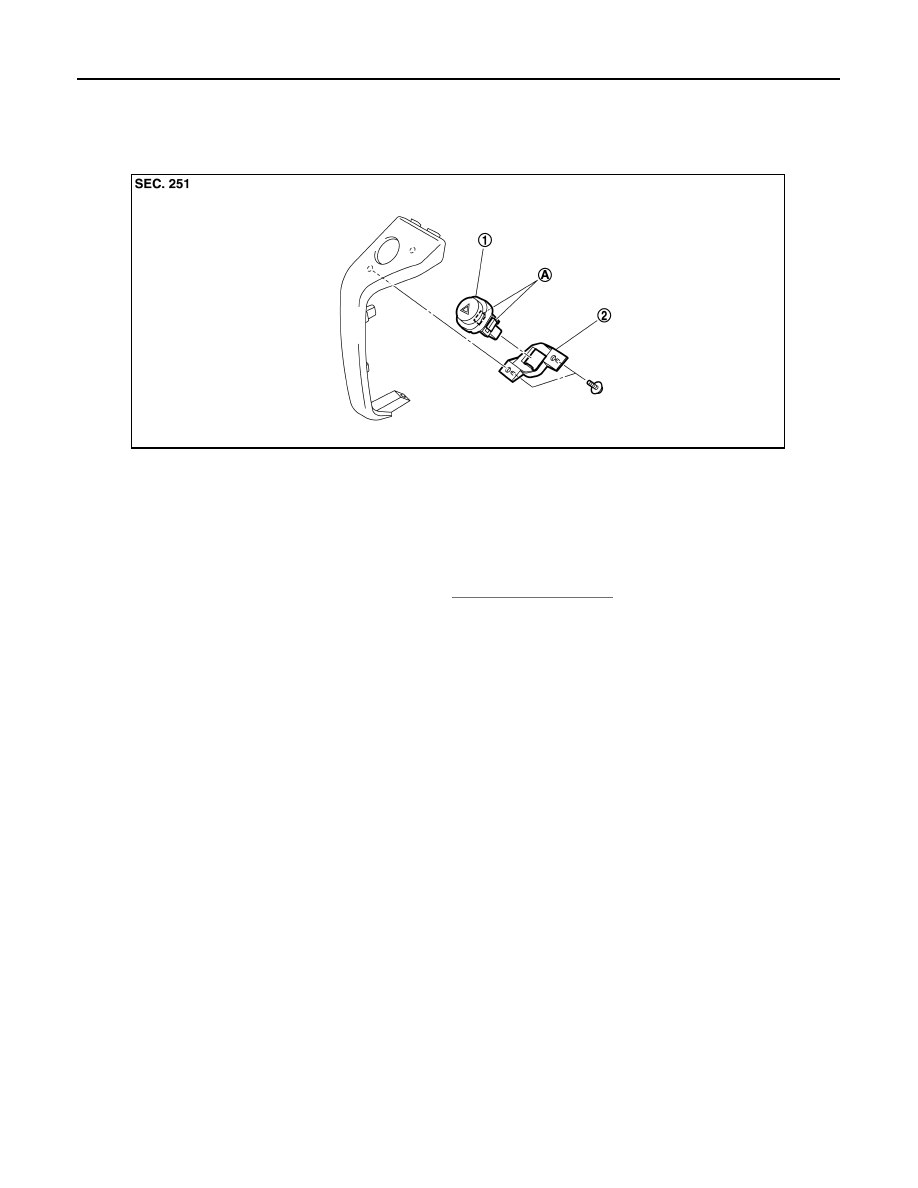

1.

Hazard switch

2.

Switch bracket

A.

Pawls

JPLIA0819ZZ
