Nissan Murano Z51. Manual - part 639

EM-28

< PERIODIC MAINTENANCE >

COMPRESSION PRESSURE

10. Start the engine, and check that the engine runs smoothly.

11. Perform trouble diagnosis. If DTC appears, erase it. Refer to

EC-126, "Description"

.

ENGINE COVER

EM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

REMOVAL AND INSTALLATION

ENGINE COVER

Exploded View

INFOID:0000000005515924

Removal and Installation

INFOID:0000000005515925

REMOVAL

1.

Remove radiator core support covers (RH and LH) and air duct (inlet). Refer to

EM-31, "Exploded View"

.

2.

Remove engine cover mounting bolts (A) and (B).

3.

Draw and pull out engine cover from engine cover mounting bolts (C) and (D).

CAUTION:

Pull engine cover from mounting bolt (D) holding with hand the position (E) as shown in the figure.

4.

Remove engine cover mounting bolts (C) and (D) if necessary.

INSTALLATION

Install in the reverse order of removal.

1.

Engine cover

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1712GB

JPBIA1718ZZ

EM-30

< REMOVAL AND INSTALLATION >

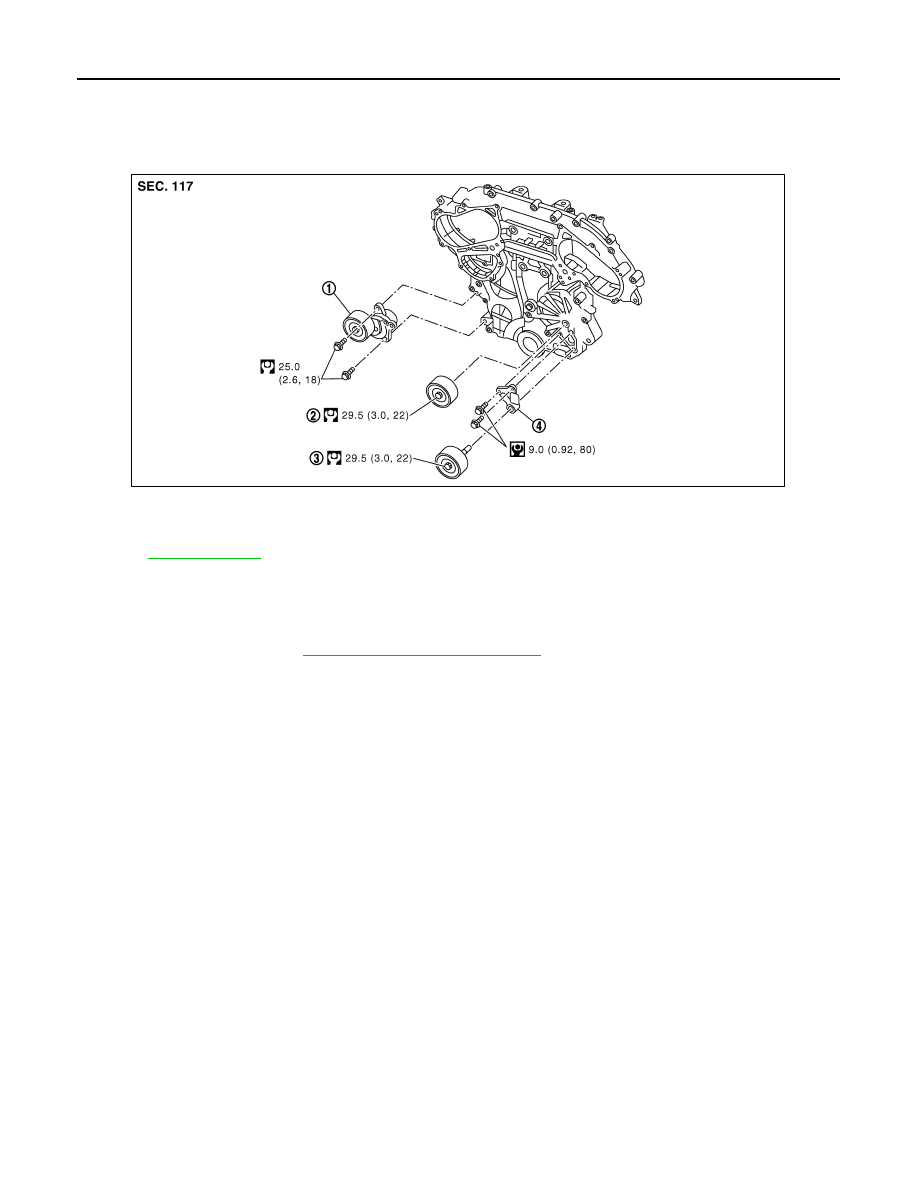

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

DRIVE BELT AUTO TENSIONER AND IDLER PULLEY

Exploded View

INFOID:0000000005515926

Removal and Installation

INFOID:0000000005515927

Removal

1.

Remove drive belt. Refer to

EM-17, "Removal and Installation"

.

• Keep auto-tensioner pulley arm locked after drive belt is removed.

2.

Remove auto-tensioner and idler pulley.
• Keep auto-tensioner pulley arm locked to install or remove auto-tensioner.

Installation

Install in the reverse order of removal.

CAUTION:

If there is damage greater than peeled paint, replace drive belt auto-tensioner.

1.

Drive belt auto-tensioner

2.

Idler pulley

3.

Idler pulley

4.

Bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1626GB

AIR CLEANER AND AIR DUCT

EM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

AIR CLEANER AND AIR DUCT

Exploded View

INFOID:0000000005515928

Removal and Installation

INFOID:0000000005515929

REMOVAL

NOTE:
Mass air flow sensor is removable under the car-mounted condition.
1.

Remove radiator core support covers (RH and LH).

2.

Remove air duct (inlet).

3.

Disconnect harness connector from mass air flow sensor.

4.

Disconnect PCV hose.

5.

Remove air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly disconnect-
ing their joints.
• Add mating marks if necessary for easier installation.

1.

Mass air flow sensor

2.

Air cleaner case (upper)

3.

Holder

4.

Air cleaner filter

5.

Clamp

6.

Air duct assembly

7.

Clamp

8.

PCV hose

9.

Air duct (inlet)

10. Grommet

11.

Collar

12. Radiator core support cover (RH)

13. Radiator core support cover (LH)

14. Grommet

15. Grommet

16. Bracket

17. Bracket

18. Collar

19. Grommet

20. Air cleaner case (lower)

A.

To electric throttle control actuator

B.

To rocker cover (bank 2)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1670GB
