EM-32

< REMOVAL AND INSTALLATION >

AIR CLEANER AND AIR DUCT

6.

Remove mass air flow sensor from air cleaner case (upper), if necessary.

CAUTION:

Handle the mass air flow sensor with following cares.
• Never shock the mass air flow sensor.
• Never disassemble the mass air flow sensor.
• Never touch the sensor of the mass air flow sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align marks. Attach each joint. Screw clamps firmly.

Inspection

INFOID:0000000005515930

INSPECTION AFTER REMOVAL

Inspect air duct assembly for crack or tear.
• If anything found, replace air duct assembly.

INTAKE MANIFOLD COLLECTOR

EM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD COLLECTOR

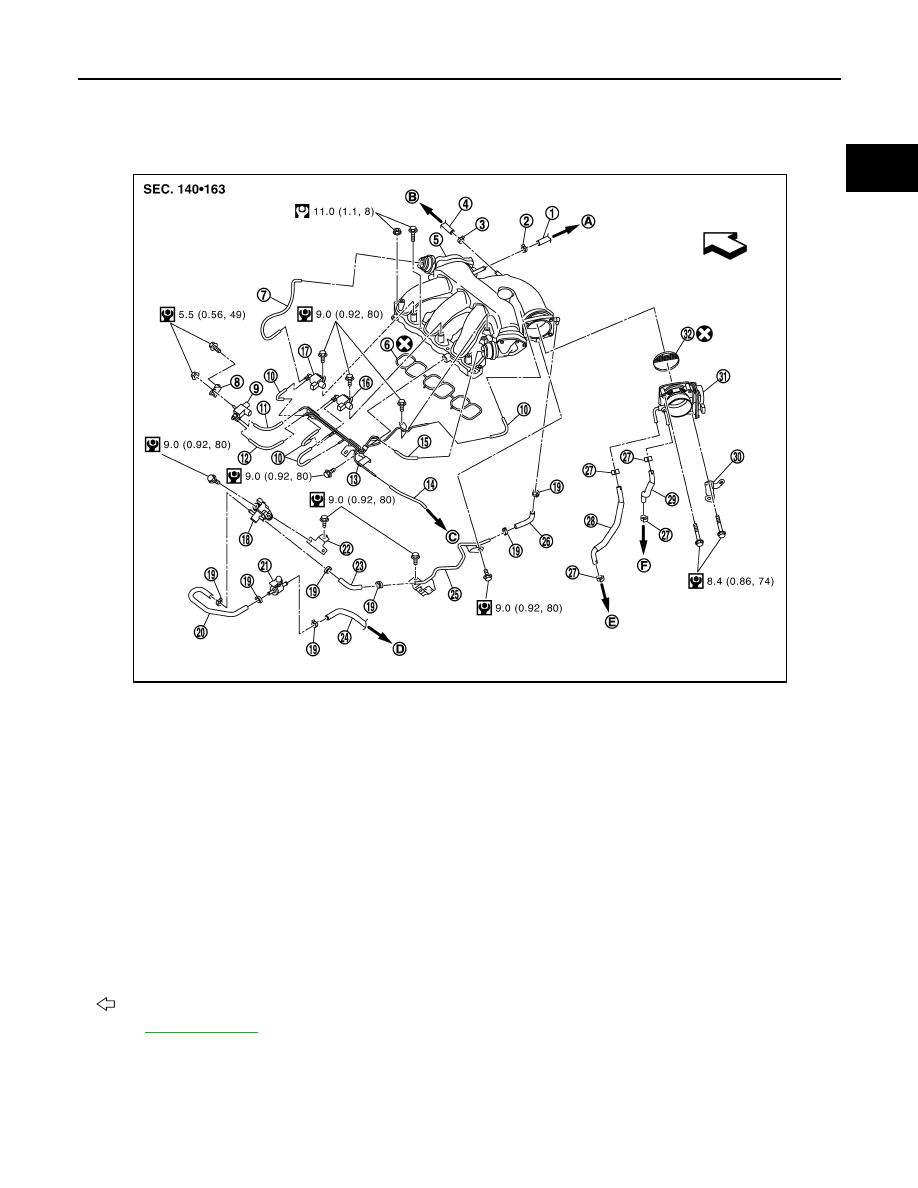

Exploded View

INFOID:0000000005515931

Removal and Installation

INFOID:0000000005515932

REMOVAL

WARNING:

1.

Vacuum hose

2.

Clamp

3.

Clamp

4.

PCV hose

5.

Intake manifold collector

6.

Gasket

7.

Vacuum hose

8.

Bracket

9.

Electronic controlled engine mount
control solenoid valve

10. Vacuum hose

11.

Vacuum hose

12. Vacuum hose

13. Vacuum gallery

14. Vacuum hose

15. Vacuum hose

16. VIAS control solenoid valve 2

17. VIAS control solenoid valve 1

18.

EVAP canister purge control solenoid
valve

19. Clamp

20. EVAP hose

21. Service port

22. Bracket

23. EVAP hose

24. EVAP hose

25. EVAP pipe

26. EVAP hose

27. Clamp

28. Water hose

29. Water hose

30. Bracket

31. Electric throttle control actuator

32. Gasket

A.

To brake booster

B.

To rocker cover (bank 1)

C.

To vacuum tube

D.

To vacuum pipe

E.

To heater pipe

F.

To water outlet

: Engine front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1713GB

EM-34

< REMOVAL AND INSTALLATION >

INTAKE MANIFOLD COLLECTOR

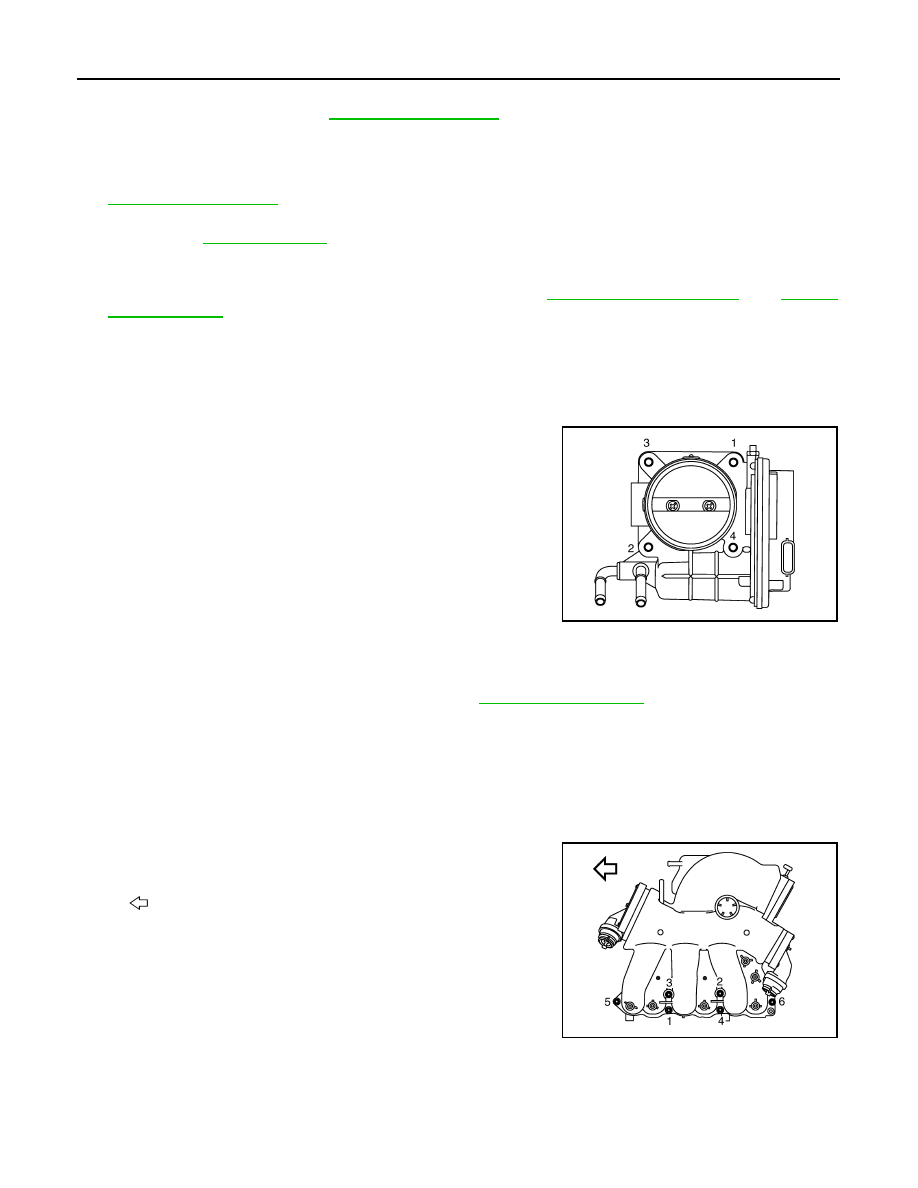

To avoid the danger of being scalded, never drain engine coolant when the engine is hot.

1.

Remove engine cover. Refer to

EM-29, "Exploded View"

.

CAUTION:

Be careful not to damage or scratch engine cover.

2.

Remove air cleaner cases (upper and lower) with mass air flow sensor and air duct assembly. Refer to

EM-31, "Exploded View"

.

3.

Drain engine coolant, or when water hoses are disconnected, attach plug to prevent engine coolant leak-
age. Refer to

CO-11, "Draining"

.

CAUTION:

Perform this step when the engine is cold.

4.

Remove front wiper arm and extension cowl top. Refer to

WW-130, "Exploded View"

 and

EXT-21,

"Exploded View"

.

5.

Disconnect water hoses from electric throttle control actuator.
• When engine coolant is not drained from radiator, attach plug to water hoses to prevent engine coolant

leakage.

6.

Remove electric throttle control actuator as follows:

a.

Disconnect harness connector.

b.

Loosen mounting bolts in the reverse order as shown in the fig-
ure.

CAUTION:

• Handle carefully to avoid any shock to electric throttle

control actuator.

• Never disassemble.

7.

Remove the following parts:
• Vacuum hose
• PCV hose
• High pressure piping from intake manifold: Refer to

ST-44, "Exploded View"

.

• Electronic controlled engine mount control solenoid valve

8.

Disconnect EVAP hoses and harness connector from EVAP canister purge volume control solenoid valve.

9.

Remove EVAP canister purge volume control solenoid valve and bracket assembly.

10. Remove VIAS control solenoid valve mounting bolts and vacuum gallery mounting bolts, and then move

vacuum gallery.
• Add mating marks if necessary for easier installation.

11. Loosen mounting nuts and bolts in the reverse order as shown

in the figure, and remove intake manifold collector and gasket.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

INSTALLATION

Note the following, and install in the reverse order of removal.

Intake Manifold Collector

JPBIA1631ZZ

: Engine front

JPBIA1628ZZ

INTAKE MANIFOLD COLLECTOR

EM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

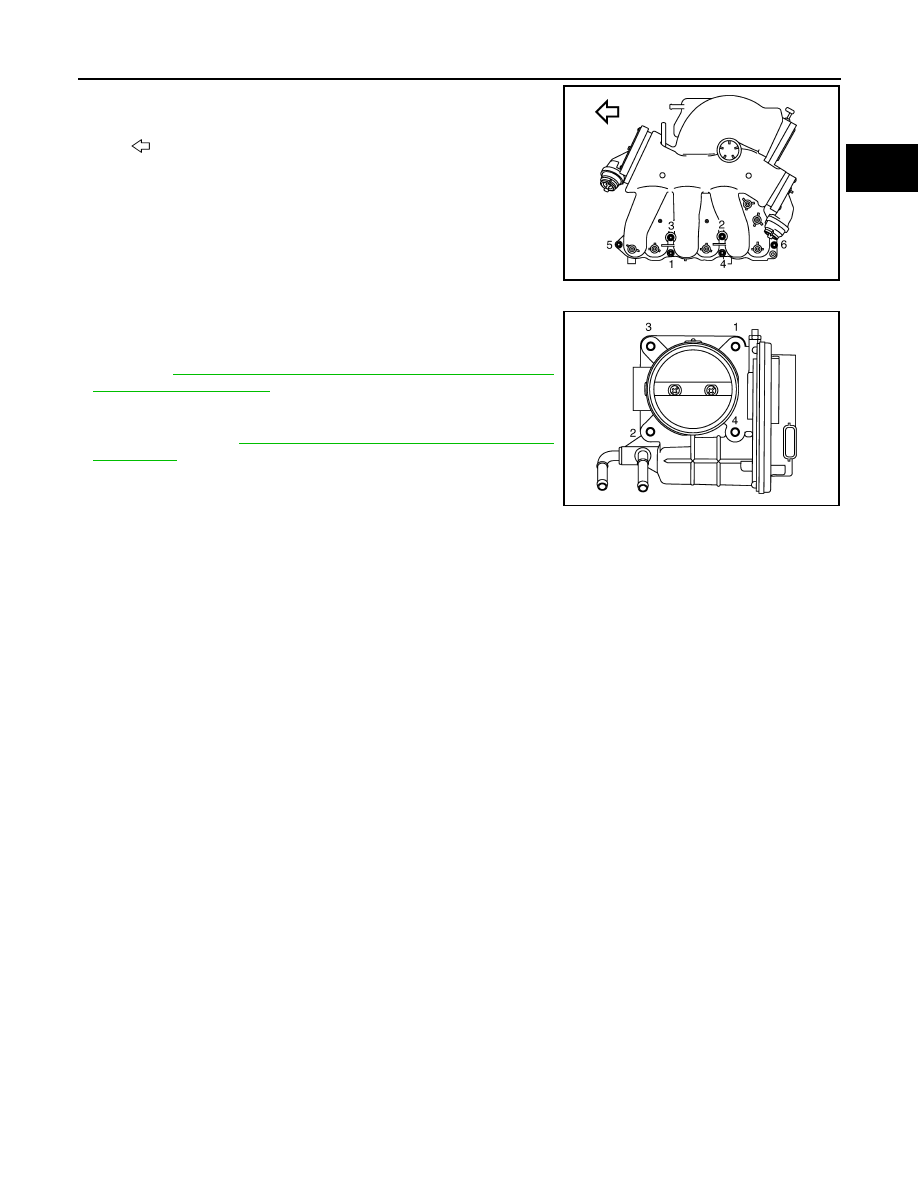

Tighten mounting nuts and bolts in numerical order as shown in the
figure.

Electric Throttle Control Actuator

• Tighten mounting bolts in numerical order as shown in the figure.
• Perform the “Throttle Valve Closed Position Learning” when har-

ness connector of electric throttle control actuator is disconnected.
Refer to

EC-18, "THROTTLE VALVE CLOSED POSITION

LEARNING : Description"

.

• Perform the “Idle Air Volume Learning” and “Throttle Valve Closed

Position Learning” when electric throttle control actuator is
replaced. Refer to

EC-18, "IDLE AIR VOLUME LEARNING :

Description"

.

: Engine front

JPBIA1628ZZ
