DLK-364

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA

2.

Remove the outside key antenna (rear bumper) mounting nuts
(A), and then remove outside key antenna (rear bumper) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2172ZZ

INTELLIGENT KEY WARNING BUZZER

DLK-365

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000005517845

Removal and Installation

INFOID:0000000005517846

REMOVAL

1.

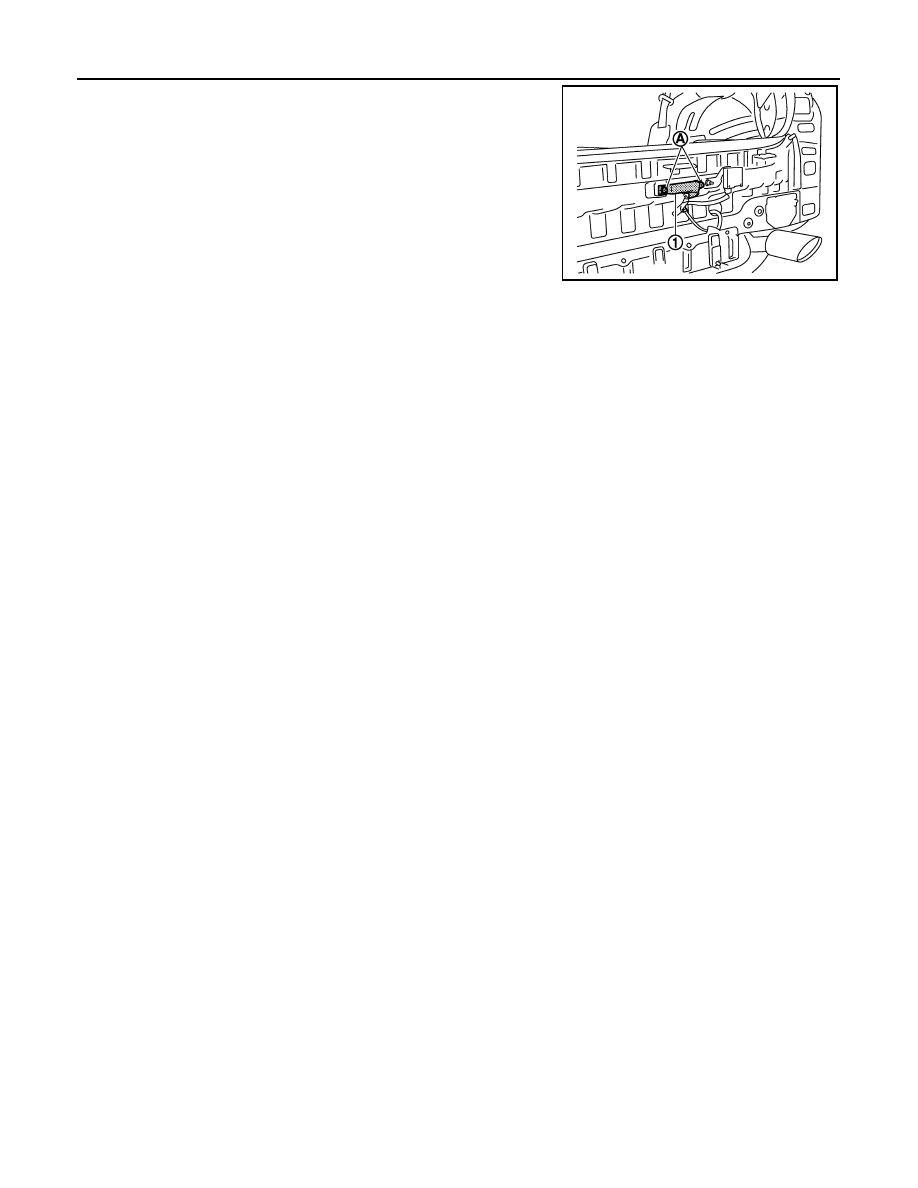

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

1.

Intelligent Key warning buzzer

JMKIA1827ZZ

JMKIA1828ZZ

DLK-366

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

KEY SLOT

KEY SLOT

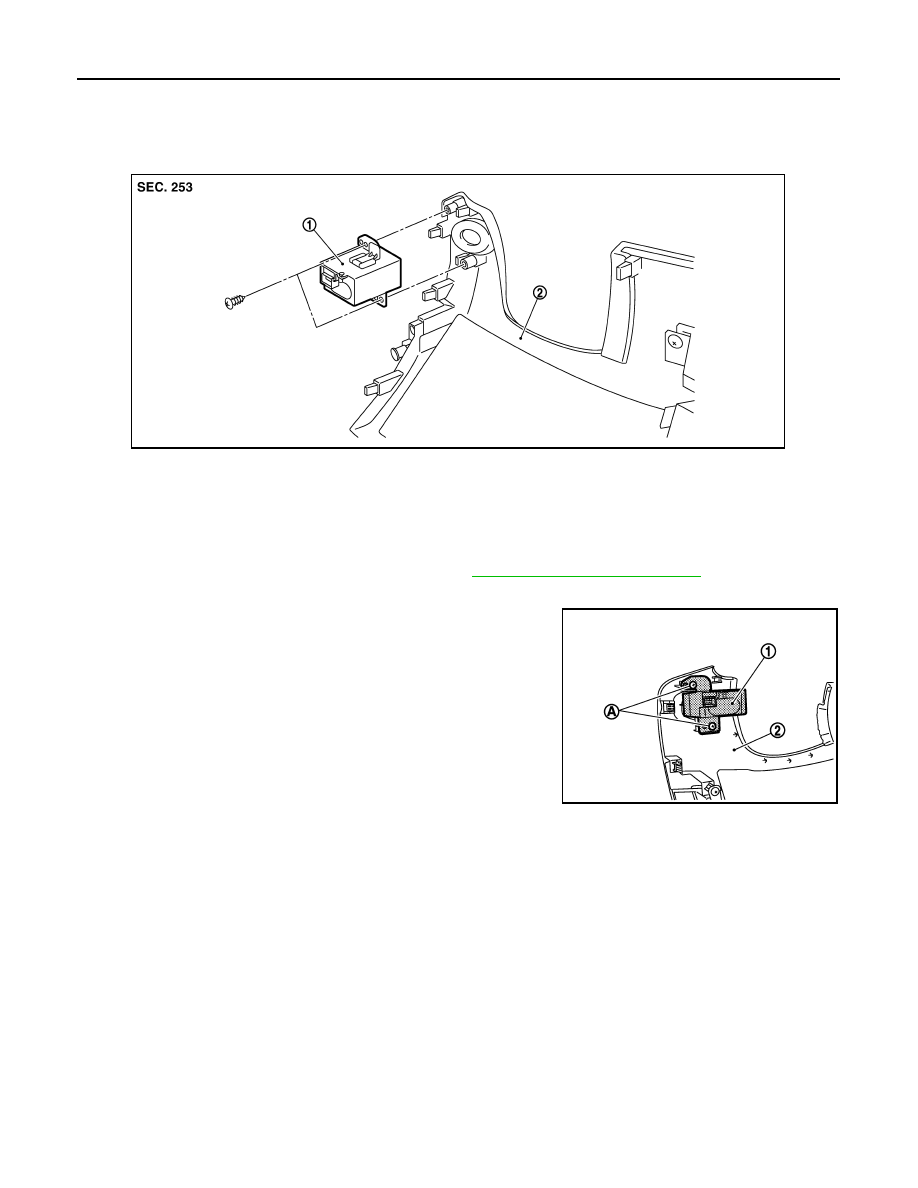

Exploded View

INFOID:0000000005517847

Removal and Installation

INFOID:0000000005517848

REMOVAL

1.

Remove the instrument lower panel LH (2). Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect key slot connector.

3.

Remove the key slot mounting screw (A), and then remove key
slot (1) from instrument lower panel LH (2).

INSTALLATION

Install in the reverse order of removal.

1.

Key slot

JMKIA1820ZZ

JMKIA1821ZZ

BACK DOOR OPENER SWITCH ASSEMBLY

DLK-367

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SWITCH ASSEMBLY

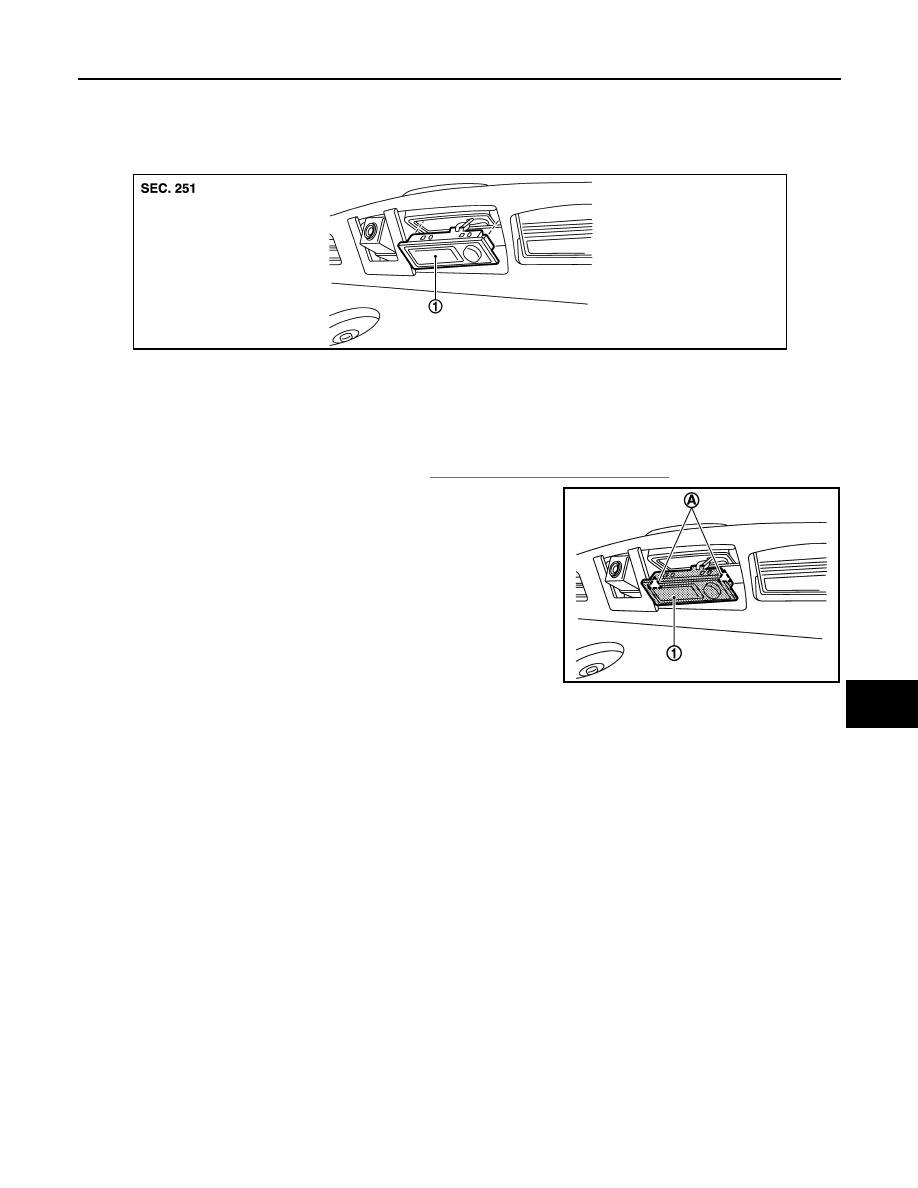

Exploded View

INFOID:0000000005517849

Removal and Installation

INFOID:0000000005517850

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Remove the back door opener switch assembly (1), and then
remove pawl.

INSTALLATION

Install in the reverse order of removal.

1.

Back door opener switch assembly

JMKIA2181ZZ
