DOOR SWITCH

DOOR SWITCH

Exploded View

INFOID:0000000005517831

Removal and Installation

INFOID:0000000005517832

REMOVAL

1.

Remove the door switch mounting bolt (A), and then remove
door switch (1).

INSTALLATION

Install in the reverse order of removal.

1.

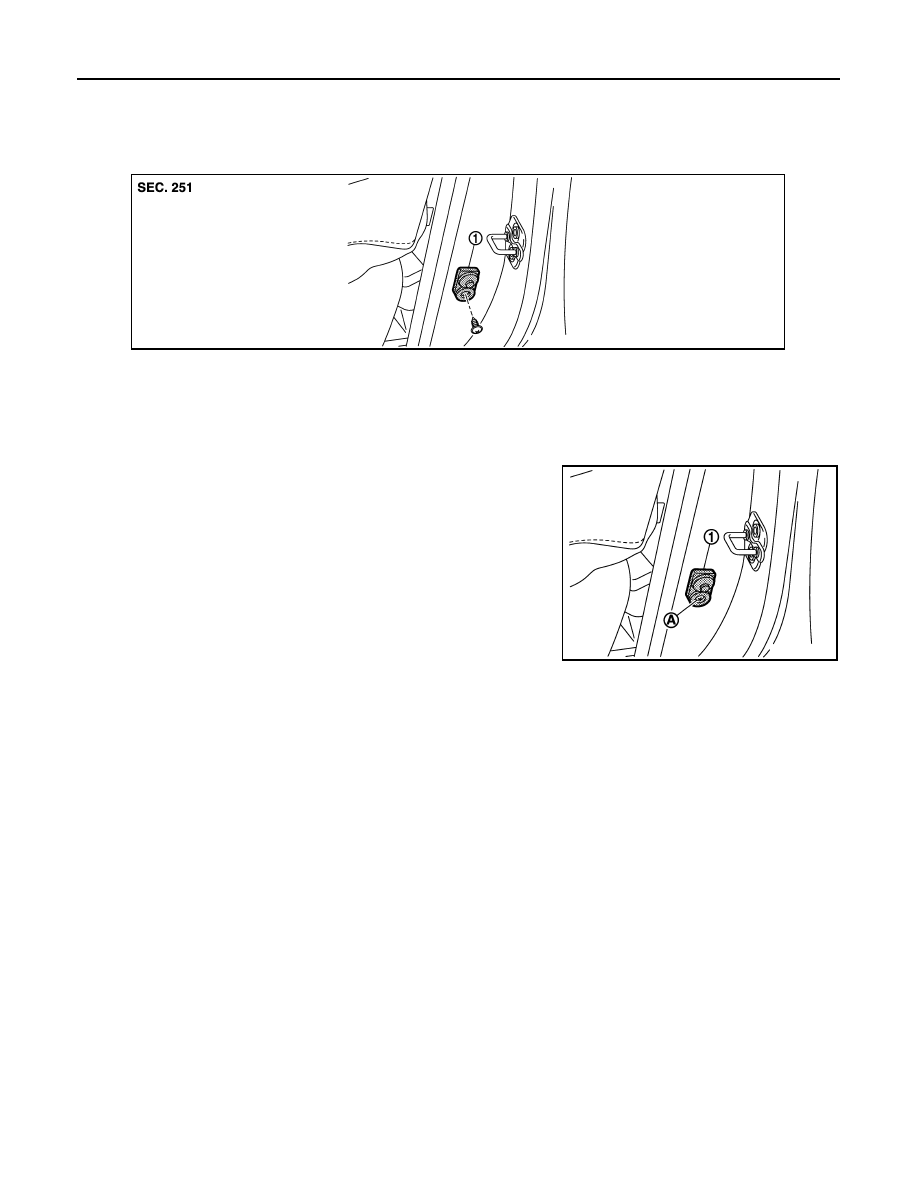

Door switch

JMKIA2180ZZ

JMKIA2173ZZ

INSIDE KEY ANTENNA

DLK-361

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

CONSOLE

CONSOLE : Exploded View

INFOID:0000000005517835

CONSOLE : Removal and Installation

INFOID:0000000005517836

REMOVAL

1.

Remove the console pocket and rear finisher. Refer to

IP-21, "Removal and Installation"

.

2.

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1) from console rear fin-
isher (2).

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

1.

Inside key antenna (console)

JMKIA1818ZZ

JMKIA1819ZZ

DLK-362

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

LUGGAGE ROOM : Exploded View

INFOID:0000000005517837

LUGGAGE ROOM : Removal and Installation

INFOID:0000000005517838

REMOVAL

1.

Remove the luggage floor finisher front. Refer to

INT-35, "Removal and Installation"

.

2.

Remove the inside key antenna (luggage room) mounting clip
(A), and then remove inside key antenna (luggage room) (1).

INSTALLATION

Install in the reverse order of removal.

1.

Inside key antenna (luggage room)

JMKIA1816ZZ

JMKIA1817ZZ

OUTSIDE KEY ANTENNA

DLK-363

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000005517839

Refer to

DLK-323, "DOOR STRIKER : Exploded View"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000005517840

REMOVAL

Remove the front outside handle LH. Refer to

DLK-346, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000005517841

Refer to

DLK-323, "DOOR STRIKER : Exploded View"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000005517842

REMOVAL

Remove the front outside handle RH. Refer to

DLK-346, "OUTSIDE HANDLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

REAR BUMPER

REAR BUMPER : Exploded View

INFOID:0000000005517843

REAR BUMPER : Removal and Installation

INFOID:0000000005517844

REMOVAL

1.

Remove the rear bumper. Refer to

EXT-16, "Removal and Installation"

.

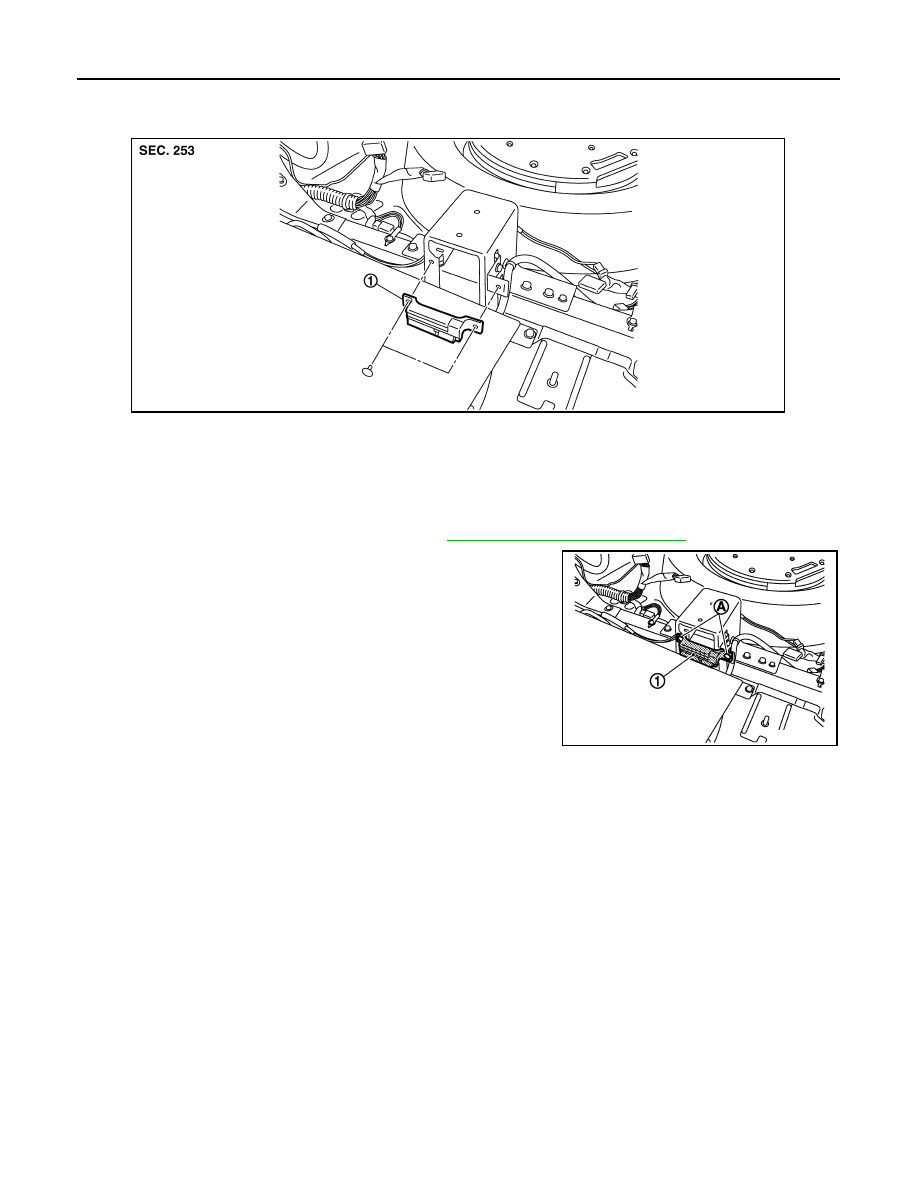

1.

Outside key antenna (rear bumper)

JMKIA2179ZZ
