Nissan Murano Z51. Manual - part 331

REPLACEMENT OPERATIONS

BRM-31

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Center Pillar

INFOID:0000000005513916

Install the inner center pillar to the side body assembly as shown in the figure for repairing the hidden welding
point

″

View E

″

.

Unit: mm (in)

: Vehicle front

JSKIA0531GB

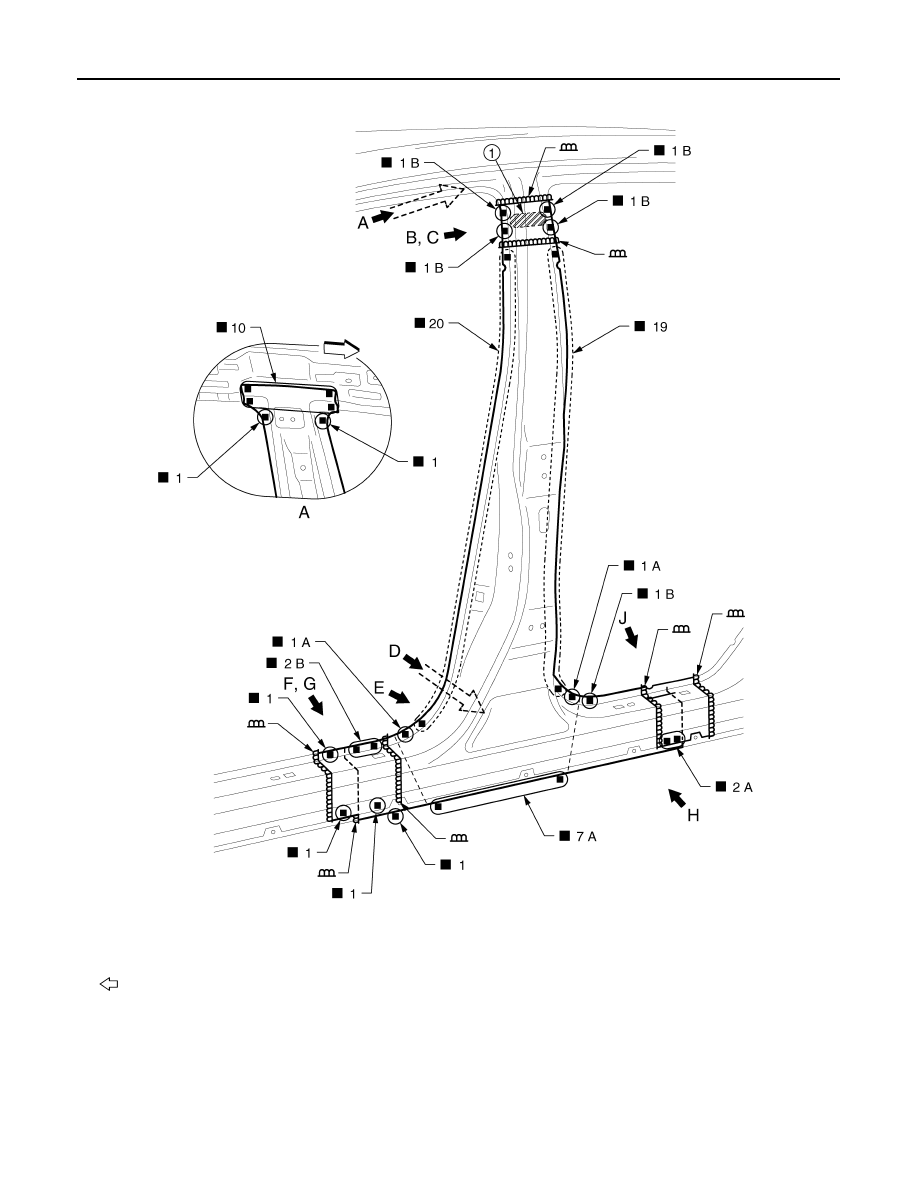

BRM-32

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Side body assembly (LH)

z

Inner center pillar (LH)

JSKIA0532ZZ

REPLACEMENT OPERATIONS

BRM-33

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View C: Before installing outer front side body
View E: Inner center pillar and side body assembly (replacement parts)

Unit: mm (in)

: Vehicle front

JSKIA0533GB

BRM-34

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View G: Before installing outer front side body

Outer Sill

INFOID:0000000005513917

Install the lower front pillar reinforcement assembly to the outer sill reinforcement (replacement part) as shown
in the figure for repairing the hidden welding point

″

View A

″

.

Unit: mm (in)

: Vehicle front

JSKIA0534GB
