REPLACEMENT OPERATIONS

BRM-35

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View A: Outer sill reinforcement and lower front pillar reinforcement assembly (replacement parts)
View B: Before installing outer sill

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer front side body (LH)

z

Outer sill reinforcement (LH)

z

Lower front pillar reinforcement as-
sembly (LH)

JSKIA0535GB

BRM-36

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View D: Before installing outer sill and center pillar reinforcement
View H: Before installing outer sill
View K: Before installing outer sill reinforcement

Unit: mm (in)

: Vehicle front

JSKIA0536GB

REPLACEMENT OPERATIONS

BRM-37

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

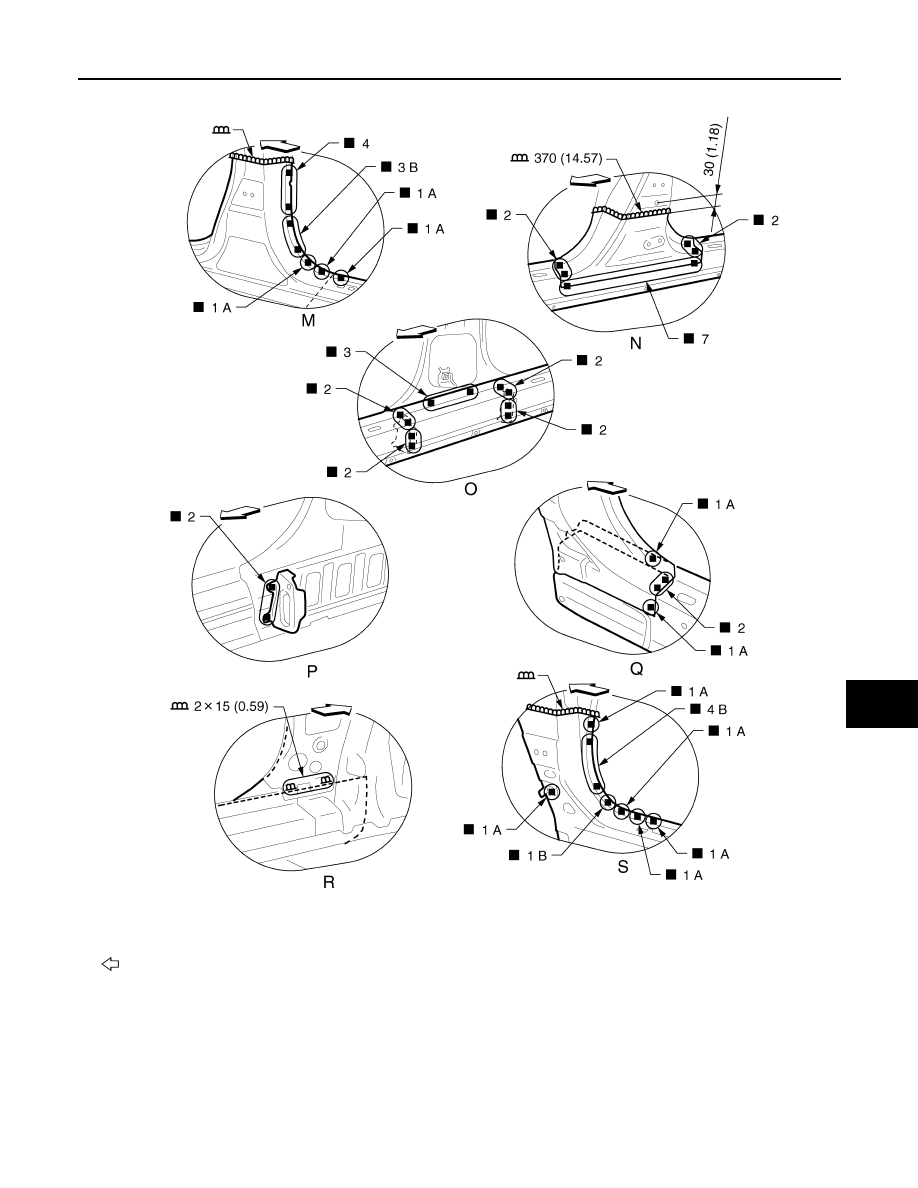

View N and Q: Before installing outer sill
View O: Before installing center pillar reinforcement
View P: Before installing outer sill reinforcement

Rear Fender

INFOID:0000000005513918

Remove the outer back pillar and rear combination lamp base from the rear fender assembly service part for
easier installation.

Unit: mm (in)

: Vehicle front

JSKIA0537GB

BRM-38

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1.

Urethane foam

2.

Adhesive

Unit: mm (in)

: Vehicle front

Replacement parts

z

Rear fender assembly (LH)

JSKIA0538GB
