Radiator Core Support

INFOID:0000000005513910

Hoodledge

INFOID:0000000005513911

Work after radiator core support is removed.

: Vehicle front

Replacement parts

z

Side radiator core support (LH)

JSKIA0523ZZ

BRM-24

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

: Vehicle front

Replacement parts

z

Lower front hoodledge (LH)

z

Lower rear hoodledge (LH)

z

Upper hoodledge (LH)

z

Hoodledge reinforcement (LH)

JSKIA0524ZZ

REPLACEMENT OPERATIONS

BRM-25

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

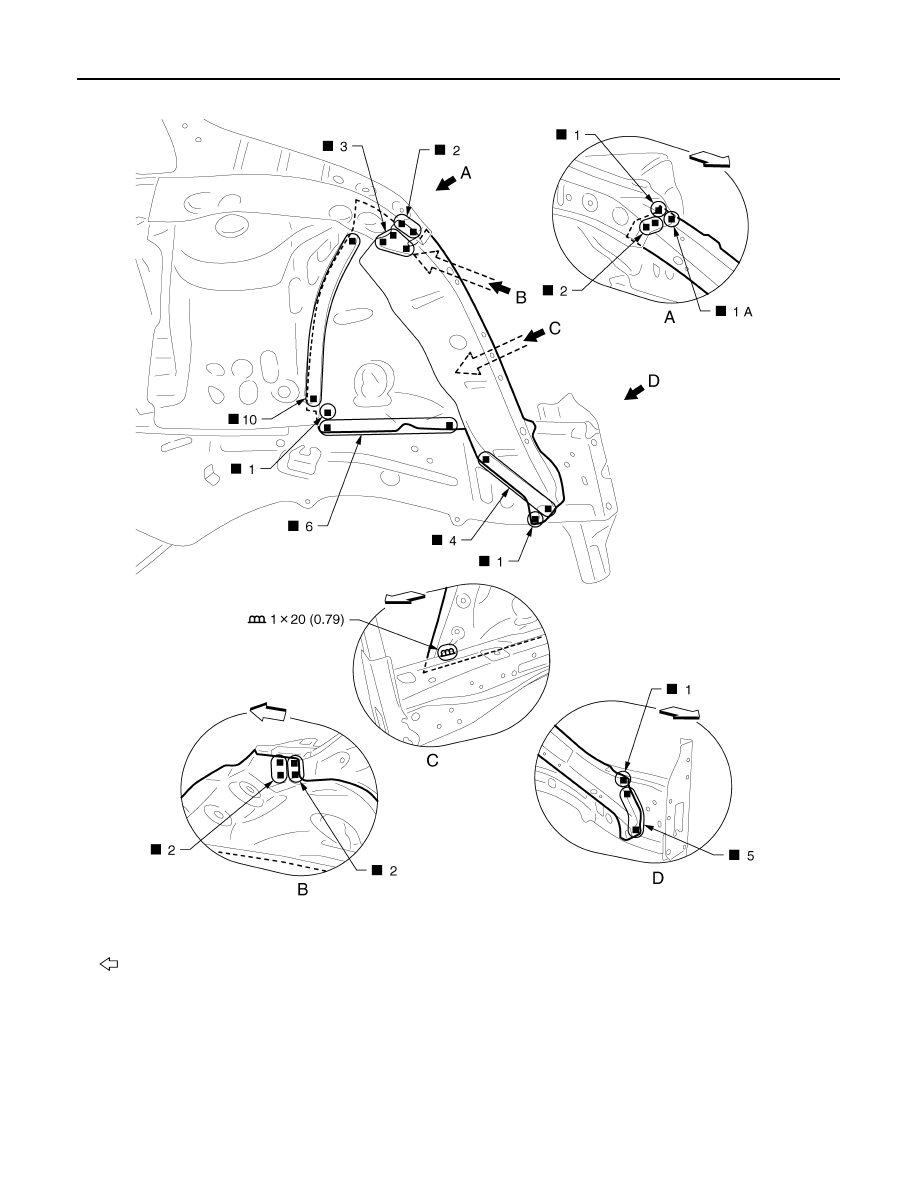

View C and D: Before installing hoodledge reinforcement

Hoodledge (Partial Replacement)

INFOID:0000000005513912

Work after radiator core support is removed.

Unit: mm (in)

: Vehicle front

JSKIA0525GB

BRM-26

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Front Side Member

INFOID:0000000005513913

Work after radiator core support and hoodledge are removed.

Unit: mm (in)

: vehicle front

Replacement parts

z

Lower front hoodledge (RH)

JSKIA0526GB
