BODY CONSTRUCTION

BRM-19

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY CONSTRUCTION

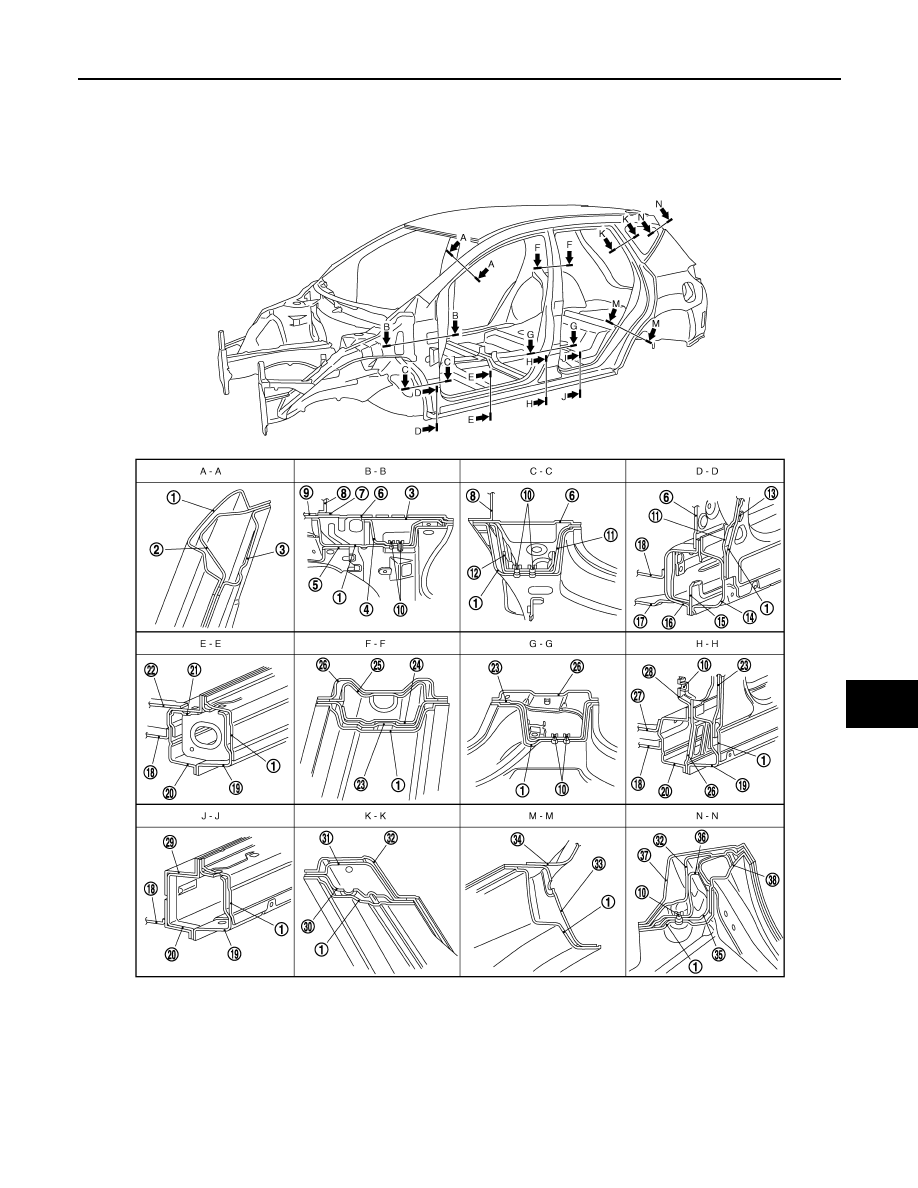

Body Construction

INFOID:0000000005513908

1.

Outer side body

2.

Upper front pillar reinforcement

3.

Upper inner front pillar

4.

Upper front pillar hinge brace

5.

Hoodledge reinforcement

6.

Side dash

7.

Upper dash

8.

Lower dash

9.

Side cowl top brace

JSKIA0575ZZ

BRM-20

< UNIT REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

10. Weld nut

11.

Lower front pillar hinge brace

12. Lower front pillar patch

13. Front fender bracket

14. Outer front sill reinforcement

15. Lower front pillar reinforcement

16. Inner front sill reinforcement

17. Front side member outrigger

18. Front floor

19. Outer sill reinforcement

20. Inner sill

21. Inner rear sill reinforcement

22. 2nd crossmember

23. Center pillar reinforcement

24. Center pillar seat belt reinforcement

25. Inner center pillar reinforcement

26. Inner center pillar

27. 3rd crossmember

28. Seat belt anchor

29. Inner sill extension

30. Inner rear pillar reinforcement

31. Inner rear pillar seat belt anchor

32. Inner rear pillar

33. Outer rear wheelhouse

34. Inner rear wheelhouse

35. Outer back pillar

36. Back pillar reinforcement

37. Rear roof rail brace

38. Back pillar main

REPLACEMENT OPERATIONS

BRM-21

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REPLACEMENT OPERATIONS

Description

INFOID:0000000005513909

• This section is prepared for technicians who have attained a high level of skill and experience in repairing

collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.

• Technicians are also encouraged to read the Body Repair Manual (Fundamentals) in order to ensure that the

original functions and quality of the vehicle are maintained. The Body Repair Manual (Fundamentals) con-
tains additional information, including cautions and warnings, that are not including in this manual. Techni-
cians should refer to both manuals to ensure proper repair.

• Please note that this information is prepared for worldwide usage, and as such, certain procedures might not

apply in some regions or countries.

The symbols used in this section for welding operations are shown below.

Symbol marks

Description

2-spot welds

3-spot welds

MIG plug weld

For 3 panels plug weld method

MIG seam weld / Point weld

JSKIA0049ZZ

JSKIA0053ZZ

JSKIA0050ZZ

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ

BRM-22

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm (2.36 in) above the inner front pillar cut
position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit the service part to be accurately cut at the joint position.

• An example of cutting operation using a cutting jig is as per the fol-

lowing.

1.

Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar

2.

Align cutting line with notch on jig. Clamp jig to pillar.

3.

Cut outer pillar along groove of jig (at position A).

4.

Remove jig and cut remaining portions.

5.

Cut inner pillar at position B in same manner.

PIIA0150E

JSKIA0104GB

JSKIA0105GB

PIIA0153E
