BODY COMPONENT PARTS

BRM-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

10. Outer sill reinforcement (RH & LH)

11.

Outer sill (RH & LH)

12. Inner side roof rail (RH & LH)

13. Inner center pillar (RH & LH)

14. Inner rear pillar (RH & LH)

15. Inner rear pillar reinforcement (RH &

LH)

16. Back pillar reinforcement assembly

(RH & LH)

17. Outer rear wheelhouse (RH & LH)

18. Outer rear sill reinforcement (RH &

LH)

19. Inner rear wheelhouse (RH & LH)

20. Inner rear wheelhouse front exten-

sion (RH & LH)

21. Inner rear wheelhouse rear exten-

sion (RH & LH)

22. Roof

23. Front roof rail

24. Roof reinforcement assembly

25. Roof bow No. 1

26. Roof bow No. 2

27. Roof bow No. 3

28. Roof bow No. 4

29. Roof bow No. 5

30. Rear roof rail

31. Side roof reinforcement (RH & LH)

32. Rear roof

33. Rear sunroof reinforcement assem-

bly

34. Rear fender assembly (RH & LH)

35. Outer back pillar (RH & LH)

36. Rear combination lamp base (RH &

LH)

37. Rear fascia rear bracket (RH & LH)

38. Rear combination lamp base exten-

sion (RH & LH)

39. Fuel filler lid

40. Rear panel assembly

41. Upper rear bumper retainer

42. Front door assembly (RH & LH)

43. Outer front door panel (RH & LH)

44. Rear door assembly (RH & LH)

45. Outer rear door panel (RH & LH)

46. Inner front bumper center reinforce-

ment

47. Front bumper stay (RH & LH)

48. Inner center rear bumper reinforce-

ment

49. Rear side bumper bracket (RH & LH)

A.

Standard roof

B.

With sunroof

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS   sections

*: Aluminum portion

BRM-12

< UNIT REMOVAL AND INSTALLATION >

CORROSION PROTECTION

UNIT REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000005513903

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

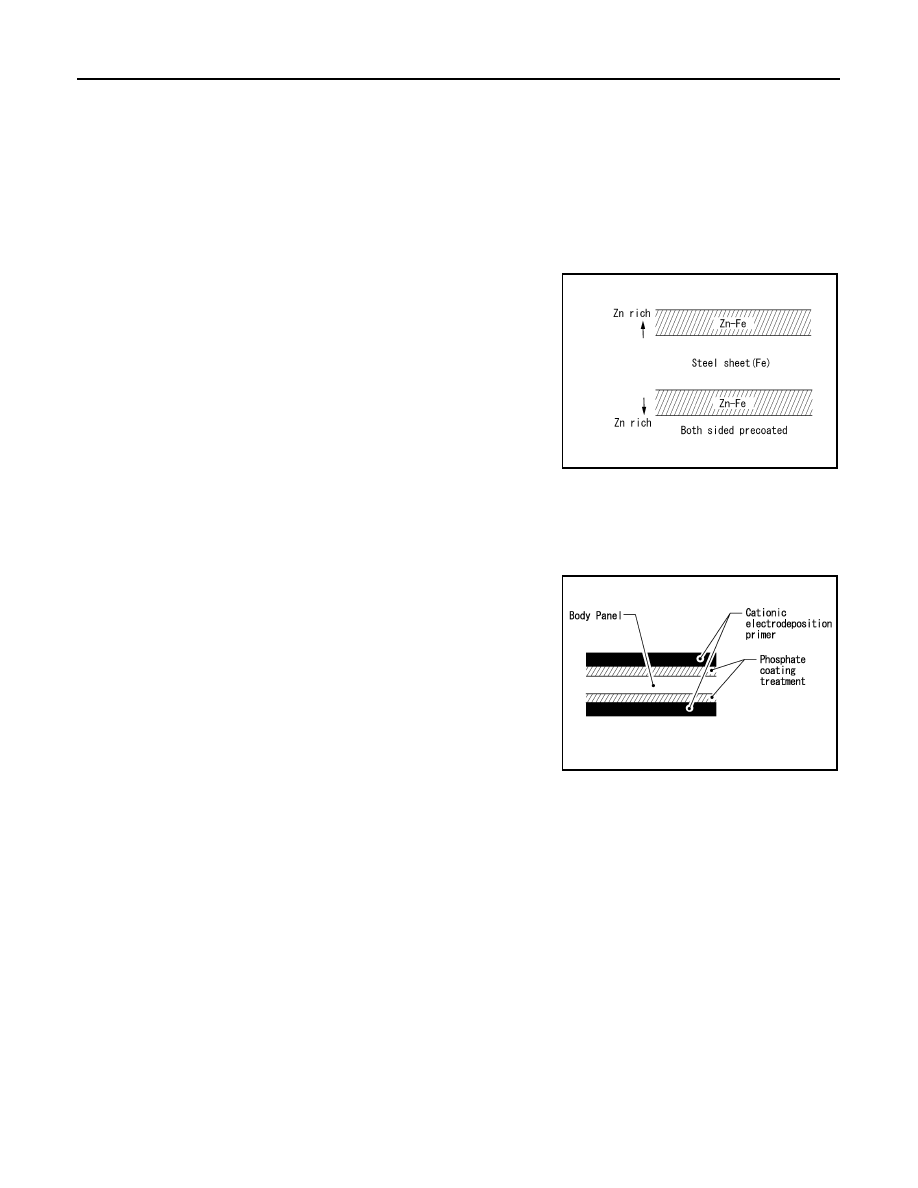

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet is adopted replacing conventional
zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.

NISSAN genuine parts are fabricated from galvannealed steel. Therefore, it is recommended that NISSAN
genuine parts or an equivalent be used for panel replacement to maintain the anti-corrosive performance built
into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition
primer, which provide excellent corrosion protection, are applied to
all body components.

CAUTION:

Confine paint removal during welding operation to an absolute
minimum.

NISSAN genuine parts are also treated in the same manner. Therefore, it is recommended that NISSAN gen-
uine parts or an equivalent be used for panel replacement to maintain anti-corrosive performance built into the
vehicle at the factory.

Anti-corrosive Wax

INFOID:0000000005513904

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

DOOR

SIIA2294E

PIIA0095E

CORROSION PROTECTION

BRM-13

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Undercoating

INFOID:0000000005513905

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1.

Never apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst that are subjected to heat).

2.

Never undercoat the exhaust pipe or other parts that become hot.

3.

Never undercoat rotating parts.

4.

Apply bitumen wax after applying undercoating.

5.

After putting seal on the vehicle, put undercoating on it.

B.

Nozzle insert hole

: Anti-corrosive wax coated portions

JSKIA0552GB

BRM-14

< UNIT REMOVAL AND INSTALLATION >

CORROSION PROTECTION

Stone Guard Coat

INFOID:0000000005513906

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

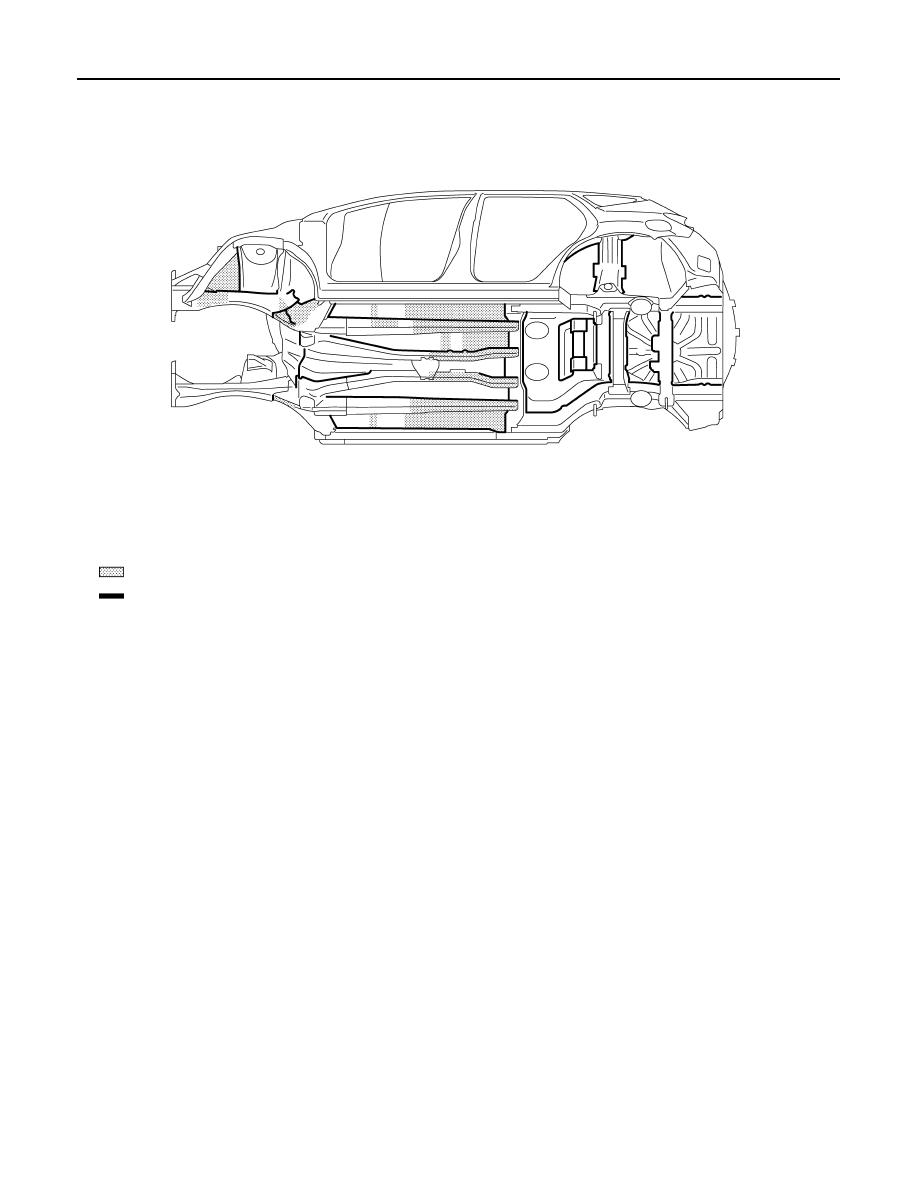

: Undercoated areas

: Sealed portions

JSKIA1606ZZ
