REPAIRING MATERIAL

BRM-7

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
Fill enough to close gap with service part while avoiding flange
area.

d.

Install service part.
NOTE:
Refer to label for information on working times.

1.

Urethane foam

A.

Fill while avoiding flange area

: Vehicle front

JSKIA0130GB

BRM-8

< PREPARATION >

BODY COMPONENT PARTS

BODY COMPONENT PARTS

Underbody Component Parts

INFOID:0000000005513901

1.

Lower rear hoodledge (RH & LH)

2.

Upper hoodledge (RH & LH)

3.

Hoodledge reinforcement (RH & LH)

4.

Center cowl top

5.

Upper dash

6.

Lower dash

7.

Side dash (RH & LH)

8.

Front floor

9.

Inner sill (RH & LH)

JSKIA1107ZZ

BODY COMPONENT PARTS

BRM-9

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:

For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

10. Rear floor front extension

11.

2nd seat mounting bracket

12. Rear seat back support

13. Rear floor front

14. Rear floor rear

15. Rear floor side (RH & LH)

16. Spare tire clamp bracket

17. Front side member assembly (RH &

LH)

18. Front side member connector as-

sembly (RH & LH)

19. Front side member closing plate as-

sembly (RH & LH)

20. Lower front hoodledge (RH & LH)

21. Side radiator core support (RH & LH)

22. Front side member extension (RH &

LH)

23. Front side member center extension

(RH & LH)

24. Rear seat crossmember

25. Center rear crossmember assembly

26. Spare wheel crossmember

27. Rear side member assembly (RH &

LH)

28. Rear side member extension (RH &

LH)

29. Spare wheel clamp reinforcement

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

BRM-10

< PREPARATION >

BODY COMPONENT PARTS

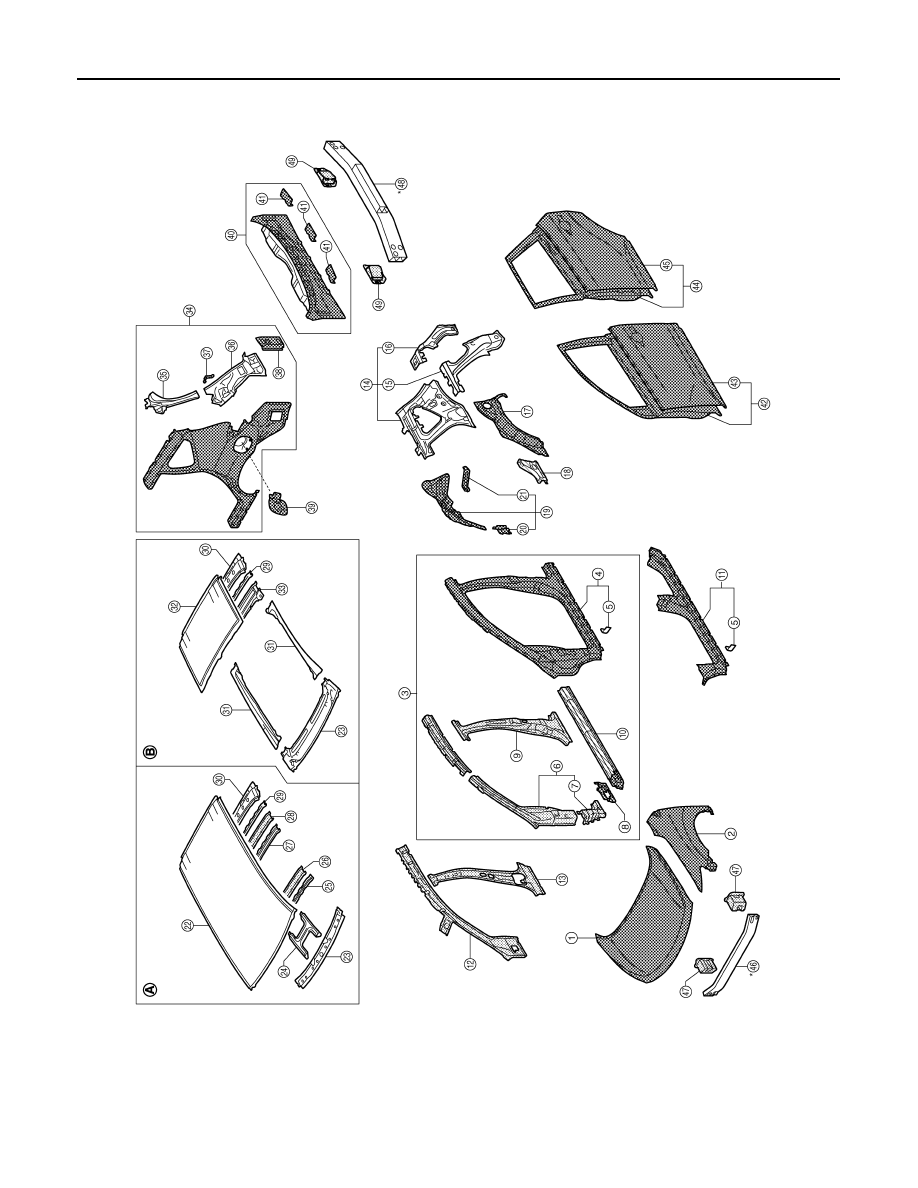

Body Component Parts

INFOID:0000000005513902

1.

Hood

2.

Front fender (RH & LH)

3.

Side body assembly (RH & LH)

4.

Outer front side body (RH & LH)

5.

Front fender bracket assembly (RH
& LH)

6.

Front pillar hinge reinforcement (RH
& LH)

7.

Lower front pillar hinge brace (RH &
LH)

8.

Lower front pillar reinforcement as-
sembly (RH & LH)

9.

Center pillar reinforcement (RH &
LH)

JSKIA0577ZZ
