Nissan Murano Z51. Manual - part 201

AV

AUDIO SYSTEM

AV-583

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000005528690

Part name

Description

AV CONTROL UNIT

• Receiving function of AM/FM/satellite radio, replaying function of CD, replay-

ing/saving function of music box (HDD), replaying function of CF and voice rec-
ognition function are integrated.

• BOSE amp. ON signal and sound signal are transmitted to BOSE amp.

FRONT DISPLAY UNIT

• Front display image is controlled by the serial communication from AV control

unit.

• RGB image signal (audio operation condition) is input from AV control unit.
• Touch panel function can be operated for each system by touching the display

directly.

BOSE AMP.

• Inputs power (amp. ON) and sound signal from AV control unit, and outputs

sound signal to woofer and each speaker.

• Woofer amp. ON signal is transmitted to woofer.

WOOFER

• Composed of two woofers and a woofer amp.
• Inputs power (amp. ON) and sound signal from BOSE amp.
• Outputs low frequency sound.

FRONT DOOR SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (mid and low range).

REAR DOOR SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (mid and low range).

FRONT SQUAWKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

REAR SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

CENTER SPEAKER

• Outputs sound signal from BOSE amp.
• Outputs sound (high and mid range).

MULTIFUNCTION SWITCH

• Operation panel is equipped with the centralized switch where audio and aux-

iliary input operations are integrated.

• The multifunction switch is connected to the preset switch by wiring harness,

and it transmits the operation signal to the preset switch.

PRESET SWITCH

• Operation panel is equipped with the centralized switch where audio and air

conditioner operations are integrated.

• The preset switch is connected via AV communication, and it transmits the op-

eration signals of the preset switch and multifunction switch.

• The disk ejection operating signal is performed by wiring harness.

STEERING SWITCH

• Operations for audio, hands-free phone, audio response and navigation, etc.

are possible.

• Steering switch signal (operation signal) is output to AV control unit.

MICROPHONE

• Used for hands-free phone operation and voice recognition.
• Mic signal is transmitted to AV control unit.
• The power (Mic. power supply) is supplied from the AV control unit.

ANTENNA BASE

An antenna base integrated with radio antenna amp. and satellite radio antenna
is adopted.

ANTENNA AMP.

• Radio signal received by rod antenna is amplified and transmitted to AV control

unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

SATELLITE RADIO ANTENNA

• Receives the satellite radio wave and outputs it to the AV control unit.

iPod ADAPTER

• Inputs iPod sound signal from iPod

®

, and outputs iPod sound signal to AV con-

trol unit.

• Receiving/transmitting of iPod

®

 operation signals are performed as follows:

- between AV control unit and iPod adapter: AV communication.

- between iPod

®

 and iPod adapter: serial communication.

AV-584

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

HANDS-FREE PHONE SYSTEM

HANDS-FREE PHONE SYSTEM

System Diagram

INFOID:0000000005528691

System Description

INFOID:0000000005528692

• AV control unit includes hands-free phone function.
• Hands-free communication can be operated by connecting using Bluetooth

™

 communication with cellular

phone.

• Operation is performed by steering switch, and operating condition is indicated on front display.
• Guide sound that is heard during operation is input from AV control unit to BOSE amp., and is output from

front speaker.

WHEN A CALL IS ORIGINATED

Spoken voice sound output from the microphone (MIC. signal) is input to AV control unit. AV control unit out-
puts to cellular phone with Bluetooth

™

 communication as a TEL voice signal. Vocal sound is then heard at the

other party.

WHEN RECEIVING A CALL

Vocal sound is input to own cellular phone from the other party. TEL voice signal is output to front speaker, and
the signal is input to BOSE amp. via AV control unit by establishing Bluetooth

™

 communication from cellular

phone.

JSNIA1095GB

AV

HANDS-FREE PHONE SYSTEM

AV-585

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

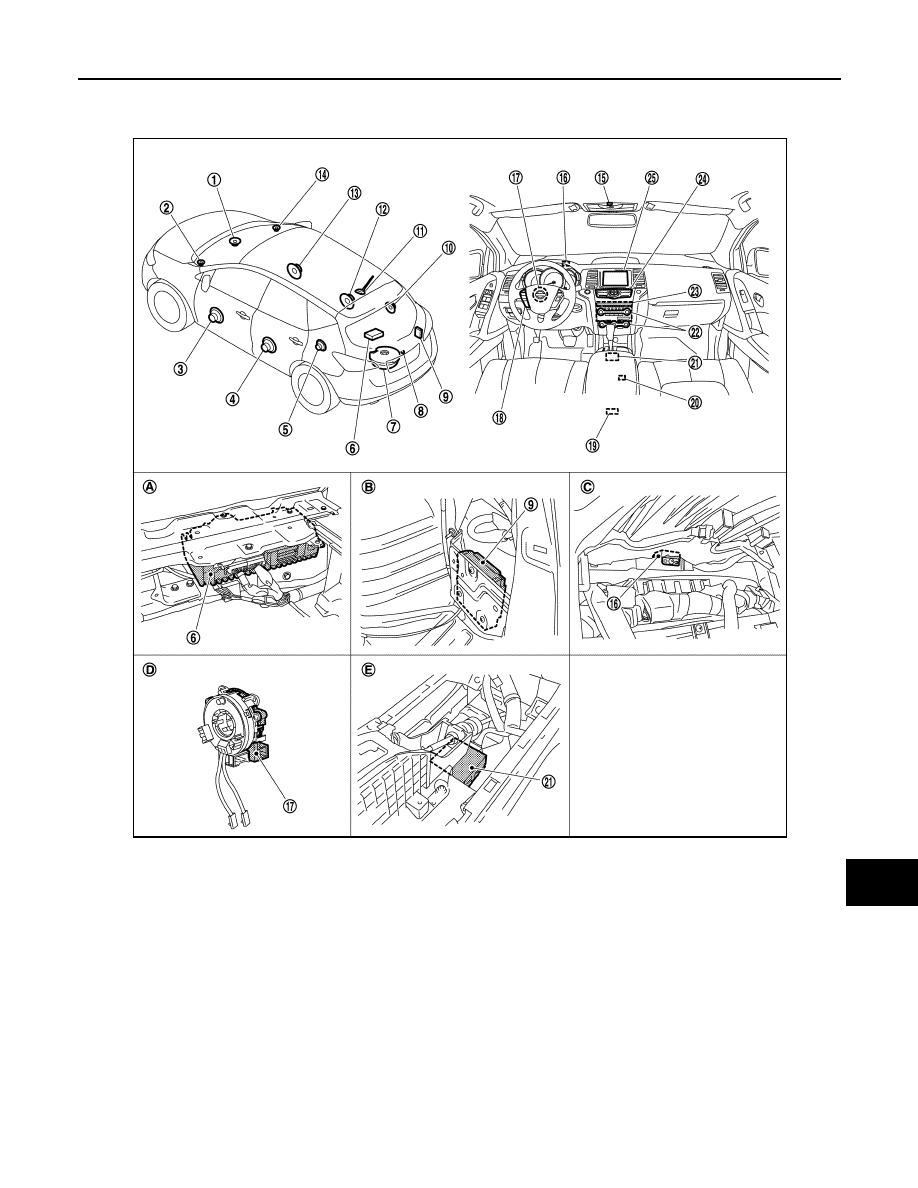

Component Parts Location

INFOID:0000000005528693

1.

Center speaker

2.

Front squawker LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear speaker LH

6.

BOSE amp.

7.

Woofer

8.

Rear view camera

9.

Camera control unit

10. Rear speaker RH

11.

Antenna base (antenna amp. and
satellite antenna)

12. Rear door speaker RH

13. Front door speaker RH

14. Front squawker RH

15. Microphone

16. GPS antenna

17. Steering angle sensor

18. Steering switch

19. Auxiliary input jacks

20. iPod connector

21. iPod adapter

22. Preset switch

23. AV control unit

24. Multifunction switch

25. Front display unit

A.

Luggage floor finisher is removed
condition

B.

Luggage side finisher lower RH is re-
moved condition

C.

Combination meter is removed condi-
tion

D.

Spiral cable part

E.

Console finisher is removed condition

JSNIA1096ZZ

AV-586

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

HANDS-FREE PHONE SYSTEM

Component Description

INFOID:0000000005528694

Part name

Description

AV CONTROL UNIT

• It includes the TEL adapter and Bluetooth

™

 function.

• It outputs the TEL voice signal and voice guidance sound signal to the BOSE

amp.

FRONT DISPLAY UNIT

• Display image is controlled by the serial communication from AV control unit.
• Inputs RGB image signal (RGB, RGB area and RGB synchronizing) from AV

control unit and displays the status of hands free phone system.

BOSE AMP.

Inputs TEL voice signal or voice guidance signal from AV control unit and outputs
it to front speaker.

FRONT DOOR SPEAKER

Outputs the TEL voice signal or voice guidance signal from BOSE amp.

PRESET SWITCH

• Adjust the sound when using TEL.
• The operation signal is transmitted to the AV control unit via AV communica-

tion.

STEERING SWITCH

• The hands free-phone system can be operated.
• Steering switch signal (operation signal) is output to AV control unit.

MICROPHONE

• Uses when operating the hands-free phone.
• Outputs Mic. signal (TEL voice signal) to the AV control unit.
• The power (Mic. power supply) is supplied from the AV control unit.
