AV

NAVIGATION SYSTEM

AV-575

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Parts Location

INFOID:0000000005528681

1.

Center speaker

2.

Front squawker LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear speaker LH

6.

BOSE amp.

7.

Woofer

8.

Rear view camera

9.

Camera control unit

10. Rear speaker RH

11.

Antenna base (antenna amp. and
satellite antenna)

12. Rear door speaker RH

13. Front door speaker RH

14. Front squawker RH

15. Microphone

16. GPS antenna

17. Steering angle sensor

18. Steering switch

19. Auxiliary input jacks

20. iPod connector

21. iPod adapter

22. Preset switch

23. AV control unit

24. Multifunction switch

25. Front display unit

A.

Luggage floor finisher is removed
condition

B.

Luggage side finisher lower RH is re-
moved condition

C.

Combination meter is removed condi-
tion

D.

Spiral cable part

E.

Console finisher is removed condition

JSNIA1096ZZ

AV-576

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

Component Description

INFOID:0000000005528682

Part name

Description

AV CONTROL UNIT

• It is the master unit that controls each operation of the Navigation system.
• The HDD (Hard Disk Drive) is built in, and the map data is stored in HDD.
• The RGB signal (map information) is output to the front display unit.
• The voice guidance signal is output to the BOSE amp.

FRONT DISPLAY UNIT

• Map image signal is input from AV control unit, and it is indicated on the display.
• Each operation of navigation can be performed by the touch panel function.

BOSE AMP.

Voice guidance signal is input from AV control unit, and it is output to front LH/RH
speakers.

FRONT DOOR SPEAKER

Voice guidance signal from BOSE amp. is output.

FRONT SQUAWKER

MULTIFUNCTION SWITCH

• Each operation of navigation can be performed.
• The multifunction switch is connected to the preset switch by wiring harness,

and it transmits the operation signal to the preset switch.

PRESET SWITCH

• Operation panel is equipped with the centralized switch where audio and air

conditioner operations are integrated.

• The preset switch is connected via AV communication, and it transmits the op-

eration signals of the preset switch and multifunction switch.

• The disk ejection operating signal is performed by wiring harness.

STEERING SWITCH

• Each operation of navigation, etc. can be performed.
• Switch operating signal is output to AV control unit.

MICROPHONE

• Used for hands-free phone operation and voice recognition.
• Mic signal is transmitted to AV control unit.
• Power (Mic VCC) is supplied from AV control unit.

GPS ANTENNA

GPS signal is received and is output to AV control unit.

AV

REAR VIEW MONITOR SYSTEM

AV-577

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW MONITOR SYSTEM

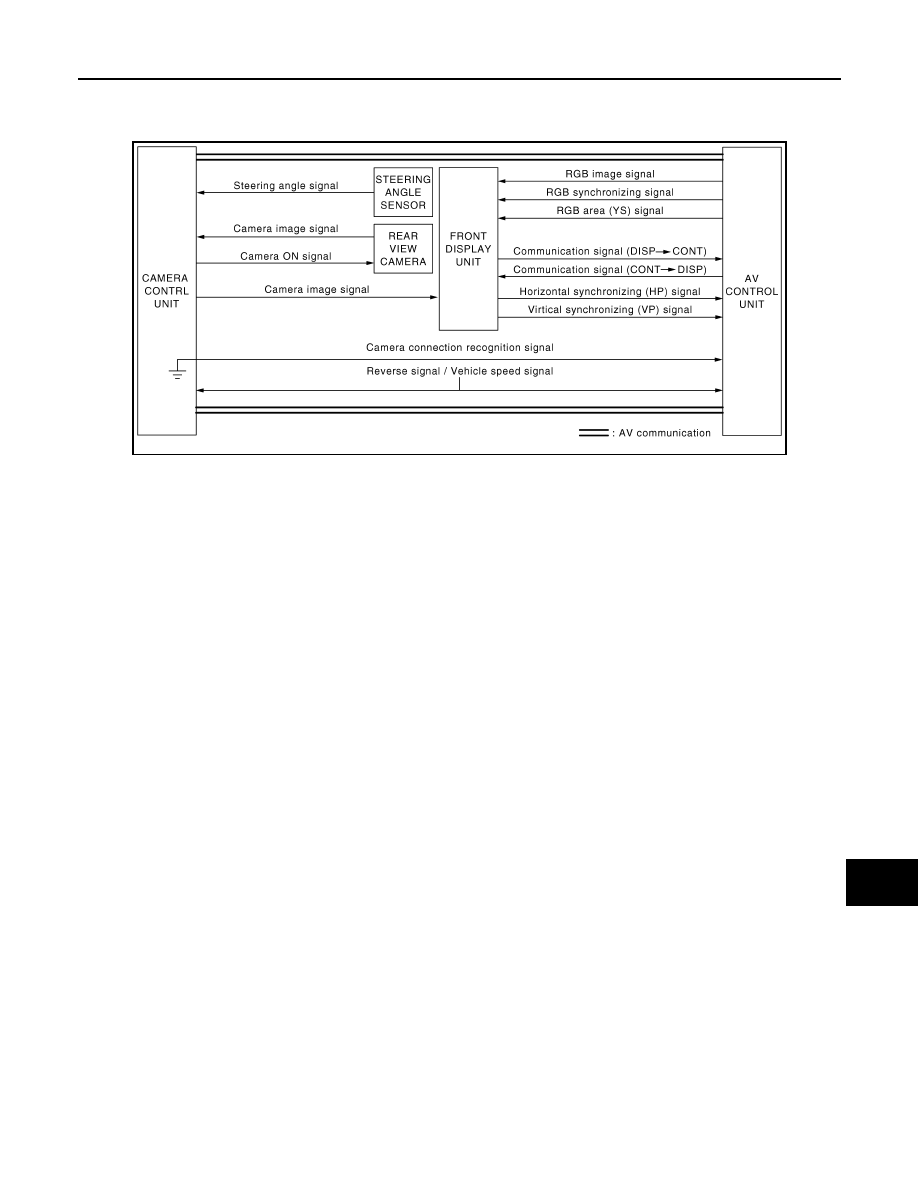

System Diagram

INFOID:0000000005528683

System Description

INFOID:0000000005528684

CAMERA IMAGE OPERATION PRINCIPLE

• Power is supplied to rear view camera from camera control unit and outputs camera image signal to camera

control unit when selector lever is set to the “R” position and the reverse signal on camera control unit is
input.

• Camera control unit synthesizes guide lines and possible route lines with camera image signal from rear

view camera, and transmits camera image signal to the front display unit. In this case, since the reverse sig-
nal is also input to AV control unit, the AV control unit recognizes that the selector lever is in the “R” position,
and it switches communication signal between AV control unit and front display unit, and image that is dis-
played on the front display unit by RGB image signal with rear view monitor image. In addition, possible
route lines are controlled by original sensor signal from steering angle sensor.

• The AV control unit determines whether rear view camera is equipped or not, based on the presence of cam-

era connection recognition signal. It switches to rear view monitor image at the time of reverse signal input
when it is equipped.

• Warning message under the rear view monitor display is described by AV control unit.
• AV control unit is connected in communication with camera control unit and front display unit, and it controls

operation of rear view monitor system.

JSNIA1093GB

AV-578

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

Component Parts Location

INFOID:0000000005528685

1.

Center speaker

2.

Front squawker LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear speaker LH

6.

BOSE amp.

7.

Woofer

8.

Rear view camera

9.

Camera control unit

10. Rear speaker RH

11.

Antenna base (antenna amp. and
satellite antenna)

12. Rear door speaker RH

13. Front door speaker RH

14. Front squawker RH

15. Microphone

16. GPS antenna

17. Steering angle sensor

18. Steering switch

19. Auxiliary input jacks

20. iPod connector

21. iPod adapter

22. Preset switch

23. AV control unit

24. Multifunction switch

25. Front display unit

A.

Luggage floor finisher is removed
condition

B.

Luggage side finisher lower RH is re-
moved condition

C.

Combination meter is removed condi-
tion

D.

Spiral cable part

E.

Console finisher is removed condition

JSNIA1096ZZ
