BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000005528668

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-601, "CONSULT-III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-684, "DTC Index"

.

• Reference 3··· Refer to

AV-773, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurring symptom a malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT-III

JSNIA0732GB

AV-564

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORK FLOW

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to

AV-601, "CONSULT-III Func-

tion (MULTI AV)"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check if any DTC is displayed in the self-diagnosis results.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-684, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-773, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END

AV

INSPECTION AND ADJUSTMENT

AV-565

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000005528669

Always correct the center position of the rear view monitor's possible route line after disconnecting the battery
negative terminal.

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000005528670

1.

CORRECTION OF CENTER POSITION OF REAR VIEW MONITOR'S POSSIBLE ROUTE LINE

Refer to the following for details.

>> Refer to

AV-565, "REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION

ADJUSTMENT : Special Repair Requirement"

.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000005528671

When camera control unit is replaced, the center position of rear view monitor possible route line is corrected.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000005528672

1.

CORRECTION OF CENTER POSITION OF REAR VIEW MONITOR'S POSSIBLE ROUTE LINE

Refer to the following for details.

>> Refer to

AV-565, "REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION

ADJUSTMENT : Special Repair Requirement"

.

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT : Description

INFOID:0000000005528673

Adjust the center position of the possible route line of the rear view monitor if it is shifted.

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT : Special Repair Requirement

INFOID:0000000005528674

1.

STEERING OPERATION

Steer the steering wheel to the leftmost and rightmost positions.

>> GO TO 2

2.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

AV-566

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

SYSTEM DESCRIPTION

MULTI AV SYSTEM

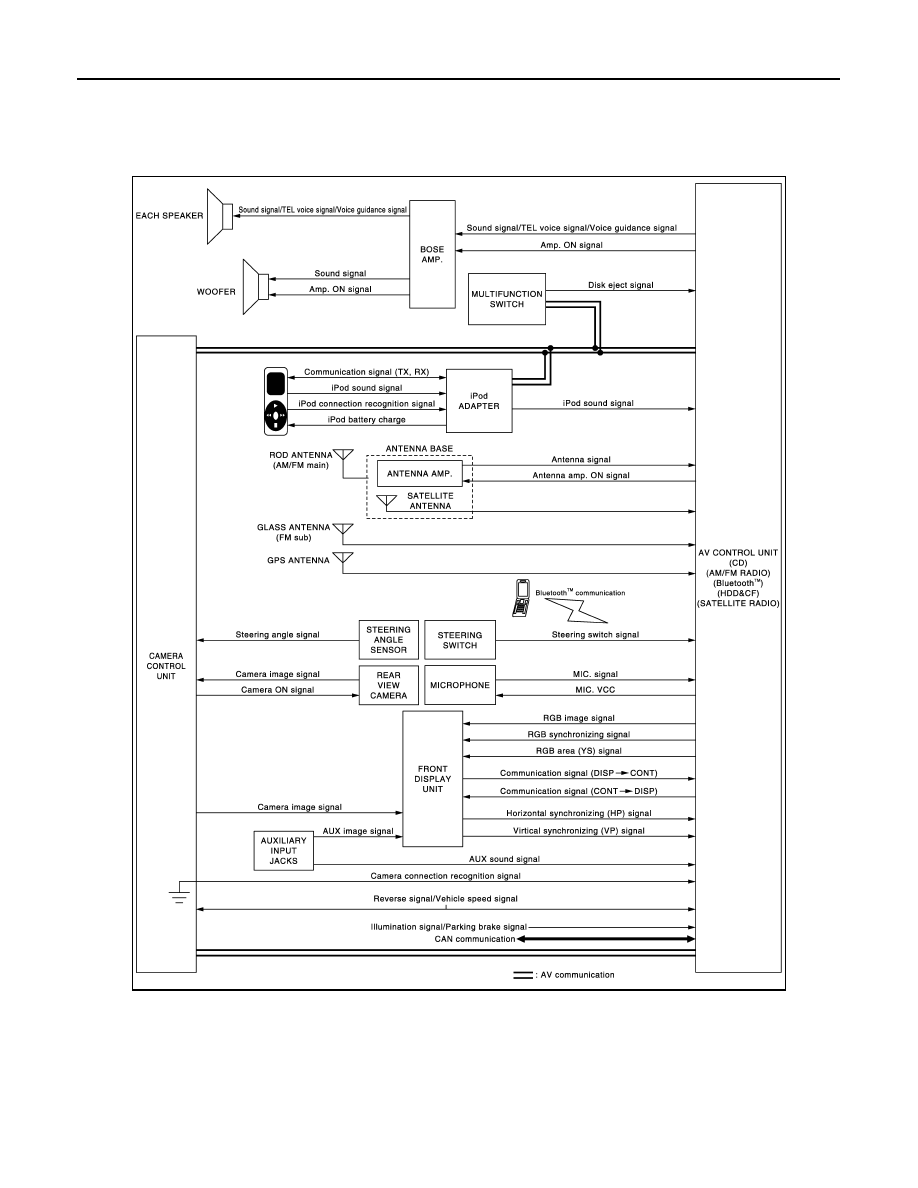

System Diagram

INFOID:0000000005528675

NOTE:
• Woofer, illustrated in the above figure, integrates two woofers and a woofer amp.
• In this section, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION

SWITCH.

JSNIA1070GB
