Nissan Murano Z51. Manual - part 195

AV

TEL ADAPTER UNIT

AV-559

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

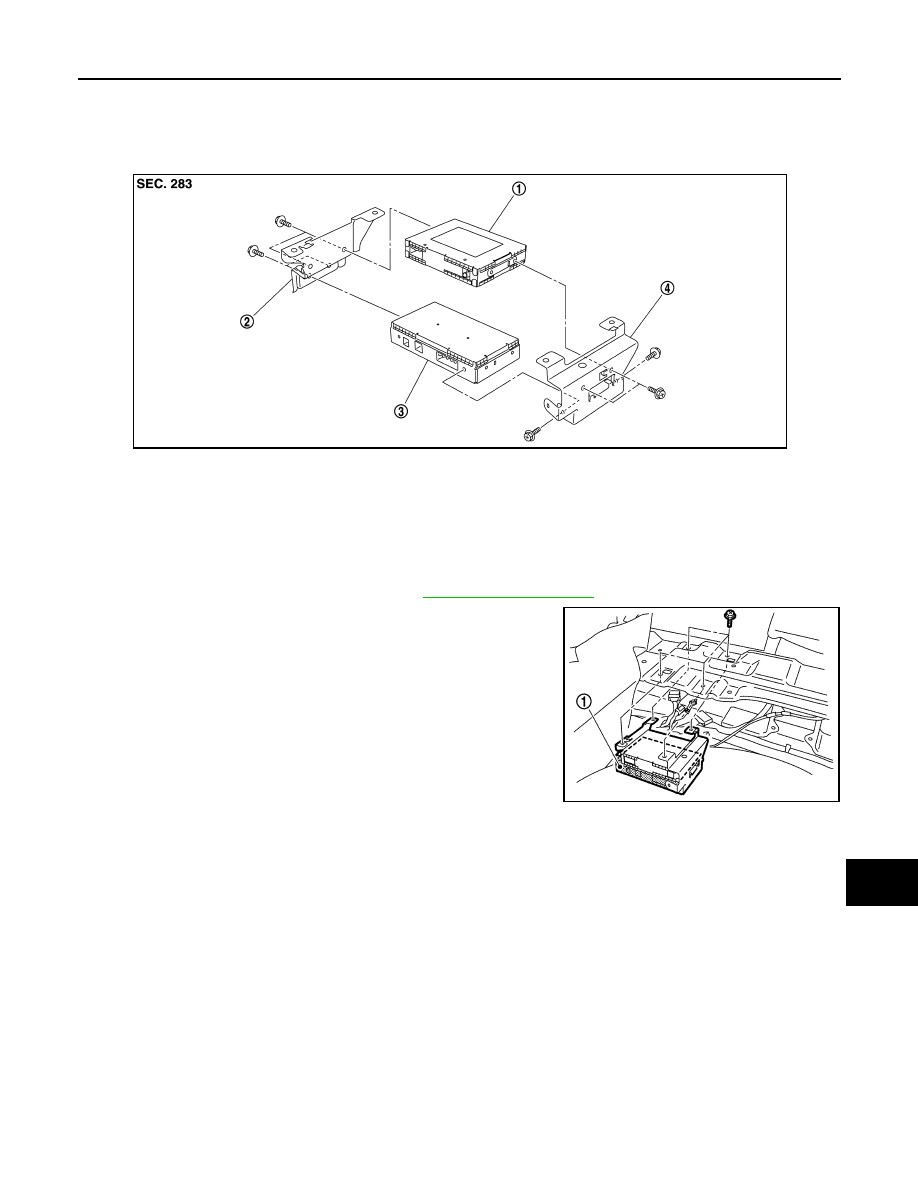

TEL ADAPTER UNIT

Exploded View

INFOID:0000000005528663

Removal and Installation

INFOID:0000000005528664

REMOVAL

1.

Remove luggage floor finisher front. Refer to

INT-34, "Exploded View"

.

2.

Remove TEL adapter unit (1) with satellite radio tuner as a sin-
gle unit from the body.

3.

Remove bracket screws, and them remove TEL adapter unit.

INSTALLATION

Install in the reverse order of removal.

1.

Satellite radio tuner

2.

Bracket LH

3.

TEL adapter unit

4.

Bracket RH

JPNIA0784ZZ

JPNIA0805ZZ

AV-560

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

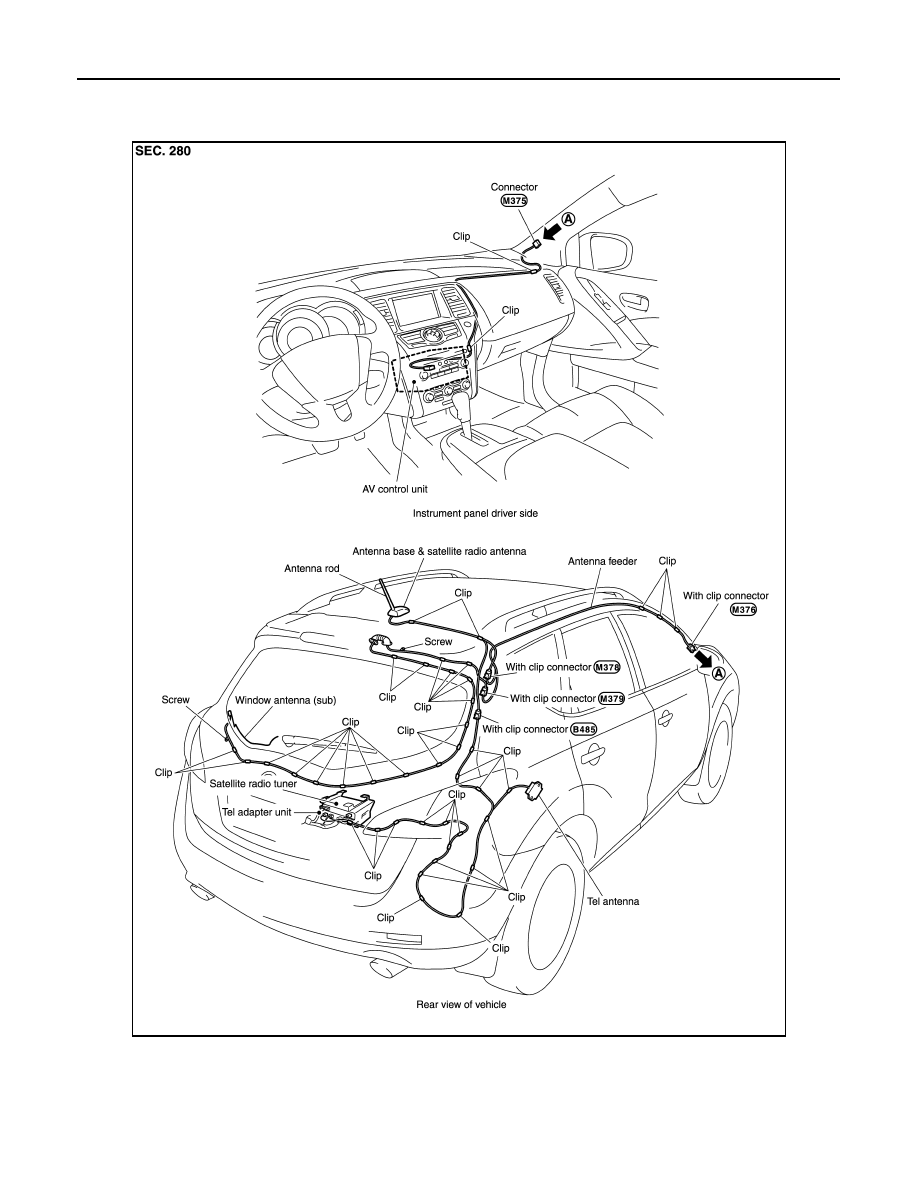

ANTENNA FEEDER (RADIO)

ANTENNA FEEDER (RADIO)

Harness Layout

INFOID:0000000005528665

JPNIA0798GB

AV

ANTENNA FEEDER (SATELLITE RADIO)

AV-561

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

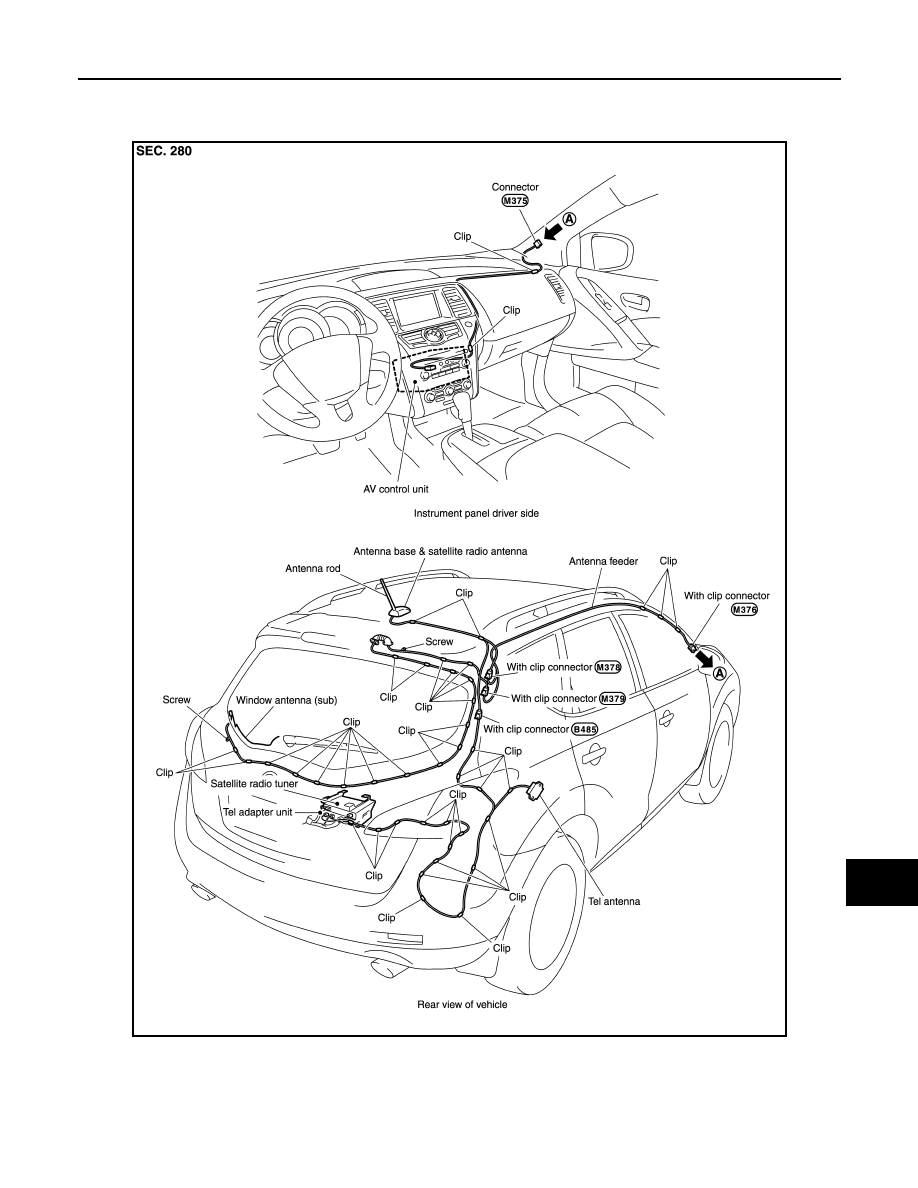

ANTENNA FEEDER (SATELLITE RADIO)

Harness Layout

INFOID:0000000005528666

JPNIA0798GB

AV-562

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

ANTENNA FEEDER (TEL)

ANTENNA FEEDER (TEL)

Harness Layout

INFOID:0000000005528667

JPNIA0798GB
