Nissan Murano Z51. Manual - part 193

AV

AUXILIARY INPUT JACKS

AV-551

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000005528647

REMOVAL

Refer to

IP-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528648

REMOVAL

1.

Remove console rear finisher. Refer to

IP-20, "Exploded View"

.

2.

Remove auxiliary input jacks from center console.

INSTALLATION

Install in the reverse order of removal.

JPNIA0795ZZ

1.

Auxiliary input jacks

AV-552

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000005528649

REMOVAL

Refer to

INL-121, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528650

REMOVAL

1.

Remove map lamp. Refer to

INL-121, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Install in the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

AV

CAMERA CONTROL UNIT

AV-553

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

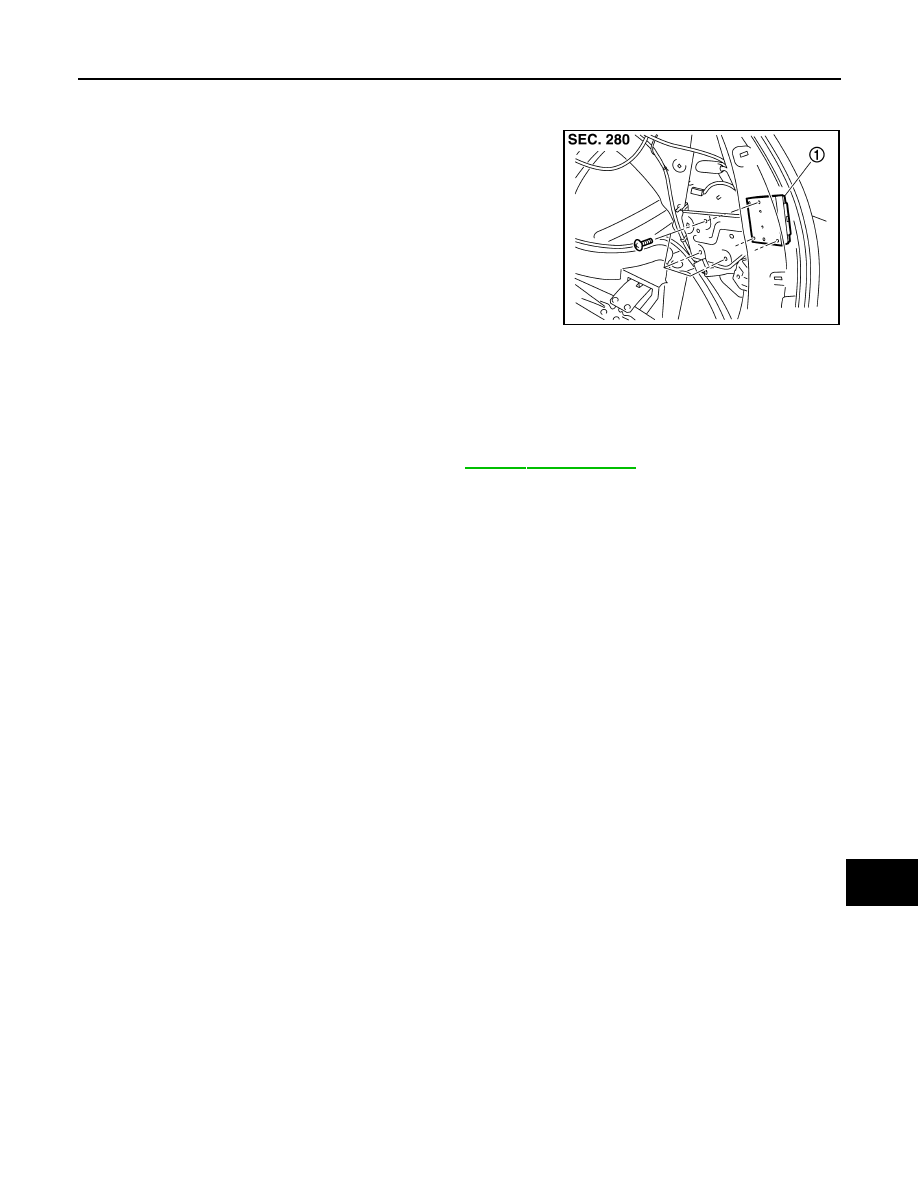

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000005528651

Removal and Installation

INFOID:0000000005528652

REMOVAL

1.

Remove luggage side finisher lower (RH). Refer to

INT-34, "Exploded View"

.

2.

Remove camera control unit screws, disconnect camera control unit connector and remove the camera
control unit.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000005528653

ADJUSTMENT

There may be a misalignment of possible route line center position of rear view monitor after removing camera
control unit. Therefore, correct neutral position with the following procedure.

1.

Steer the steering wheel to the leftmost and rightmost ends.

2.

Drive vehicle at 30 km/h (18.6 MPH) min. speed at least 100 m (328.1 ft).

JPNIA0796ZZ

1.

Camera control unit

AV-554

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000005528654

Removal and Installation

INFOID:0000000005528655

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove finisher.

3.

Remove rear view camera screws, disconnect rear view camera connector and remove rear view camera
from back door assembly.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000005528656

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

1.

Rear view camera

2.

Finisher

JPNIA0797ZZ
