Nissan Murano Z51. Manual - part 192

AV

PRESET SWITCH

AV-547

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

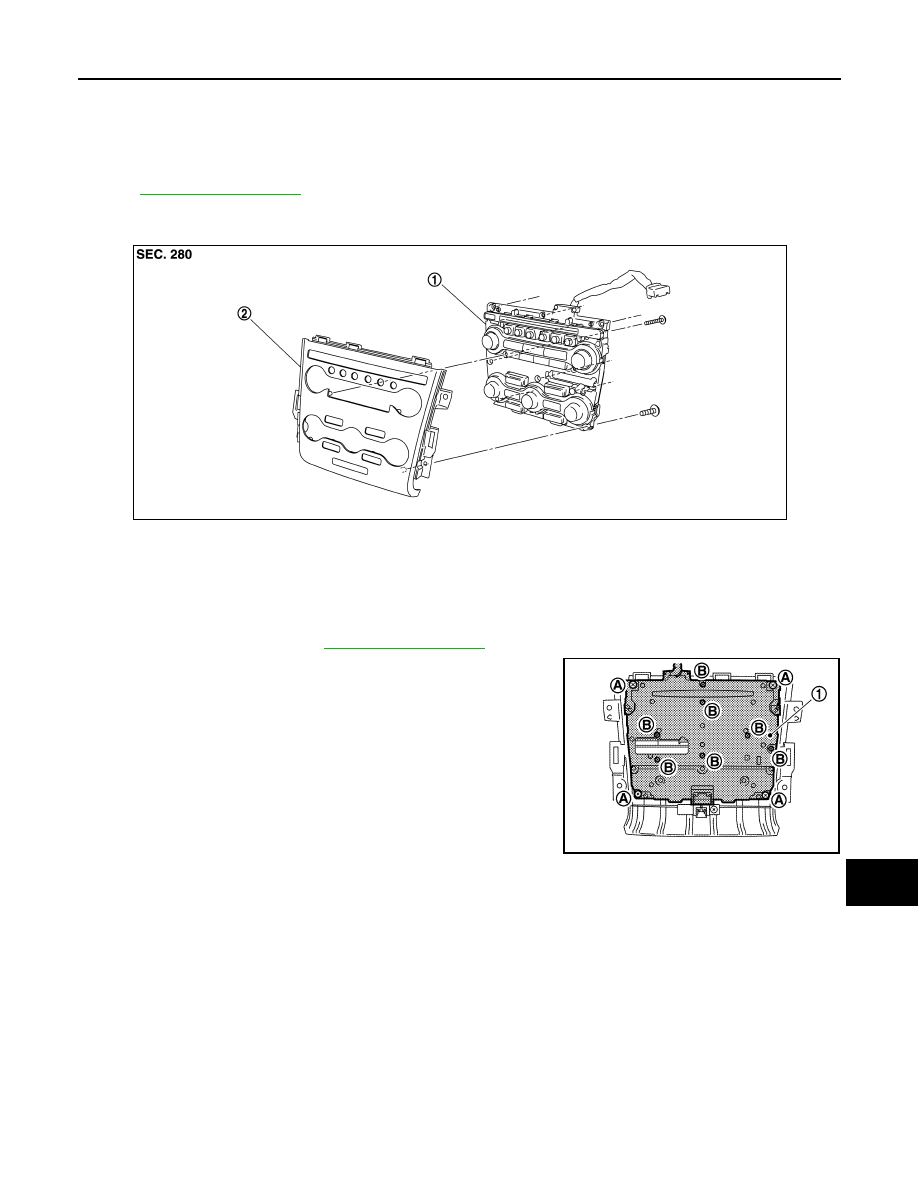

PRESET SWITCH

Exploded View

INFOID:0000000005528639

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528640

REMOVAL

1.

Remove cluster lid C. Refer to

IP-12, "Exploded View"

.

2.

Remove preset switch screws (A), (B), remove preset switch (1)
from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

1.

Preset switch

2.

Cluster lid C

JPNIA0790ZZ

JPNIA0791ZZ

AV-548

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000005528641

Refer to

ST-17, "Exploded View"

.

Removal and Installation

INFOID:0000000005528642

REMOVAL

Refer to

ST-17, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

AV

IPOD ADAPTER

AV-549

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

IPOD ADAPTER

Exploded View

INFOID:0000000005528643

Removal and Installation

INFOID:0000000005528644

REMOVAL

1.

Remove front console pocket assembly. Refer to

IP-20, "Exploded View"

.

2.

Disconnect iPod adapter connector, remove iPod adapter screws and remove the iPod adapter.

INSTALLATION

Install in the reverse order of removal.

JPNIA0788ZZ

1.

iPod adapter

AV-550

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

IPOD CONNECTOR

IPOD CONNECTOR

Exploded View

INFOID:0000000005528645

REMOVAL

Refer to

IP-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528646

REMOVAL

1.

Remove center console. Refer to

IP-20, "Exploded View"

.

2.

Press the pawl from the back of center console to remove iPod connector.

INSTALLATION

Install in the reverse order of removal.

JPNIA0787ZZ

1.

iPod connector
