Nissan Murano Z51. Manual - part 190

AV

FRONT DOOR SPEAKER

AV-539

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

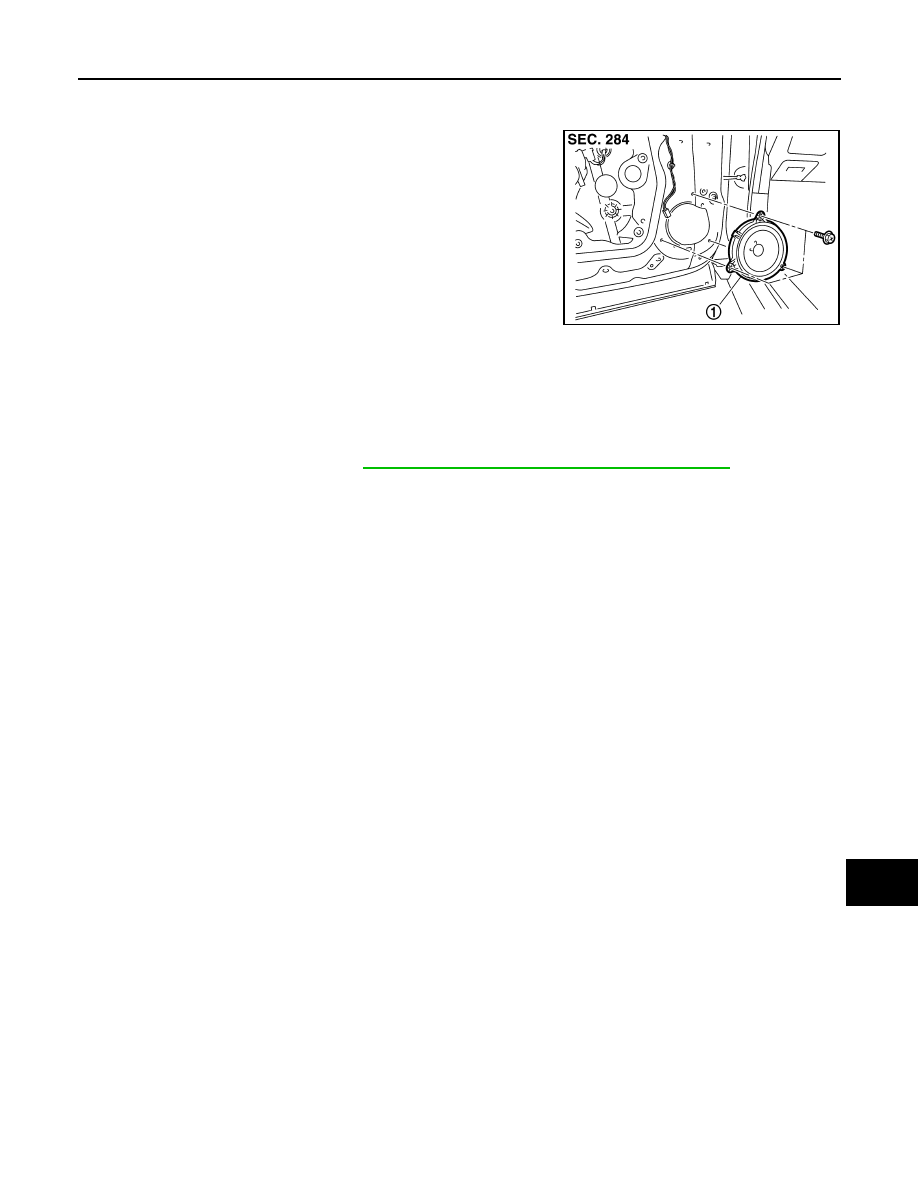

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000005528623

Removal and Installation

INFOID:0000000005528624

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0773ZZ

1.

Front door speaker

AV-540

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

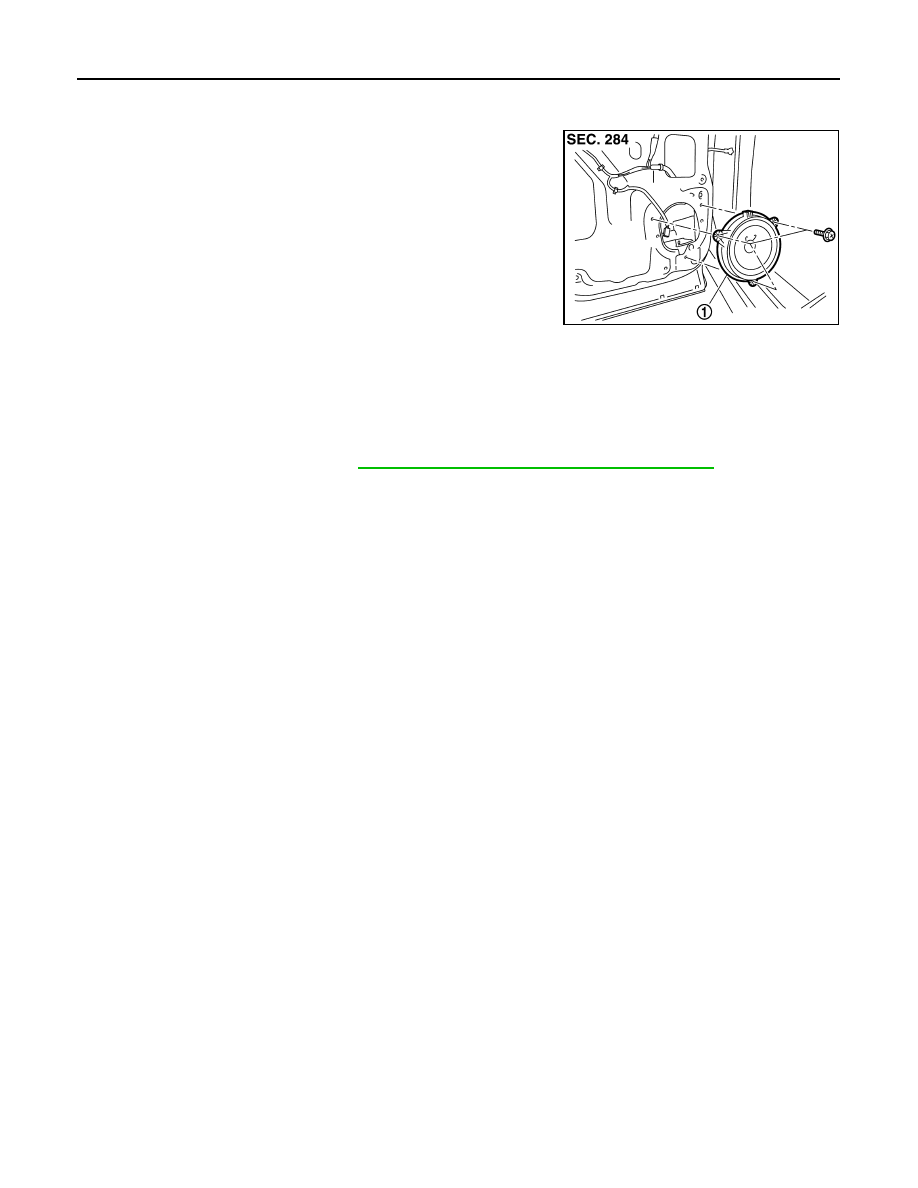

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000005528625

Removal and Installation

INFOID:0000000005528626

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0774ZZ

1.

Rear door speaker

AV

FRONT SQUAWKER

AV-541

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT SQUAWKER

Exploded View

INFOID:0000000005528627

Removal and Installation

INFOID:0000000005528628

REMOVAL

1.

Remove speaker grille. Refer to

IP-12, "Exploded View"

.

2.

Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0775ZZ

1.

Front squawker

AV-542

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

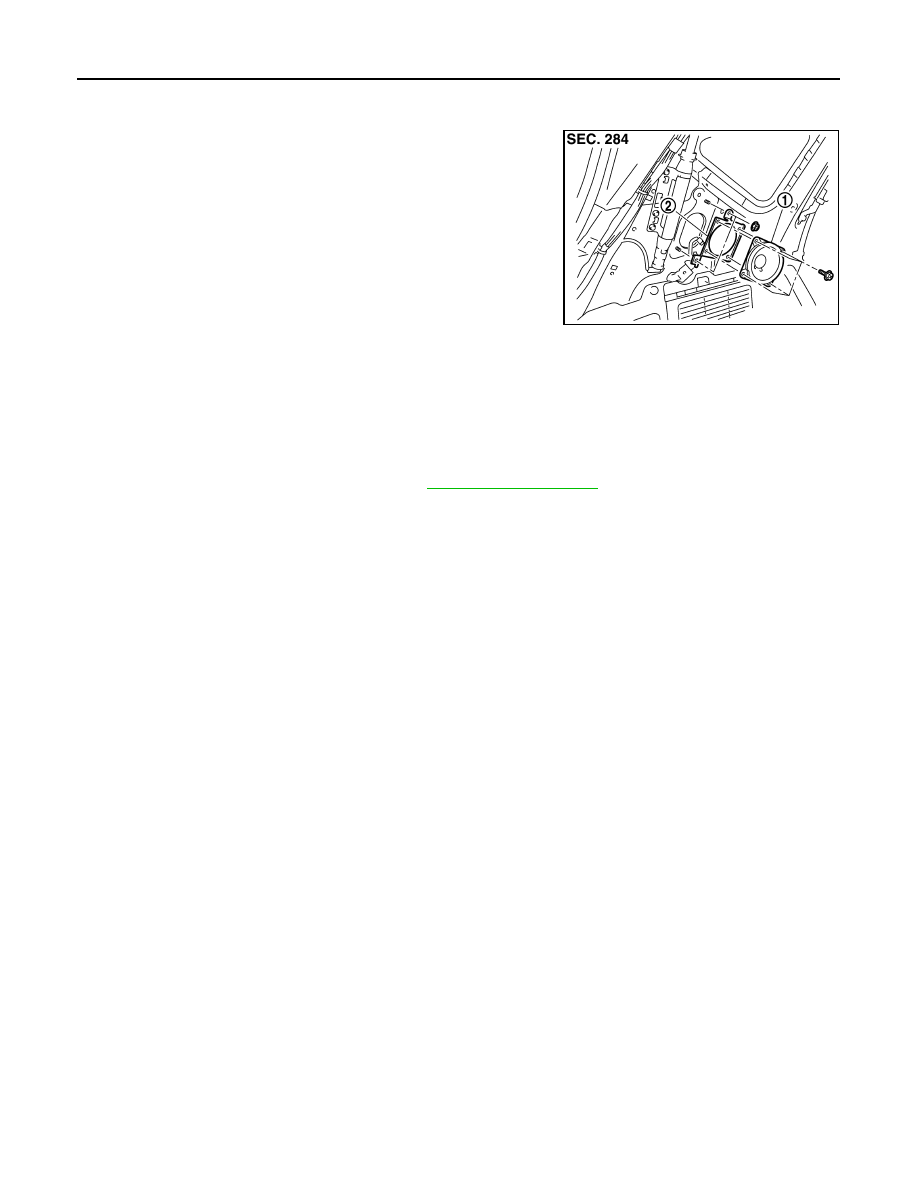

REAR SPEAKER

REAR SPEAKER

Exploded View

INFOID:0000000005528629

Removal and Installation

INFOID:0000000005528630

REMOVAL

1.

Remove luggage side finisher upper. Refer to

INT-34, "Exploded View"

.

2.

Remove rear speaker screws, lift up the rear speaker and disconnect rear speaker connector. Then
remove the rear speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0781ZZ

1.

Rear speaker

2.

Rear speaker bracket
