FRONT DISPLAY UNIT

Exploded View

INFOID:0000000005528615

Removal and Installation

INFOID:0000000005528616

REMOVAL

1.

Remove center ventilator assembly. Refer to

IP-12, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Install in the reverse order of removal.

JPNIA0779ZZ

1.

Front display unit

AV-536

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR DISPLAY UNIT

REAR DISPLAY UNIT

Exploded View

INFOID:0000000005528617

REMOVAL

Removal and Installation

INFOID:0000000005528618

REMOVAL

1.

Insert cloth-covered driver into gaps between rear display cover
(1) and headlining, and remove rear display cover.

2.

Disconnect rear display unit connector, remove rear display unit screws and remove the rear display unit.

INSTALLATION

Install in the reverse order of removal.

1.

Rear display unit

2.

Rear display cover

JPNIA0794ZZ

: Vehicle front

SKIB4354E

AV

VIDEO DISTRIBUTOR

AV-537

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

VIDEO DISTRIBUTOR

Exploded View

INFOID:0000000005528619

Removal and Installation

INFOID:0000000005528620

REMOVAL

1.

Remove lower console finisher LH and lower console finisher RH. Refer to

IP-20, "Exploded View"

.

2.

Disconnect video distributor connector, remove video distributor screws and remove the video distributor.

INSTALLATION

Install in the reverse order of removal.

JPNIA0793ZZ

1.

Video distributor

AV-538

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD PLAYER

DVD PLAYER

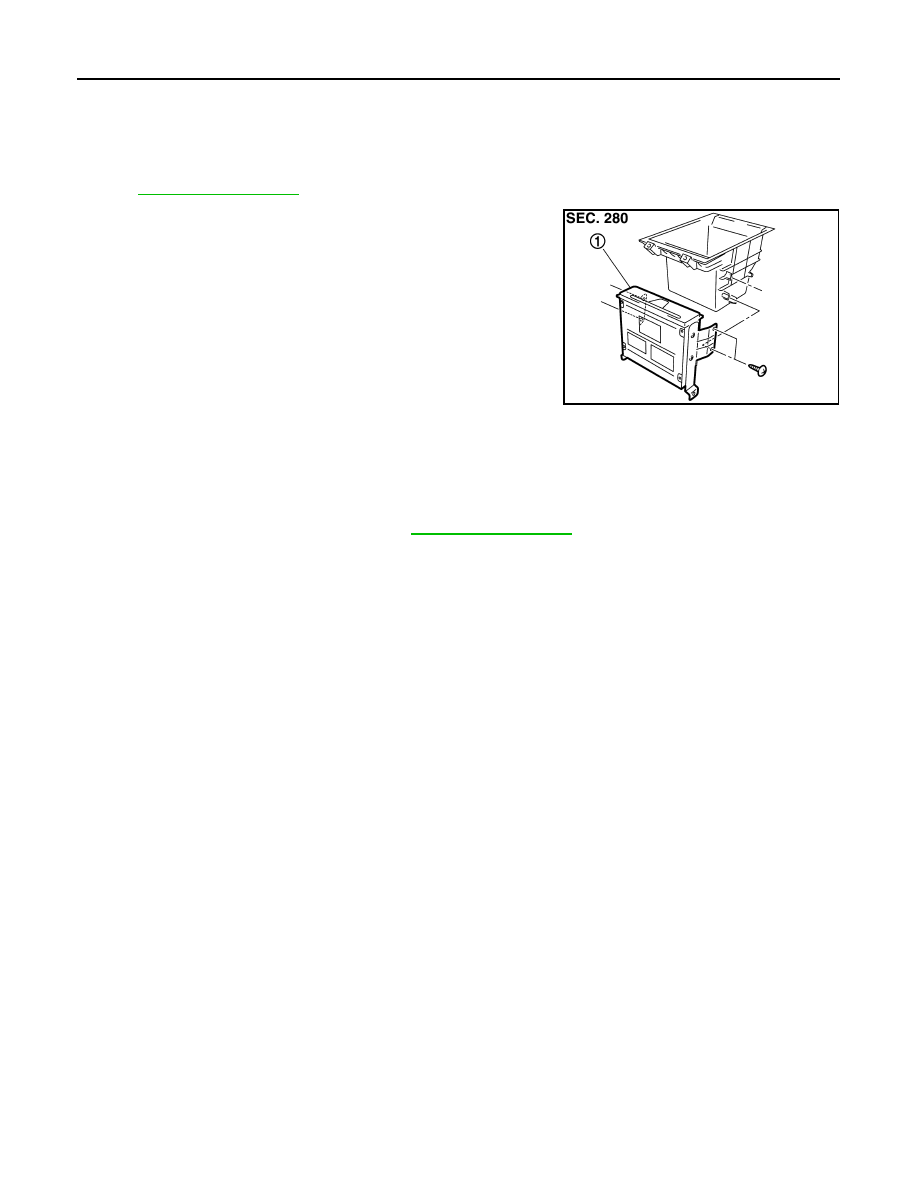

Exploded View

INFOID:0000000005528621

REMOVAL

Refer to

IP-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528622

REMOVAL

1.

Remove center console assembly. Refer to

IP-20, "Exploded View"

.

2.

Disconnect DVD player connector, remove DVD player screws and remove the DVD player.

INSTALLATION

Install in the reverse order of removal.

JPNIA0792ZZ

1.

DVD player
