Nissan Murano Z51. Manual - part 1521





WT-22

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

TRANSMITTER WAKE UP OPERATION

TRANSMITTER WAKE UP OPERATION : Description

INFOID:0000000005575979

This procedure must be done after replacement of a transmitter, BCM, or rotation of wheels.

TRANSMITTER WAKE UP OPERATION : Special Repair Requirement

INFOID:0000000005575980

1.

TRANSMITTER WAKE-UP PROCEDURE

1.

Turn the ignition switch ON.

2.

Contact the transmitter activation tool (J-45295) (1) to the side of
the tire at the location to the transmitter.

3.

Press and hold the activation tool button while pushing the tool
to the tire surface. (approximately for 5 seconds)

CAUTION:

Perform the wake-up procedure starting from the vehicle
front left wheel, then repeat the procedure in the order of
the front right wheel, rear right wheel, and rear left wheel.

4.

Check that the low tire pressure warning lamp blinks in the pattern shown as per the following. The pattern
indicates that the transmitter wake-up procedure for the wheel is completed.

5.

Check that the turn signal lamps blink twice when the transmitter wake-up procedure for all wheels is com-
pleted.

6.

Check that the low tire pressure warning lamp turns OFF, after the transmitter wake-up procedure is com-
pleted for all wheels and turns OFF.

Is the transmitter wake-up procedure completed?

YES

>> Perform the transmitter ID registration procedure. Refer to

WT-22, "ID REGISTRATION PROCE-

DURE : Special Repair Requirement"

NO

>> Perform trouble diagnosis for the transmitter. Refer to

WT-27, "Diagnosis Procedure"

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE : Description

INFOID:0000000005575981

This procedure must be done after replacing or rotating wheels, replacing transmitter or BCM.

ID REGISTRATION PROCEDURE : Special Repair Requirement

INFOID:0000000005575982

1.

TRANSMITTER ID REGISTRATION PROCEDURE

With CONSULT-III.

NNEIC0020ZZ

SEIA0762E

INSPECTION AND ADJUSTMENT

WT-23

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

1.

Display the “WORK SUPPORT” screen and select “ID REGIST”.

Is the transmitter activation tool (J-45295) used for the transmitter ID registration procedure?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

TRANSMITTER ID REGISTRATION PROCEDURE (WITH THE TRANSMITTER ACTIVATION TOOL)

1.

Turn the ignition switch ON.

2.

Select the start button on the “ID REGIST” screen.

3.

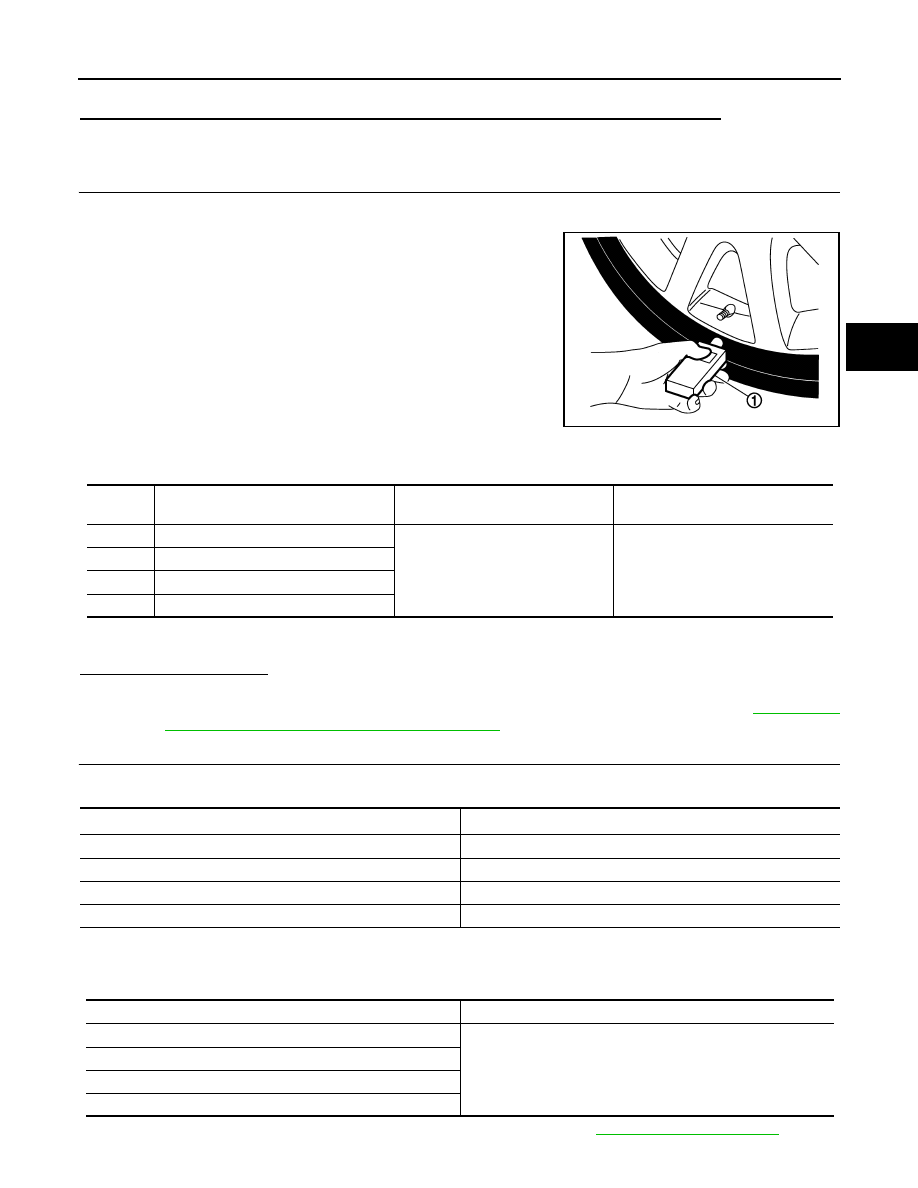

Contact the transmitter activation tool (J-45295) (1) to the side of
the tire at the location to the transmitter.

4.

Press and hold the activation tool button while pushing the tool
to the tire surface. (approximately for 5 seconds)

CAUTION:

Perform the ID registration procedure starting from the
vehicle front left wheel, then repeat the procedure in the
order of the front right wheel, rear right wheel, and rear left
wheel.

5.

When ID registration is completed, check the following pattern at each wheel.

6.

After the ID registration procedure for all wheels is completed, press “END” to end ID registration, and
check that ID registration for all wheels is completed.

Is the check result normal?

YES

>> ID registration END.

NO

>> Performs trouble-diagnosis of the Tire Pressure Monitoring System (TPMS). Refer to

WT-12, "AIR

PRESSURE MONITOR : Diagnosis Description"

3.

TRANSMITTER ID REGISTRATION PROCEDURE (WITHOUT THE TRANSMITTER ACTIVATION TOOL)

1.

Adjust the tire pressure for all wheels to match the list below.

2.

Drive the vehicle at a speed at more than 40 km/h (25 MPH) for 3 minutes or more, then perform the
transmitter ID registration procedure.

3.

After ID registration for all wheels is completed, press “END” to end ID registration.

4.

Adjust the tire pressures for all wheels to the specified value. Refer to

WT-60, "Tire Air Pressure"

NNEIC0020ZZ

Se-

quence

ID registration position

Turn signal lamp

CONSULT-III

1

Front left wheel

2 blinks

“Red”

“Green”

2

Front right wheel

3

Rear right wheel

4

Rear left wheel

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 35)

Front RH

220 (2.2, 31)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)

ID registration position

CONSULT-III

Front LH

“Red”

“Green”

Front RH

Rear RH

Rear LH

WT-24

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

Is ID registrations for all wheels completed?

YES

>> ID registration END.

NO

>> Performs trouble-diagnosis of the Tire Pressure Monitoring System (TPMS). Refer to

WT-12, "AIR

PRESSURE MONITOR : Diagnosis Description"

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

WT-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DTC/CIRCUIT DIAGNOSIS

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

Description

INFOID:0000000005575983

When the tire pressure monitoring system detects low inflation pressure, the low tire pressure warning lamps
in the combination meter comes on.

DTC Logic

INFOID:0000000005575984

DTC DETECTION LOGIC

NOTE:

182.7 kPa (1.9 kg/cm

2

, 26 psi): Standard air pressure is for 230 kPa (2.3 kg/cm

2

,33 psi) vehicles.

DTC CONFIRMATION PROCEDURE

1.

DTC REPRODUCTION PROCEDURE

With CONSULT-III

1.

Turn the ignition switch ON.

CAUTION:

Never start the engine.

2.

Check the tire pressure for all wheels and adjust to the specified value. Refer to

WT-60, "Tire Air Pres-

sure"

3.

Perform “SELF-DIAG RESULTS” in “AIR PRESSURE MONITOR” of “BCM”.

Is DTC “C1704”, “C1705”, “C1706”, “C1707” detected?

YES

>> Perform trouble diagnosis. Refer to

WT-25, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000005575985

1.

CHECK TIRE PRESSURE

Check the internal pressure of all wheels. Refer to

WT-60, "Tire Air Pressure"

Is the inspection result normal?

YES

>> Replace the DTC-detected malfunctioning transmitter. Refer to

WT-57, "Exploded View"

.

NO

>> After adjusting the air pressure, GO TO 2.

2.

CHECK TIRE PRESSURE SIGNAL

With CONSULT-III

1.

Drive for 3 minutes at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.

2.

Perform “DATA MONITOR” in “AIR PRESSURE MONITOR” of “BCM”.

3.

Select “BCM” in “DATA MONITOR”, and check that the tire pressures match the standard value.

DTC

Display item

Malfunction detected condition

Possible cause

C1704

LOW PRESSURE FL

Front LH tire pressure drops to * kPa (* kg/cm

2

, * psi) or less. [NOTE]

• Low tire pressure
• Transmitter mal-

function

C1705

LOW PRESSURE FR

Front RH tire pressure drops to * kPa (* kg/cm

2

, * psi) or less. [NOTE]

C1706

LOW PRESSURE RR

Rear RH tire pressure drops to * kPa (* kg/cm

2

, * psi) or less. [NOTE]

C1707

LOW PRESSURE RL

Rear LH tire pressure drops to * kPa (* kg/cm

2

, * psi) or less. [NOTE]

Monitor item

Condition

Displayed value

AIR PRESS FL

Drive for 3 minutes at a speed of 40 km/h (25 MPH) or
more, then drive normally for 10 minutes.

Internal pressure of tires

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL
