Nissan Murano Z51. Manual - part 1193





RF-112

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

WIND DEFLECTOR

Exploded View

INFOID:0000000005516878

Removal and Installation

INFOID:0000000005516879

REMOVAL

1.

Fully open the glass lid.

2.

Remove the wind deflector.

1.

Weather-strip

2.

Wind deflector

3.

Sunroof frame

4.

Front sunshade

5.

Sunshade cover

6.

Rear sunshade

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1902ZZ

WIND DEFLECTOR

RF-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

• Push and slide the fastener as shown by the arrows (1) and

(2) in the figure to remove.

• Remove the screws (A), and then remove wind deflector (1).

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMKIA2192ZZ

: Vehicle front

JMKIA1912ZZ

RF-114

< REMOVAL AND INSTALLATION >

SUNSHADE

SUNSHADE

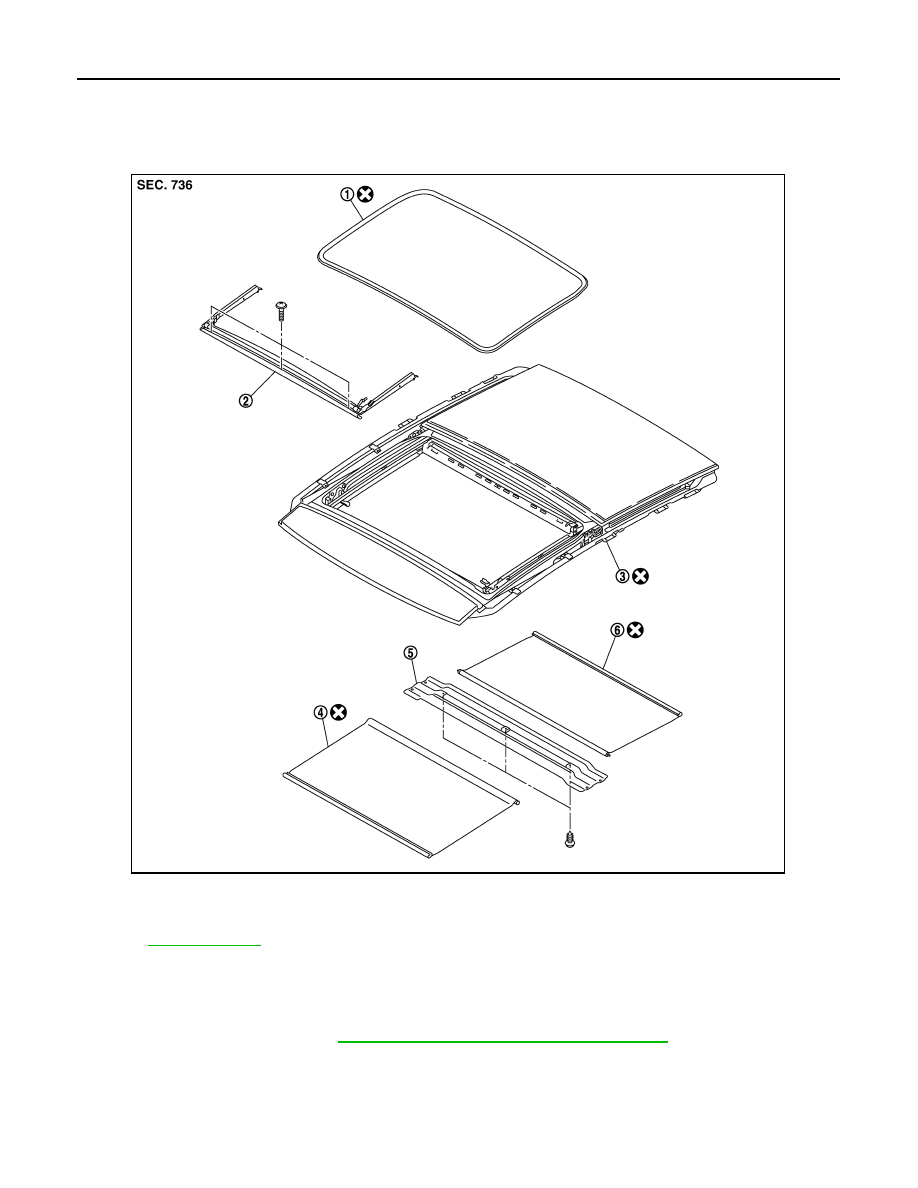

Exploded View

INFOID:0000000005516880

Removal and Installation

INFOID:0000000005516881

REMOVAL

1.

Remove the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

2.

Remove the sunshade cover.
• Remove the sunroof brackets (LH/RH).
• Remove the screw, and then sunshade cover.

3.

Remove the front sunshade and rear sunshade.

1.

Weather-strip

2.

Wind deflector

3.

Sunroof frame

4.

Front sunshade

5.

Sunshade cover

6.

Rear sunshade

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1902ZZ

SUNSHADE

RF-115

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

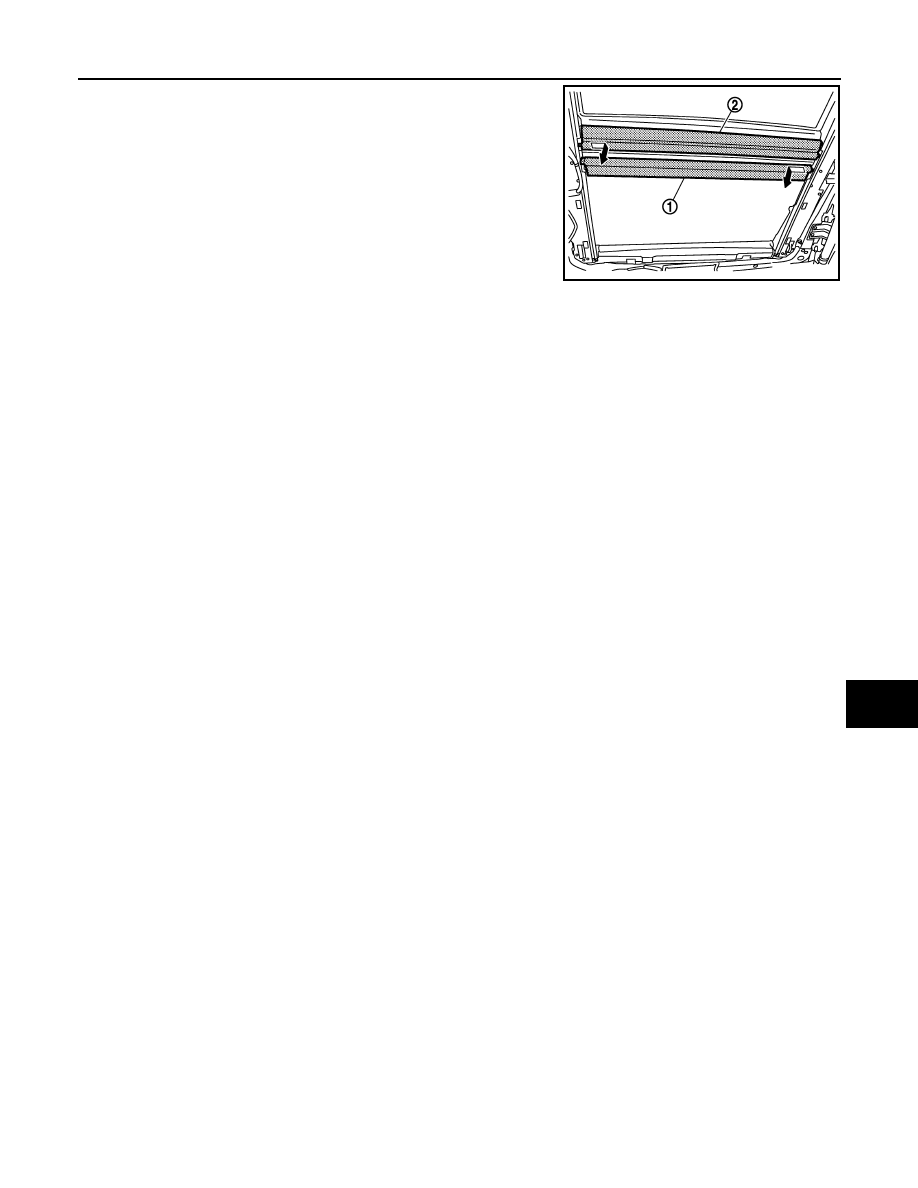

Remove it to the lower part while pushing a front sunshade (1)
and rear sunshade (2) to the arrow direction of the figure.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful not to release the spring when installing the sunshade.

JMKIA1910ZZ
