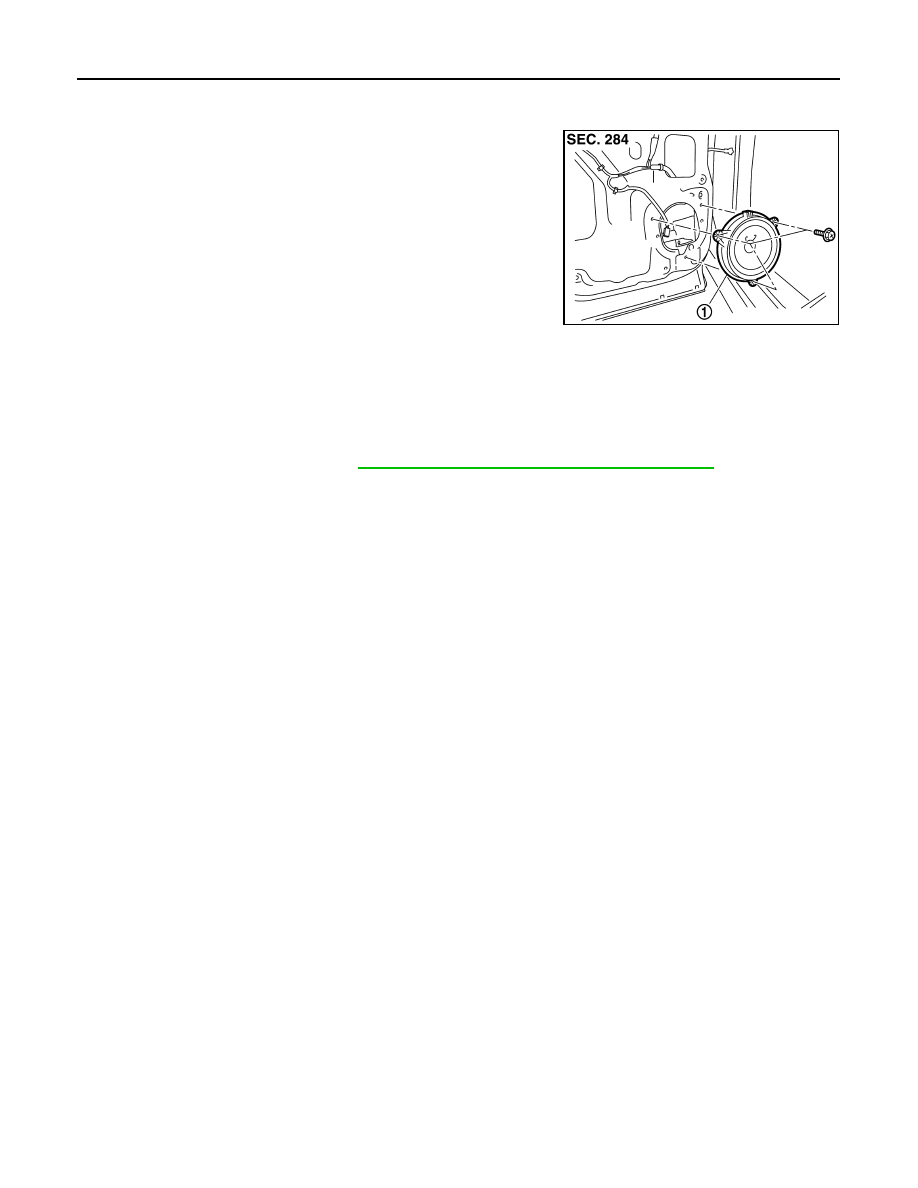

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000005528439

Removal and Installation

INFOID:0000000005528440

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker screws, then disconnect front door speaker connector and remove front door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0773ZZ

1.

Front door speaker

AV-44

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000005528441

Removal and Installation

INFOID:0000000005528442

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0774ZZ

1.

Rear door speaker

AV

FRONT SQUAWKER

AV-45

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT SQUAWKER

Exploded View

INFOID:0000000005528443

Removal and Installation

INFOID:0000000005528444

REMOVAL

1.

Remove speaker grille. Refer to

IP-12, "Exploded View"

.

2.

Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0775ZZ

1.

Front squawker

AV-46

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000005528445

Refer to

ST-17, "Exploded View"

.

Removal and Installation

INFOID:0000000005528446

REMOVAL

Refer to

ST-17, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.
