• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0306E

PKIA0307E

AV-40

< PREPARATION >

[BASE AUDIO]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000005528434

Tool name

Description

Power tool

Loosening screws

PBIC0191E

AV

AUDIO UNIT

AV-41

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

AUDIO UNIT

Exploded View

INFOID:0000000005528435

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528436

REMOVAL

1.

Remove cluster lid C lower. Refer to

IP-12, "Exploded View"

.

2.

Remove instrument stay cover LH and instrument stay cover RH Refer to

IP-12, "Exploded View"

.

3.

Remove audio unit with an A/C auto amp. as a single unit from the body.

4.

Remove bracket screws, and then remove audio unit.

INSTALLATION

Install in the reverse order of removal.

1.

Audio unit

2.

Bracket LH

3.

A/C auto amp.

4.

Bracket RH

JPNIA0770ZZ

AV-42

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

AUDIO DISPLAY

AUDIO DISPLAY

Exploded View

INFOID:0000000005528437

Removal and Installation

INFOID:0000000005528438

REMOVAL

1.

Remove center ventilator assembly. Refer to

IP-12, "Exploded View"

.

2.

Remove audio display unit and A/C display with bracket as a
single unit (1).

3.

Remove bracket screws, and then remove audio display unit.

INSTALLATION

Install in the reverse order of removal.

1.

Audio display unit

2.

Bracket

3.

A/C display

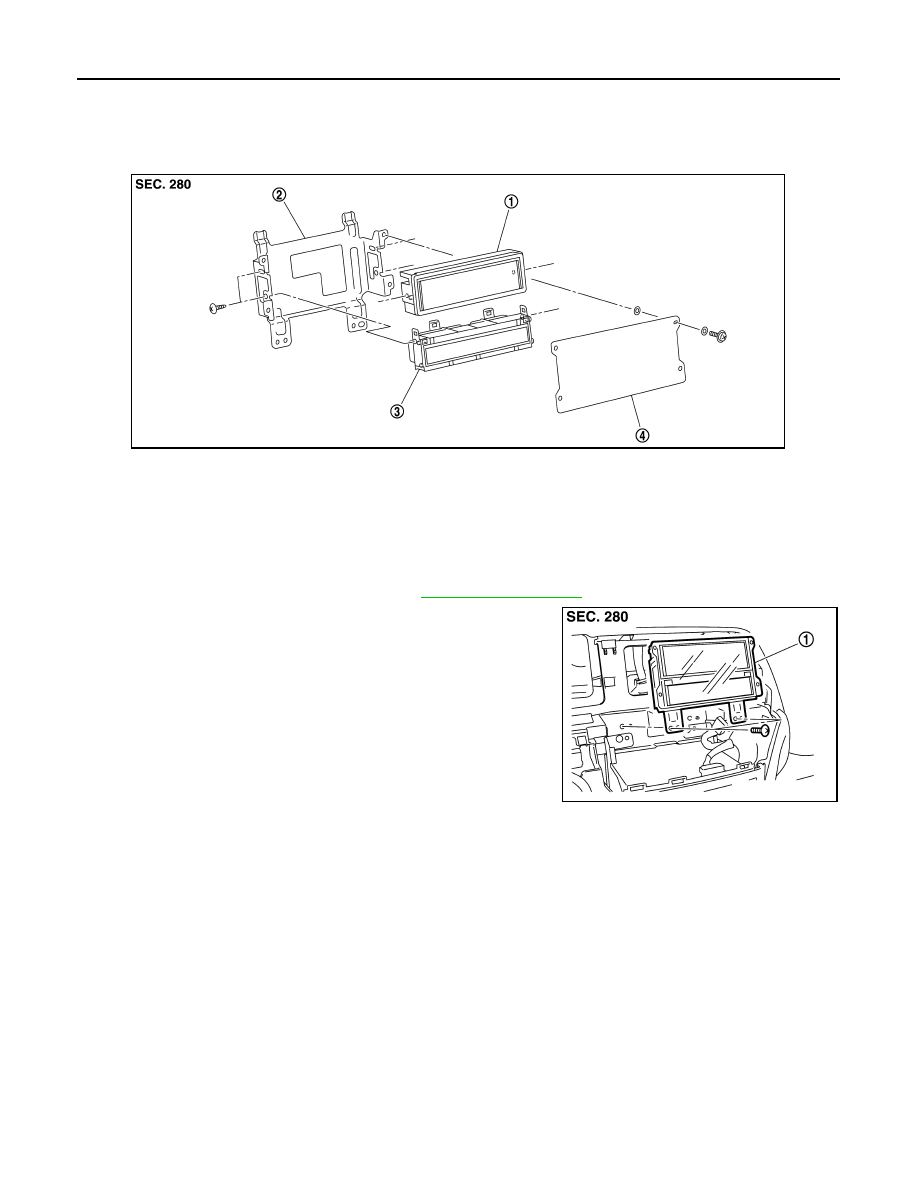

4.

Front cover

JPNIA0771ZZ

JPNIA0772ZZ
